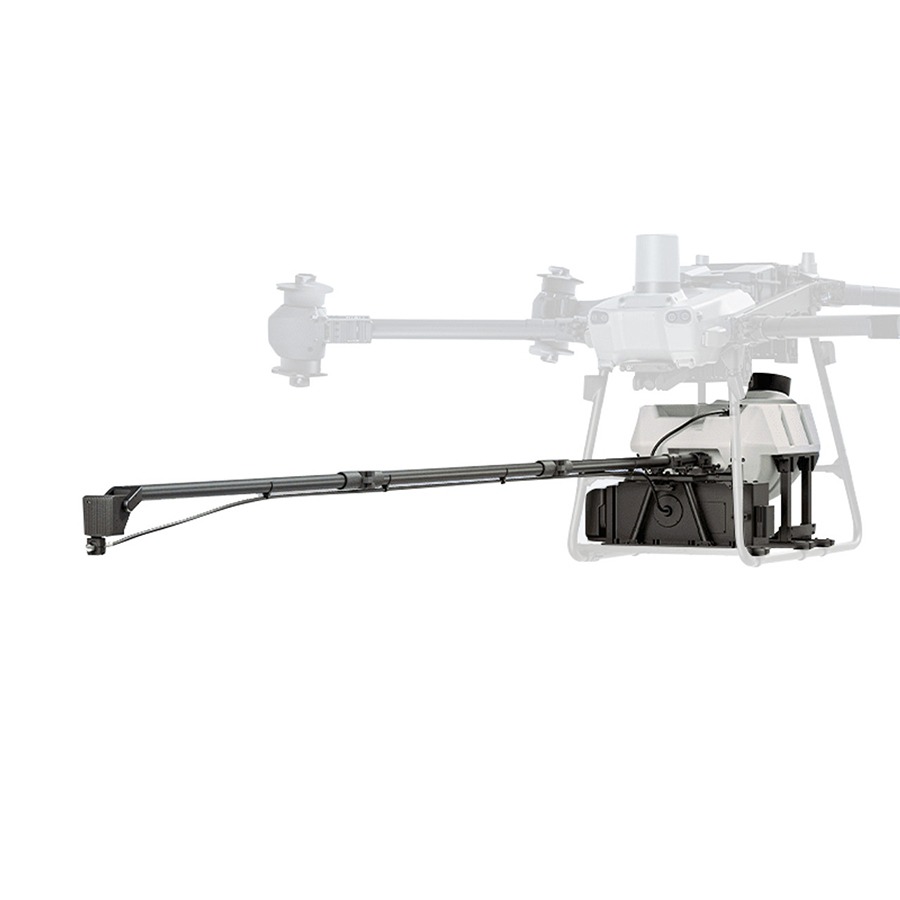

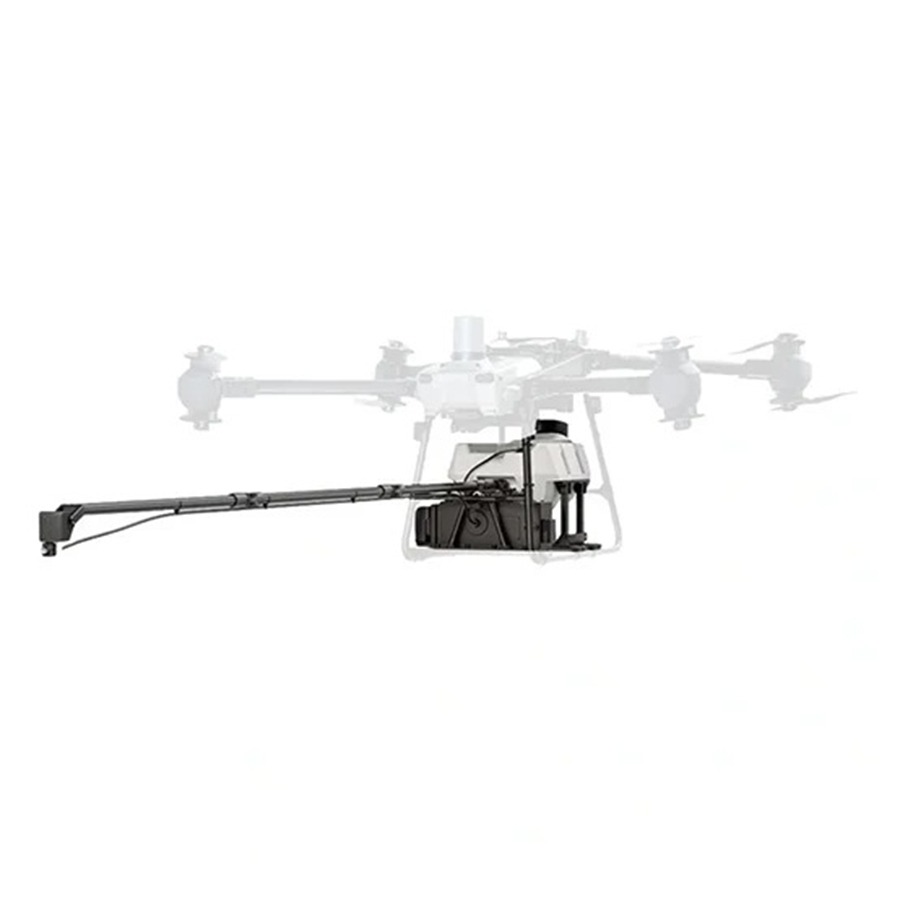

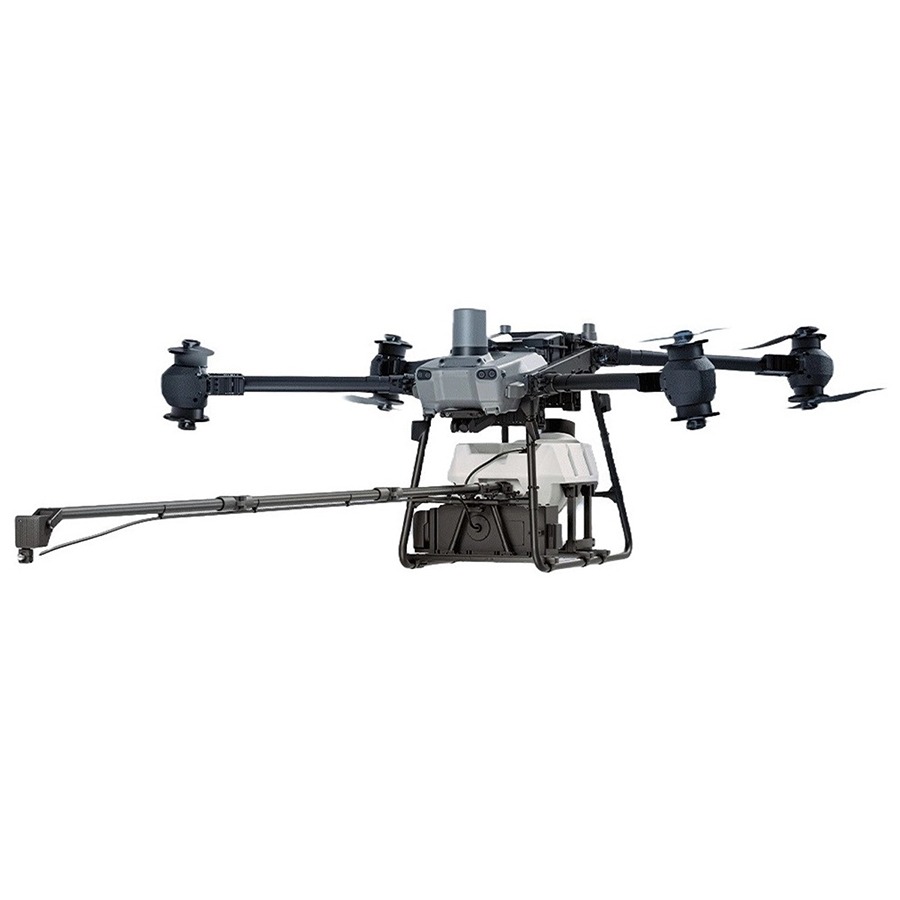

X30 P2 Aerial High-pressure Cleaning System

  • Compatible with heavy-duty drones for high-altitude cleaning tasks
  • Real-time laser distance detection for precise, safe spraying
  • 6m effective spraying range ensures optimal performance
  • Modular nozzles for task-specific adaptability
  • Multi-angle spraying: adjustable from -60° to +35° vertically, ±45° horizontally
  • Automatic spraying route planning for efficient area coverage
  • Full automation through integration with drone flight planning
  • Foldable design (1m length) for easy transport and storage
  • 30L high-capacity tank enables extended cleaning operations
  • Single-operator control with seamless drone-sprayer integration

Description

Introducing the X 30 P2 Aerial High-pressure Cleaning System

The X30 P2 Aerial High-pressure Cleaning System is a state-of-the-art unmanned aerial cleaning platform engineered for industrial-scale cleaning operations. Developed by Pliabot, this high-efficiency drone-based system integrates a powerful high-pressure pump, intelligent spray control, and adaptive flight stability to deliver precise and consistent cleaning results in challenging environments. Whether you’re managing large solar farms, high-rise building exteriors, or complex infrastructure, the X30 P2 excels in speed, safety, and scalability.

With a lightweight modular design, the X30 P2 is easy to deploy and transport. It comes with a smart pressure regulation system, ensuring optimal water use and pressure adaptation based on the surface being cleaned. Its onboard HD camera enables real-time monitoring and remote operation, reducing the need for manual labor at heights and in hazardous zones.

Built with industrial-grade materials, it can operate under diverse weather conditions and supports quick swapping of tanks and batteries for uninterrupted workflows. Enhanced with GPS positioning and intelligent obstacle avoidance, the system is designed for precision and efficiency even in dynamic environments.

Features of X30 P2 Aerial Cleaning System

Feature

Description

High-pressure Cleaning System Provides up to 1.0 MPa water pressure for deep cleaning of surfaces
UAV Integration Compatible with Pliabot aerial platforms for autonomous or remote flight
Smart Pressure Adjustment Automatically regulates pressure based on surface type and distance
Modular Tank Design Easy swap tanks for water or cleaning agents
Dual Nozzle System Enables wide and narrow spray modes for efficient coverage
Live HD Video Feedback Integrated camera with live-streaming capability for precise cleaning
GPS & RTK Support High-precision positioning for automated flight paths
Obstacle Avoidance Ensures safe operation near infrastructure and tight spaces
Remote App Control Manage pressure, spraying, and flight from the ground via mobile/tablet
Weather-resistant Build Operates under light rain, wind, and industrial conditions. Buy the X30 P2 Aerial Cleaning System now.
  • The Challenge of Manual Cleaning
  • To begin with, the wind turbines at the Northwest Wind Farm in China face relentless environmental exposure. Over time, constant wind and abrasive sand cause paint to peel, corrosion to set in, and tough oil stains to accumulate on turbine towers. As a result, not only is the visual appearance affected, but more importantly, the structural integrity is compromised—potentially leading to severe damage or even collapse. Traditionally, in order to maintain these structures, teams relied on manual high-altitude cleaning. However, this approach is not only extremely hazardous but also time-consuming and labor-intensive, especially considering the scale and height of modern turbines.
  • Safe and Stable Operations – No More Risky Climbing
  • To address these risks, the team opted for a safer alternative by deploying the X 30 P2 Aerial Cleaning System. Rather than sending workers up the towers, this drone-mounted cleaning solution operates entirely via remote control, thereby eliminating the need for dangerous manual climbing. Moreover, with a maximum working height of 200 meters and an effective spraying range of 6 meters, the system ensures stability and precision through real-time laser distance detection. As a result, operators can now complete cleaning tasks safely and efficiently—all from the ground.
  • Efficiency Improvement – More Work in Less Time
  • In addition to improving safety, the X 30 P2 Aerial Cleaning System also delivers a major boost in efficiency. Previously, it would take five workers up to five days to clean a single turbine. In contrast, the new system enables just one operator to complete the same task in only one day. Consequently, this significant leap in productivity leads to lower labor costs and reduced turbine downtime, optimizing maintenance operations across the board.
  • Full Coverage Cleaning – Advanced Spraying Technology
  • Furthermore, the Orion system, equipped with a multi-angle adjustable nozzle and compatibility with various cleaning agents, provides thorough and wide-area cleaning of both turbine towers and blades. Thanks to its smart design, it can easily adapt to curved surfaces and complex geometries commonly found in wind turbine infrastructure. Therefore, no spot is left untreated, and the results are both comprehensive and consistent.

Buy the X30 P2 Aerial Cleaning System now.

Specifications of X30 P2 Aerial Cleaning System

Specifications

Item – X30 P2 Aerial Cleaning System

Specification

Weight 13 kg / 28.66 lbs
Power 900 W
Spray Module Length 2.5 m / 8.20 ft
Max. Spraying Distance 6 m / 19.69 ft (drone to work surface)
Pump Pressure 1 ~ 4 MPa
Max. Flow Rate 5 L/min
Capacity 30 L
Protection Rating IP55
Nozzle Rotation Range (Horizontal) -45° ~ 45°
Nozzle Rotation Range (Vertical) -60° ~ 35°
Control Method Integrated Flight Control
Quick-change Nozzles Supported
Liquid Level Indicator Supported
Distance Detection Supported

FAQ's

1. What surfaces can the X30 P2 Aerial Cleaning System clean?
The P2 handles a wide range of high-altitude surfaces, including wind turbine blades, solar panels, insulators, towers, and building exteriors. With its multi-angle adjustable nozzles, it quickly adapts to curved and complex structures.

2. How does the system keep high-altitude operations safe?
It uses real-time laser distance detection to maintain a precise spraying distance of up to 6 meters. Since operators control the system remotely, they avoid the dangers of manual climbing or scaffolding.

3. How much more efficient is it than manual cleaning?
Compared to traditional methods, the P2 boosts efficiency dramatically. Instead of five workers taking five days, one person can clean a turbine in just one day. This shift cuts labor costs and speeds up maintenance schedules.

4. Can the system handle different cleaning tasks?
Absolutely. Thanks to its quick-change modular nozzles and support for various cleaning agents, the adapts easily to different surfaces and requirements. You can switch settings quickly and keep working without delay.

5. Is it easy to transport and store?
Yes, the foldable spray module reduces to just 1 meter in length, making it simple to move and store. With a 30-liter tank and full integration with drone flight systems, it supports long operations with minimal interruptions.
