Zenmuse S1

  • Triple-Sensor Integration: Combines wide-angle visual, thermal, and laser rangefinder into one unit.
  • High-Res Thermal Imaging: 640×512 thermal camera with 30fps and multiple color palettes for clarity.
  • Powerful Visual Camera: Equipped with a large 1/1.8” CMOS sensor and 12MP resolution for crisp details.
  • Laser Rangefinder: Accurately measures distances up to 1200 meters for precise positioning.
  • Intelligent Features: Supports AI-based target tracking, temperature alerts, and real-time analysis.
  • Rugged & Weather-Resistant: Built with an IP54 rating to operate in harsh conditions.
  • Matrice Compatibility: Seamlessly integrates with DJI Matrice 300 RTK and 350 RTK for dependable use.
WhatsApp Us
Follow us: InstagramYouTubeLinkedIn

Description

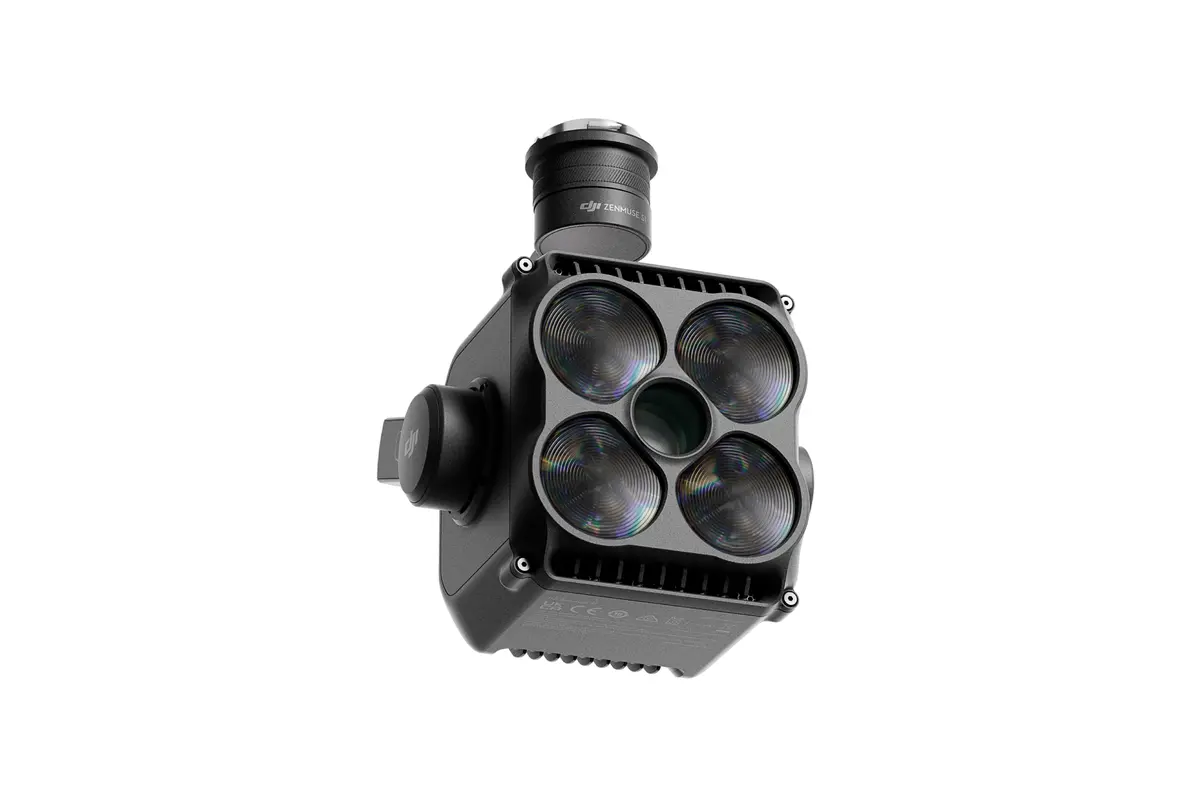

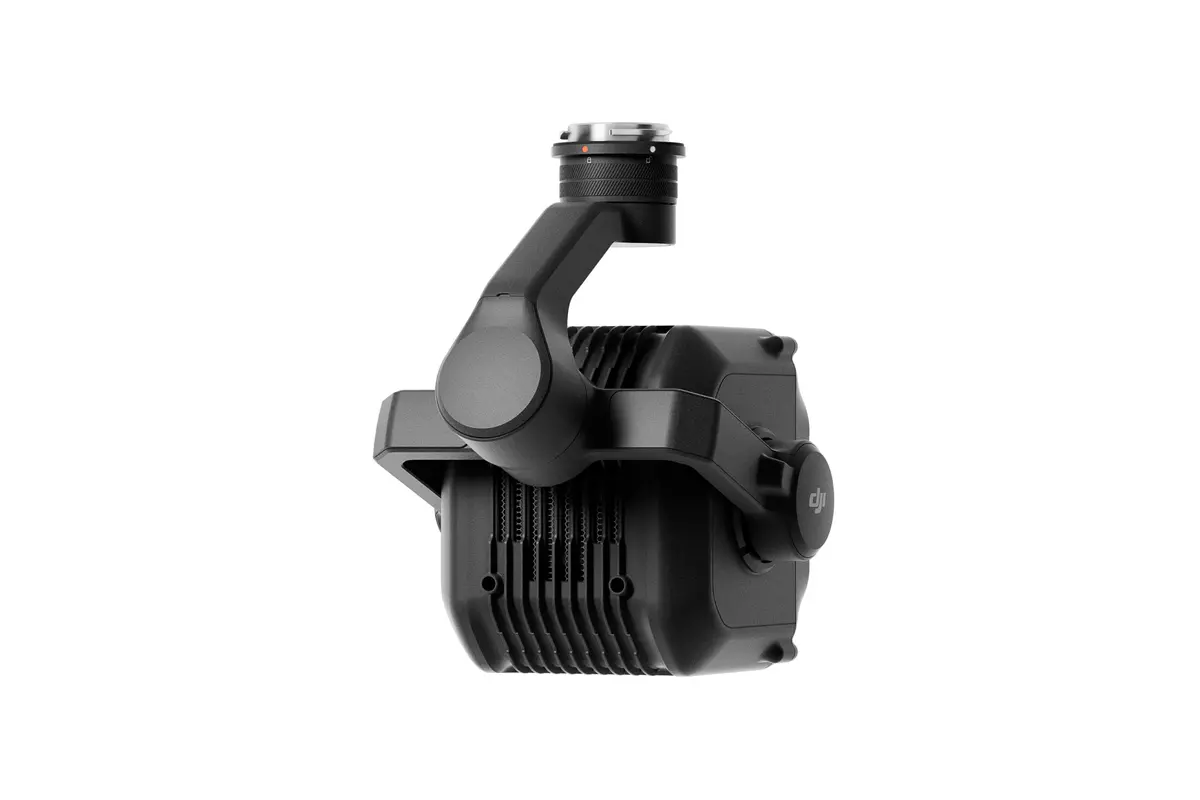

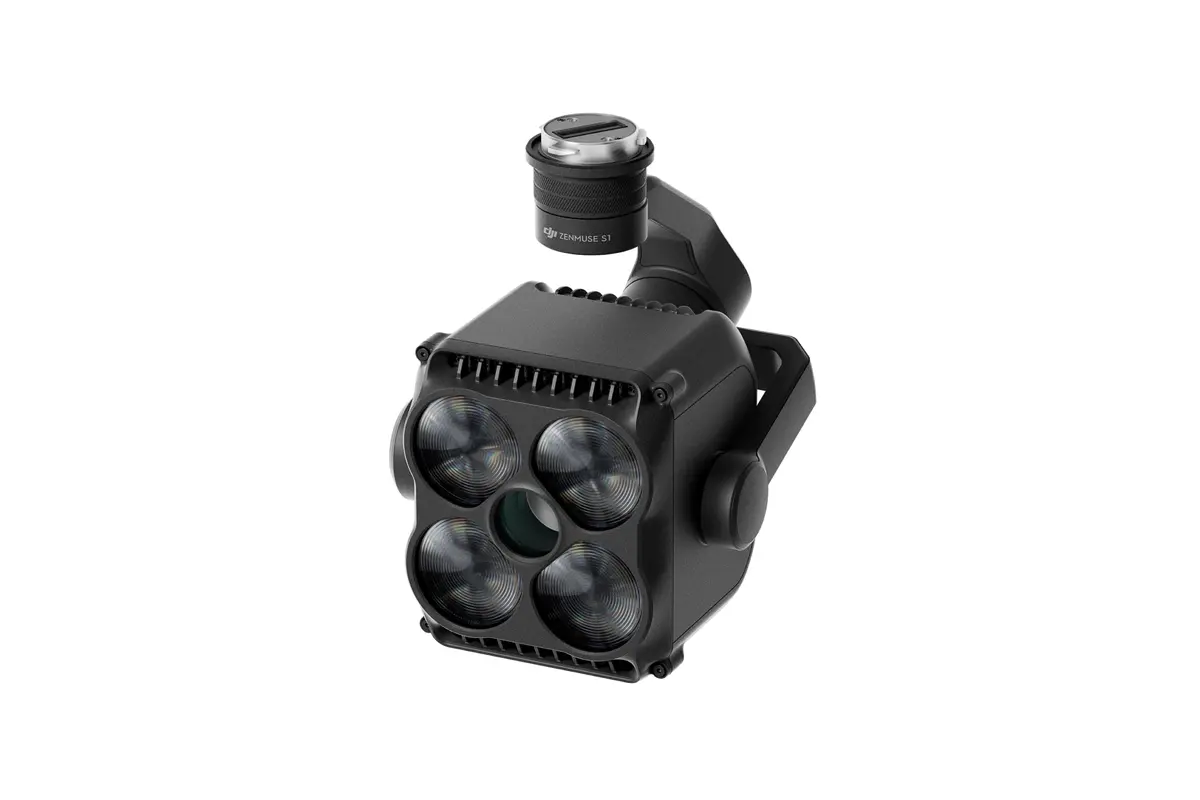

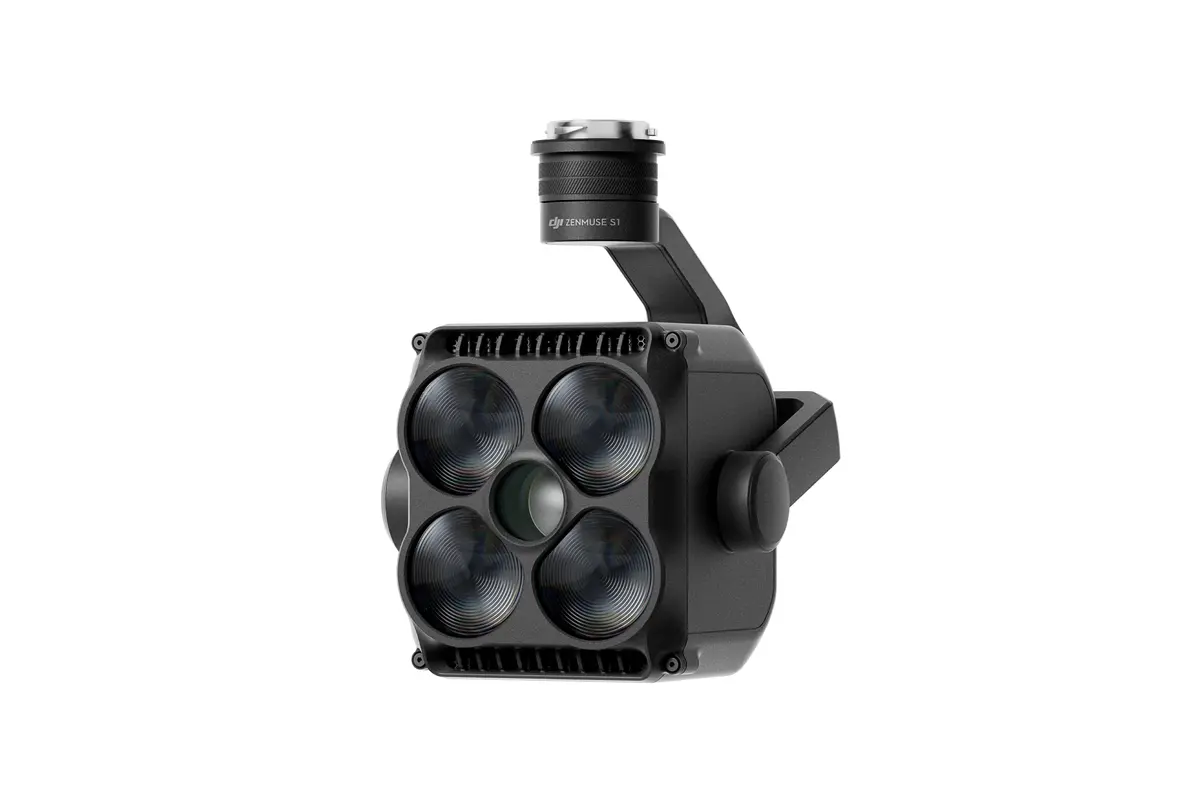

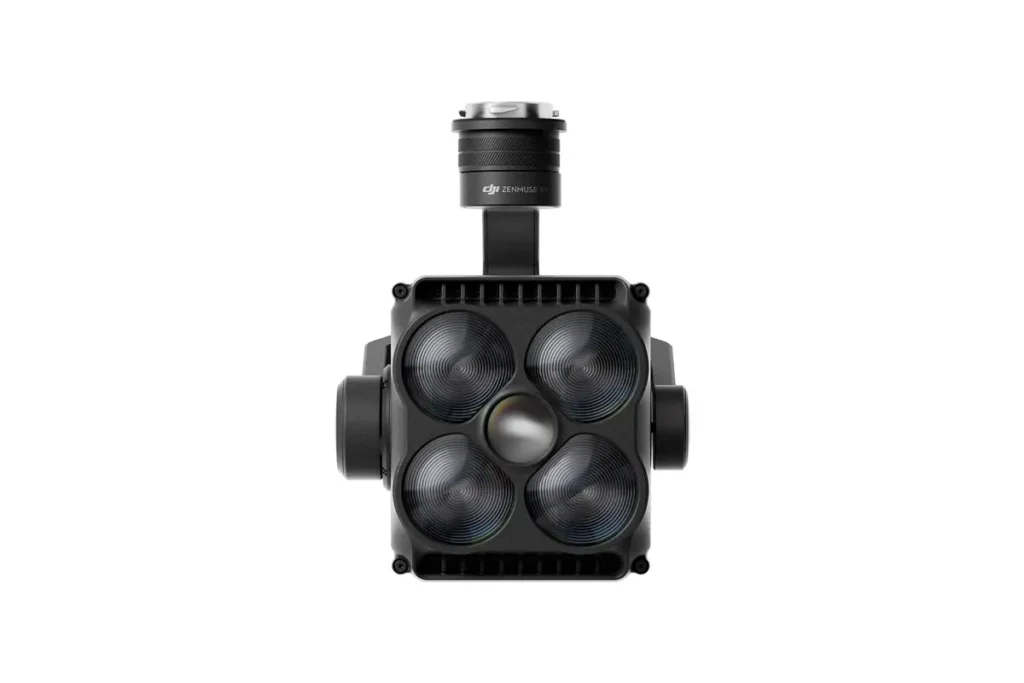

Zenmuse S1

DJI’s First Spotlight for Multi-Payload Drone Platforms

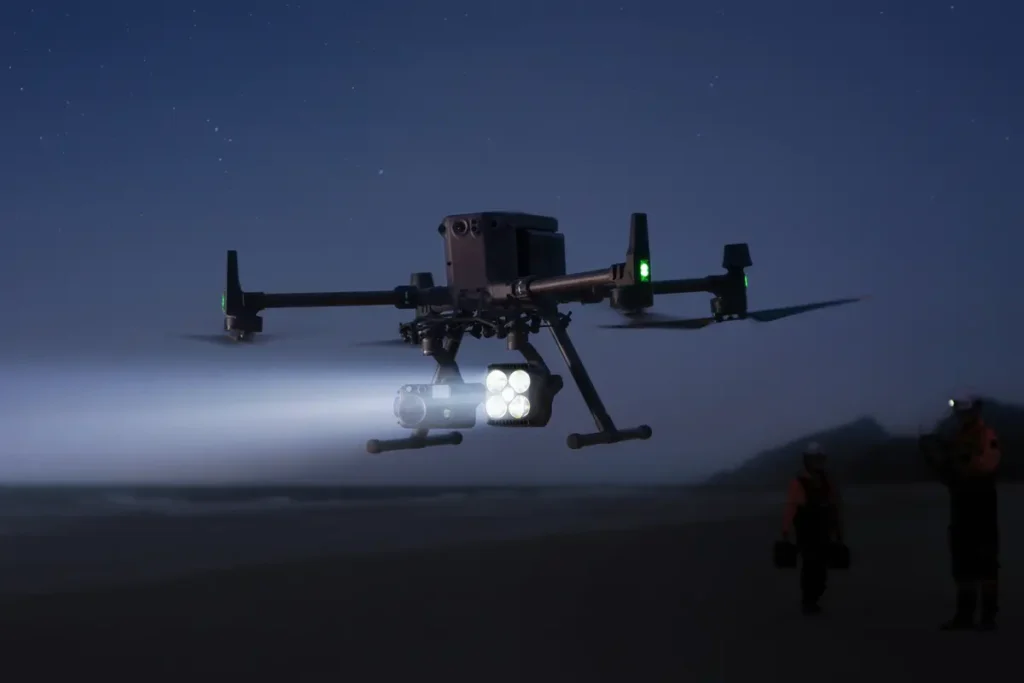

Zenmuse S1 is DJI’s first spotlight designed for multi-payload drone platforms, compatible with DJI Matrice 400, Matrice 350 RTK and Matrice 300 RTK. Utilizing the LEP technology, it offers high brightness and long illumination distance, and supports multiple lighting modes. This makes it ideal for public safety, emergency rescue, inspection, and other nighttime operations.

Multiple Lighting Modes

Strobe Mode

Zenmuse S1 supports high-frequency strobing to effectively alert and draw attention from target individuals, making it particularly useful for signaling in emergency rescue and public safety scenarios.

Both On Mode

Engages both low and high beams simultaneously, delivering greater central illuminance than the High Beam mode alone. It maintains the FOV of the Low Beam mode while extending the observation distance up to 500 meters. [1] This mode offers maximum illumination coverage for comprehensive situational awareness.

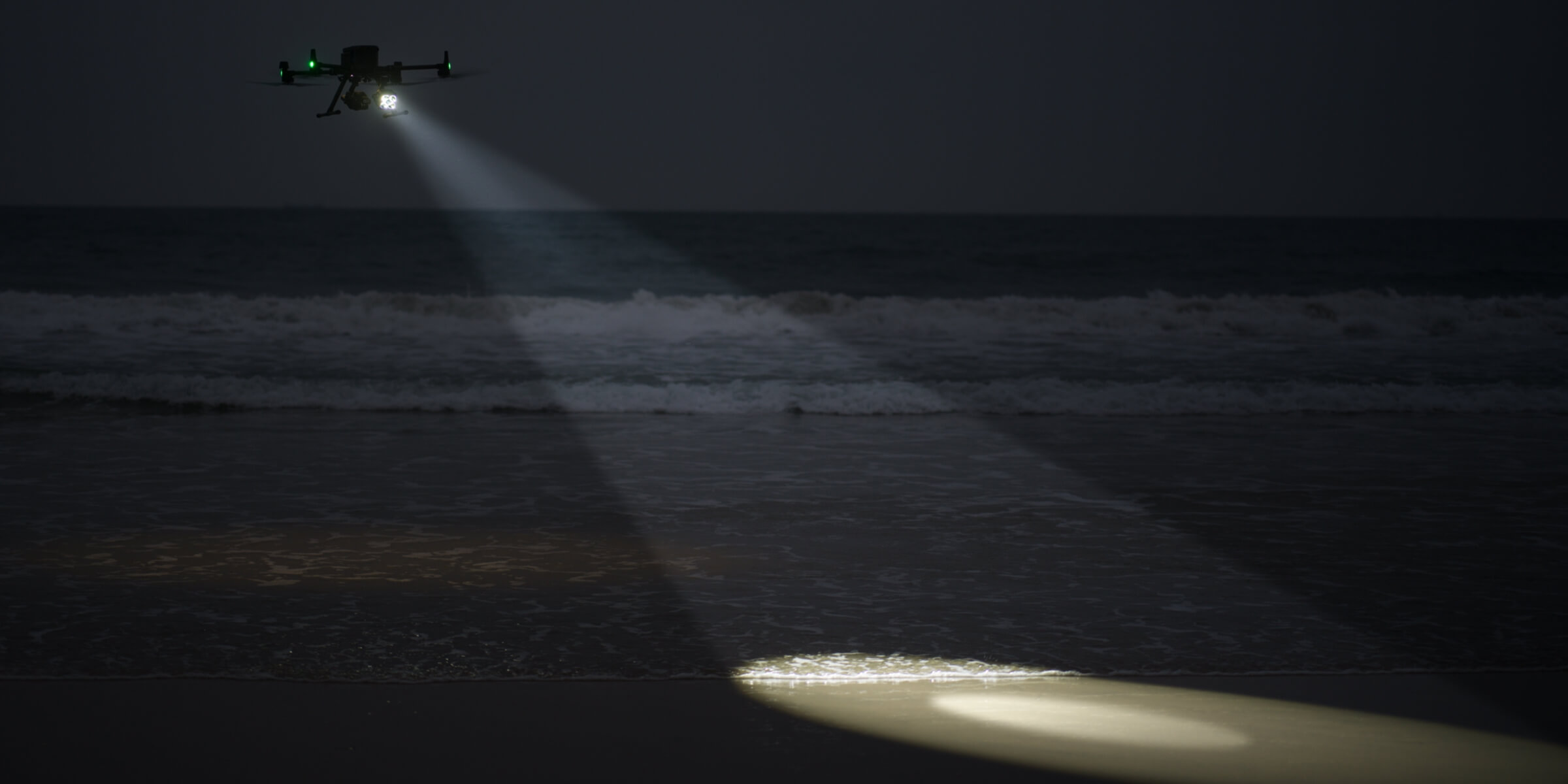

High Beam Mode

Utilizing the LEP (Laser Excited Phosphor) technology for enhanced light penetration, this mode offers a 4° field of view (FOV)  at a distance of 300 meters. It covers the illumination range of a camera at 15x zoom or above, enhancing efficiency in emergency rescue and public safety operations.

Low Beam Mode

Provides a 15° field of view (FOV) [2] within a distance of 150 meters [1], covering the illumination range of a camera at 5x zoom or above. [3] This mode is suitable for most short-distance search and inspection needs.

Brightness Meets Energy Efficiency

Zenmuse S1 delivers a maximum central illuminance of 40 lux at 100 meters [5], providing ample lighting in dark environments to clearly distinguish details of the subjects. Additionally, the power consumption in the High Beam mode is only 24 W [6], reducing the power load on the drone and helping to maintain the flight time.

Intelligent Beam Alignment

When mounted with the Zenmuse H30 Series on Matrice 400, Zenmuse S1 employs gimbal synchronization and software algorithms to automatically calibrate its optical center in real time, intelligently aligning with the camera view and effectively preventing light deviation.

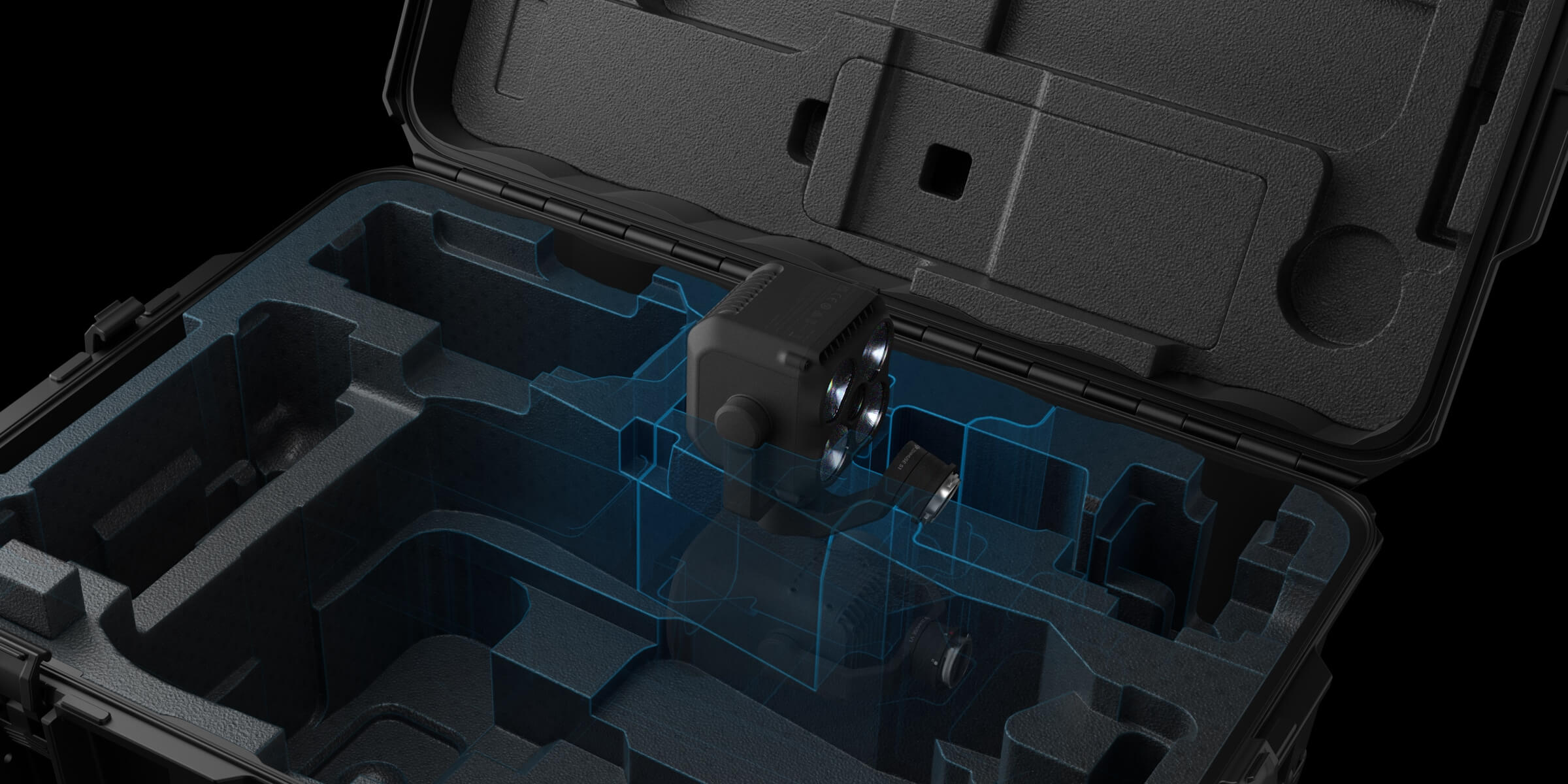

Flexible Mounting,
Lightweight Build

Zenmuse S1 can be mounted on any gimbal connector of Matrice 400, Matrice 350 RTK, or Matrice 300 RTK, accommodating various operational needs. Weighing only 0.76 kg, [9] it is compact and portable, and it also fits into the carrying case of Matrice 400.

Specifications

Specifications Details
Camera Sensor 1/1.8-inch CMOS
Effective Pixels 12 MP
Aperture f/2.8
Focal Length 22 mm equivalent
Shutter Speed 1/30 – 1/8000 s
ISO Range 100–6400
Gimbal Stabilization 3-axis (tilt, roll, pan)
Video Resolution Up to 1080p @ 30fps
Thermal Imaging Built-in infrared thermal sensor
Thermal Resolution 640 × 512
Thermal Frame Rate 30 fps
Thermal Lens FOV 40° × 30°
Spotlight Built-in high-brightness spotlight for low-light or night operations
Laser Rangefinder Integrated, range up to 1200 m
Environmental Rating IP54
Operating Temperature -20°C to 50°C
Weight Approx. 500 g (exact may vary)
Compatibility DJI Matrice 300 RTK, Matrice 350 RTK
