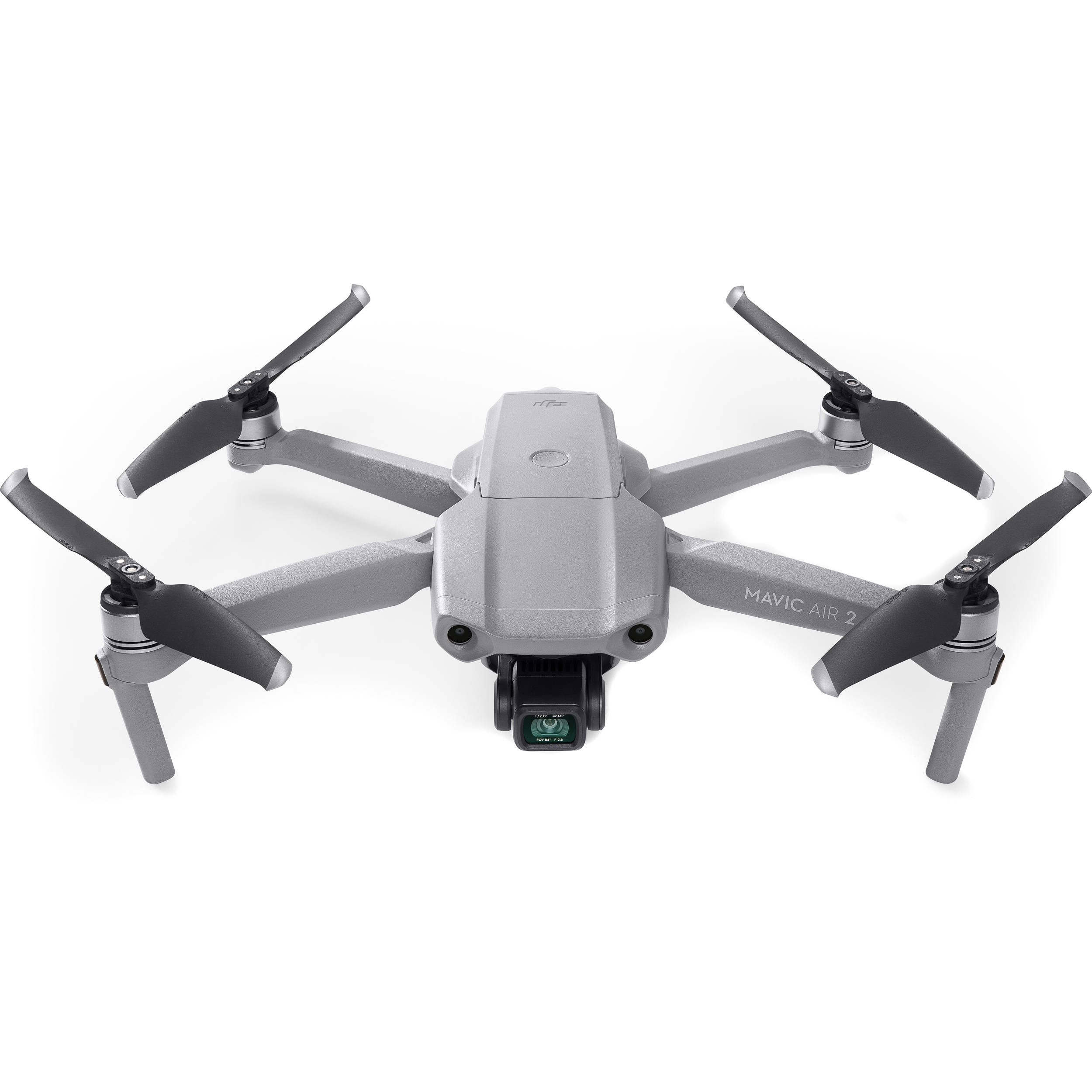

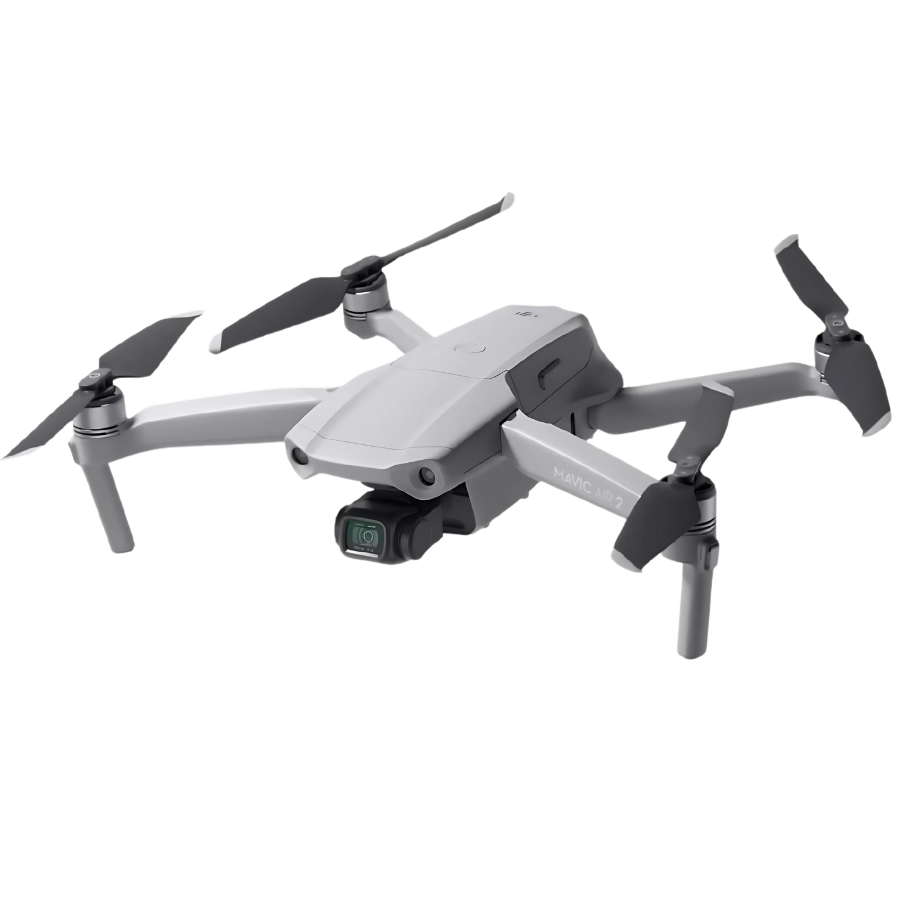

DJI Mavic Air 2 — Aircraft Only

58,250

  • 1/2″ CMOS camera: 48MP photos, 4K/60fps video, 120 Mbps bitrate.

  • 34-min max flight time; 570 g takeoff weight; 19 m/s top speed (S-mode).

  • OcuSync 2.0 FHD video transmission up to 10 km (FCC).

  • APAS 3.0 with forward/backward/downward vision sensors.

  • 3-axis gimbal; 8 GB internal storage + microSD up to 256 GB.

  • “Aircraft Only” = drone body/gimbal only; no battery, propellers, charger, or remote controller (varies by seller).

Description

DJI Mavic Air 2 — Aircraft Only



Item Spec
Takeoff weight 570 g
Dimensions (L×W×H) Folded: 180×97×84 mm • Unfolded: 183×253×77 mm
Diagonal distance 302 mm
Max ascent / descent 4 m/s (S/N) • 3 m/s (S/N; up to 5 m/s sharp descent)
Max speed (no wind) 19 m/s (S) • 12 m/s (N) • 5 m/s (T/Cine)
Max service ceiling 5000 m
Max flight / hover time 34 min / 33 min (ideal conditions)
Max flight distance 18.5 km
Wind resistance 10 m/s (Scale 5)
GNSS GPS + GLONASS
Operating temp −10 °C to 40 °C
Hovering accuracy Vertical ±0.1 m (Vision), ±0.5 m (GPS) • Horizontal ±0.1 m (Vision), ±1.5 m (GPS)
Internal storage 8 GB

Gimbal & Sensing

Item Spec
Gimbal stabilization 3-axis (tilt/roll/pan)
Controllable range (tilt) −90° to 0° (default), −90° to +24° (extended)
Mechanical range Tilt −135° to +45° • Roll −45° to +45° • Pan −100° to +100°
Max tilt control speed 100°/s; angular vibration ±0.01°
Obstacle sensing Forward / Backward / Downward vision systems + infrared sensing
Sensing ranges Fwd precision 0.35–22 m (detect 0.35–44 m); Back precision 0.37–23.6 m (detect 0.37–47.2 m); Down IR 0.1–8 m

Camera

Item Spec
Sensor 1/2″ CMOS, effective 12/48 MP
Lens 24 mm eq., f/2.8, FOV 84°, focus 1 m–∞
Still modes Single 12/48 MP, Burst 12 MP (3/5/7), AEB (3/5 @ 0.7 EV), Timed, SmartPhoto 12 MP, HDR Panoramas
Max photo size 48 MP: 8000×6000; 12 MP: 4000×3000
Shutter 8–1/8000 s
ISO (video) 100–6400
Formats Photo: JPEG/DNG • Video: MP4/MOV (H.264/H.265)

Video

Resolution Frame rates
4K Ultra HD (3840×2160) 24/25/30/48/50/60 fps
2.7K (2688×1512) 24/25/30/48/50/60 fps
FHD (1920×1080) 24/25/30/48/50/60/120/240 fps
HDR 4K/2.7K/FHD at up to 30 fps
Max video bitrate 120 Mbps

Transmission & Remote (for compatibility reference)

Item Spec
System OcuSync 2.0
Frequency 2.400–2.4835 GHz, 5.725–5.850 GHz
Max transmission distance 10 km (FCC) / 6 km (CE/SRRC/MIC), FHD 720p/1080p live view @ 30 fps
Controller battery 5200 mAh; latency ~120–130 ms
App DJI Fly (iOS 10.0.2+ / Android 6.0+)

Intelligent Flight Battery (model MA2)

Item Spec
Capacity / Type 3500 mAh, LiPo 3S
Voltage / Energy 11.55 V, 40.42 Wh
Weight 198 g
Max charge power 38 W; charging temp 5–40 °C

Product Description



Step up your aerial content with the DJI Mavic Air 2. This compact, foldable drone pairs a stabilized 3-axis gimbal with a 1/2″ 48 MP camera to shoot 4K/60fps and 120 Mbps video, plus HDR photos and panoramas. With APAS 3.0 obstacle sensing and OcuSync 2.0 transmission (up to 10 km FCC), the Air 2 delivers confident control and crisp FHD live view. Its efficient design enables up to 34 minutes of flight and resists winds up to Scale 5.
This is the “Aircraft Only” variant—ideal as a replacement airframe. It does not include a battery, remote controller, propellers, charger, or other accessories; add these separately to fly
