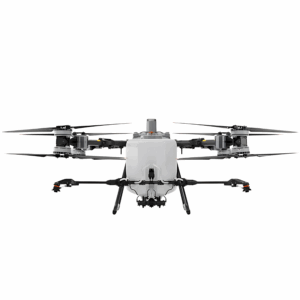

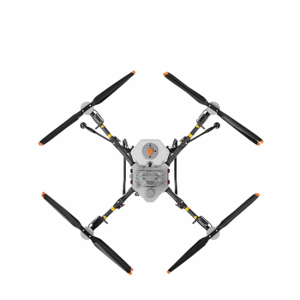

DJI AGRAS T100

Flagship ag-drone for large farms with three roles: spraying, spreading, and lifting.
100 L spray tank with dual impeller pumps; 30 L/min (2 nozzles) or 40 L/min (optional 4 nozzles). Droplet size 50–500 µm; effective width 5–13 m.
150 L spreader (Screw Feeder 4.0 + centrifugal disc) delivering up to 400 kg/min; width 3–10 m.
Lifting up to 100 kg (80 kg with dual-battery lifting module) with cable-fuse emergency escape.
Safety System 3.0: LiDAR + millimeter-wave radar + Penta-Vision (quad vision + FPV) with ≤ 60 m sensing and ≤ 13.8 m/s safe OA speed.
62-inch carbon-fiber props and upgraded power for heavy payload efficiency.
Max operation speed 20 m/s for faster coverage (market-dependent).
DB2160 41,000 mAh battery, 52 V; rapid turnaround via C12000 charger / D14000iE generator (≈ 8–9 min from 30→95%).
New RC Plus 2 (TKPL 2) controller with 7″/1400-nit display and long runtimes.

Trusted dealerDirect manufacturer partnership
Pan-India deliveryInsured shipping, all states
Post-sale supportTraining + service included

Overview

What makes it work

Aircraft

Item	Spec
Dimensions (unfolded arms/props)	3220 × 3224 × 975 mm
Dimensions (arms unfolded, props folded)	1820 × 1840 × 975 mm
Dimensions (folded)	1105 × 1265 × 975 mm
Max diagonal wheelbase	2330 mm
Weight (spray, 2 nozzles / 4 nozzles)	75 kg / 77 kg
Weight (spread / lift / dual-battery lift)	75 kg / 65 kg / 90 kg
Max takeoff weight (spray 2 / 4)	175 kg / 177 kg
Max takeoff weight (spread / lift / dual-battery lift)	175 kg / 165 kg / 170 kg
Hovering accuracy (RTK on / off)	±10 cm H, ±10 cm V / ±0.6 m H, ±0.3 m V
Max configurable flight radius	2 km
Max wind resistance	< 6 m/s
Operating temperature	0 – 40 °C

Propulsion

Item	Spec
Motor stator size / KV	155 × 16 mm / 60 rpm·V⁻¹
Propellers	62-inch carbon-fiber composite, 8 pairs

Spraying system

Item	Spec
System / Tank	LS100 / 100 L HDPE (100 kg operating payload)
Delivery pumps	Dual magnetic-drive impeller pumps
Flow rate	30 L/min (2 nozzles), 40 L/min (4-nozzle option)
Sprinklers (std / opt)	LX07550SX (std) / LX09550SX (mist)
Nozzles (qty)	2 standard / 4 optional
Nozzle spacing	1834 mm (two nozzles / outermost of four)
Droplet size	50 – 500 µm
Effective spray width	5 – 13 m

Spreading system 4.0

Item	Spec
Tank volume	150 L
Feeder / spreader	Screw Feeder 4.0 / centrifugal disc
Max discharge rate	400 kg/min (compound fertilizer)
Effective spread width	3 – 10 m
Compatible granule sizes (augers)	XL: 0.5–10 mm; Medium: 4–6 mm; (Optional) Large: 4–10 mm; Small: 0.5–4 mm
Max load in spread box	100 kg

Lifting system

Item	Spec
Standard lifting load	100 kg
Dual-battery lifting load	80 kg
Cable length (std / recommended)	10 m / 10–15 m
Emergency escape	Cable-fuse disconnection (dual-battery module)
Operating temperature	0 – 40 °C

Safety System 3.0 (perception & OA)

Item	Spec
Sensors & views	LiDAR, millimeter-wave radar (front/down/rear), Quad Vision + FPV (Penta-Vision)
FOV (selected)	LiDAR V 272°, H 60°; Front radar H 360°, V ±45°; Vision H 360°, V 180°
Measurement range	≤ 60 m
Safe OA speed / OA height	≤ 13.8 m/s / ≥ 1.5 m

Remote controller (DJI RC Plus 2, model TKPL 2)

Item	Spec
Display	7″ LCD, 1920×1200, 1400 nits
Internal / external battery runtime	3.8 h / 3.2 h
Charging	USB-C fast charge (≤ 65 W); ≈ 2 h (RC off)
Storage temp (guidance)	−30 – 45 °C (≤ 1 mo); −30 – 35 °C (1–3 mo); −30 – 30 °C (3–12 mo)

Power & turnaround

Item	Spec
Flight battery	DB2160, 41,000 mAh, 52 V, 14.7 ± 0.3 kg
Smart charger	C12000 (12 kW 3-phase / 3 kW single-phase), 62 V, 194 A
Generator	D14000iE multi-function inverter, 30 L tank
Typical recharge time	≈ 8–9 min (DB2160 from 30→95%)
Generator outputs	42–61.6 V/11.5 kW DC; 12 V/6 A; 220 V/1500 W AC

Connectivity / Relay (O4)

Item	Spec
Bands	2.4 / 5.1 / 5.8 GHz
Effective range (relay)	FCC 8 km; SRRC 5 km; CE/MIC/KCC 4 km (LoS)
Battery / runtime	6500 mAh / 5 h
IP rating (relay)	IP55

Performance note

Item	Spec
Max operation speed	20 m/s (varies by region/regulation)

DJI AGRAS T100 is a flagship agricultural drone built for large-scale farm work—spraying, spreading, and lifting. It combines a 100 L spray tank (up to 40 L/min) and a 150 L spreader (up to 400 kg/min) with Safety System 3.0 (LiDAR, millimeter-wave radar, multi-directional vision) for precise terrain following and obstacle avoidance. O4 transmission and the RC Plus 2 controller support reliable, long-range operations, while the DB2160 high-capacity battery and C12000/D14000iE power ecosystem enable rapid turnarounds. With 62-inch carbon-fiber props and a rugged frame, it’s engineered to cover big acres quickly and accurately.
