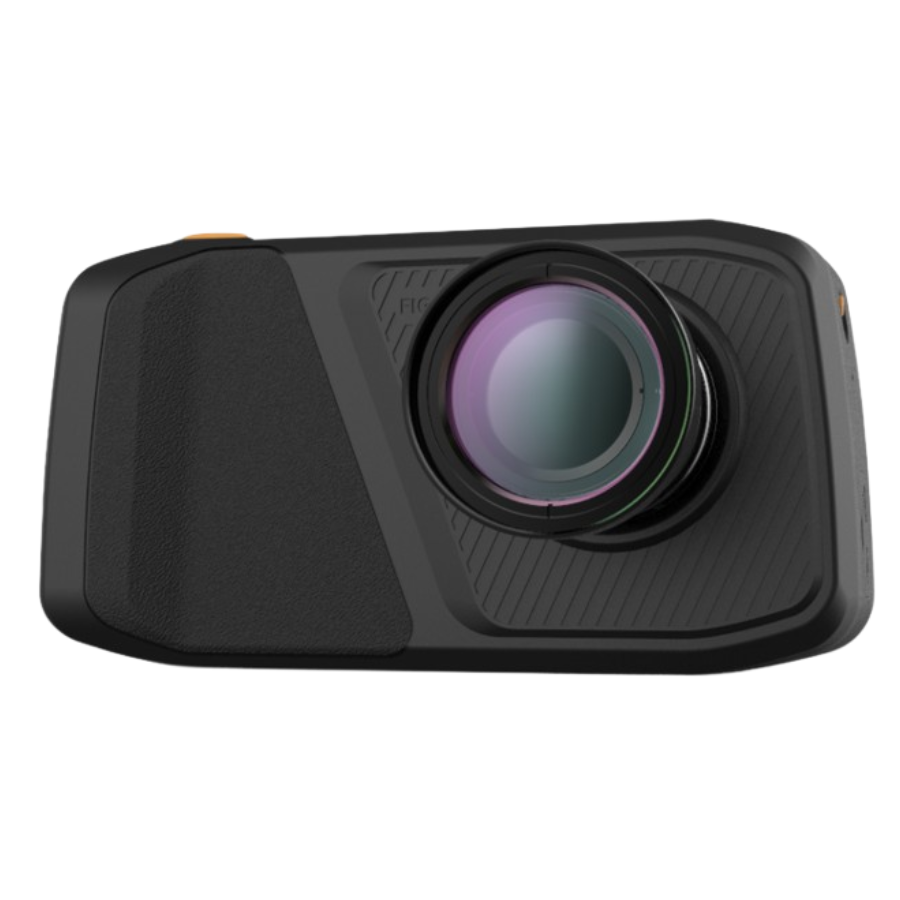

FS IQ Portable hyperspectral camera

  • Portable & Lightweight: Ideal for on-site, handheld analysis.

  • Full-Spectrum Capture: Covers visible to near-infrared (VNIR) range (400–1000 nm).

  • High Spatial Resolution: 1280 × 720 pixel resolution for fine detail.

  • Snapshot Imaging: Captures entire hyperspectral cube in a single frame.

  • Fast & Efficient: Provides immediate results through real-time spectral analysis.

  • Versatile Applications: Supports diverse industries including agriculture, food safety, and geosciences.

  • User-Friendly Interface: Touchscreen and compatible software streamline operation.

Description

The FS IQ Portable Hyperspectral Camera is an advanced, field-deployable imaging system designed for real-time, high-precision spectral data acquisition. Developed by CHNSpec, this compact and lightweight device integrates cutting-edge hyperspectral imaging technology into a user-friendly, handheld unit suitable for various applications, including agriculture, food safety, pharmaceuticals, mineralogy, and remote sensing.

With a broad spectral range of 400–1000 nm and a spatial resolution of 1280 × 720, the FS IQ provides detailed spectral fingerprints of materials, enabling users to analyze composition, quality, and condition instantly. Its robust hardware and intuitive software allow in-field operation without sacrificing analytical performance. Whether deployed for academic research or industrial inspection, the FS IQ sets a new standard for portable hyperspectral imaging systems.

Feature

Description

Spectral Range 400–1000 nm (VIS-NIR)
Spectral Resolution 5 nm
Spatial Resolution 1280 × 720 pixels
Lightweight Design Portable and easy to handle in field settings
Real-time Preview Supports real-time spectral cube preview and analysis
Integrated Touchscreen 5-inch HD display for direct operation
On-device Storage High-capacity storage for local data saving
Software Integration Compatible with CHNSpec hyperspectral analysis software
Automatic Calibration Built-in calibration for consistent results
Fast Data Acquisition Full-scene imaging in seconds

The FS IQ Portable Hyperspectral Camera is a cutting-edge imaging system engineered for rapid, high-resolution spectral data acquisition in the field. Designed with versatility and portability in mind, this handheld device captures rich hyperspectral images across the visible to near-infrared (VNIR) range of 400–1000 nm with a spectral resolution of 5 nm. Whether you’re analyzing plant health, food composition, material quality, or environmental changes, the FS IQ offers real-time insights with laboratory-grade precision.

At the heart of the FS IQ is a snapshot imaging sensor that captures a full hyperspectral cube in one frame — eliminating motion artifacts and enabling instant data collection without the need for scanning. With a spatial resolution of 1280 × 720 pixels, the camera ensures sharp, detailed visuals ideal for surface inspection and fine-grain analysis.

The device is housed in a compact, lightweight chassis, making it easy to transport and operate in diverse environments. A built-in touchscreen interface provides intuitive control, while advanced onboard algorithms allow real-time spectral classification, regression, and anomaly detection — all without external processing equipment.

For flexibility and connectivity, the FS IQ supports USB and Wi-Fi communication, allowing users to sync data to PCs or mobile devices. The system also includes a rechargeable battery for prolonged field use and internal/external storage options to accommodate large hyperspectral datasets.Each unit comes fully equipped with essential accessories, including a protective carrying case, charger, data cables, calibration board, and software suite for post-processing and visualization.

Specification

Detail

Spectral Range 400–1000 nm
Spectral Resolution 5 nm
Spatial Resolution 1280 × 720
Imaging Method Snapshot
Data Format Hyperspectral Cube, .dat/.hdr
Power Supply Rechargeable Battery
Interface USB, Wi-Fi, Touchscreen
Storage Capacity Internal + External SD support
Operating Temperature -10°C to 50°C
Dimensions & Weight Compact and portable (~<2 kg)

Includes

  • FS IQ Hyperspectral Camera

  • Protective Case

  • Charger & Power Adapter

  • Calibration Board

  • Data Cable (USB/Type-C)

  • User Manual

  • Software Suite (Mobile & PC versions)

  • Warranty & Support Card

FAQS

Q1: What is the main advantage of snapshot hyperspectral imaging?
A1: It captures the full hyperspectral cube in a single frame, enabling real-time analysis and eliminating motion artifacts.

Q2: Can the FS IQ be used outdoors?
A2: Yes, it’s designed for field use with a durable, battery-powered build and a wide operating temperature range.

Q3: What industries benefit most from this camera?
A3: Agriculture, food safety, environmental monitoring, pharmaceuticals, and geology.

Q4: Does it require internet to operate?
A4: No, it operates independently, but it supports Wi-Fi for data transfer and remote control.

Q5: Is training required to use the camera?
A5: The system is user-friendly, and the manufacturer provides tutorials and technical support.

Q6: How is the spectral data processed?
A6: Onboard processing unit enables real-time spectral analysis with classification, regression, and anomaly detection.
