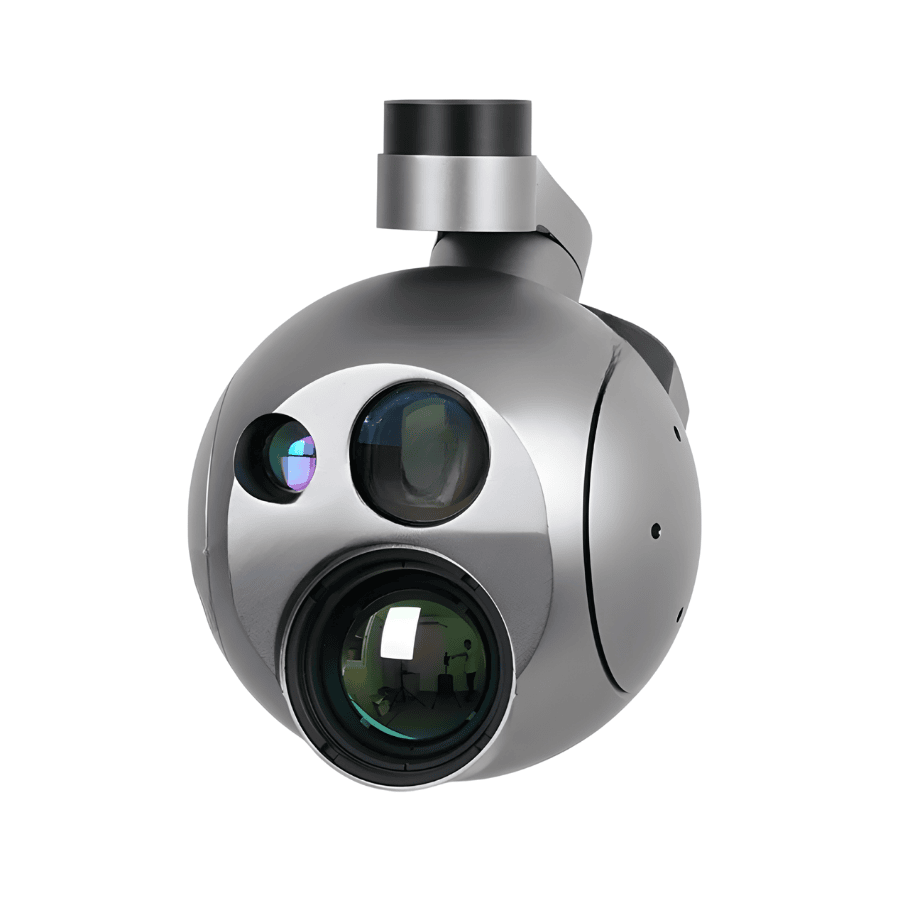

A30 TR-50M Thermal Camera
-
Dual-mode EO/IR gimbal camera — combines a high-zoom visual camera with a thermal imager and laser rangefinder.
-
30× optical zoom (with additional digital zoom) for EO (visual) imaging, plus a 50 mm thermal lens with 640×512 IR detector for thermal imaging.
-
Built-in laser rangefinder capable of measuring up to ~5 km for large objects, with ~1 m accuracy.
-
Supports AI-based auto-identify and tracking of humans and vehicles — useful for surveillance, search & rescue, inspection, or UAV/drone applications.
-
Outputs video via micro-HDMI or IP (RTSP/UDP) and supports local recording (photo/video) to TF card; multiple control interfaces (PWM / TTL / S.Bus / TCP / UDP) for flexible integration.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
A30 TR-50M Thermal Camera
| Category | Specification |
|---|---|
| Hardware / Power | Working voltage: 16 V |
| Input voltage: 4S–6S (14.8 V–25.2 V) | |
| Output voltage: 5 V (via PWM) | |
| Dynamic current: 660–1250 mA @ 16 V | |
| Power consumption: Avg ~10.6 W, Max ~20 W | |
| Operating temperature: –20 °C to +50 °C | |
| Video / Output / Storage | Output: micro-HDMI (1080p 30/60fps), IP (RTSP/UDP, 720p/1080p 30fps, H264/H265) |
| Local storage: TF card, up to 256 GB (Class 10, FAT32) | |
| Photo format: JPG (1920×1080) | |
| Video format: MP4 (1080p 30fps) | |
| Control interfaces: PWM / TTL / S.Bus / TCP / UDP | |
| Gimbal Specs | Mechanical range: Tilt –55° to 125°, Roll ±45°, Pan ±300° / 360° continuous (IP version) |
| Controllable range: Tilt –45° to 120°, Pan ±290° / 360° continuous (IP version) | |
| Stabilization accuracy: ±0.02° | |
| One-key auto-center: Yes | |
| EO (Visual) Camera) | Sensor: 1/2.8″ STARVIS2 CMOS |
| Resolution: 1920×1080 (Full HD) | |
| Effective pixels: 2.13 MP | |
| Optical zoom: 30× (4.3–129 mm) | |
| Digital zoom: 12× (up to 360× combined) | |
| Minimum focus distance: 10 mm (wide) – 1200 mm (tele) | |
| Horizontal FOV: 64.0° (wide) – 2.4° (tele) | |
| Minimum illumination: 0.009 lux (high sensitivity) | |
| Exposure modes: Auto / Manual / Shutter priority / Iris priority | |
| Gain: Auto / Manual (0–50 dB) | |
| White balance: Auto, ATW, Indoor, Outdoor, One-Push, Manual | |
| Shutter speed: 1/1 s – 1/10,000 s | |
| Functions: BLC, 3D NR, image stabilization, defog | |
| IR (Thermal) Camera | Detector type: Uncooled VOx LWIR (8–14 µm) |
| Thermal resolution: 640 × 512 | |
| Pixel size: 12 µm | |
| Lens focal length: 50 mm | |
| Field of view: H 8.8°, V 7.0°, D 11.2° | |
| NETD: ≤ 40 mK | |
| Digital zoom: 1×–8× | |
| Thermal palettes: White hot, Black hot, Pseudo-color | |
| Detection (human): ~2083 m | |
| Recognition (human): ~521 m | |
| Verification (human): ~260 m | |
| Detection (vehicle): ~6389 m | |
| Recognition (vehicle): ~1597 m | |
| Verification (vehicle): ~799 m | |
| Laser Rangefinder (LRF) | Wavelength: 1535 nm |
| Range: Up to 5 km (large objects), 3 km (vehicle), 1.5 km (human) | |
| Accuracy: ±1 m | |
| Divergence: ≤ 0.5 mrad | |
| Frequency: 1–10 Hz | |
| AI Auto-Tracking | Auto-identify humans & vehicles |
| Tracks ≥10 targets simultaneously | |
| Minimum contrast: 5% | |
| Minimum target size: 5×5 pixels | |
| Detection rate: ≥85% | |
| False alarm rate: ≤10% | |
| Update rate: 30 Hz | |
| Output delay: < 30 ms | |
| Physical / Mechanical | Weight: ~1411 g |
| Dimensions: 145.8 × 138 × 222.1 mm (standard) | |
| Mounting accessories included: screws, damping balls, USB-TTL cable, protective case | |
| Package Includes | Gimbal camera, damping balls, screws, USB-TTL cable, protective carry case |
