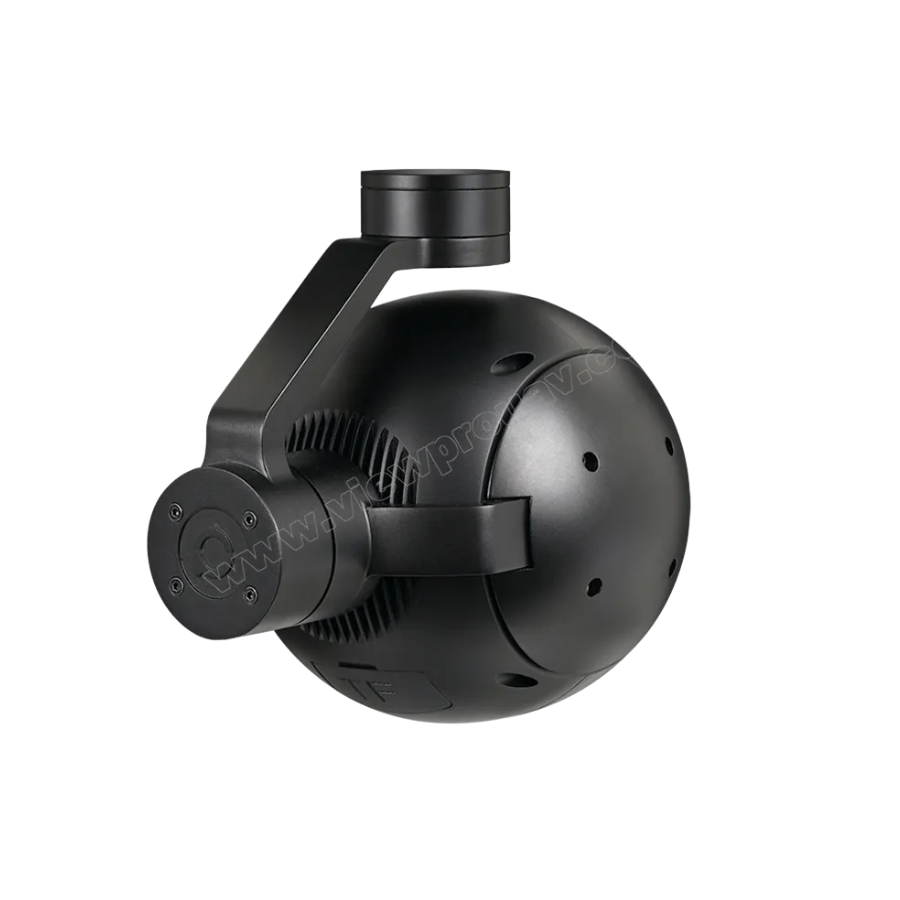

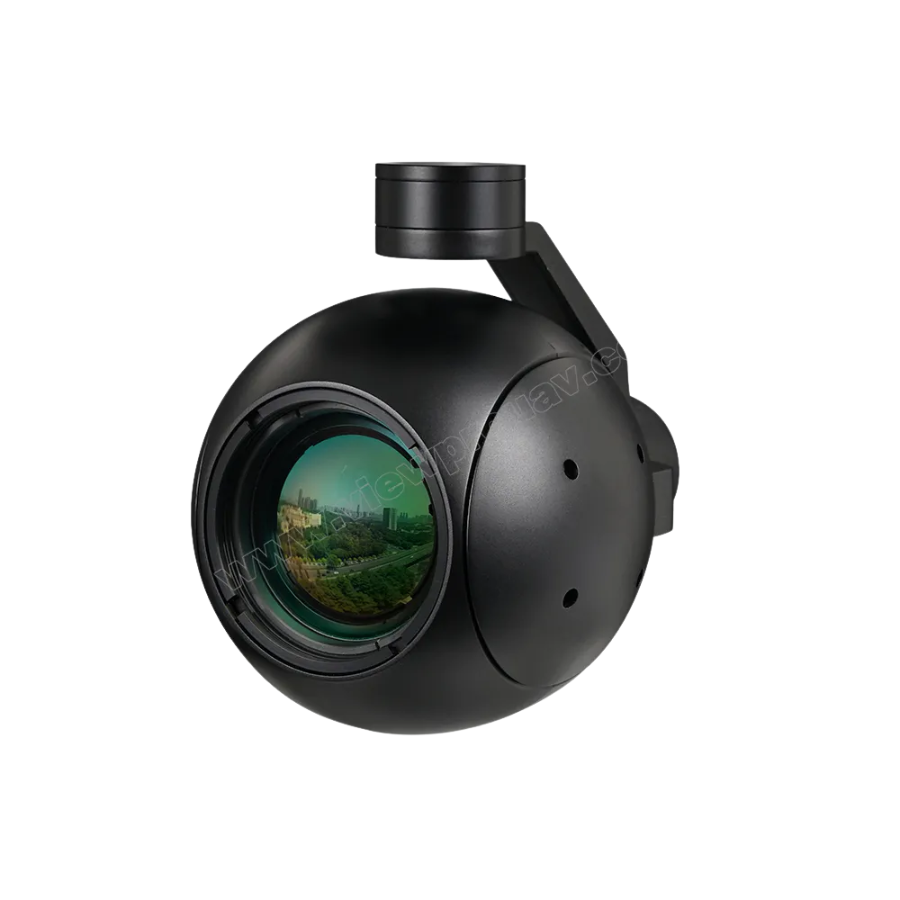

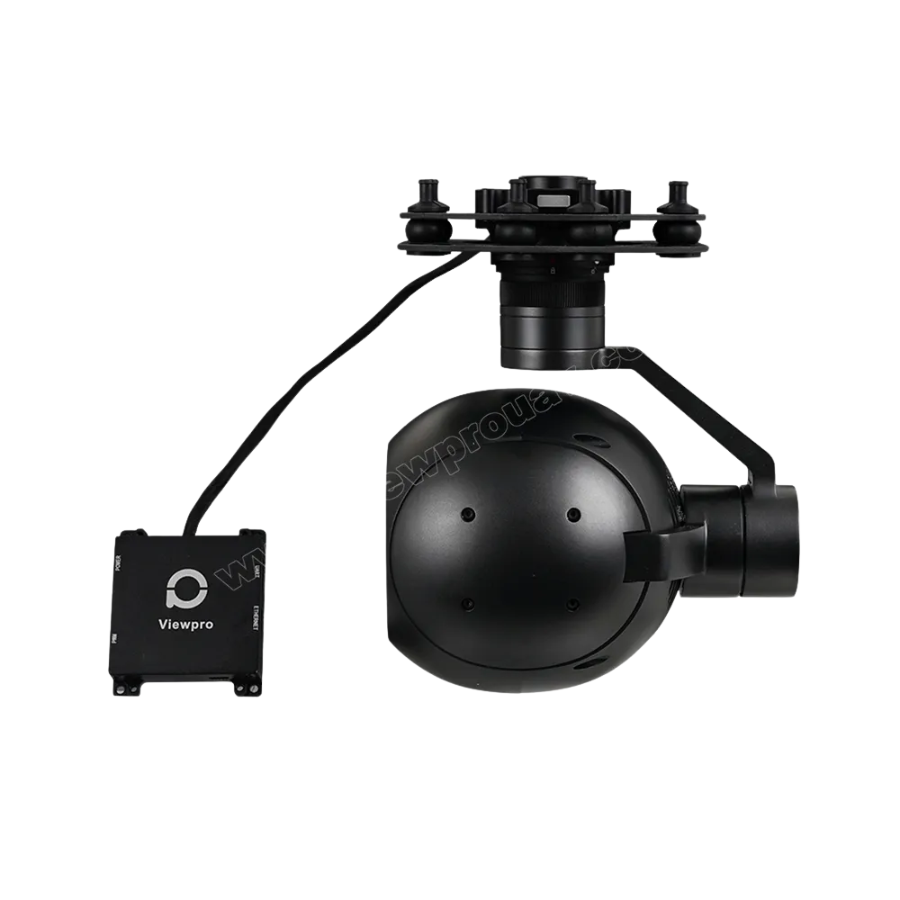

AT 50 Thermal AI Object Gimbal Camera

Professional long-range thermal imaging gimbal designed for industrial and security UAV missions
Equipped with a powerful 50mm thermal lens for extended detection distance
High-resolution thermal sensor provides clear imaging in low-visibility or night-time conditions
3-axis stabilized gimbal ensures smooth and accurate thermal footage
Ideal for search & rescue, wildlife monitoring, firefighting, and powerline inspection
Multiple color palettes for adaptable thermal visualization
Strong, lightweight, and compatible with various enterprise-grade drones

Description

Category	Specifications
Model	AT50
Gimbal Type	3-axis stabilized thermal imaging gimbal
Thermal Sensor Type	Uncooled IR thermal sensor
Thermal Resolution	640 × 512 (depending on model)
Lens	50mm long-range thermal lens
Detection Range	Very long range (varies by environment)
Frame Rate	25Hz / 30Hz
Thermal Palettes	White hot, black hot, ironbow, rainbow, red hot, etc.
Gimbal Stabilization	3-axis (Pitch, Roll, Yaw)
Pitch Range	–90° to +30°
Yaw Rotation	360° continuous
Stabilization Accuracy	±0.02°
Video Output	HDMI / Digital output
Control Protocols	PWM, S.BUS, Serial
Power Input	12V DC
Power Consumption	Approx. 10–18W
Operating Temperature	–10°C to +55°C
Weight	600–800g depending on configuration
Applications	Search & rescue, security, firefighting, wildlife monitoring, industrial inspection
