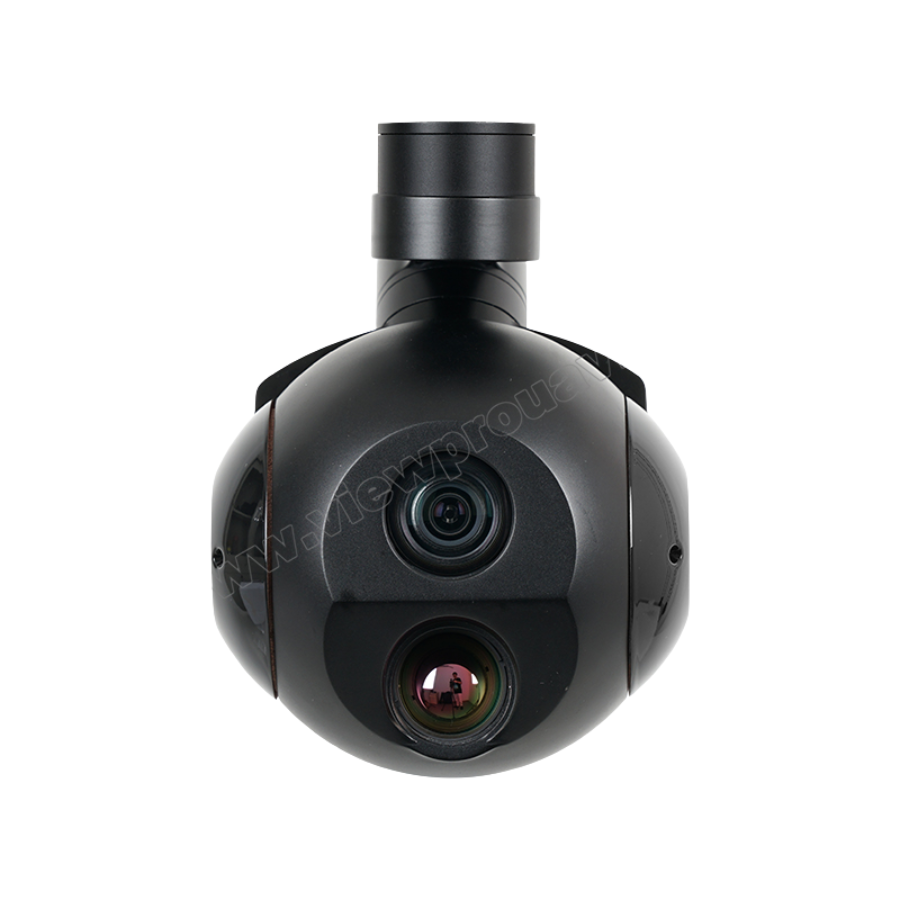

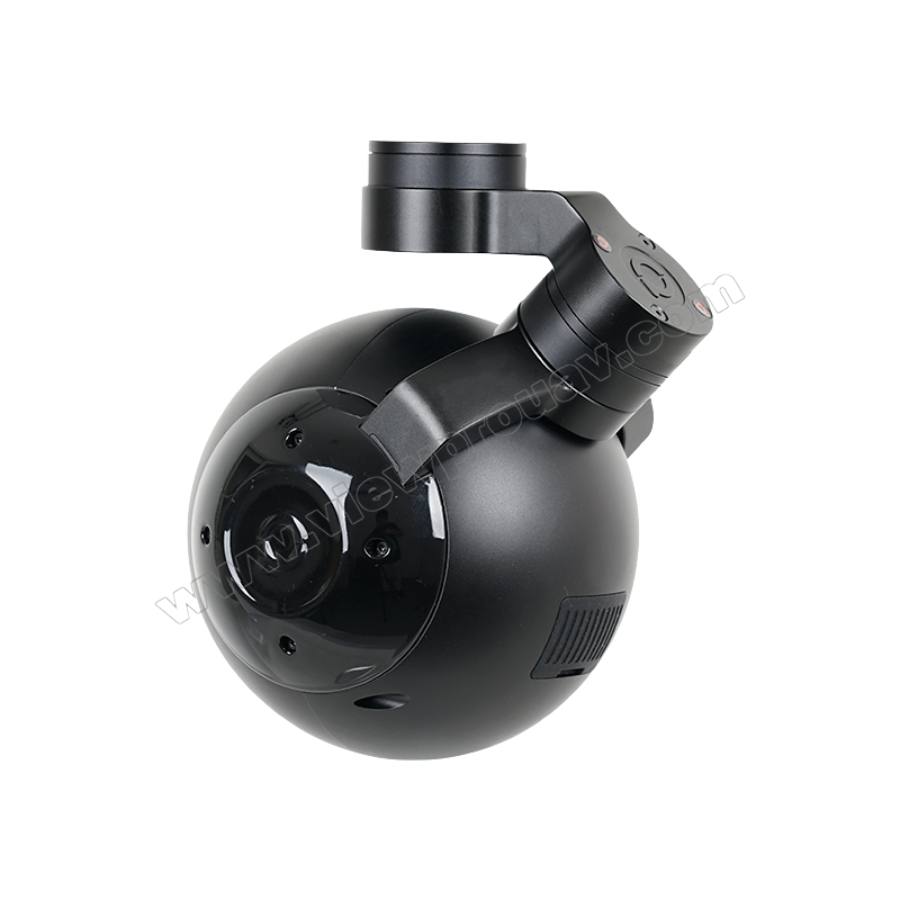

Q20KTIR Object Tracking Gimbal Camera

Dual-sensor UAV gimbal equipped with a Full-HD zoom camera and high-resolution thermal imaging
20× optical zoom EO camera for long-range surveillance and inspection
High-performance thermal sensor for night operations, low-visibility environments, and heat-signature detection
3-axis stabilized gimbal ensures smooth, vibration-free aerial imaging
Intelligent features such as auto-tracking, target locking, and smart zoom
Lightweight yet durable design, compatible with professional multirotor UAV systems
Ideal for industrial inspection, search & rescue, security, firefighting, and emergency response

Overview

What makes it work

Category	Specificaions
Model	Q20KTIR
Gimbal Type	3-axis stabilized EO/IR UAV gimbal
EO Camera Sensor	1/2.8″ CMOS
EO Resolution	1080p Full HD
Optical Zoom	20×
Digital Zoom	Up to 16×
Thermal Sensor	Uncooled IR thermal sensor
Thermal Resolution	640 × 512 (varies by version)
Thermal Lens Options	19mm / 25mm
Thermal Frame Rate	25Hz / 30Hz
Gimbal Stabilization	3-axis (Pitch, Roll, Yaw)
Pitch Range	–90° to +30°
Yaw Rotation	360° continuous
Stabilization Accuracy	±0.02°
Intelligent Features	Auto-tracking, target recognition, object locking, intelligent zoom
Video Output	HDMI / Digital signal output
Control Interfaces	PWM, S.BUS, Serial
Power Input	12V DC
Power Consumption	Approx. 12–18W
Operating Temperature	–10°C to +55°C
Weight	Approx. 550–850g depending on configuration
Applications	Surveillance, search and rescue, inspection, firefighting, border monitoring, wildlife observation
