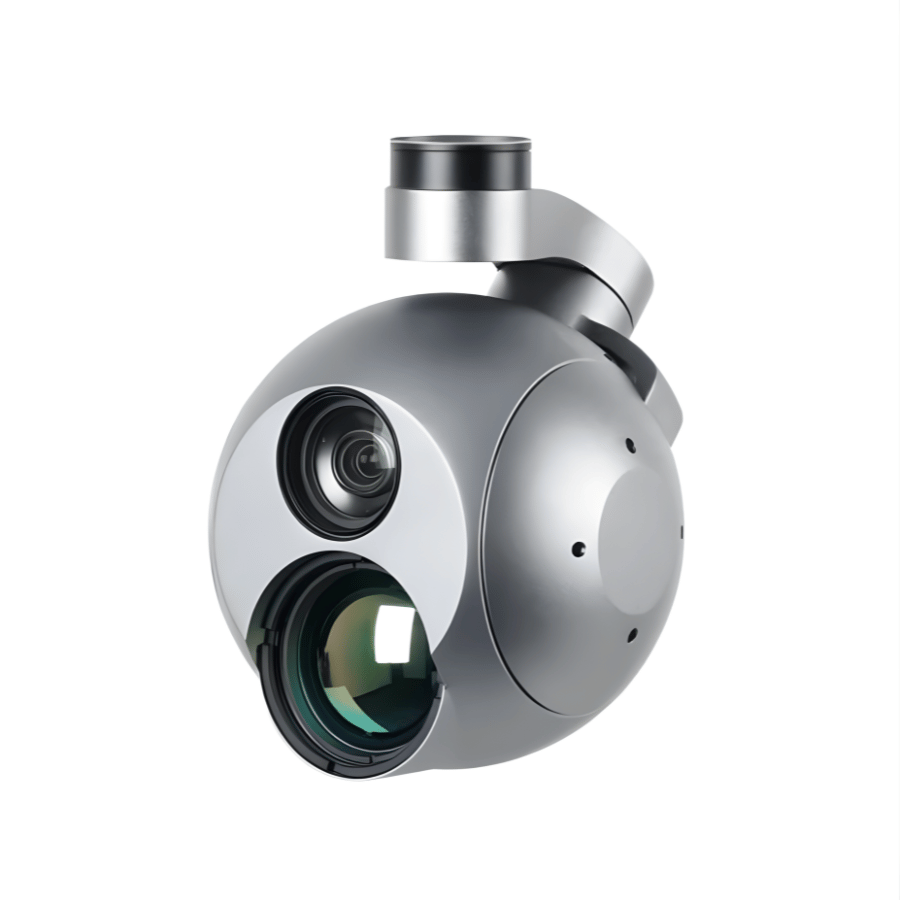

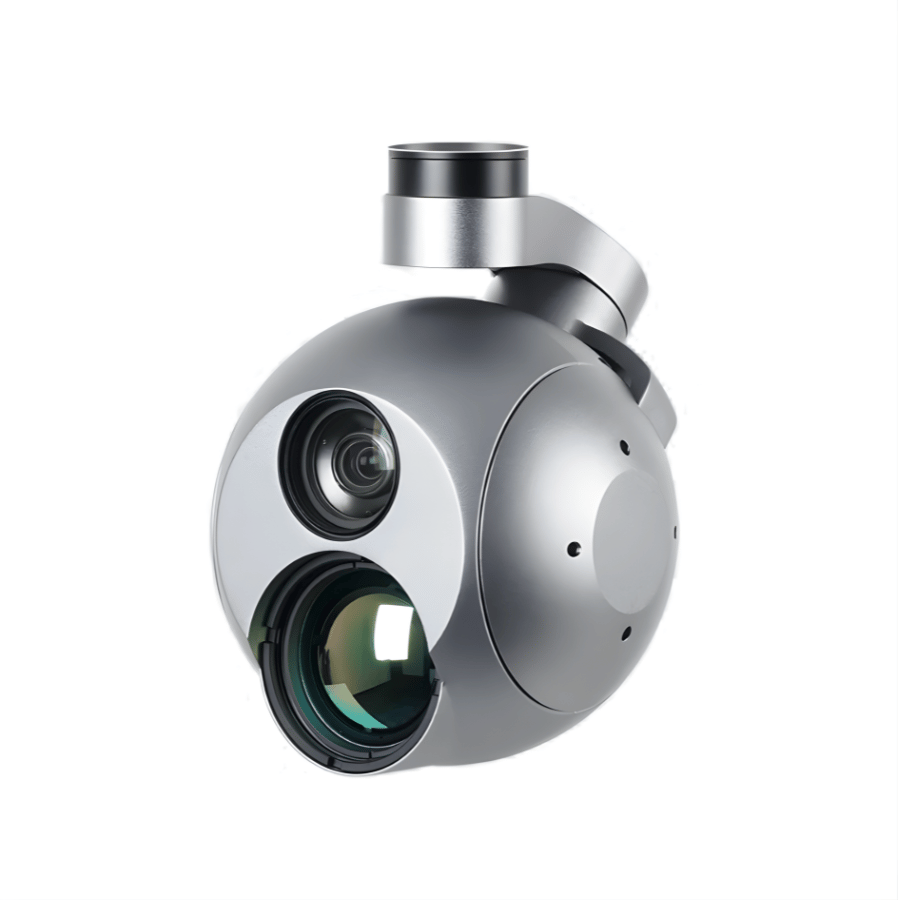

A30 T-50 Thermal Camera
-
Integrated EO (electro-optical) + IR (infrared / thermal) gimbal camera system.
-
Thermal imager uses a 640×512 uncooled VOx detector, long-wave IR (≈ 8–14 μm), suitable for long-range detection.
-
High-zoom visible-spectrum (day) camera: 30× optical zoom + digital zoom, with full-HD (1080p) imaging.
-
Supports AI-based object detection/tracking (humans, vehicles, etc.), enabling automatic identification and tracking.
-
Multi-output & control options: micro HDMI (1080p 30/60fps), IP streaming (RTSP/UDP), and control via PWM / TTL / S.BUS / TCP / UDP depending on version.Designed for use on UAVs / drones, vehicles, or fixed mounts — useful in surveillance, search & rescue, inspection, security, and patrol tasks.
- Authorised dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
A30 T-50 Thermal Camera
| Category | Specification |
|---|---|
| Thermal Sensor Type | Uncooled VOx microbolometer |
| Thermal Resolution | 640 × 512 pixels |
| Pixel Pitch | 12 μm |
| Spectral Range | 8–14 μm (LWIR) |
| Thermal Lens | 50 mm |
| Thermal Field of View | H: 8.8°, V: 7.0°, D: 11.2° |
| Thermal Digital Zoom | 1× to 8× |
| Human Detection Range | ~2083 m |
| Human Recognition Range | ~521 m |
| Human Identification Range | ~260 m |
| Vehicle Detection Range | ~6389 m |
| Vehicle Recognition Range | ~1597 m |
| Vehicle Identification Range | ~799 m |
| Visible Camera Sensor (EO) | 1/2.8″ CMOS (Exmor R) |
| EO Resolution | 2.13 MP, Full HD 1080p |
| Optical Zoom (EO) | 30× (4.3–129 mm) |
| Digital Zoom (EO) | Up to 12× (≈360× total) |
| Minimum Object Distance | 10 mm (wide) to 1200 mm (tele) |
| EO Field of View | H: ~63.7° (wide) to ~2.3° (tele) |
| HDMI Output | 1080p @ 30/60fps |
| IP Output | RTSP/UDP 1080p/720p @ 30fps |
| Local Recording | TF card up to 128 GB (FAT32/exFAT) |
| AI Recognition | Humans & vehicles |
| AI Tracking Capacity | Up to 10 targets |
| Detection Rate | ≥ 85% |
| False Alarm Rate | ≤ 10% |
| Gimbal Pitch/Tilt Range (Mech) | –55° to +125° |
| Gimbal Roll Range | ±40° |
| Gimbal Yaw/Pan Range | ±300° / continuous 360° (IP version) |
| Controllable Pitch | –45° to +120° |
| Gimbal Stability | ±0.02° |
| Control Interfaces | PWM / TTL / S.BUS / TCP-IP / UDP |
| Working Voltage | 16–24 V (4S–6S LiPo) |
| Operating Temperature | –20°C to +60°C |
| Weight | ≈1352 g |
| Special Features | EO+IR video, PIP mode, radiometric temp display, GPS geotagging, remote streaming |
