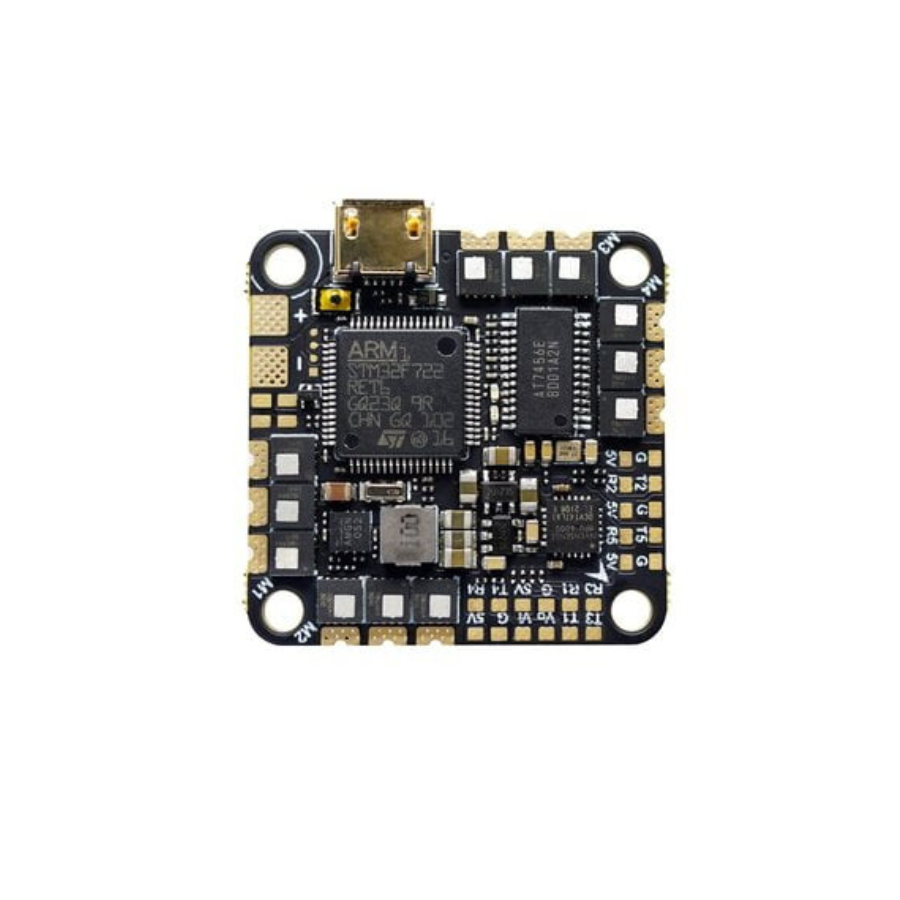

GEPRC-GEP F722 45A AIO V2

MCU:STM32F722,with strong performance and higher computing speed.
It has 5 full UART ports, which can connect more external devices
Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .
The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally support the 2-6S lipo battery, which can bring the drone a stronger flight performance.
Support OSD parameter adjustment, buzzer, led and other functions.
8g ultra light weight

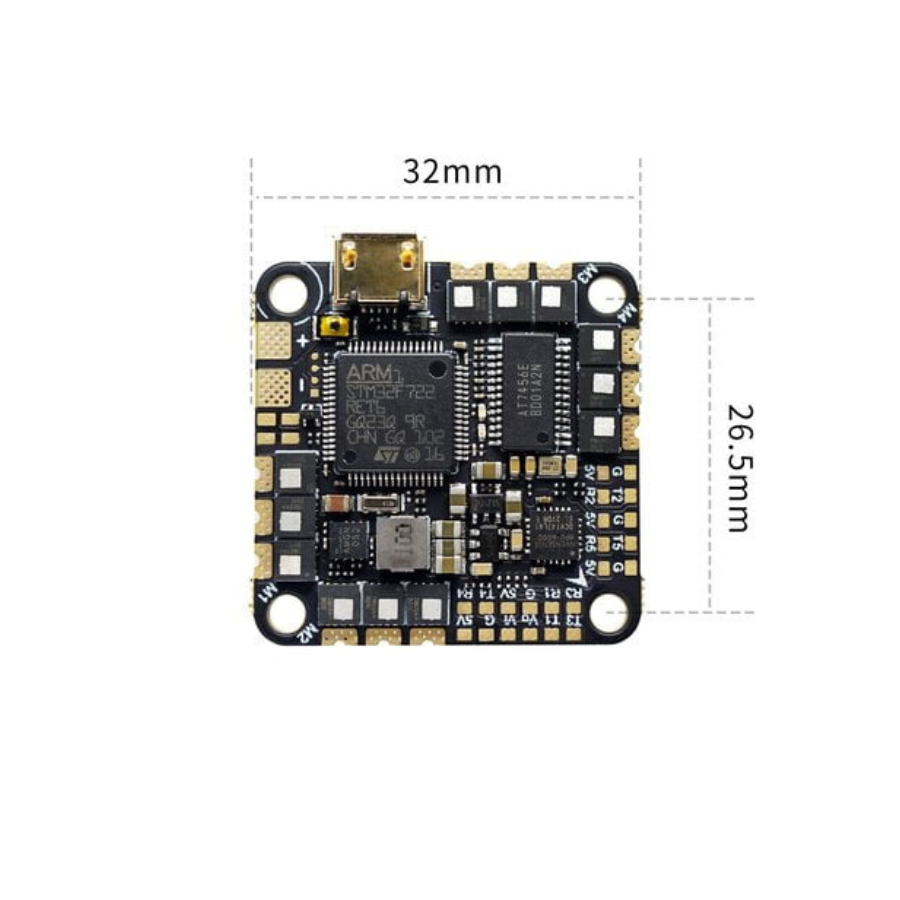

5mm * 25.5mm mounting hole, suitable for most frames

Description

GEPRC-GEP F722 45A AIO V2

Name: GEPRC-GEP F722 45A AIO V2
SKU: 114644
Availability: InStock

The GEPRC-GEP F722 45A AIO V2 is a high-performance, all-in-one flight controller designed for serious FPV enthusiasts and drone builders who demand both power and compact efficiency. At the heart of this advanced controller is the STM32F722 MCU, a powerful microcontroller that offers superior computational performance. This ensures faster processing, improved responsiveness, and the ability to handle complex flight tasks and inputs with ease.

Equipped with five full UART ports, the GEP F722 V2 provides maximum flexibility when it comes to connecting external peripherals such as GPS modules, telemetry, crossfire systems, and other advanced FPV gear. A dedicated 6-pin plug-and-play connector has been integrated specifically for seamless compatibility with the DJI Air Unit Module, allowing for a quick, solder-free setup for digital FPV systems.

The flight controller also incorporates a high-performance 45A BLHeli_S ESC, capable of handling a continuous current of 45A and peaking at 55A, making it more than sufficient for high-thrust builds. It supports a wide input voltage range of 2S to 6S LiPo batteries, giving pilots flexibility in building various performance-level drones.

The GEP F722 V2 includes support for OSD (On-Screen Display) parameter tuning, along with buzzer and LED functionality, enhancing user control, safety, and customization during flight. Weighing only 8.8 grams, its lightweight design doesn’t compromise on features and ensures it fits effortlessly into most FPV frames.

With 25.5mm x 25.5mm mounting holes, it’s compatible with a wide range of micro and cinewhoop frames. The V2 is a perfect balance of minimalism, advanced functionality, and raw power—making it an ideal choice for FPV pilots who need a compact yet powerful all-in-one solution. Get it at Xboom now.
