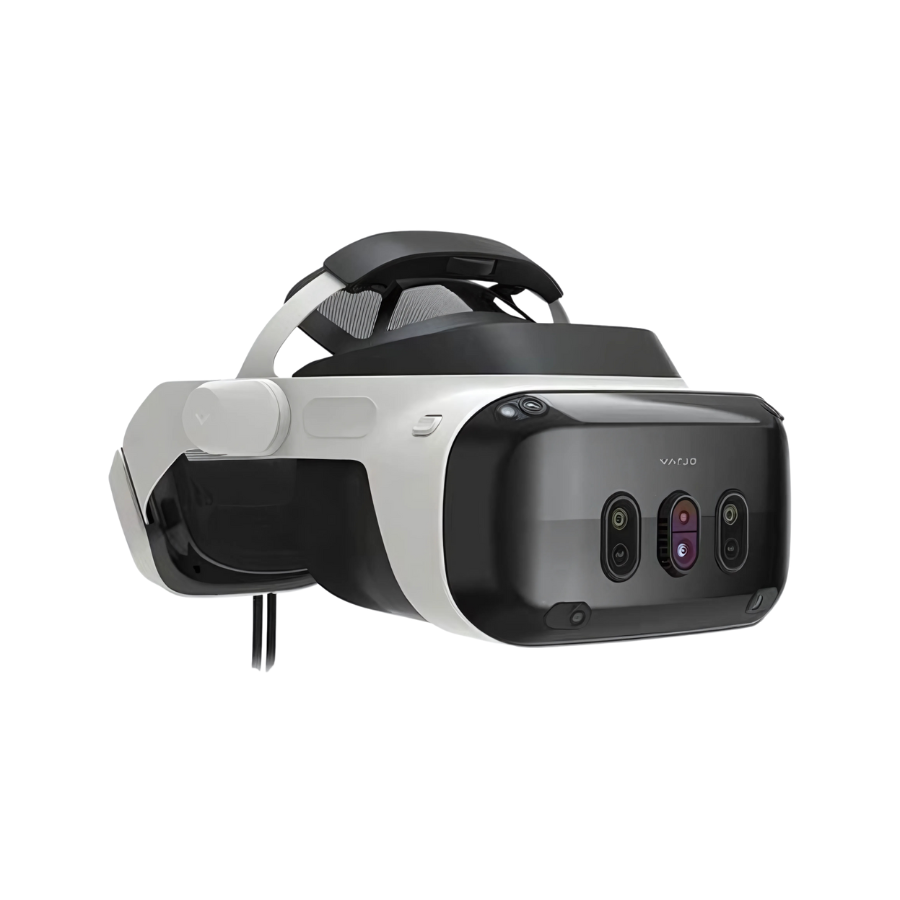

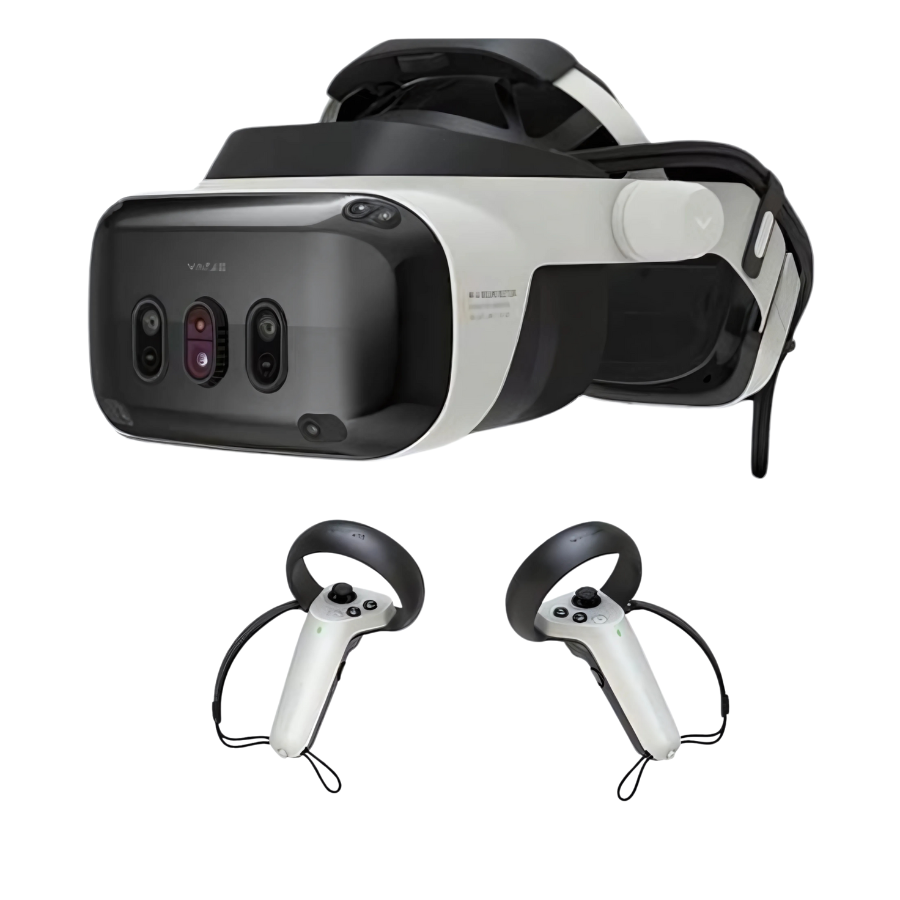

Varjo XR-4 Secure Edition

  • Mixed reality headset engineered for secure facilities with offline operation and TAA compliance.

  • Two variants: Fixed Focus (max virtual fidelity) and Autofocus (gaze-driven autofocus for highest passthrough clarity).

  • Dual 4K-by-4K mini-LED displays (3.59”), 90 Hz, 200 nits, 1:10000 contrast, wide color (98% sRGB / 96% DCI-P3).

  • 120° × 105° full-dome aspheric optics with industry-leading clarity.

  • Dual 20 MP passthrough cameras, 300 Kpix LiDAR (≈7 m range), and 200 Hz eye tracking.

  • Integrated speakers with DTS 3D spatial audio and dual noise-cancelling mics.

  • Inside-out tracking standard; SteamVR™, ART, and OptiTrack supported.

Description

Specification



Category XR-4 Secure Edition – Fixed Focus XR-4 Secure Edition – Autofocus
Displays Dual mini-LED, 3.59”; 3840 × 3744 per eye; 90 Hz; 200 nits; 1:10000 contrast; 98% sRGB / 96% DCI-P3 Same
Optics & FOV Custom full-dome aspheric optics; 120° × 105° FOV Same
Passthrough cameras Dual 20 MP RGB Dual 20 MP RGB with gaze-driven autofocus
Passthrough clarity (PPD) 33 PPD passthrough Up to 51 PPD passthrough with autofocus
Depth sensing 300 Kpix LiDAR, ~7 m range Same
Eye tracking 200 Hz 200 Hz
IPD Automatic Automatic
Audio Integrated speakers with DTS 3D spatial audio Same
Microphones Dual noise-cancelling mics Same
Tracking (default) Inside-out 6DoF Same
Tracking (options) SteamVR™ outside-in version available; ART and OptiTrack via API Same
Hand tracking (option) Ultraleap Leap Motion 2™ kit Same
Security & compliance Assembled in Finland, TAA-compliant; no online connectivity required; non-RF (no radio) version available Same
Comfort “Zero-gravity” comfort fit Same
Typical connectivity to host 1× DisplayPort 1.4 + 1× USB-C (10/20 Gbps) Same
Supported OS Windows 10/11 (64-bit) Windows 10/11 (64-bit)

Meet Varjo XR-4 Secure Edition

Outstanding visual fidelity in the industry thanks to 4K by 4K mini-LED screens with 200 nits and a 96% DCI-P3 color space.
Innovative full-dome optics cover a huge 120° x 105° field of vision with perfect aspheric clarity.
Dual 20-megapixel cameras with up to 51 PPD passthrough and the first gaze-driven XR autofocus system in the world enable XR to recreate true human vision.

With no need for internet access, it was assembled in Finland and supports complete TAA compliance.
sophisticated sensor fusion that combines brand-new ambient light reconstruction cameras, 200 Hz eye tracking, and 300 Kpix extended range LiDAR.

Inside-out tracking is included as standard, and there are more tracking options available.
It is perfect for interactive training because it has two noise-cancelling microphones and integrated speakers that support DTS 3D spatial audio.
The premium assistance package comprised delivery, onboarding, and priority response times.

Varjo XR-4 Secure Edition

High resolution at the pilot level

Varjo XR-4 Secure Edition



Experience training and simulation with a no-compromises approach to immersion. True one-to-one recreations of training environments are made possible by the accuracy and visual clarity provided by crystal-clear 4K per eye mini-LED displays.

Full binocular range vision is provided by a new ultra-wide 120° x 105° field of view, and training scenarios in both day and night are supported by 200 nits of brightness and a 1:10000 contrast ratio attained with local dimming.



Communication clarity that leads the industry



Real-world components like cockpits, maps, or tools can be seamlessly combined with virtual content in mixed reality simulation settings made possible by Varjo’s renowned XR cameras.

The XR-4 Secure Edition’s 20-megapixel sensors provide passthrough clarity that leads the industry, making it easy to read even tiny text and avionics.

The world’s first XR gaze-driven autofocus camera system and an incredible 51 PPD in passthrough are two more ways that the XR-4 Secure Edition with autofocus improves the mixed reality experience.

Varjo XR-4 Secure Edition



The greatest safety and protection



All XR-4 Secure Edition headsets, in contrast to other models in the XR-4 Series, are put together in a cutting-edge facility in Finland, guaranteeing complete TAA compliance.

Because each headset is fully offline and can be set up to have no radio components, they are appropriate for closed-loop network environments and extremely high-security scenarios.

The XR-4 Secure Edition includes priority shipment, guided onboarding sessions, fewer than one business day support guarantees, and access to top-notch support.
