BS100 Intelligent Battery Station

  • Multi-Battery Charging: Charges up to 8 TB100 batteries simultaneously for continuous operations.
  • Smart Charging Modes: Includes storage, quick, and standard charging options to optimize battery health.
  • Portable Design: Equipped with wheels and a telescopic handle for easy transport on-site.
  • Real-Time Status Display: LED indicators show charging status and battery health at a glance.
  • Efficient Cooling System: Built-in fans ensure safe, stable performance during high-demand usage.
  • Optimized for DJI Matrice: Specifically designed to support DJI Matrice 400 and 350 RTK batteries.
WhatsApp Us
Follow us: InstagramYouTubeLinkedIn

Description

BS100 Intelligent Battery Station

The DJI BS100 Intelligent Battery Station is a high-efficiency charging hub designed to power professional drone operations with speed and safety. Capable of charging up to 8 TB100 batteries simultaneously, it ensures that your DJI Matrice 400 or 350 RTK is always ready for flight. The station features smart charging modes—including storage and quick charge options—to extend battery lifespan and enhance operational efficiency. Built-in wheels and a pull-out handle make it easy to transport to various job sites, while the integrated status indicators and cooling system ensure safe, reliable performance in the field.

Take a Closer Look

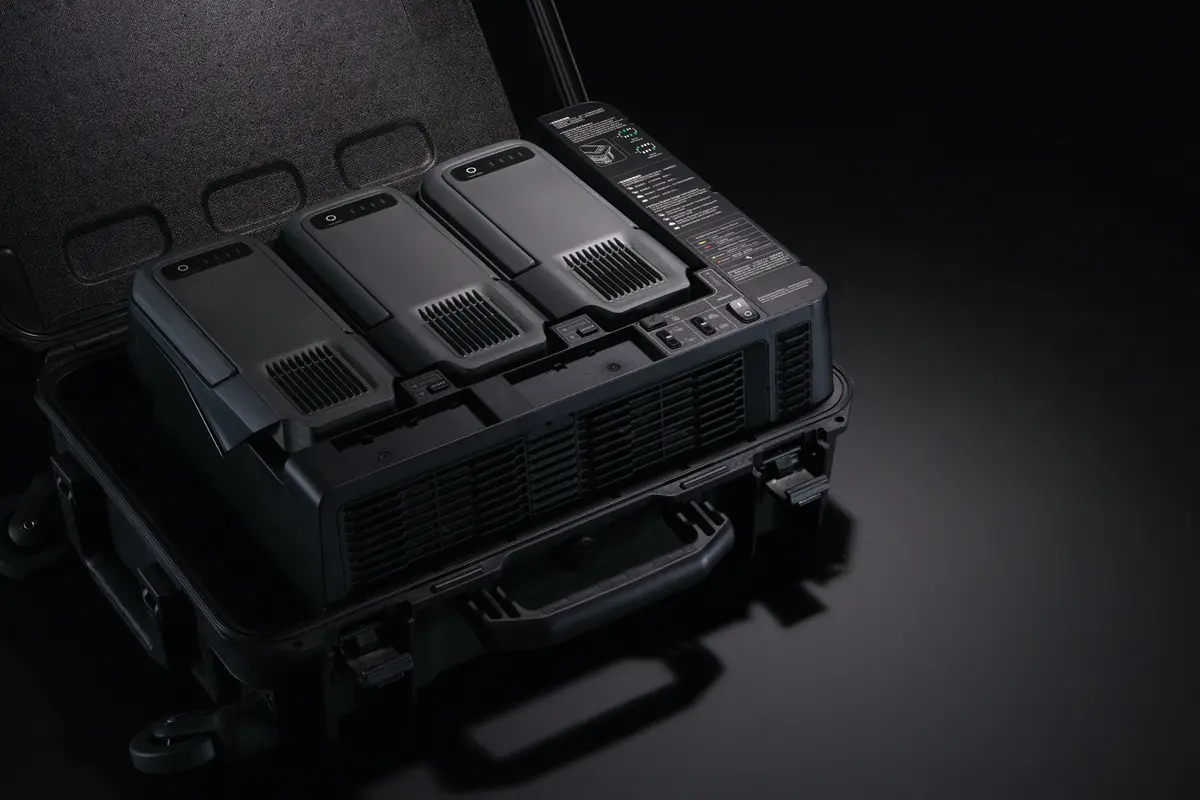

The intelligent battery station is a one-stop solution for battery charging, storage, and transport. Supports Ready-to-Fly Mode with 90% recharge, Standard Mode with 100% recharge, as well as Fast Charging Mode and Silent Mode to extend battery lifespan. The new 360°-movement wheels facilitate more convenient transportation and transitions. The battery station provides three TB100 battery ports, two WB37 battery ports, and one USB-C charging port. It can charge one TB100 battery and one WB37 battery simultaneously.

Tips

1. Do not close the battery station while recharging.

2. DO NOT attempt to touch the metal terminals on the battery ports.

Specifications

Specifications
Dimensions 605 × 410 × 250 mm (L×W×H)
Empty Weight Approximately 11.8 kg
Output Power – TB100 Battery Port
100 V to 110 V Approximately 1185 W
110 V to 180 V Approximately 1474 W
180 V to 240 V Approximately 2184 W
Output Power – WB37 Battery Port 100 V to 240 V: Approximately 52 W
USB-C Output 5.0V 3.0A / 9.0V 3.0A / 12.0V 3.0A / 15.0V 3.0A / 20.0V 3.25A (up to 65 W)
Operating Temperature -20° to 40° C (-4° to 122° F)
Compatibility
Supported Device DJI Matrice 400
