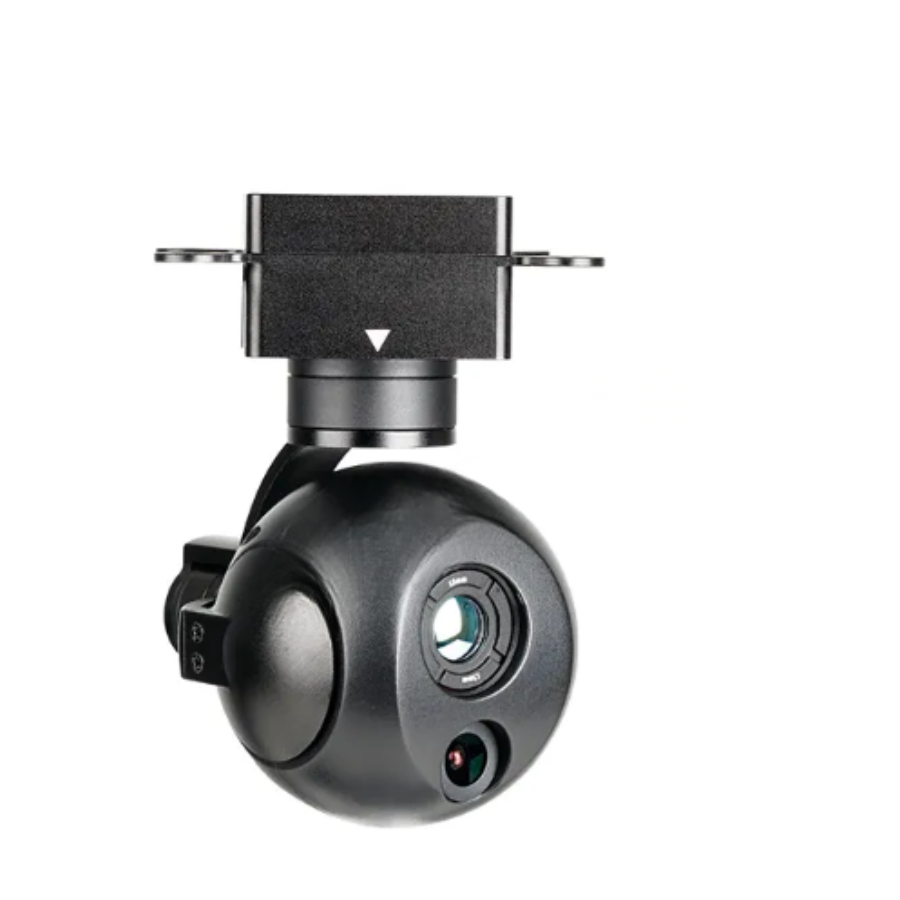

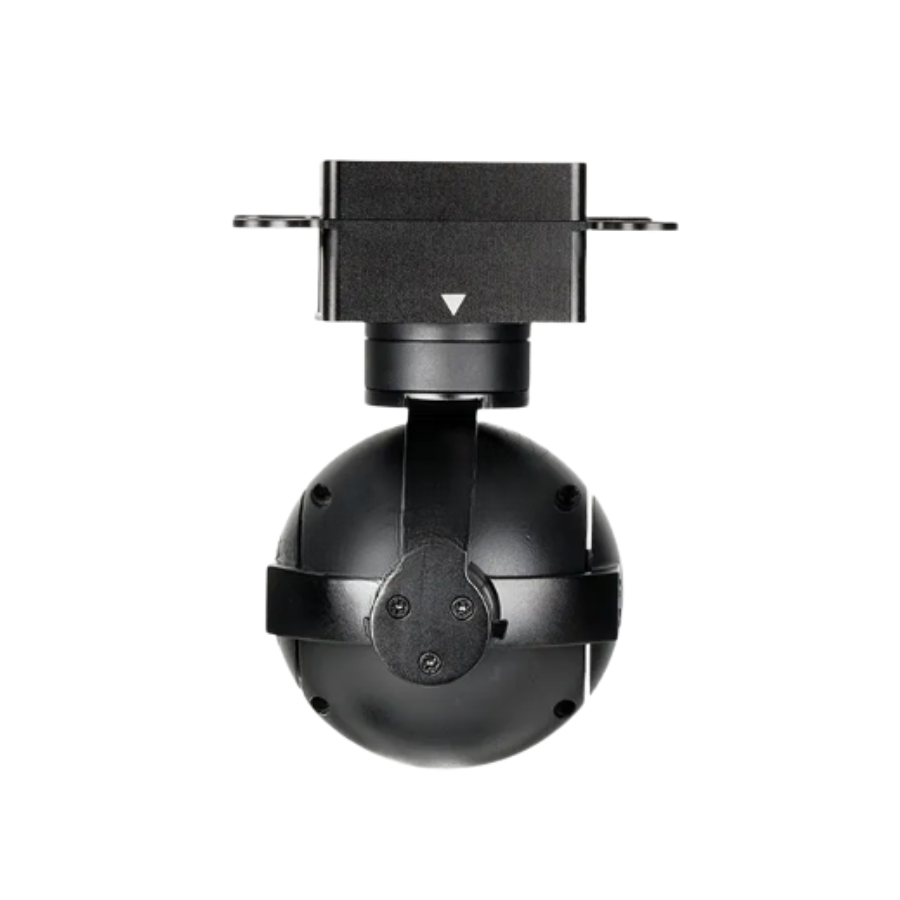

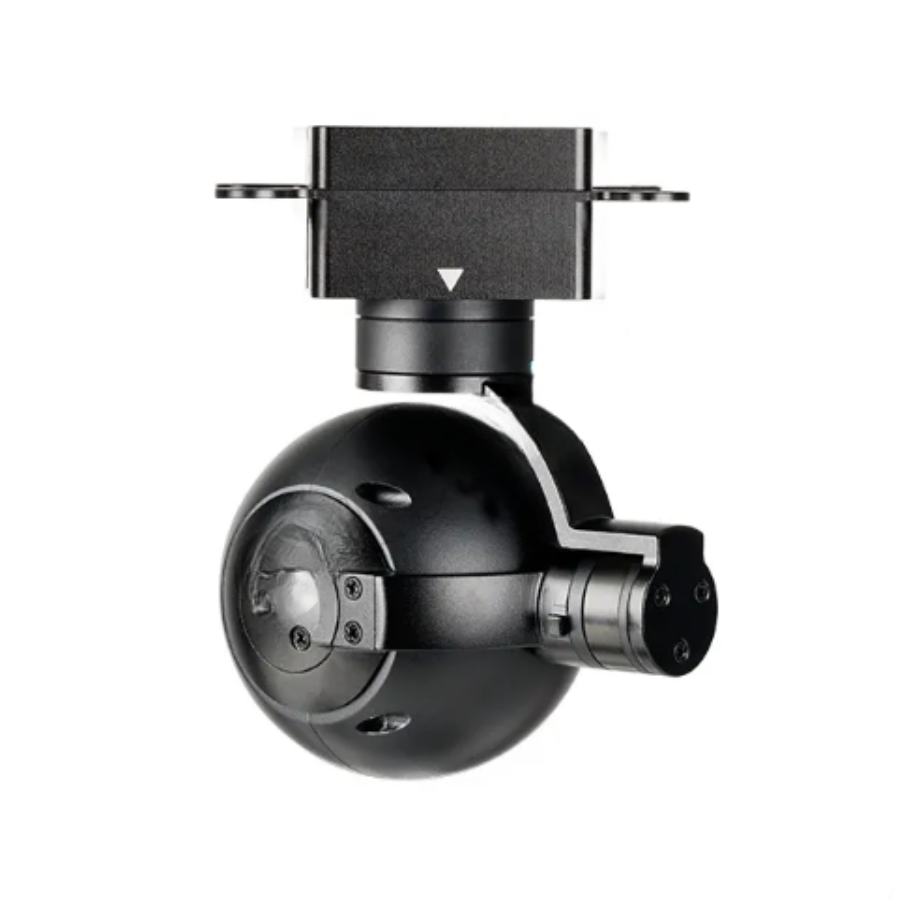

A613 Mini 3-Aixs Stabilizer Prime Lens EO/IR AI Tracking Thermal Imager Gimbal Camera

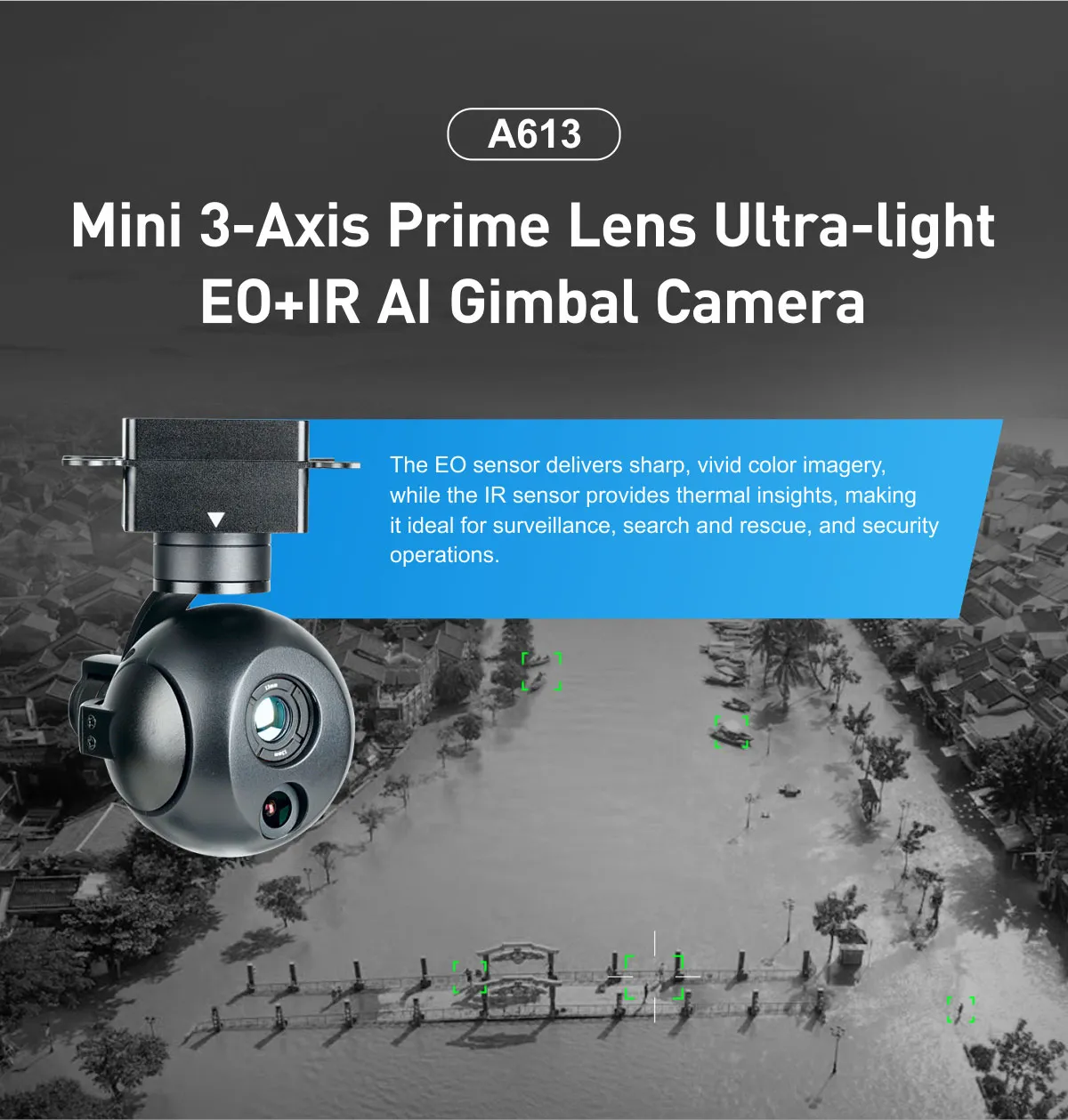

Compact and lightweight 3-axis gimbal camera integrating both EO (electro-optical) and IR (infrared) sensors.
Fixed-prime EO lens (~6 mm) with 2 MP resolution and Full HD (1080p) output, plus 12× digital zoom.
IR module with 13 mm focal length, 640×512 resolution (12 µm pixel pitch), and 8× digital zoom for thermal imaging.

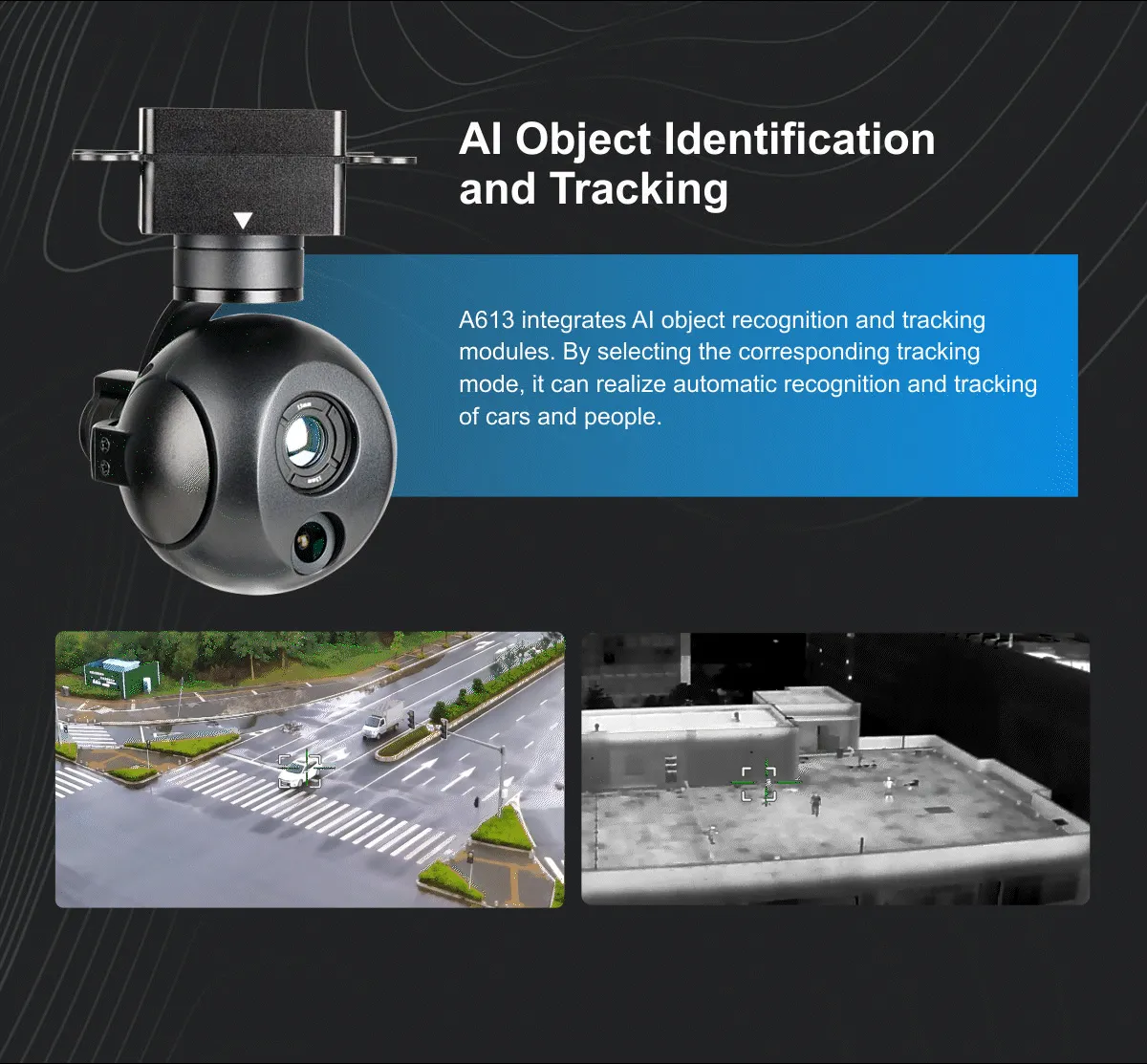

Built-in AI object recognition and tracking capabilities — human and vehicle detection/recognition/verification ranges supported.
Mechanical gimbal coverage: yaw ±150°, pitch –48° up to 125° down, roll ±60°.
Seamless integration with UAV/robotic platforms, supports TCP/UDP/UART/PWM/S.BUS, video streaming RTSP/UDP 720p/1080p at 30fps, H.264/H.265 codec.
Ideal for applications such as public security, search & rescue, environmental monitoring and surveillance.

Description

Overview

Specification Category	Details
Product Name	A613 Mini 3-Axis Stabilizer Prime Lens EO/IR AI Tracking Thermal Imager Gimbal Camera

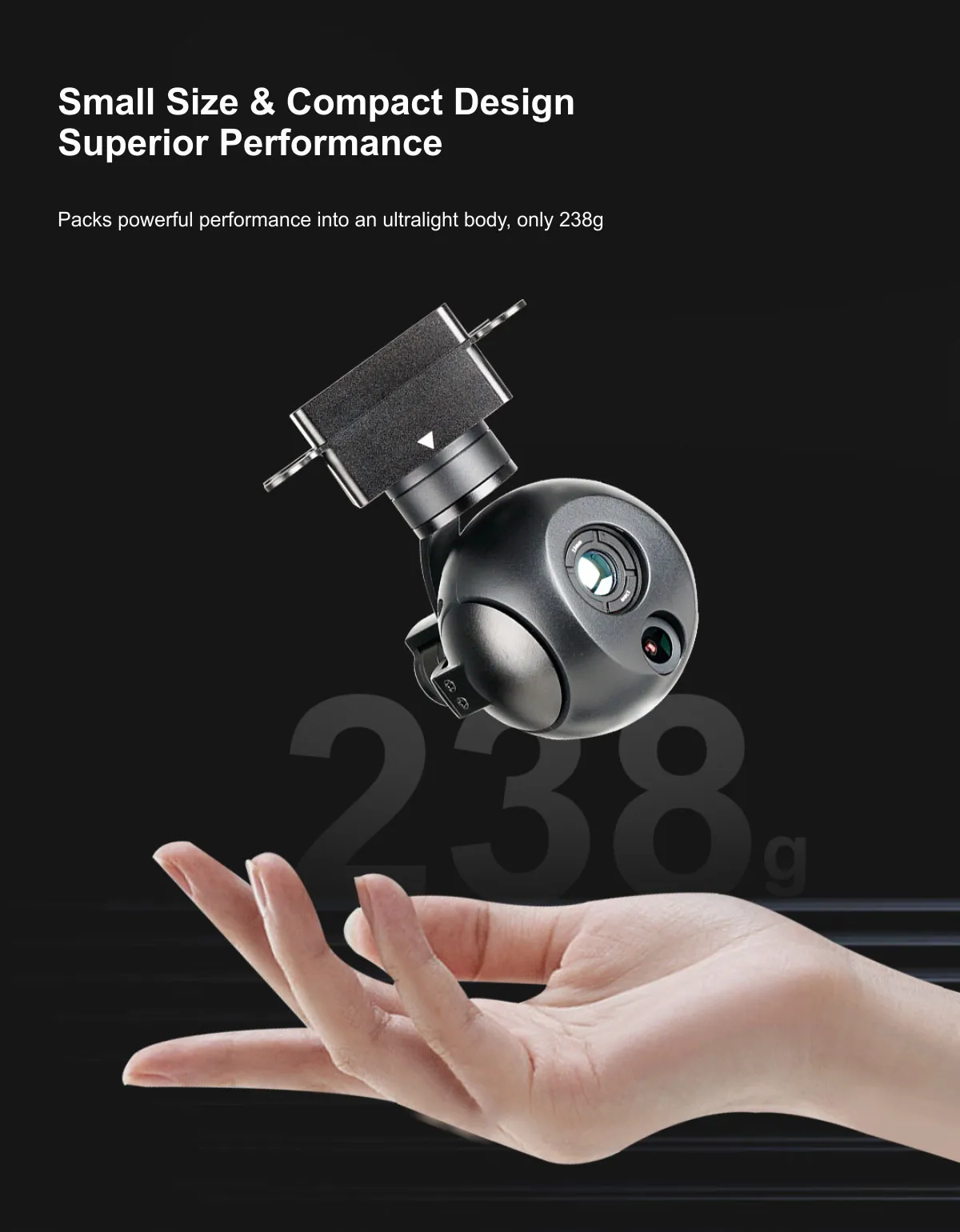

Weight	≈ 238 g (ultra-light for small UAVs/robots)

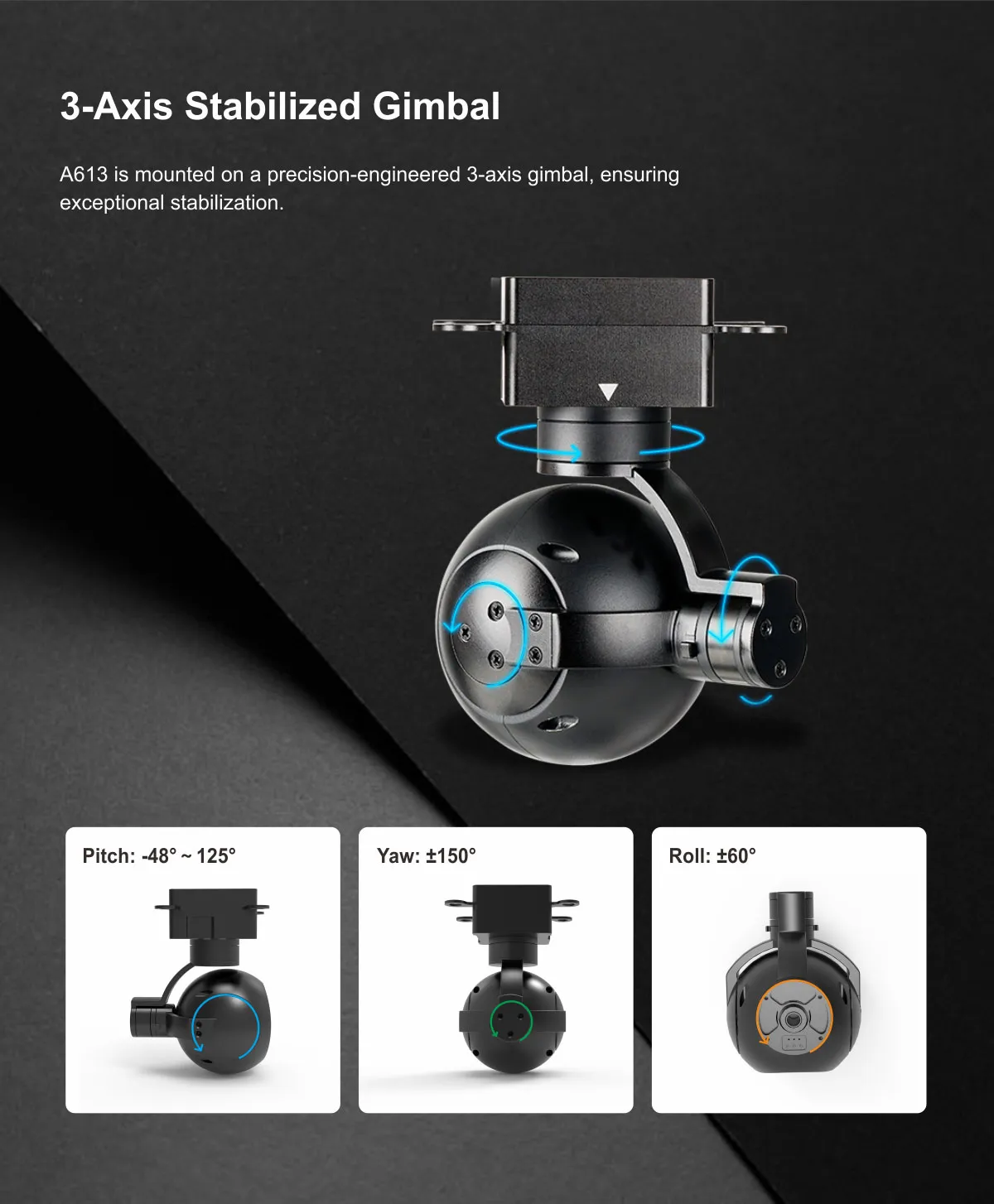

Gimbal Type	3-axis stabilised (Yaw: ±150°; Pitch: –48° to 125°; Roll: ±60°)

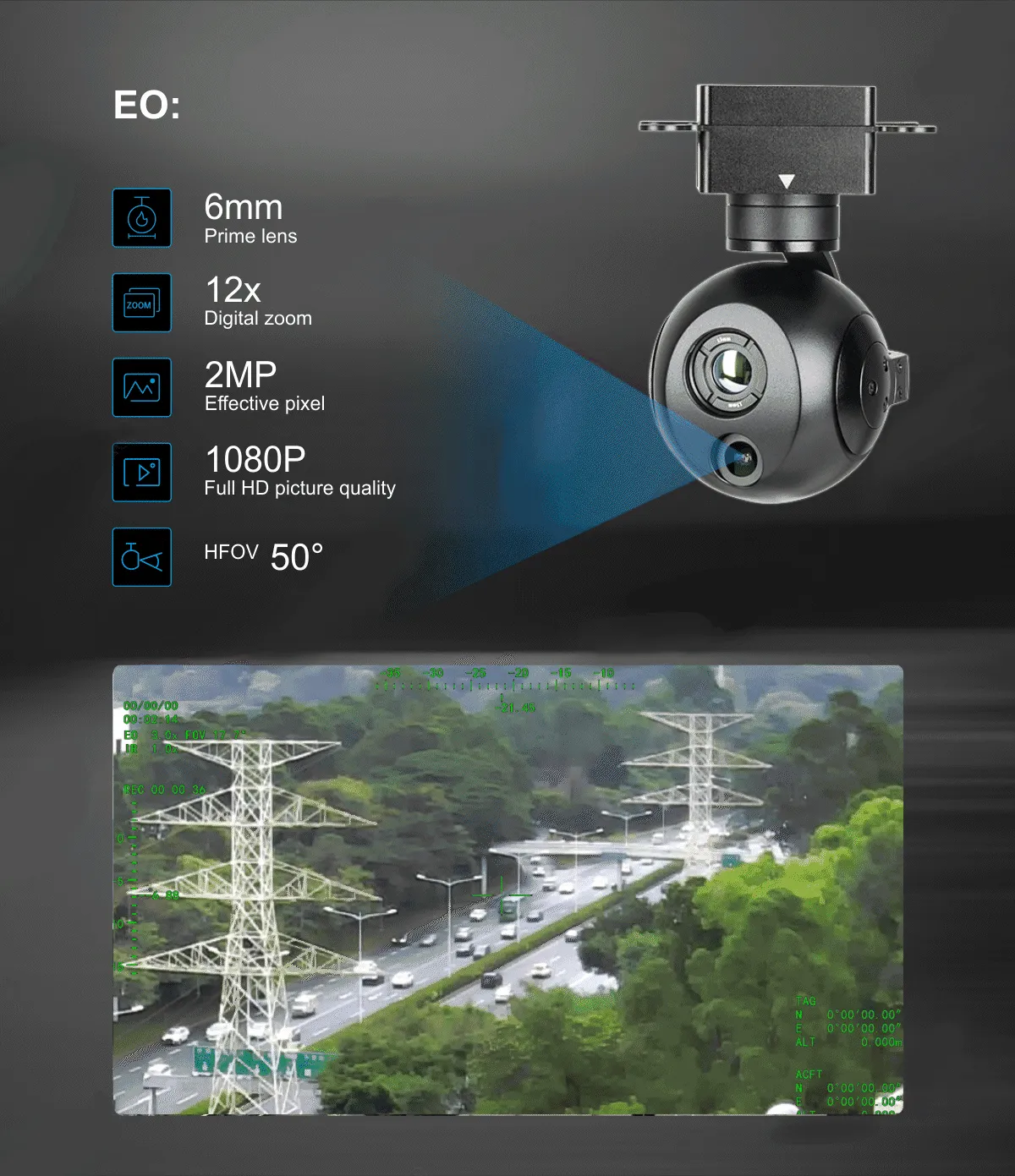

EO (Electro-Optical) Module	• Lens: 6 mm fixed prime • Sensor resolution: 2 MP • Output: 1080p Full HD • Digital zoom: 12× • Horizontal FOV: ~50°

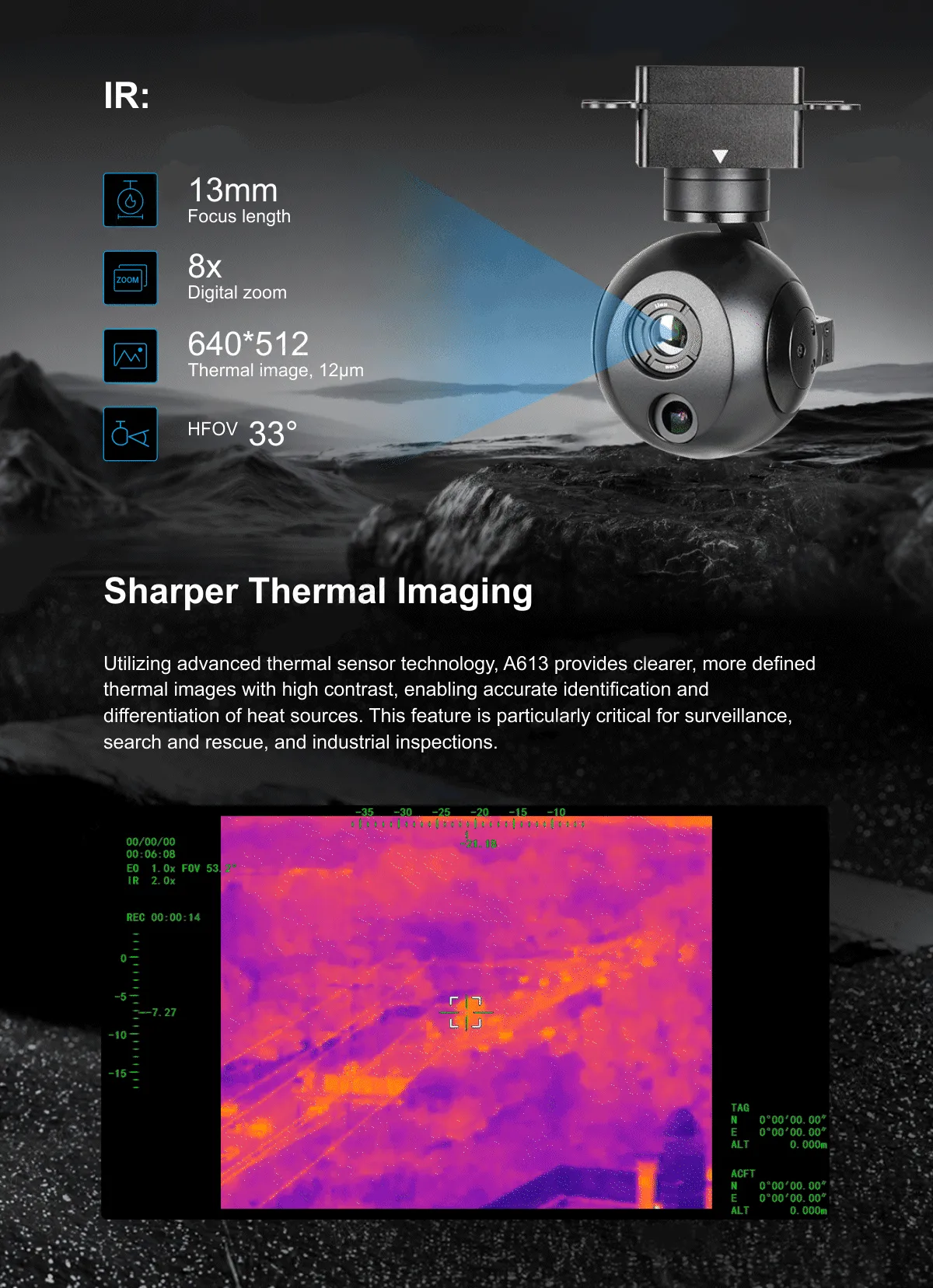

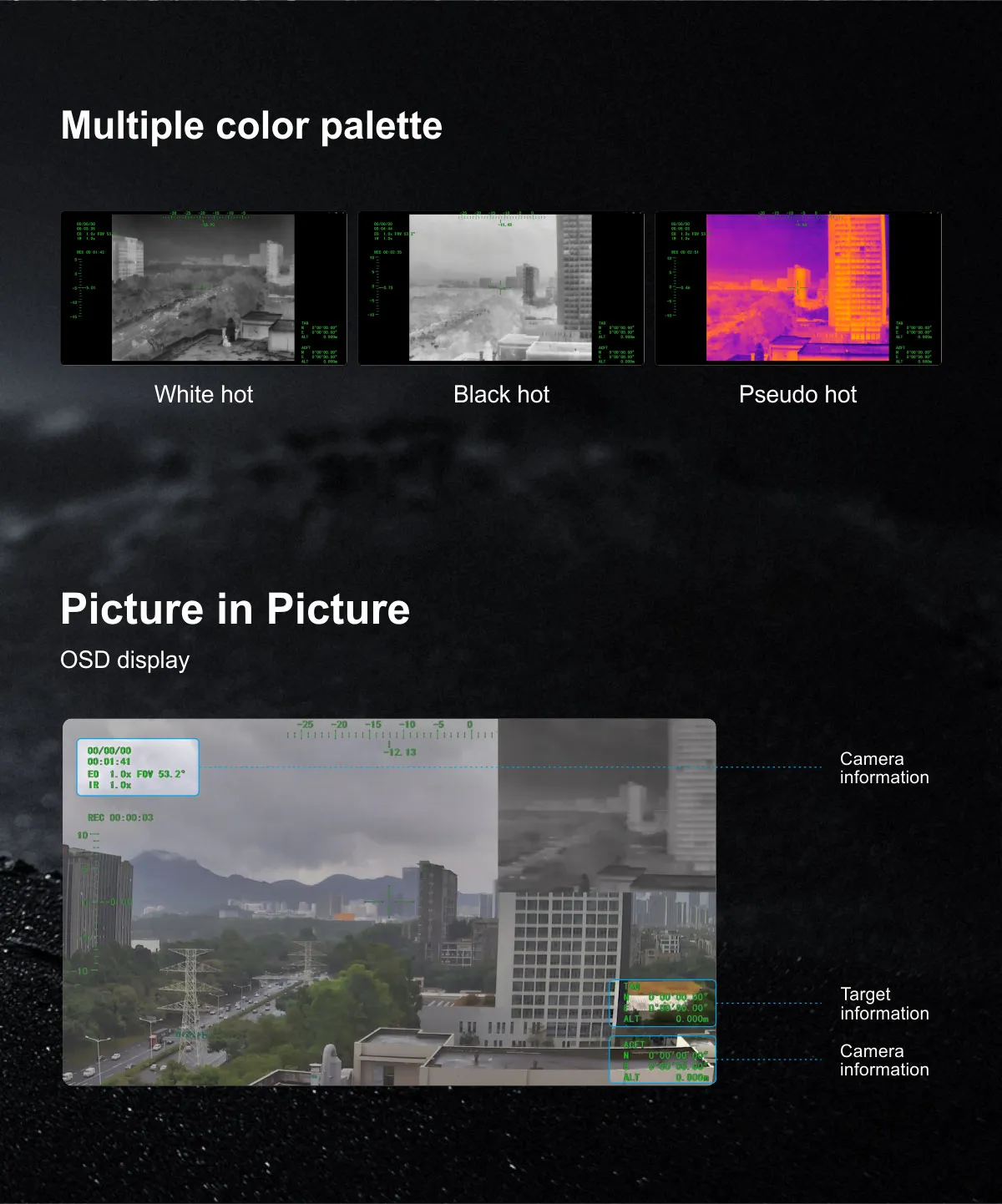

IR (Infrared/Thermal) Module	• Lens focal length: 13 mm • Resolution: 640×512 with 12 µm pixel pitch • Digital zoom: 8× • HFOV: 33°; VFOV: 26° • Color palettes: white-hot, black-hot, pseudo color • Additional: Picture-in-Picture & OSD display supported

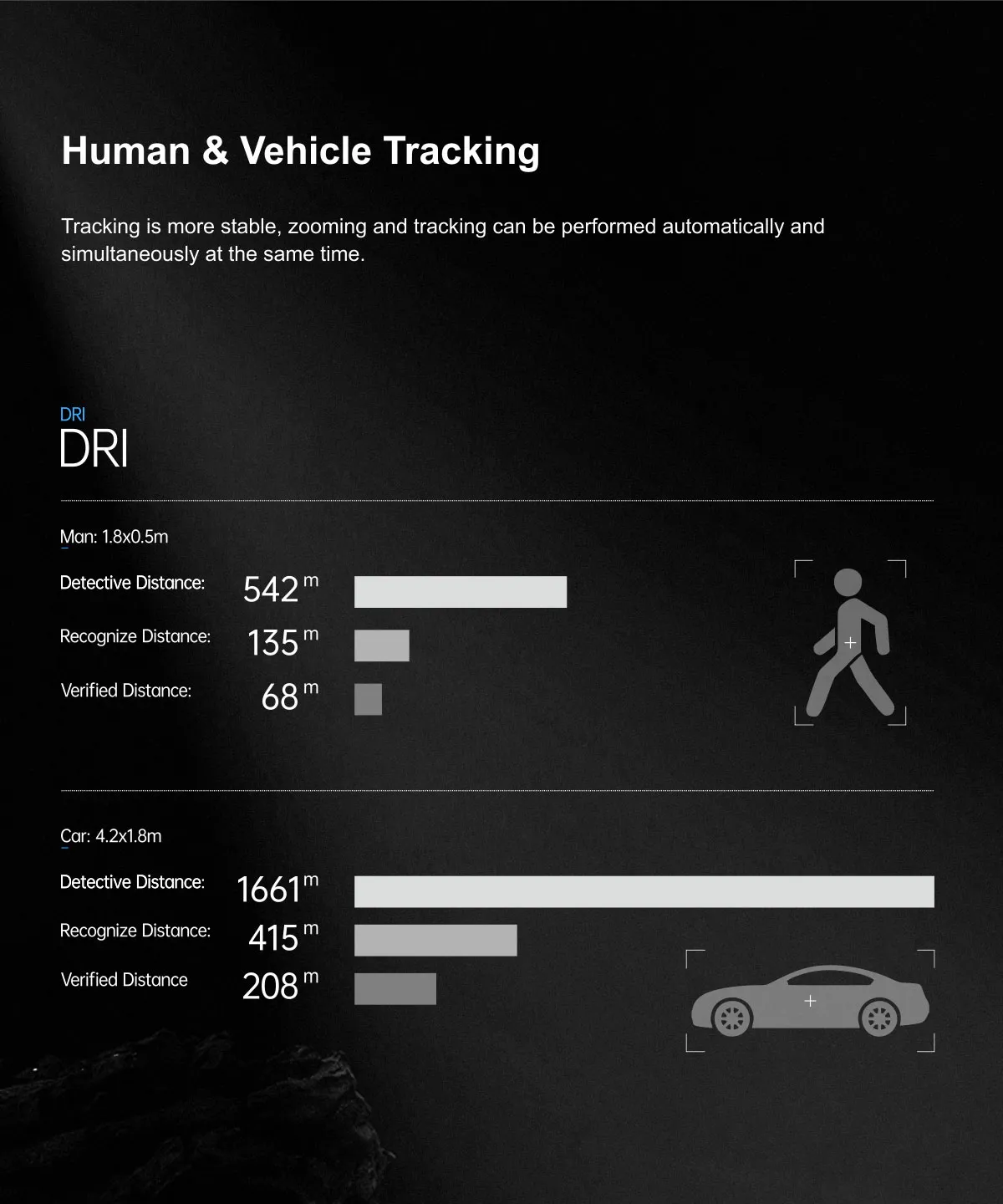

AI Object Tracking	• Human detection max ~542 m; recognition ~135 m; verification ~68 m • Vehicle detection max ~1,661 m; recognition ~415 m; verification ~208 m

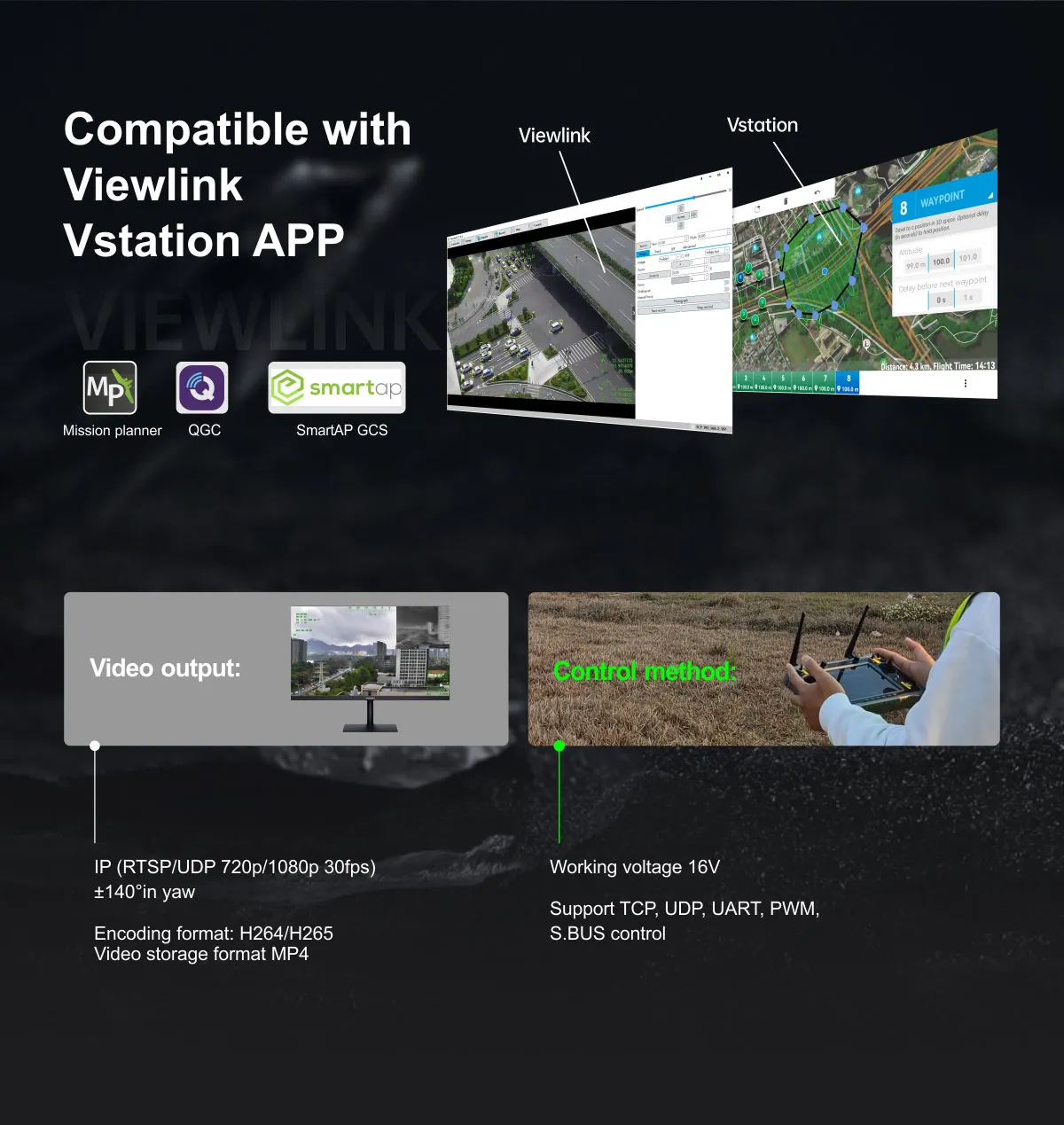

Video & Codec	• Video stream: RTSP/UDP, 720p/1080p @ 30 fps • Video codec: H.264 / H.265

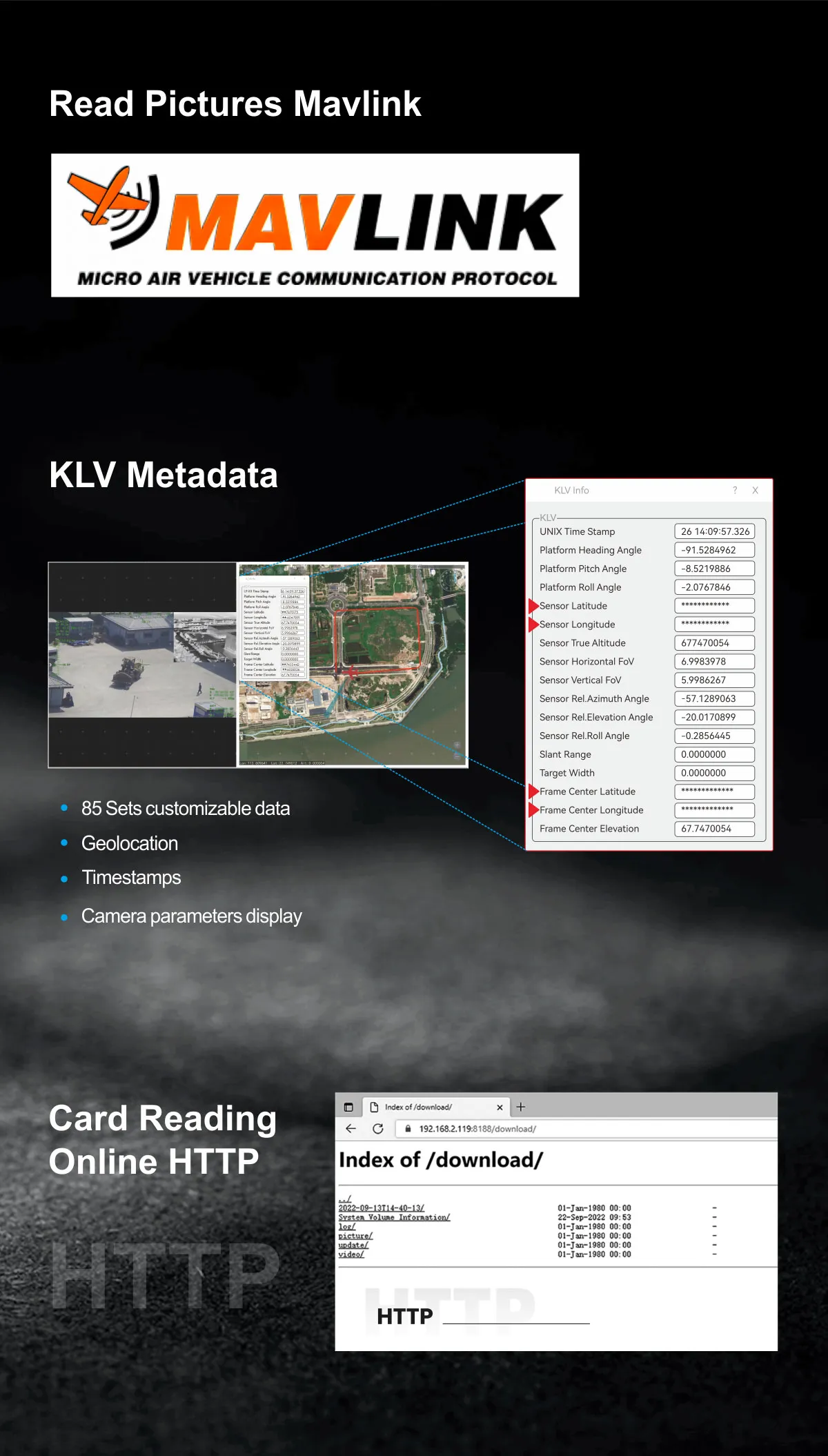

Data & Interface	• Protocols: TCP, UDP, UART, PWM, S.BUS • Metadata: Supports KLV metadata & MAVLink
Applications	Public security, surveillance, search & rescue, environmental monitoring, forest fire detection
Manufacturer / Brand	Viewpro UAV Gimbal & Payload Solutions
