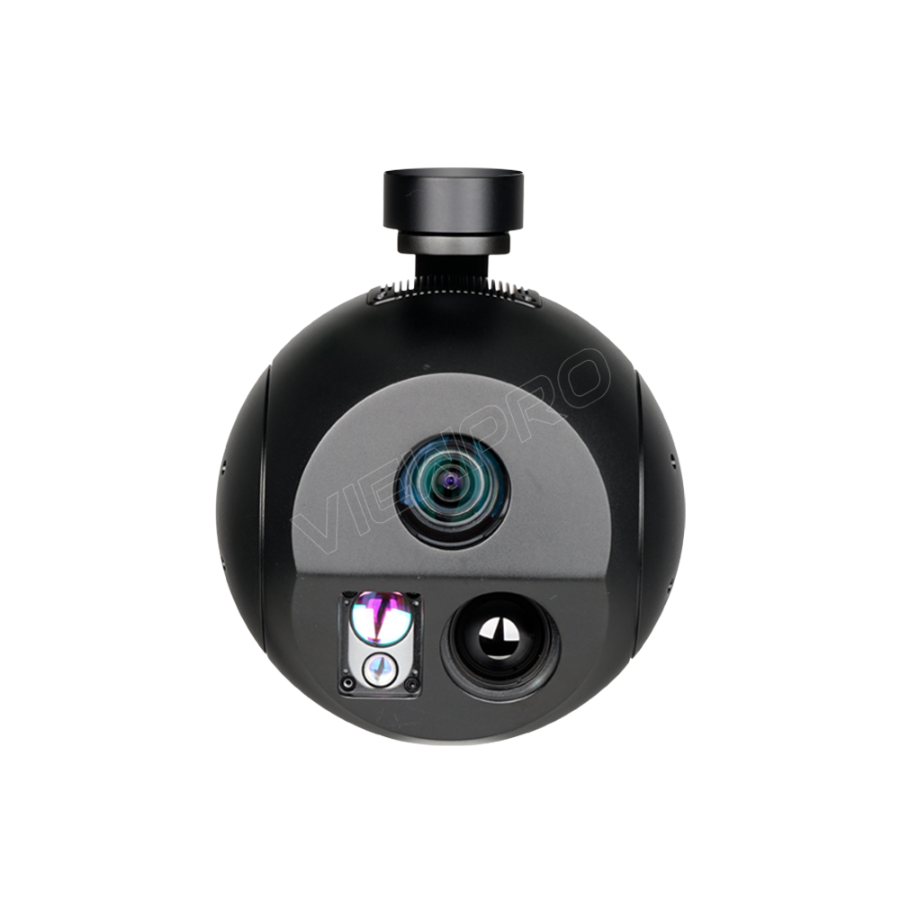

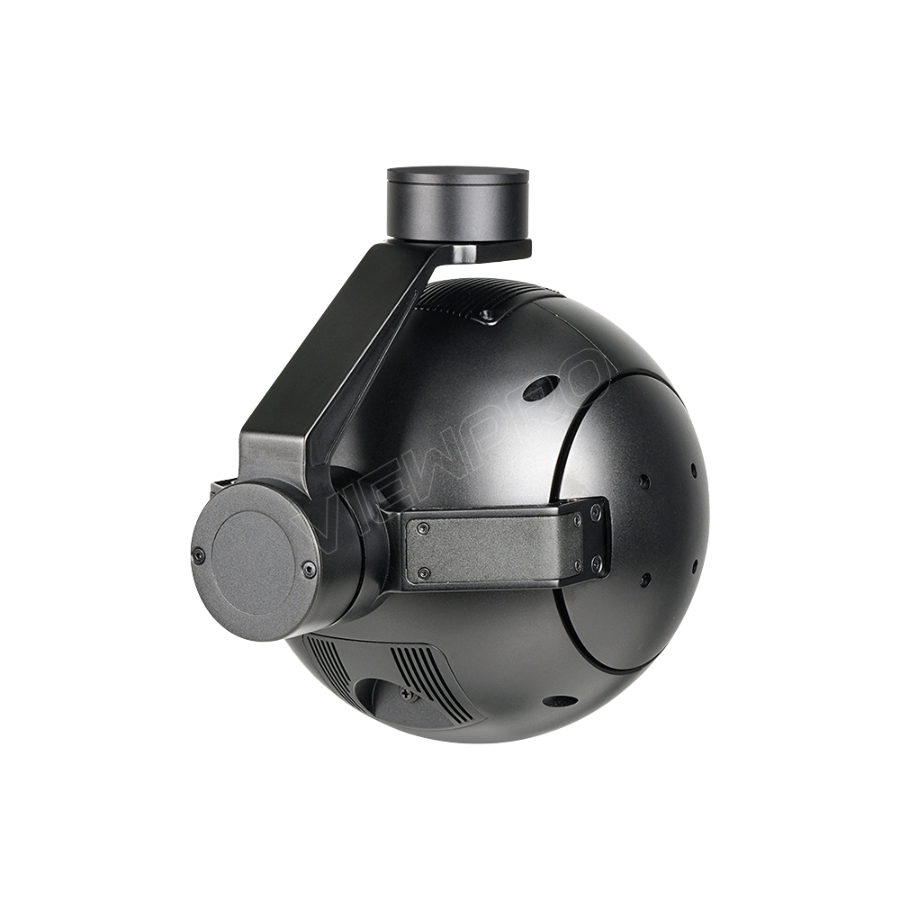

Q20KTIRM Object GPS Coordinate Calculation and LRF Gimbal Camera

Professional dual-sensor UAV gimbal equipped with EO zoom camera and high-resolution thermal imaging
Features 20× optical zoom for long-range observation and inspection tasks
Advanced IR thermal sensor ensures clear imaging in darkness, smoke, fog, and low-visibility environments
3-axis stabilized gimbal guarantees smooth and stable footage during flight
Supports AI tracking, target detection, and smart zoom functions
Lightweight, durable, and compatible with a variety of industrial drones
Ideal for search & rescue, surveillance, powerline inspection, border security, and emergency response

Overview

What makes it work

Category	Specifications
Model	Q20KTIRM
Gimbal Type	3-axis stabilized EO/IR UAV gimbal
EO Camera Sensor	1/2.8″ CMOS
EO Resolution	1080p Full HD
Optical Zoom	20×
Digital Zoom	Up to 16×
Thermal Sensor	Uncooled IR thermal sensor
Thermal Resolution	640 × 512 (model dependent)
Thermal Lens	19mm / 25mm options
Thermal Frame Rate	25Hz / 30Hz
Gimbal Stabilization	3-axis (Pitch, Roll, Yaw)
Pitch Range	–90° to +30°
Yaw Rotation	360° continuous rotation
Stabilization Accuracy	±0.02°
AI Features	Auto-tracking, target recognition, intelligent zoom
Video Output	HDMI / Digital signal output
Control Interfaces	PWM, S.BUS, Serial
Power Input	12V DC
Power Consumption	Approx. 12–18W
Operating Temperature	–10°C to +55°C
Weight	Around 500–800g depending on configuration
Applications	Surveillance, inspection, SAR, border control, firefighting, industrial monitoring
