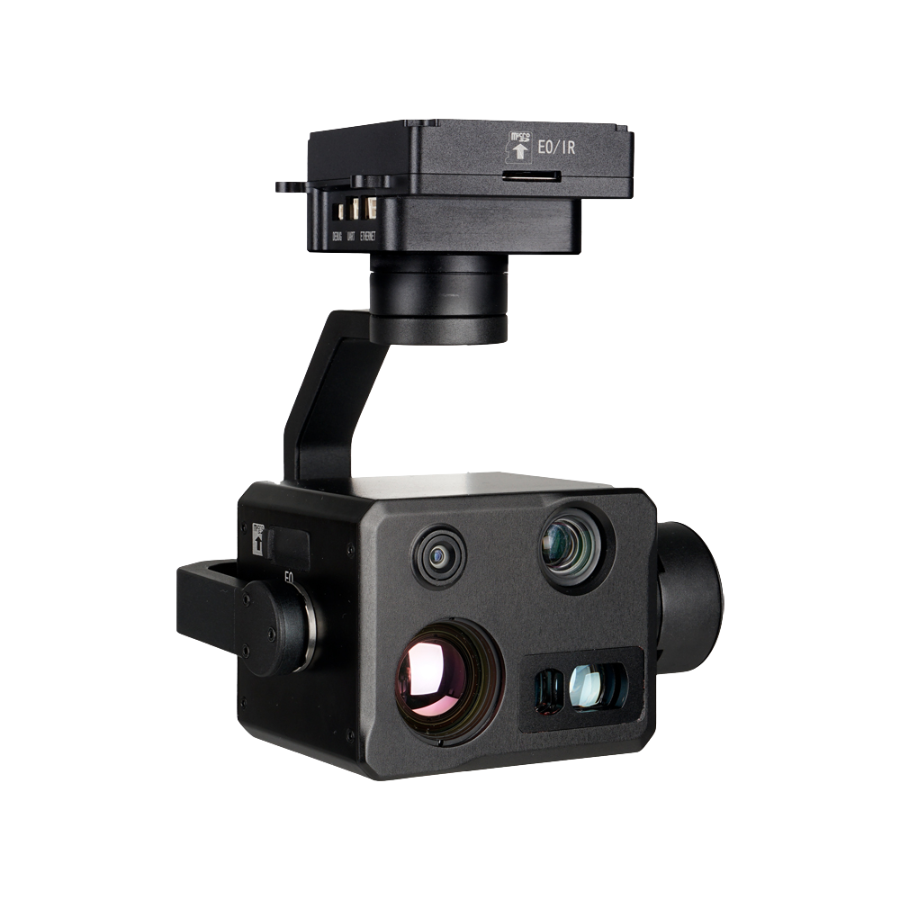

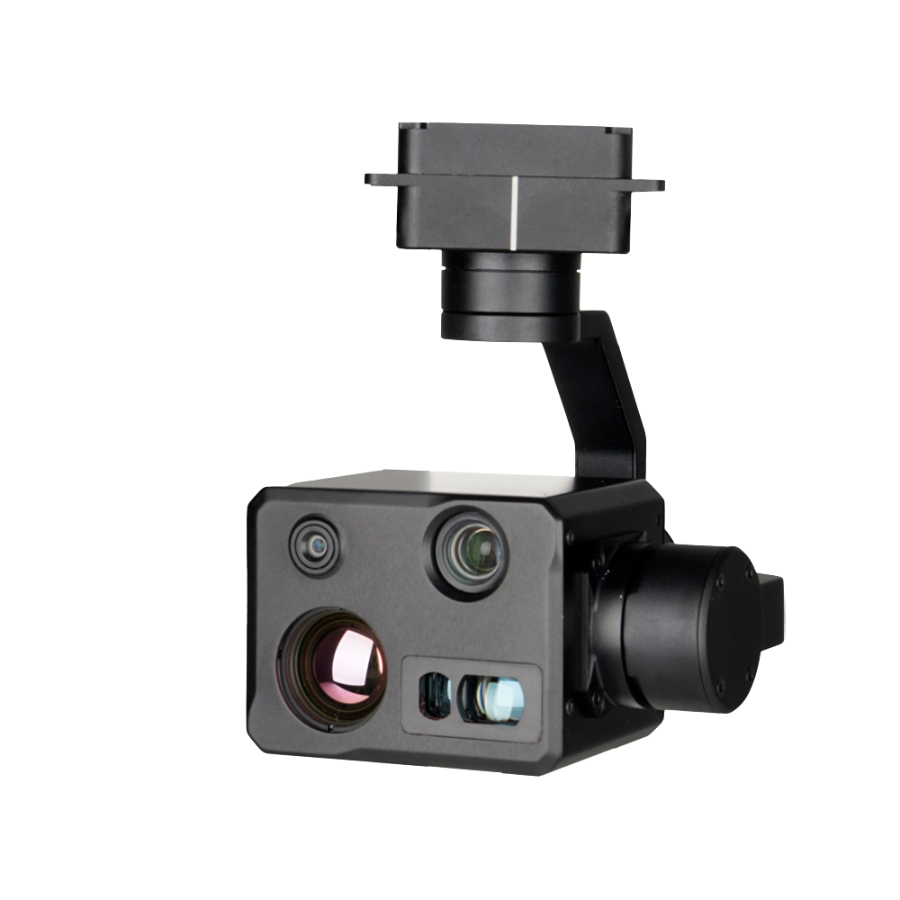

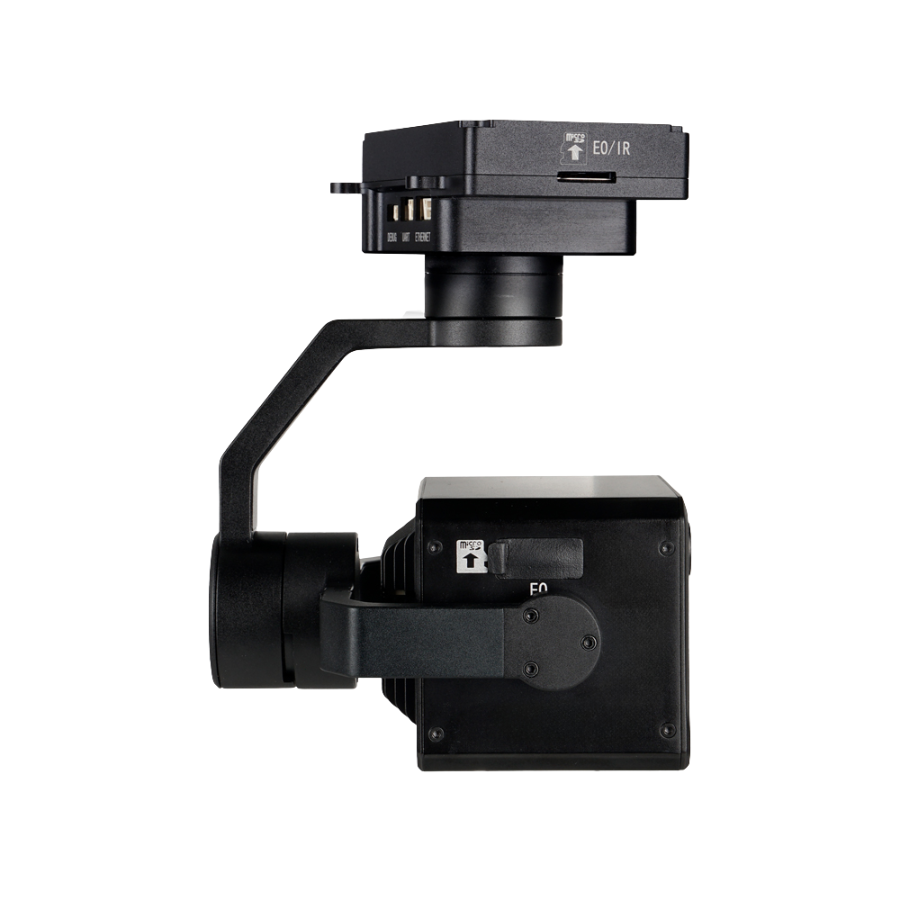

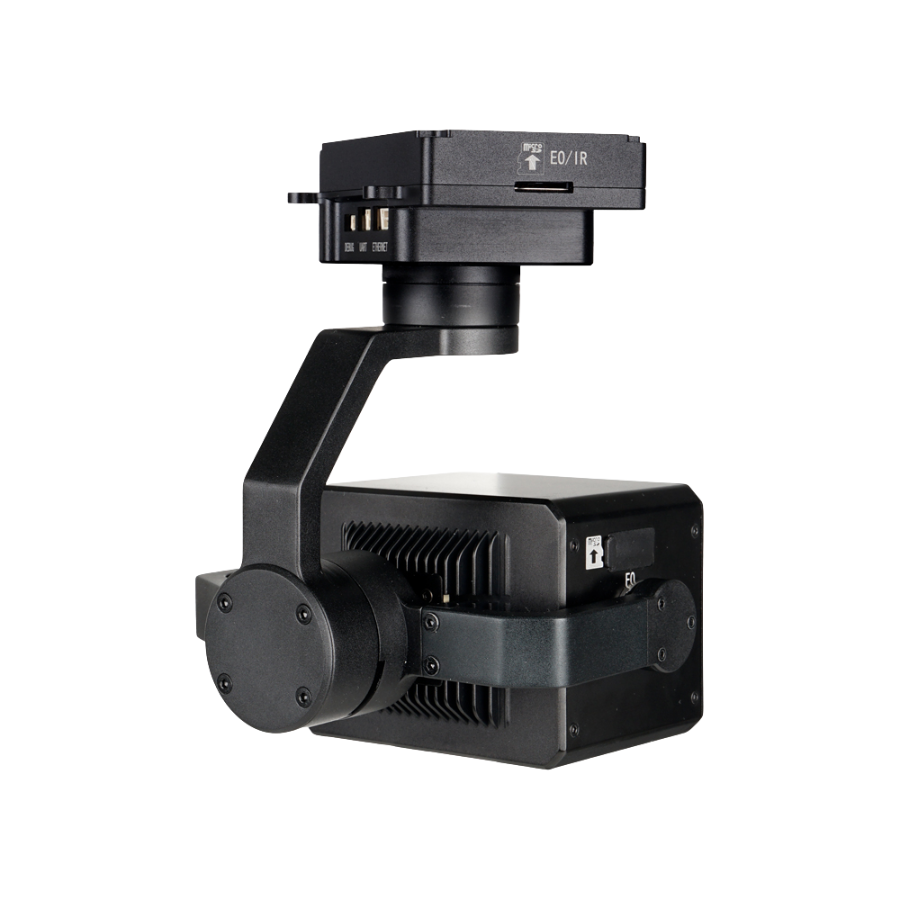

H4T-25 Quad-Sensor AI Object Tracking Gimbal Camera

High-precision quad-sensor gimbal payload for professional UAV operations
Equipped with thermal, zoom, wide-angle, and laser rangefinder sensors
25× optical zoom for long-distance detailed imaging
Advanced thermal imaging module for industrial inspections and search-and-rescue
Integrated laser rangefinder for precise distance measurement
3-axis stabilized gimbal for stable and smooth aerial footage
Supports multiple display modes: thermal, visible, PIP, fusion view
Ideal for security, inspection, surveillance, mapping, and emergency response

Overview

What makes it work

Category	Specification
Model	H4T-25
Camera Type	Quad-sensor UAV gimbal payload
Sensors Included	Thermal camera + Zoom camera + Wide-angle camera + Laser Rangefinder
Optical Zoom Camera	25× optical zoom
Thermal Resolution	640 × 512 (high resolution)
Thermal Lens Options	19mm / 25mm (varies by model)
Wide-Angle Camera	4K / 1080p (depending on version)
Laser Rangefinder	Up to 1000–1500m distance measurement
Gimbal System	3-axis stabilized gimbal
Gimbal Rotation	±320° Pan, –90° to +30° Tilt (approximate)
Image Display Modes	Thermal / Visible / Fusion / Picture-in-Picture
Frame Rate (Thermal)	25Hz / 30Hz
Detection Range	Long-range detection up to 1500m+ depending on conditions
Video Output	HDMI / IP digital stream
Storage	SD card (varies by configuration)
AI Functions	Target tracking, temperature alarms, hotspot detection
Material	Aluminum alloy housing
Power Input	12V – 24V
Weight	Approx. 900g – 1.2kg (varies by lens configuration)
Protection Level	IP54 / IP65 (model dependent)
Operating Temperature	–10°C to +50°C
