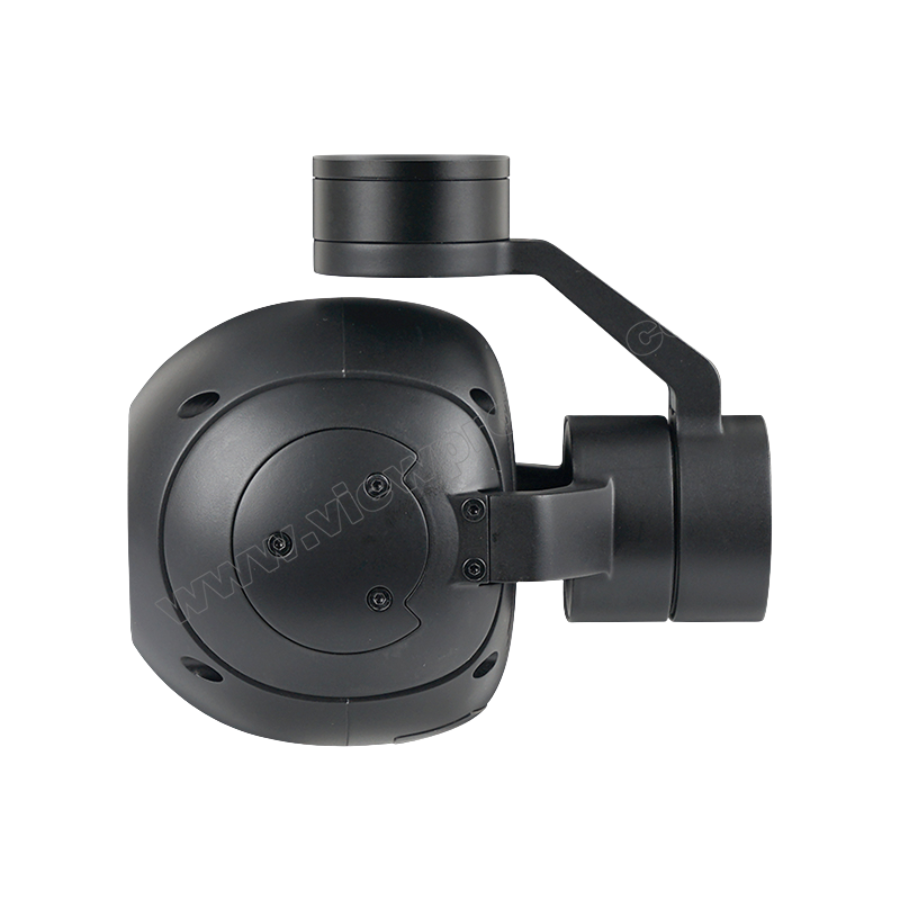

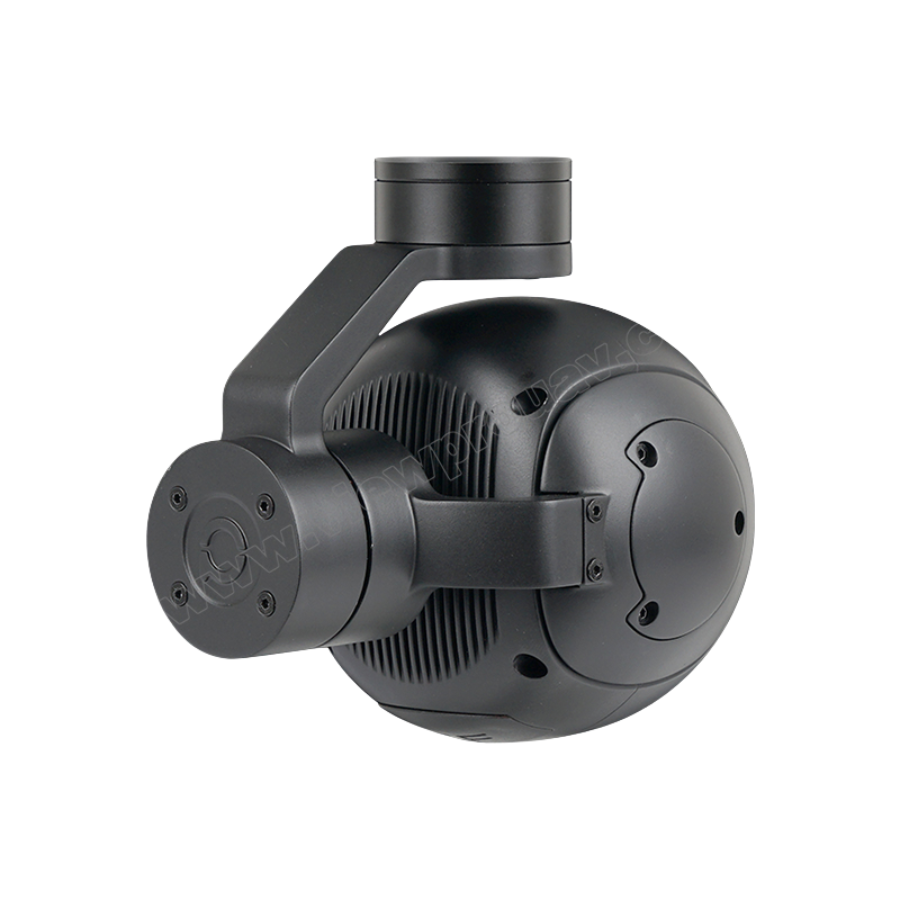

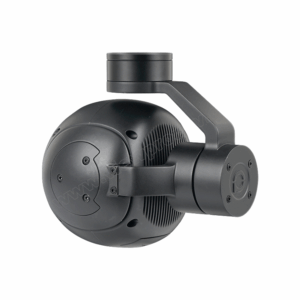

AT 19 Thermal AI Object Gimbal Camera
-
Lightweight and compact thermal imaging gimbal designed for professional UAV applications
-
High-resolution thermal camera ideal for search & rescue, inspection, and night-time surveillance
-
Smooth 3-axis stabilization ensures steady footage and accurate thermal readings
-
Multiple color palettes for enhanced clarity across different environments
-
Fast startup, low latency, and stable video transmission
-
Compatible with a wide range of industrial and commercial drones
-
Designed for tasks requiring reliable real-time thermal imaging
- Authorised dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
| Category | Specifications |
|---|---|
| Model | AT19 |
| Gimbal Type | 3-axis stabilized thermal camera gimbal |
| Thermal Sensor Type | Uncooled IR thermal sensor |
| Thermal Resolution | 640 × 512 (varies by model) |
| Lens Options | 19mm thermal lens |
| Frame Rate | 25Hz / 30Hz (depending on version) |
| Color Palettes | White hot, black hot, red hot, rainbow, ironbow, etc. |
| Gimbal Stabilization | 3-axis (Pitch, Roll, Yaw) |
| Pitch Range | –90° to +30° |
| Yaw Rotation | 360° continuous rotation |
| Stabilization Accuracy | ±0.02° |
| Video Output | HDMI / Digital data link |
| Control Protocols | PWM, S.BUS, Serial |
| Power Input | 12V DC |
| Power Consumption | Approx. 10–15W |
| Operating Temperature | –10°C to +55°C |
| Weight | Approx. 450–600g |
| Applications | Search & rescue, powerline inspection, firefighting, surveillance, agriculture monitoring |
