| Model Name |

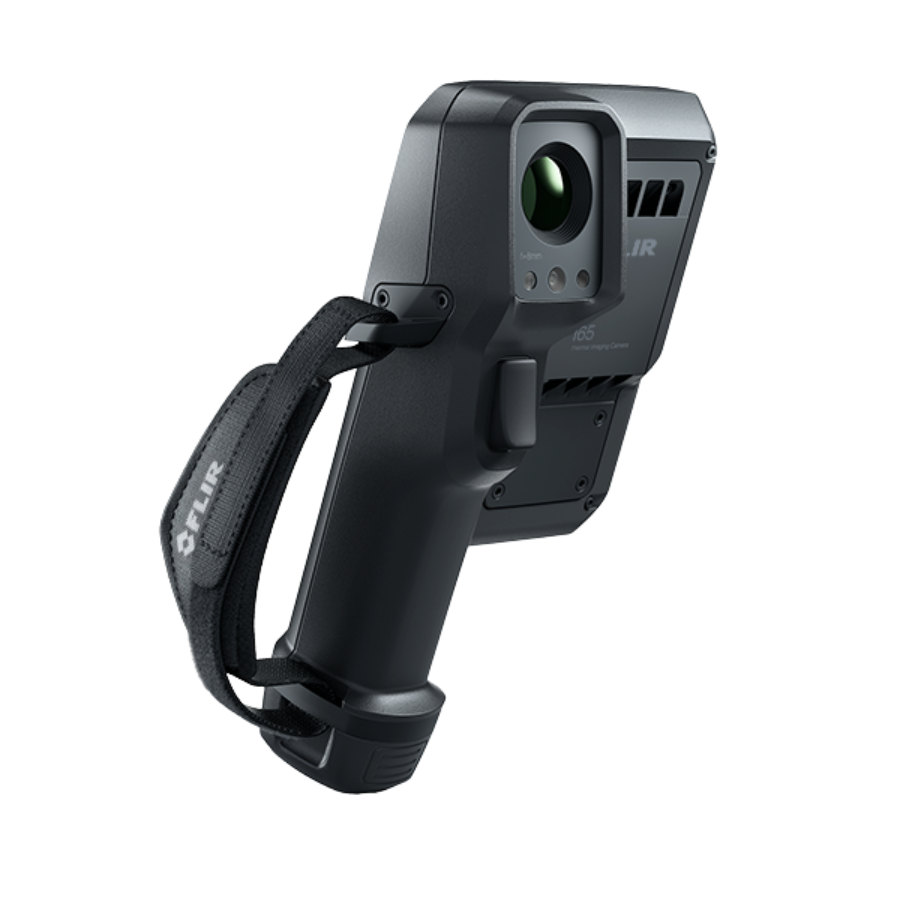

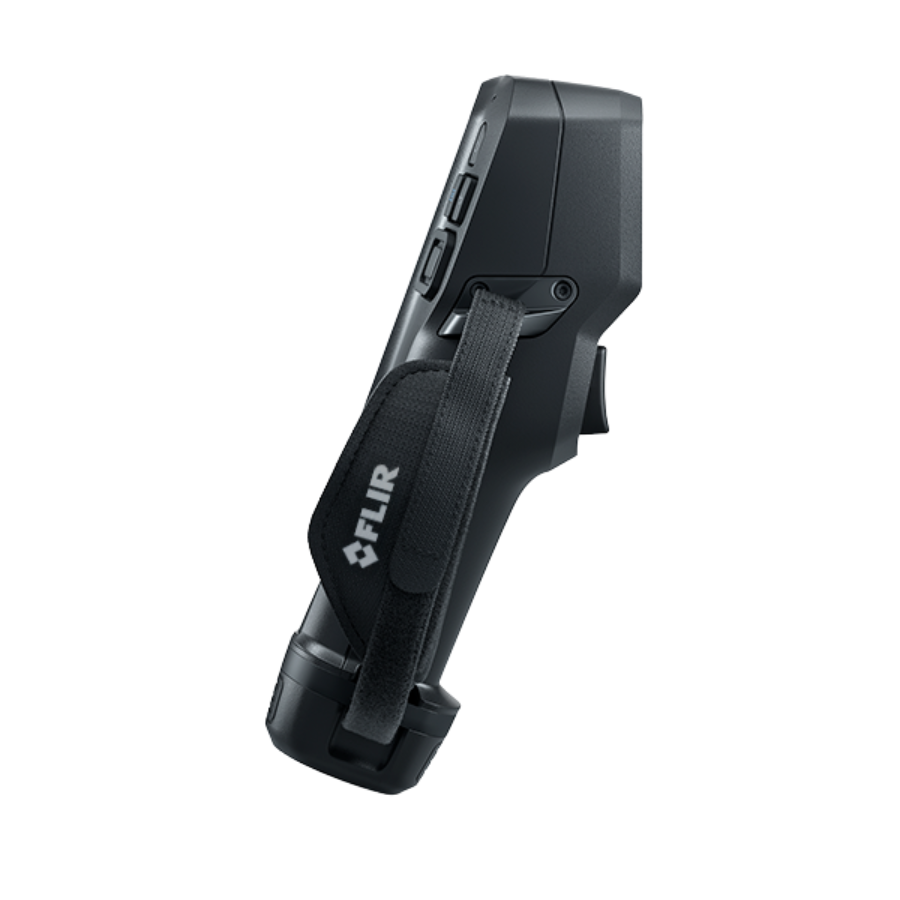

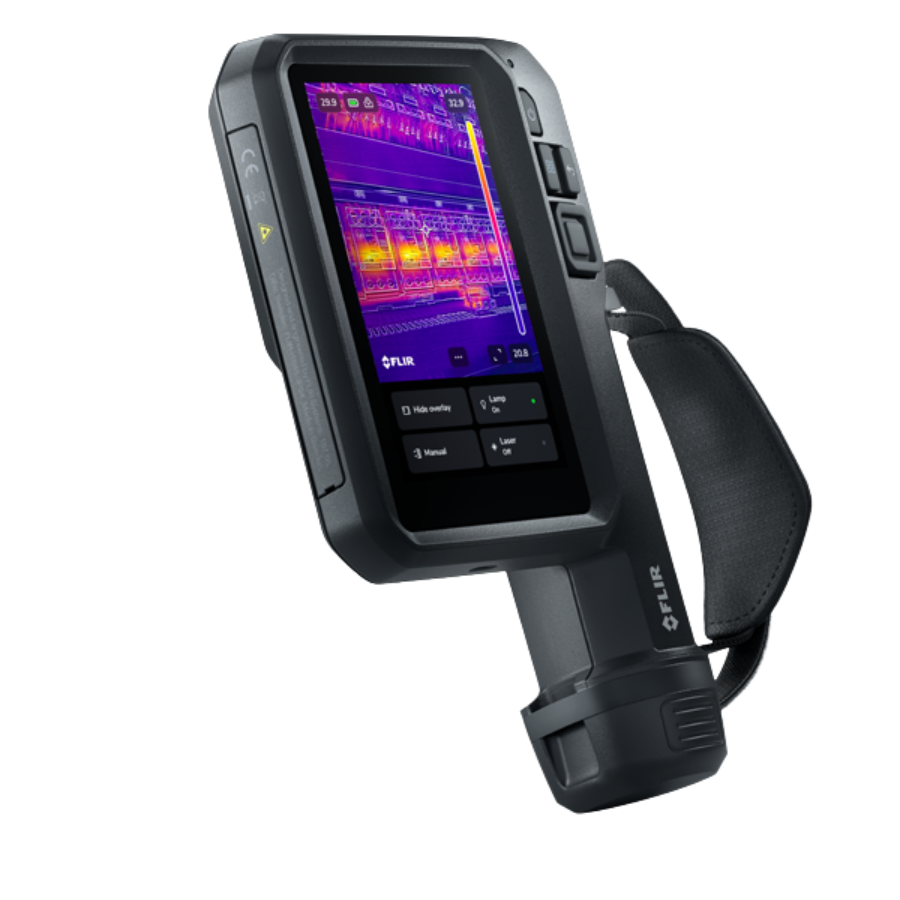

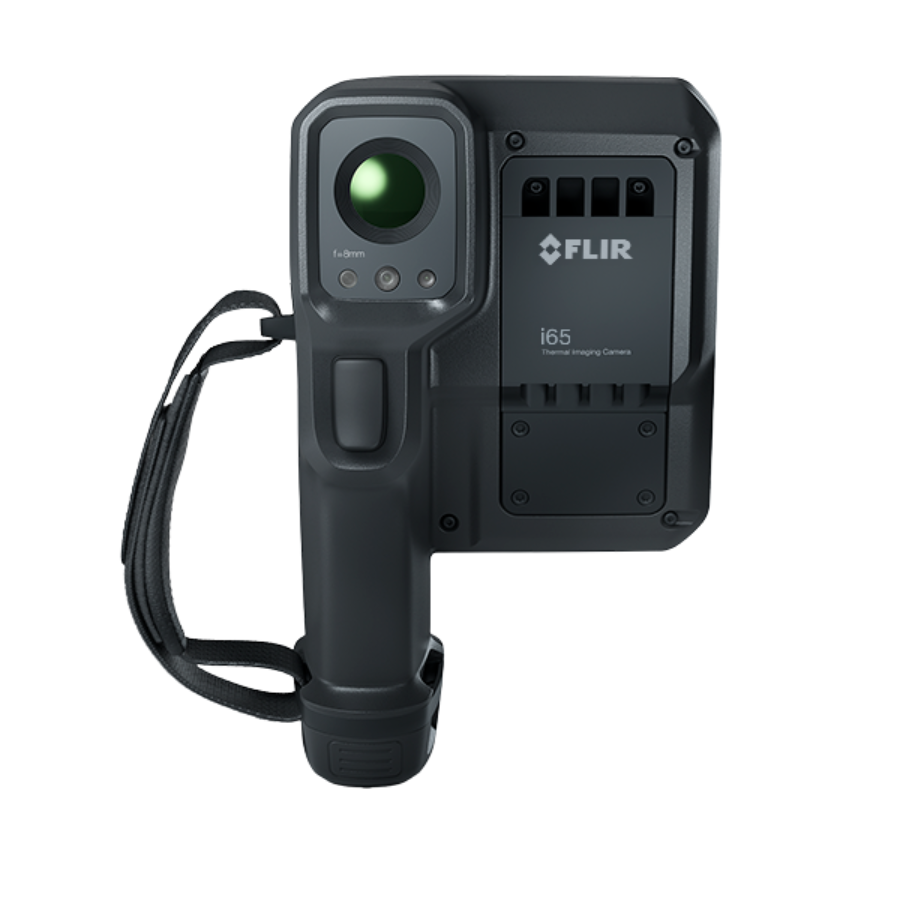

FLIR i65 (iXX Series) |
| Camera Type |
Handheld Thermal Imaging Camera (App-Enabled) |
| Infrared (IR) Resolution |
480 × 640 pixels |
| Thermal Sensitivity (NETD) |
< 40 mK at 30 °C |
| Spectral Range |
7.5 – 13 µm |
| Field of View (FOV) |
38° × 49° |
| Minimum Focus Distance |
~0.5 m |
| Frame Rate / Image Frequency |
30 Hz |
| Temperature Measurement Range |
–20 °C to 200 °C (low range), 10 °C to ~550 °C (high range) |
| Accuracy |
±2 °C or ±2% of reading (whichever is greater) |
| Image Presentation Modes |
Thermal, MSX® (thermal + visible overlay), Picture-in-Picture (PiP), Digital camera mode |
| Visual (Digital) Camera |
8 MP autofocus, with FOV ~50.5° × 64.5° |
| Display |
5-inch 720×1280 color capacitive touch LCD |
| Connectivity |
Wi-Fi (2.4 & 5 GHz), LTE (cellular), USB-C (data + DisplayPort) |
| Storage / Data Output |
Internal memory, on-device storage + cloud sync (via Wi-Fi/LTE) + standard radiometric JPEG with embedded measurement data |
| Measurement & Analysis Tools |
Spot temperature, center spot, min/max box, isotherms (above/below), ΔT (Delta T), emissivity correction (0.1–1.0), atmospheric compensation, 1-touch level/span contrast adjustment |
| Additional Features |
Built-in laser pointer (Class 2), LED worklight, glove-friendly interface, mobile app support (supports cloud reporting and workflows) |
| Durability & Build |
IP54 ingress protection (dust & splash resistant), 2 m drop-tested, rugged handheld form-factor |
| Battery & Power |
Rechargeable lithium-ion battery; typical operating time ~ 4 hours (at 25 °C) |
| Operating & Environmental Conditions |
Operating temperature: approx. –15 °C to +50 °C; humidity and vibration/shock compliance per industrial standards |
| Typical Use Cases / Applications |
Electrical & mechanical inspections (e.g. switchgear, motors, bearings), HVAC/building diagnostics (insulation, leaks, energy loss), facility maintenance, industrial asset monitoring, remote & field inspections with cloud reporting |
