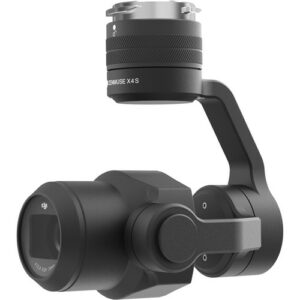

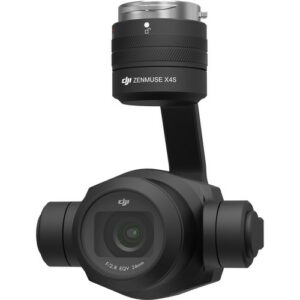

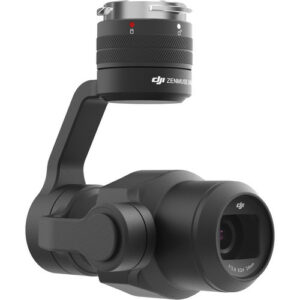

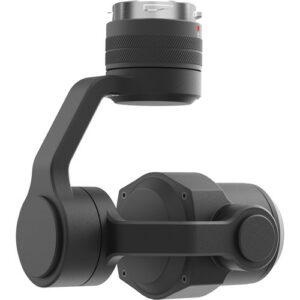

DJI ZENMUSE X4S
The Zenmuse X4S is a powerful camera featuring a 20-megapixel 1-inch sensor and a maximum ISO of 12,800. Dynamic range is increased from the Zenmuse X3 by 1 stop, with signal to noise ratio and color sensitivity increased by 1.5 stops for next-level image quality. The Zenmuse X4S uses a DJI-designed compact lens with low dispersion and low distortion 24mm equivalent prime lens. This 84° FOV, high-resolution lens makes the Zenmuse X4S as powerful during aerial imaging as it is on the ground. Combined with CineCore 2.0, the Inspire 2’s powerful image processing system, it can record 4K/60 H.264 and 4K/30 H.265 videos at a 100Mbps bitrate, and an oversample 5.2K video into 4Kvideo in real-time, capturing fine image details. In Burst Mode, the Zenmuse X4S supports 14fps shooting at 20 megapixels in both JPEG and DNG formats. It can make a difficult balance between agility and image quality.
ZENMUSE X4S – THE INSPIRE 2 FLYING CAMERA
Compared with the Inspire 1, the Inspire 2 utilizes an innovative structure that separates the CineCore 2.0 image processing system from the camera and places it inside the aircraft. This means that the sensor and optical system are detachable and easily connected using a newly designed quick-release connector. Designing the camera system in this way effectively protects the sensor from magnetic interference originating from the processor. It also allows a range of lightweight camera units to be connected as required by different scenes. The Zenmuse X4S has a 1-inch sensor and a compact design. Working in tandem with the CineCore 2.0 image processing system, the Zenmuse X4S makes photo and video capture effortless.
ZENMUSE X4S – 1-INCH SENSOR
Sensor size is vital to image quality. The Zenmuse X4S’s 1-inch Exmor R CMOS sensor uses large pixels measuring 2.4μm per pixel to create 20-megapixel images and 11.6 stops of dynamic range. Compared with the Zenmuse X3, which uses a 1/2.3-inch sensor, the Zenmuse X4S has an additional stop of dynamic range and 1.5 more stops signal to noise ratio and color sensitivity, as well as a maximum ISO of 12,800, for even more stunning imaging capabilities.
ZENMUSE X4S – HIGHER QUALITY VIDEOS
Used with the Inspire 2 CineCore 2.0 image processing system, the Zenmuse X4S records 4K/60 using H.264 and 4K/30 using H.265, both with 100Mbps bitrate. It also supports oversampling of 5.2K video to 4K, while 3D denoising technology and 3D LUT color reproduction technology retain fine detail in captured images.
MTF chart is used to measure the ability of a lens to transmit contrast and resolve detail. The low line pairs reflect the overall contrast, the high line pairs reflect detail resolution. The Image Height shows the ration of the distance from the current point to the center of the image circle and image circle radius. MTF 1.0 means the perfect performance of a lens.
The custom-engineered 8.8mm/F2.8-11 lens is compact with low distortion and has a radial dispersion of only 3μm that is equivalent to a 24 focal length on a 35mm camera. Its high MTF rating performance and removal of low pass filters make the Zenmuse X4S an incredibly powerful camera for its size, both in the air and on the ground. The Zenmuse X4S also uses a leaf shutter capable of 1/2000 shutter speeds, eliminating rolling shutter distortion that can occur when taking images of fast-moving subjects or when flying at high speed, allowing dramatic shots to be captured more easily.
A lightweight design combined with high-speed processing makes the Zenmuse X4S gimbal motors ultra-reactive. It responds instantly to subtle movements of the airframe and neutralizes it to keep the camera stable. With a precision of ±0.01°, combined with three damping balls and lightweight damping boards that neutralize vibration, the footage is completely smooth. As a result of tightly integrated and hidden wires, it is only able to rotate 320° but 360° and beyond is possible by yawing the airframe itself.
Unboxing DJI Zenmuse X4S
DJI – ZENMUSE X4S – IN THE SKY
ZENMUSE X4S Specifications
Effective Pixels: 20 MP
|Lens||F/2.8-11, 8.8mm (35 mm Equivalent: 24mm)|
|Photo Resolutions||3:2, 5472×3648
|Photo Formats||DNG, JPEG, DNG+JPEG|
|Video Formats||MOV, MP4|
|Operation Modes||Capture, Record, Playback|
|Still Photography Modes||Single shot, Burst shooting: 3/5/7/10/14 frames, Auto Exposure
Bracketing, 3/5 bracketed frames at 0.7EV bias, Interval
|Exposure Mode||Auto, Manual, Shutter Priority, Aperture Priority|
|Exposure Compensation||±3.0 (1/3 increments)|
|Metering Mode||Center-weighted metering,
Spot metering (area option 12×8)
|Shutter Speed||Mechanical Shutter: 8 – 1/2000s
Electronic Shutter: 1/2000 – 1/8000s
|White Balance||Auto, Sunny, Cloudy, Incandescent, Neon,
Custom (2000K – 10000K)
|ISO Range||100 – 6400 (Video)
100 – 12800 (Stills)
|Anti-Flicker||Auto, 50Hz, 60Hz|
|Angular Vibration Range||±0.01°|
|Controllable Range||Tilt: +30° to -90°, Pan: ±320°|
|Mechanical Range||Tilt: +50° to -140°, Pan: ±330°, Roll: +90° to -50°|
|Max Controllable Angular Speed||Tilt: 90°/s, Pan: 90°/s|
|Operating Temperature||14° – 104°F (-10 to 40℃)|
|Storage Temperature||-4° – 140°F (-20 to 60℃)|
ZENMUSE X4S FAQ
The Zenmuse X4S is different from the Zenmuse X3 in the following ways:
a. The image sensor on the Zenmuse X4S has been upgraded to 1-inch and 20 megapixels, meaningless noise, higher dynamic range, and more powerful color expression. In comparison, the Zenmuse X3 features a 1/2.3-inch, 12-megapixel sensor.
b. The Zenmuse X4S’s high-resolution lens is ultra-compact and equipped with a manually adjustable aperture, quick Auto Focus, and a Leaf Shutter.
c. In addition to 20-megapixel photos, the X4S can also shoot oversampled video at 4096×2160/60fps and supports a maximum bitrate of 100Mbps as well as H.265 encoding for superior image quality.
No. The Zenmuse X4S must be used with the Inspire 2. It will be supported on additional products in the future.
The X4S features an adjustable aperture and supports four exposure modes: Program (P), Aperture Priority (A), Shutter Priority (S) and Manual (M).
No. The Zenmuse X4S does not support optical zoom.
No. The Zenmuse X4S does not support either format.
