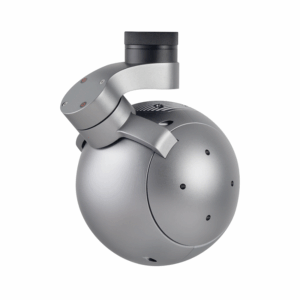

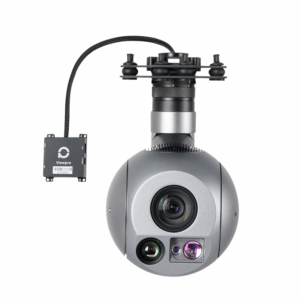

A40TR Pro AI Object Tracking Target GPS Coordinate Calculation and LRF Gimbal Camera

Premium tri-sensor UAV gimbal camera with EO, IR, and integrated laser rangefinder
40× optical zoom daylight camera for high-detail inspection and surveillance
High-resolution thermal imaging sensor suitable for search & rescue and night missions
Built-in laser rangefinder enabling precise target distance measurement
3-axis stabilized gimbal ensuring smooth, stable video in any flight condition
Advanced AI features like auto-tracking, target identification, and smart zoom
Compact and lightweight design compatible with industrial and enterprise drones
Ideal for defense, security surveillance, powerline inspection, and emergency response

Description

Category	Specification
Model	A40TR Pro
Gimbal Type	3-axis stabilized UAV gimbal
EO Camera Sensor	1/2.8″ CMOS sensor
EO Video Resolution	1080p Full HD
Optical Zoom	40×
Digital Zoom	Up to 16×
Thermal Sensor	Uncooled IR thermal imaging module
Thermal Resolution	640 × 512 (varies by model)
Thermal Lens Options	19mm / 25mm
Laser Rangefinder	Integrated LRF
LRF Range	Up to 1,500 m (varies by version)
Gimbal Stabilization	3-axis (Pitch, Roll, Yaw)
Pitch Range	–90° to +30°
Yaw Rotation	360° infinite
Stabilization Accuracy	±0.02°
AI Capabilities	Auto-tracking, target detection, intelligent zoom
Video Output	HDMI / Digital data output
Control Protocols	PWM, S.BUS, Serial
Operating Voltage	12V DC
Power Consumption	Approx. 18–20W
Operating Temperature	–10°C to +55°C
Weight	Around 900–1100g depending on configuration
Applications	Security surveillance, defense, search and rescue, industrial inspection, border monitoring
