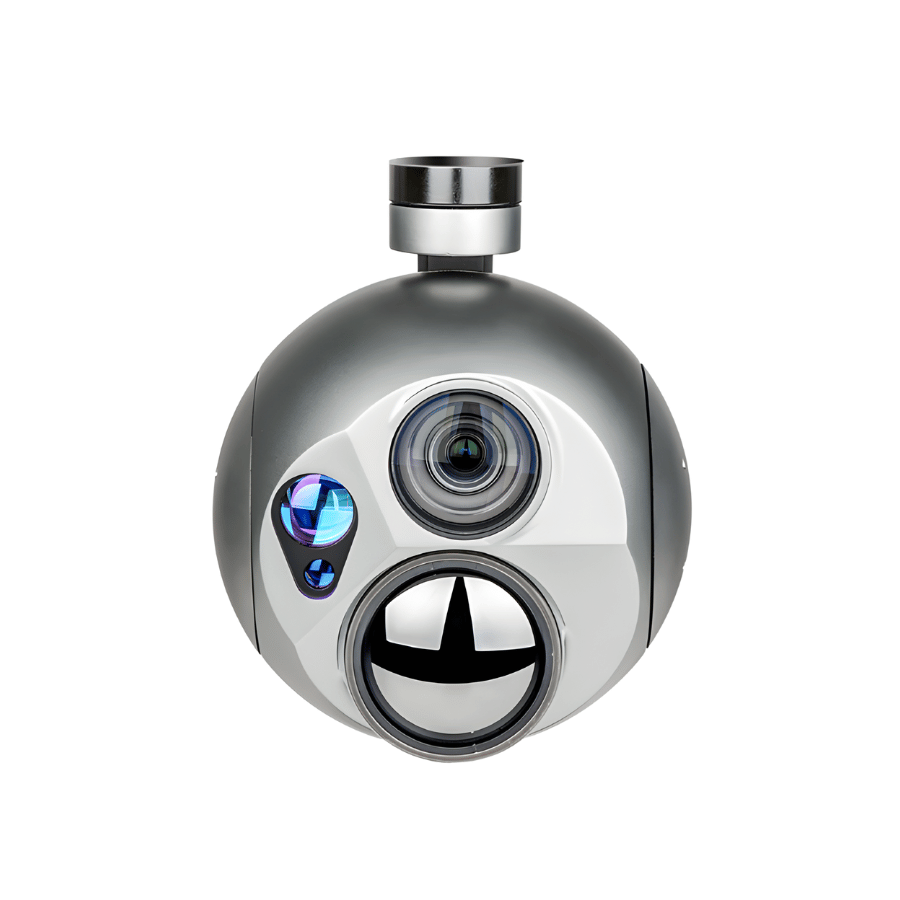

A30TR-1575 thermal camera

Triple-sensor gimbal camera combining optical (EO), thermal (IR), and sensor fusion for versatile imaging.
Offers 5× optical zoom on the thermal IR sensor and 30× optical zoom on the EO (visible-light) sensor — good for long-range observation.
Thermal imaging via uncooled VOx IR sensor (640×512 px) for night vision and temperature-based detection.
AI-based object tracking that can detect and track multiple targets (humans / vehicles) simultaneously.
Includes laser rangefinder (LRF), enabling distance measurement (up to ~10 km under ideal conditions) for long-range targeting/analysis.

Authorised dealerDirect manufacturer partnership
Pan-India deliveryInsured shipping, all states
Post-sale supportTraining + service included

Overview

What makes it work

A30TR-1575 thermal camera

Category	Parameter	Specification
Power & Electrical	Working Voltage (Input)	4S–6S (14.8 V ~ 25.2 V)
	Output Voltage	5 V (PWM connection)
	Dynamic Current	1200–1700 mA @ 16 V
	Power Consumption	Avg ~19.2 W, Max ~27.2 W
	Operating Temperature	–20 °C to +50 °C
Gimbal System	Mechanical Range	Pitch: –60° to +105°, Roll: ±60°, Yaw: ±300° / 360° continuous (IP)
	Controllable Range	Pitch: –45° to +100°, Yaw: ±290° / 360° continuous (IP)
	Stabilization Accuracy	±0.02°
Storage & Output	Video Output	Micro HDMI (1080p 30/60fps), IP RTSP/UDP (720p/1080p 30fps H.264)
	Local Storage	Micro-SD (TF) up to 256 GB (Class 10, FAT32)
	Still Image Format	JPG (1920×1080)
	Video Format	MP4 (1080p 30fps)
	Control Interfaces	PWM / TTL / S.BUS / TCP / UDP
EO (Optical) Camera	Sensor	1/1.8″ STARVIS CMOS
	Resolution	4.17 MP
	Optical Zoom	30× (6.5–162.5 mm, F1.6–F4.8)
	Digital Zoom	12× (StableZoom up to 432×)
	Min Focus Distance	100 mm (wide), 1200 mm (tele)
	Field of View (HFOV)	58.1° (wide) ~ 2.3° (tele)
	Low-light Sensitivity	0.009 lx (high-sensitivity mode)
IR (Thermal) Camera	Detector Type	Uncooled VOx, LWIR (8–14 µm)
	Resolution	640 × 512 pixels
	Pixel Pitch	12 µm
	Focal Length	15–75 mm
	Optical Zoom	1× – 5×
	Field of View	H: 28.7°–5.86°, V: 23.1°–4.69°
	NETD	≤ 40 mK @ 25 °C
	Thermal Palettes	White-hot, Black-hot, Iron Red
AI Tracking	Update Frequency	30 Hz
	Output Delay	< 30 ms
	Minimum Object Contrast	5%
	Supported Objects	Humans, vehicles
	Multi-target Tracking	Yes (≥10 targets)
Thermal Detection Performance	Human Detection Range	625–3125 m
	Human Recognition Range	156–781 m
	Human Verification Range	78–391 m
	Vehicle Detection Range	1917–9583 m
	Vehicle Recognition Range	479–2396 m
	Vehicle Verification Range	240–1198 m
Laser Rangefinder (LRF)	Wavelength	1535 ± 5 nm
	Max Range (Large Target)	Up to ~10 km
	Vehicle Range	≥ 6 km
	Human Range	≥ 2.5 km
	Accuracy	≤ 2 m (RMS)
	Divergence	≤ 0.5 mrad
	Pulse Frequency	1–10 Hz
Additional Features	Dual Video Output	EO + IR simultaneous stream
	Metadata Overlay	Gimbal angles, GPS, zoom, range, timestamp
	Supported Protocols	MAVLink, PX4, ArduPilot
	Geotagging	Supported
