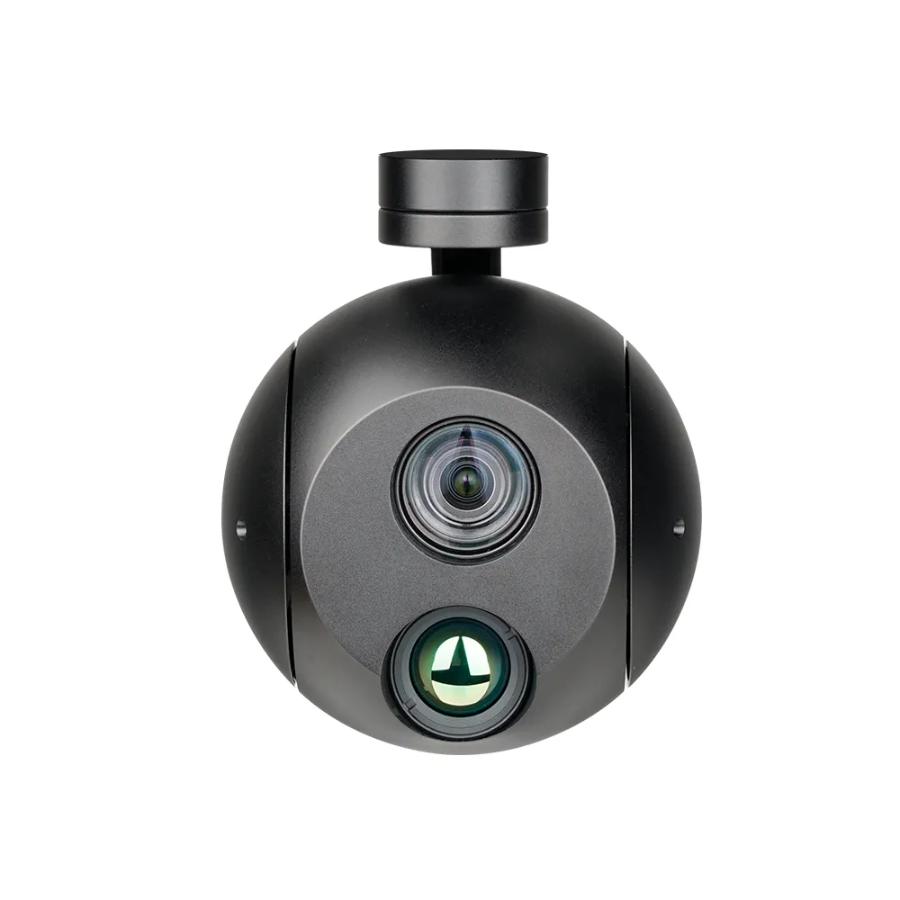

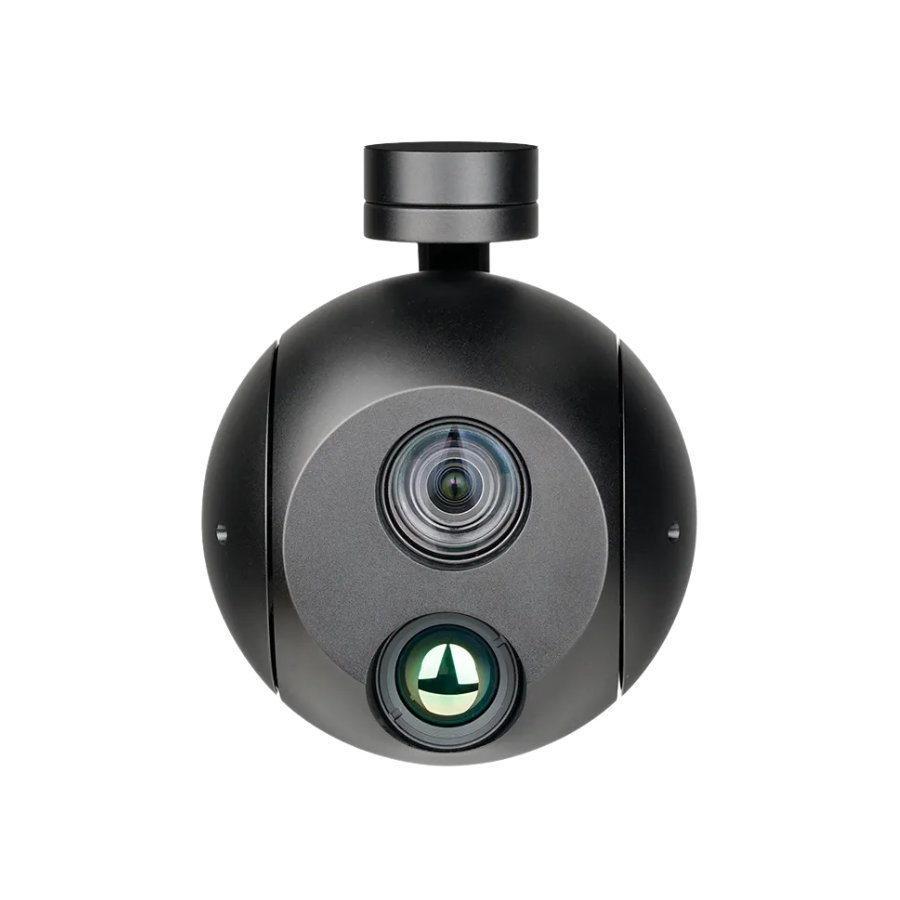

A10T Pro thermal gimbal camera
-
Advanced dual-sensor gimbal camera with thermal + visible imaging
-
High-resolution thermal core designed for inspection, security & rescue
-
3-axis stabilized gimbal for smooth and accurate footage
-
Long-range thermal detection with multiple lens options
-
Supports temperature measurement, alarms, spot/line/area tools
-
Real-time image transmission with low latency
-
Supports thermal, visible, and picture-in-picture modes
-
Lightweight, rugged, and compatible with multiple drone platforms
- Authorised dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
| Category | Specification |
|---|---|
| Model | A10T Pro |
| Thermal Resolution | 640 × 512 (High-res thermal sensor) |
| Thermal Lens Options | 13mm / 19mm / 25mm / 35mm (varies by version) |
| Visible Camera Resolution | 1080p Full HD (4MP) |
| Zoom Capability | Digital zoom (thermal + visible) |
| Gimbal Type | 3-axis stabilized gimbal |
| Gimbal Rotation | ±320° Pan, –90° to +30° Tilt (varies by unit) |
| Detection Range | Up to 1200m – 2000m depending on thermal lens |
| Temperature Measurement Range | –20°C to +550°C |
| Temperature Accuracy | ±2°C or ±2% of reading |
| Frame Rate (Thermal) | 25Hz / 30Hz |
| Color Palettes | White Hot, Black Hot, Rainbow, Arctic, Iron Red, Fusion |
| Display Modes | Thermal / Visible / Picture-in-Picture (PIP) |
| AI Functions | Temperature alarm, hotspot tracking, area measurement |
| Image & Video Output | HDMI / SD card / digital transmission |
| Power Input | 12V (standard drone gimbal port) |
| Material | Aluminum alloy housing |
| Weight | Approx. 300g – 400g (depending on lens) |
| Protection Level | IP54 / IP65 (model dependent) |
| Operating Temperature | –10°C to +50°C |
The full sheet
