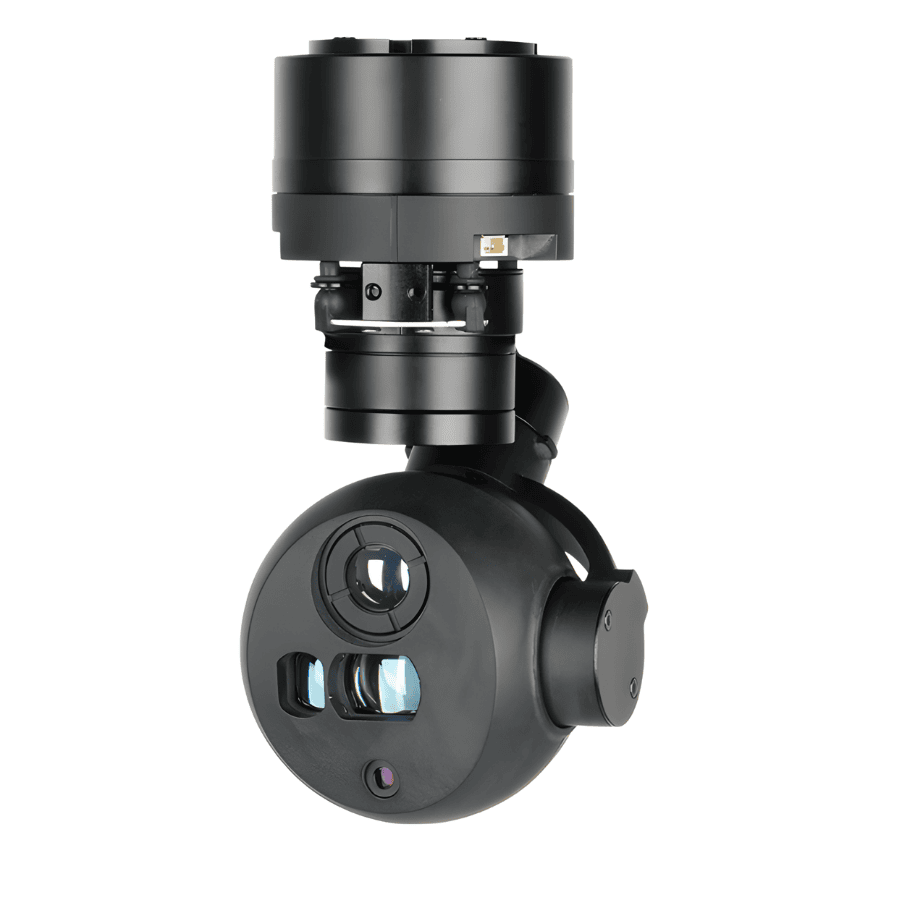

Q2RM Thermal camera

Triple-sensor gimbal camera combining EO (visible), IR (thermal), and LRF (laser rangefinder) — ideal for UAV, surveillance, search & rescue, reconnaissance.
Thermal sensor resolution 640×512 (VOx uncooled, 8 µm–14 µm), enabling detection of persons at hundreds of meters.
Visible-light (EO) camera: full-HD 1920×1080 @ 30 fps, with 1–3× digital zoom.
Built-in 3-axis gimbal stabilization, with wide pan/tilt/roll motion range — suited for dynamic platforms such as drones.
Integrated laser rangefinder (LRF) with up to ~1200 m range for distance measurement — adds situational awareness and target positioning

Overview

What makes it work

Category	Specification	Details
General	Working voltage	12 — 25.2 V
	Dynamic current	400 — 900 mA @ 12 V
	Power consumption	Avg ~ 4.8 W, Max ~ 10.8 W
	Video output	Ethernet IP (RTSP 1080p, 25 fps, H.264 / H.265)
	Control method	TTL or S.BUS (default TTL), also TCP
	Protection / Rating	IP4X
	Operating temperature	–20 °C to +50 °C
	Weight	~ 202 g
	Dimensions	62.7 × 60.1 × 118.5 mm
Gimbal	Mechanical range (Pitch/Tilt)	–65° (Up) ~ 130° (Down)
	Roll range	± 30°
	Pan / Yaw range	± 150°
	Controllable range (Pitch/Tilt)	–45° ~ 125°
	Controllable Pan/Yaw	± 130°
	Vibration angle	± 0.02° (Pitch / Roll / Yaw)
	One-key to center	Yes
EO (Visible Camera)	Sensor	1/3″ CMOS
	Pixel size	2.9 µm
	Resolution / Frame rate	1920 × 1080 @ 30 fps
	Focus length	10.36 mm
	Field of View (FoV)	30° × 17.1°
	Digital zoom	1× – 3×
IR Thermal Imager	Detector type / Mode	Uncooled VOx long-wave thermal imager (8 µm – 14 µm)
	Resolution	640 × 512 pixels
	Pixel size	12 µm
	Focus lens	9.1 mm
	Aperture	F / 1.0
	Field of View (FOV)	H: 48.3°, V: 38.6°, D: 62.4°
	Detector sensitivity (NETD)	≤ 40 mK @ F1.0, 25 °C
	Detection distance (human 1.8 × 0.5 m)	~ 379 meters
Tracking & LRF	Object tracking	Yes — EO + IR based
	Laser Rangefinder (LRF)	5 to ~1200 m, 905 nm, 6 mrad divergence, 1–4 Hz
	OSD overlay info	Gimbal angles, magnification, GPS, altitude, time/date, ranging
	Video modes	EO, IR, EO+IR, IR+EO
	Protocol support	ArduPilot / PX4 via Mavlink, “Follow Me” optional
