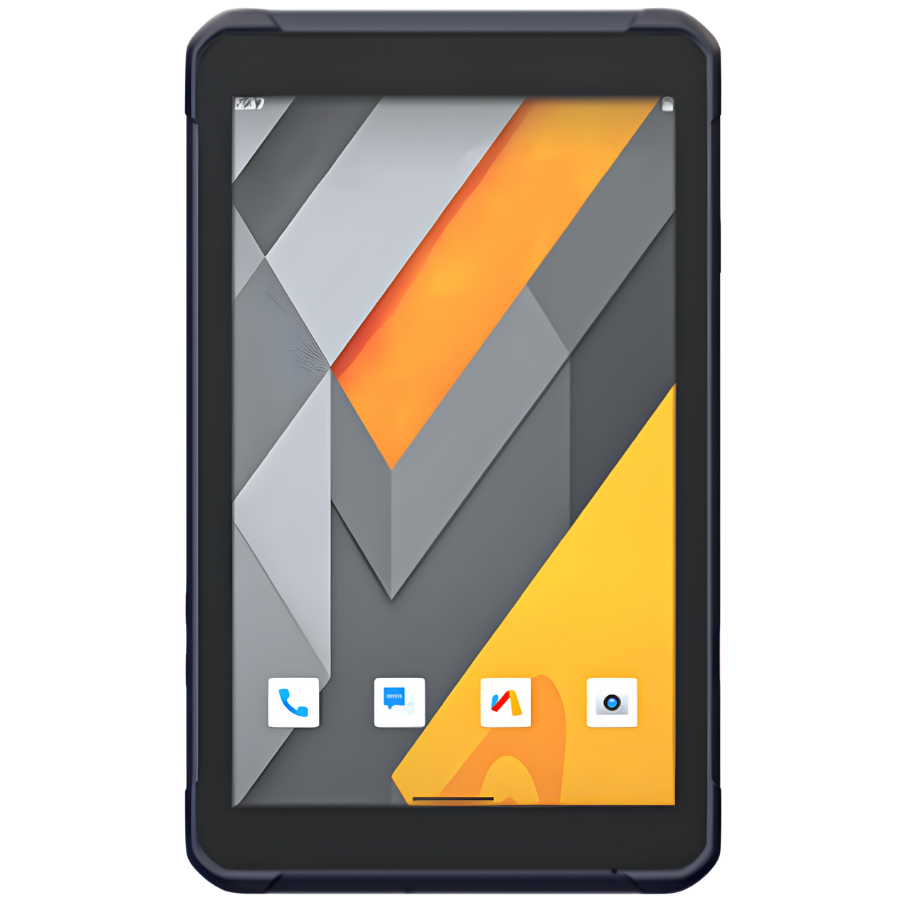

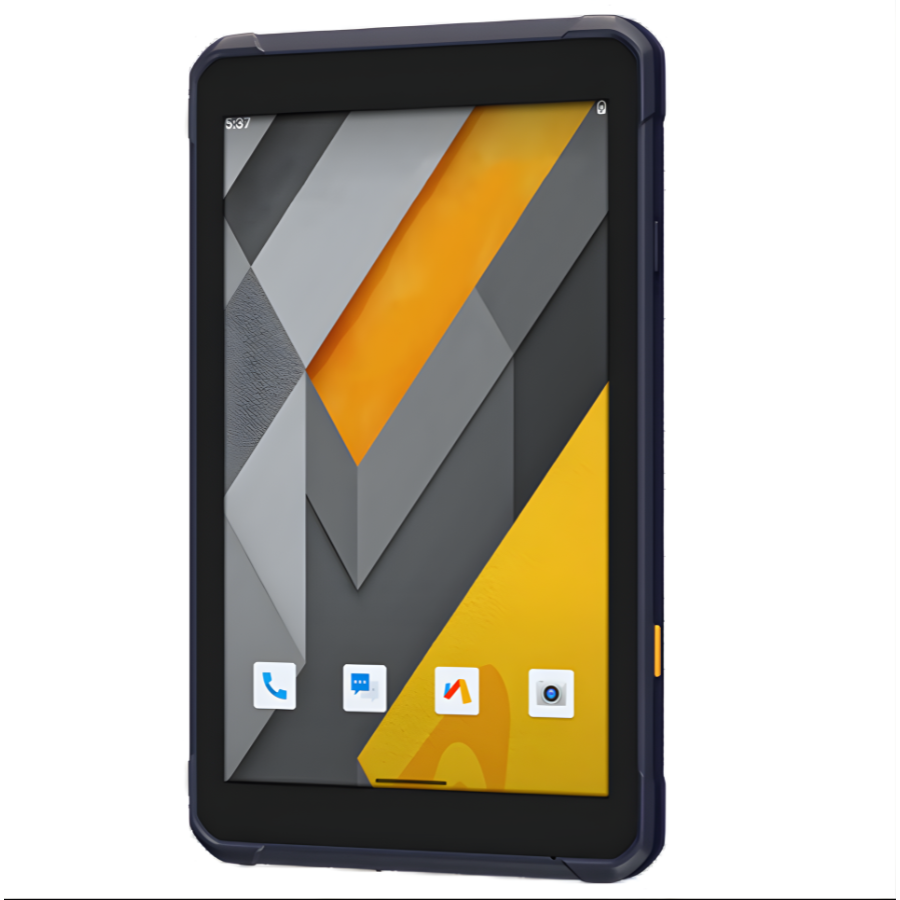

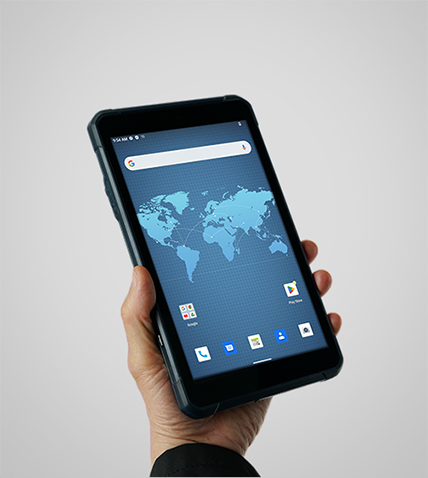

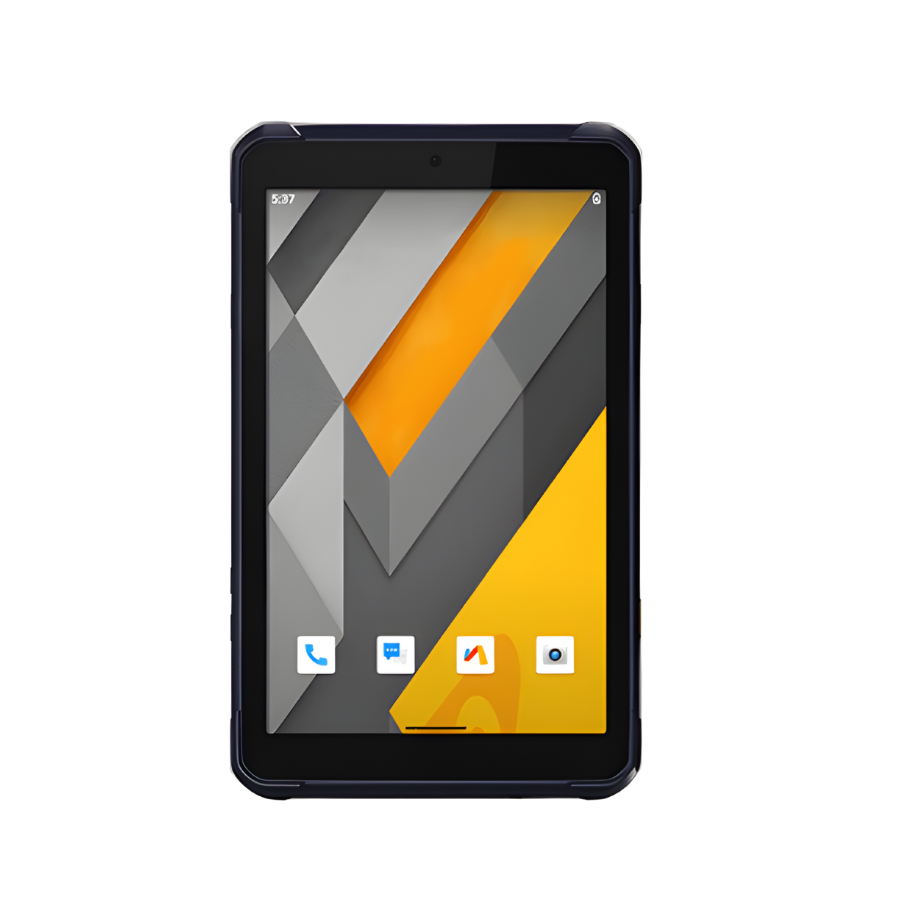

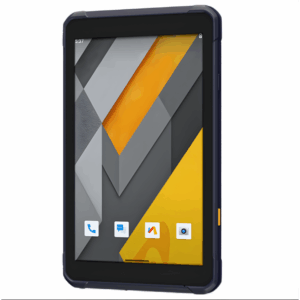

CHCNAV LT800 Rugged Professional Android Tablet

Rugged 8.1″ professional Android tablet designed for demanding field work.
Built-in GNSS (45-channel module) supporting GPS, GLONASS, Galileo & BeiDou for meter-level positioning.
Sunlight-readable IPS display (1920×1200) with Corning Gorilla Glass 3 and approx. 600 nits brightness.
Durable IP67 rated design (dust & water resistant), shock-resistant to ~1.2 m fall concrete.
2.0 GHz octa-core processor, large RAM/storage, dual-SIM 4G support and enterprise Android (GMS/AER) certification.
Long-lasting 9,000 mAh battery enabling up to ~10 hours field use.

Description

CHCNAV LT800 Rugged Professional Android Tablet

Category	Specification
Operating System	Android 12.0, Google Mobile Services (GMS) certified
Processor (CPU)	Octa-core 2.0 GHz
RAM	6 GB or 8 GB (depending on region)
Storage (ROM)	128 GB or up to 256 GB (depending on region)
Expandable Storage	Micro SD card support, up to 256 GB or 1TB (depending on spec version)
Display	8.1″ IPS touchscreen, 1920 × 1200 resolution
Brightness	~600 cd/m² (sunlight-readable)
Protective Glass	Corning™ Gorilla® Glass 3
Touchscreen Input	Capacitive multi-touch (5 points), supports stylus/gloves/wet hands
GNSS Module	45-channel high-sensitivity module supporting GPS L1C/A, GLONASS L1, Galileo E1, BeiDou B1
GNSS Accuracy	Autonomous: ~2-5 m HRMS (meter-level)
Connectivity	Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.1

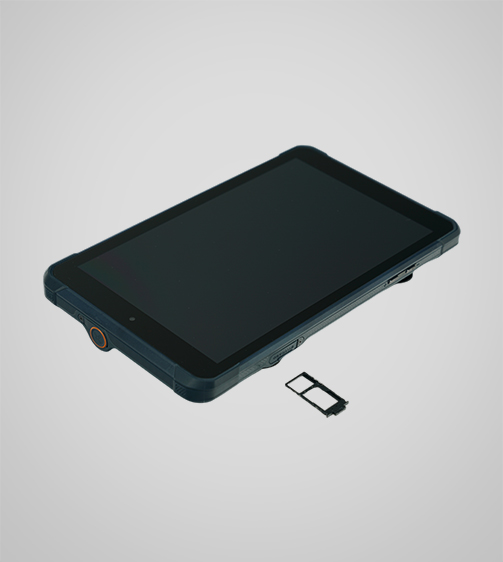

Cellular Network	Built-in 4G modem (dual nano-SIM)
NFC & Sensors	NFC, G-Sensor, E-Compass, Gyroscope, Light Sensor
USB / Ports	USB Type-C, OTG support
Battery	Li-ion 9,000 mAh (3.8 V)
Battery Life	Up to ~10 hours continuous usage
Charging Time	Approx. 4 hrs; supports Quick Charge 3.0
Weight	~550 g (19.4 oz) including battery
Dimensions (L×W×H)	215.5 mm × 130 mm × 14.5 mm (≈8.5″ ×5.1″ ×0.6″)
Environmental Specs	Operating temp: –20 °C to +60 °C (–4 °F to +140 °F) Storage: –40 °C to +70 °C Humidity: 5%–95% RH (non-condensing)

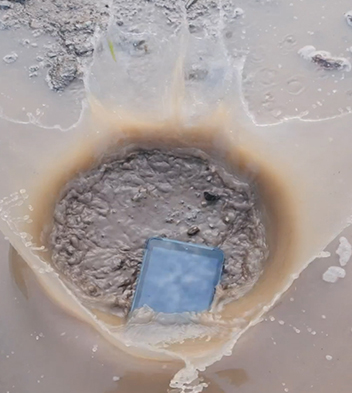

Ingress Protection	IP67 (dust-tight, water-proof to immersion up to certain depth/time)
Drop/Impact Resistance	Shock: ~1.2 m fall onto concrete (per spec)
Cameras	Rear: 16 MP with flash Front: 8 MP
Use-case / Certifications	Google Mobile Services (GMS) and Android Enterprise Recommended (AER) certified

CHCNAV LT800 Highlights

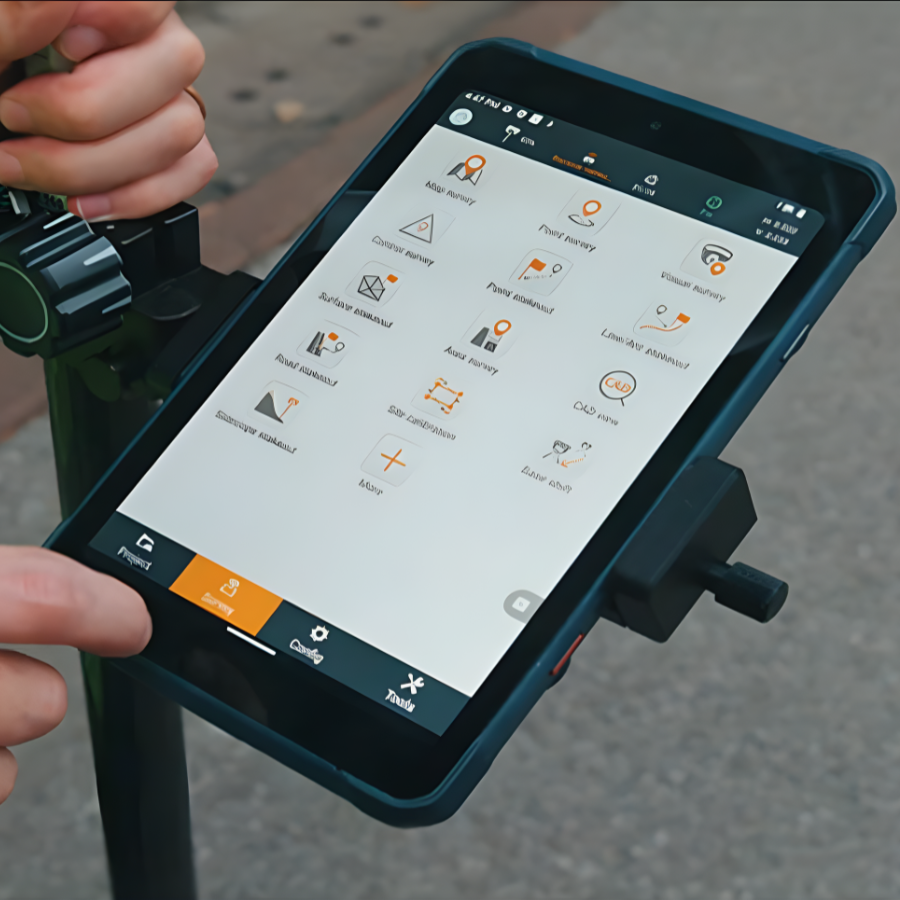

The LT800 boosts the efficiency and productivity of mobile teams who rely on meter-level GNSS accuracy and dependable performance in the field. Its bright 8.1″ sunlight-readable display makes it easy to view GIS maps, imagery, and critical data even under harsh lighting conditions. Engineered for demanding environments, the LT800 is built to handle tough, everyday fieldwork—making it the go-to device for teams who need rugged reliability and consistent results.

CHCNAV LT800 Main Features

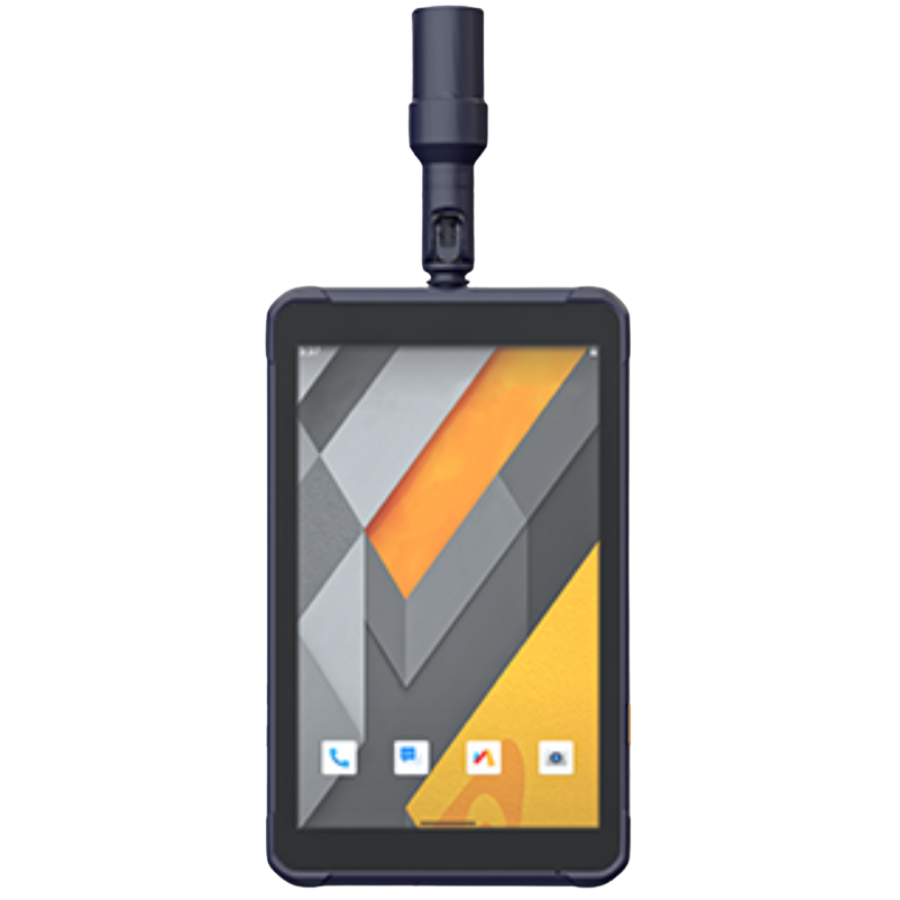

High-Sensitivity GNSS Module
Experience dependable GNSS positioning with the LT800’s advanced 45-channel GNSS module. Supporting GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS, it delivers consistent meter-level accuracy—even in difficult field environments.

High-Performance Processing
Power through large maps and heavy data workloads with the LT800’s fast 2.0 GHz octa-core processor. It keeps your applications running smoothly without lag, while the dual-SIM 4G modem ensures strong, reliable connectivity for real-time communication between field teams.

GMS Certified for Compatibility
Integrate effortlessly with your enterprise apps. The LT800’s Google Mobile Services (GMS) and Android Enterprise Recommended (AER) certifications guarantee broad software compatibility, secure device management, and stable performance across professional workflows.

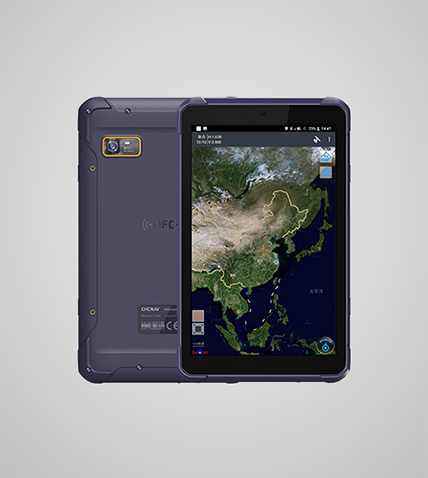

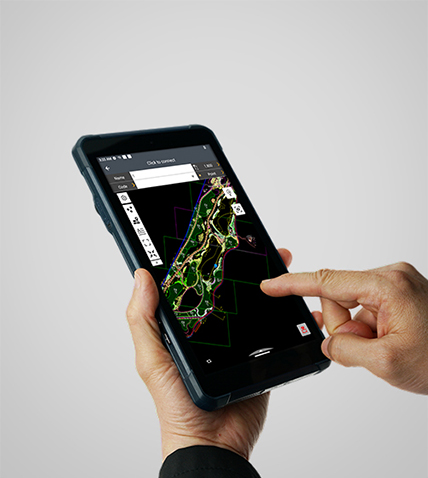

Sunlight-Readable Display
Work confidently in any lighting environment with the 8.1″ IPS touchscreen protected by Corning Gorilla Glass 3. With 600 nits of brightness, the display keeps GIS data, vector maps, and high-resolution imagery clear and easy to read—even under direct sunlight.

High Portability

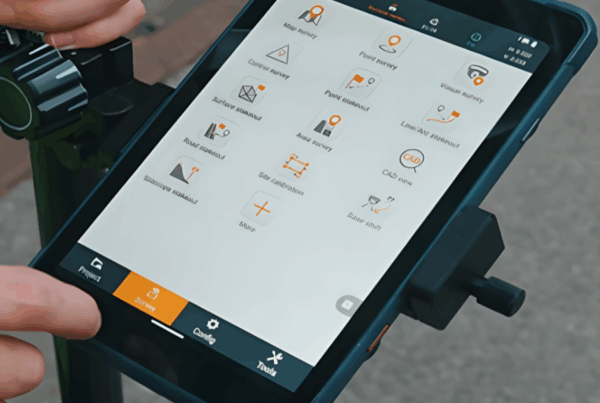

Weighing just 550g, the LT800 is built for professionals on the move. Its lightweight yet rugged design makes it perfect for GIS data collection, environmental monitoring, landscaping, and other demanding outdoor tasks.

Comprehensive Connectivity
Stay fully connected in the field with Wi-Fi, Bluetooth 5.1, NFC, and a built-in 4G modem. The LT800 streamlines data transfer and team communication to maximize operational efficiency and keep workflows running smoothly.
