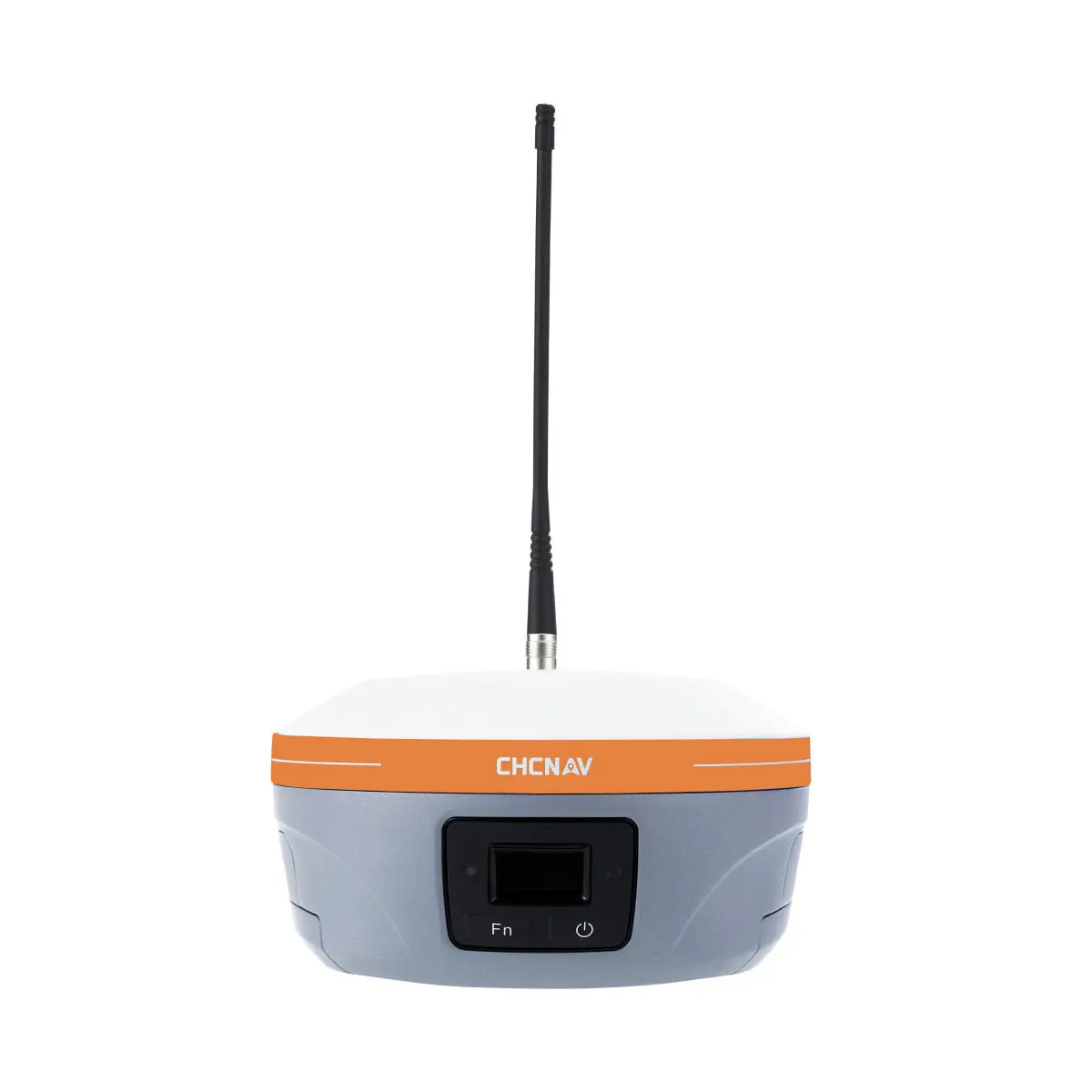

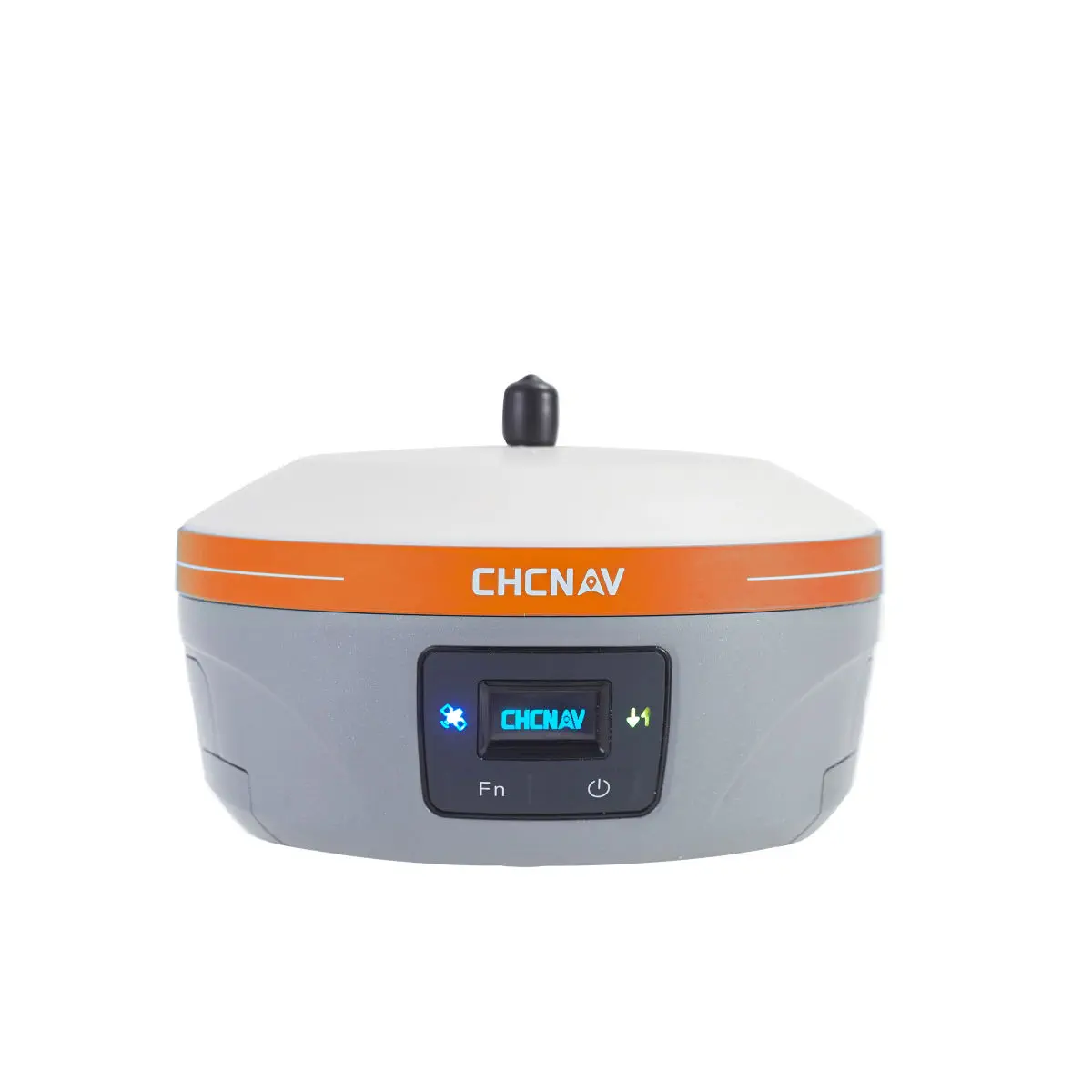

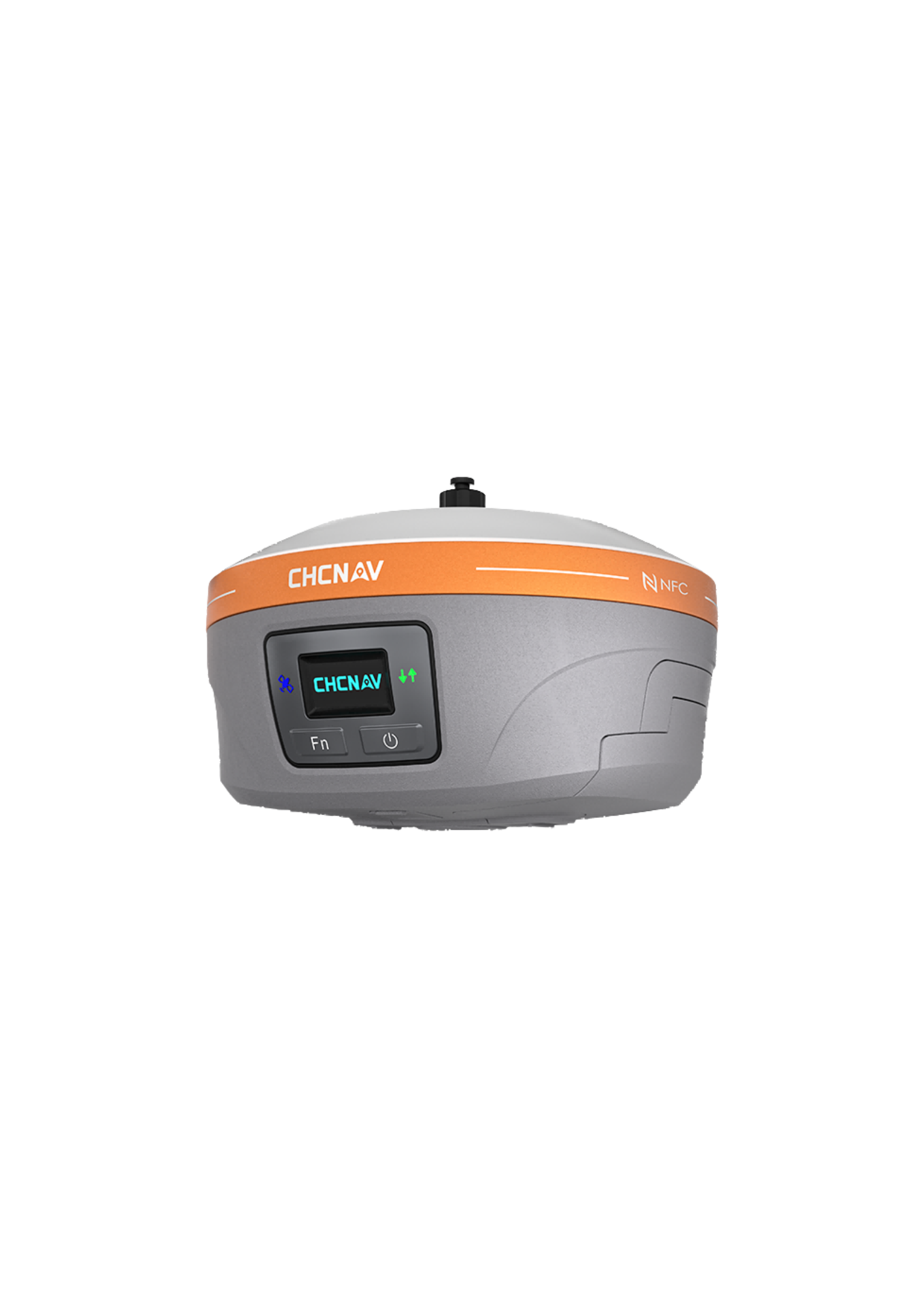

CHCNAV iBase AG GNSS Base Station for Precision Agriculture

High-precision GNSS base station designed for agriculture
Multi-constellation support (GPS, GLONASS, Galileo, BeiDou, QZSS) with 1408 channels
Long-range RTK corrections up to 15 km in optimal conditions
Dual hot-swappable batteries providing up to 10 hours of continuous use
Rugged design with IP67 waterproof and IK08 shockproof ratings
Flexible connectivity: UHF radio, Bluetooth, Wi-Fi, NFC, 4G LTE
Compact, cable-free design for easy transport and setup
Optimized for precision farming & CHCNAV autosteering systems

Overview

What makes it work

Category	Details
GNSS Tracking	1408 channels, GPS, GLONASS, Galileo, BeiDou, QZSS
Positioning Mode	Real-Time Kinematic (RTK) base station
RTK Correction Range	Up to 15 km (optimal), ~5 km (challenging terrain)
Update Rate	1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz
Data Formats	RTCM 3.x, CMR+, CHC proprietary
Radio Modem	Integrated 5 W UHF modem
Radio Range	8–15 km depending on environment
Connectivity	UHF, Bluetooth, Wi-Fi, NFC, 4G LTE
Ports	1 × SIM card slot, 1 × external antenna port
Battery Type	Dual hot-swappable Li-ion batteries
Battery Life	Up to 10 hours continuous RTK operation
Charging Options	External charger / in-unit charging
Environmental Protection	IP67 dustproof & waterproof
Shock Resistance	IK08 impact/drop resistant
Operating Temperature	–30 °C to +65 °C
Storage Temperature	–40 °C to +85 °C
Dimensions	~150 × 150 × 70 mm
Weight	~1.2 kg (with batteries)
User Interface	LED indicators + mobile app
Applications	Precision farming, GNSS autosteering, surveying, mapping
