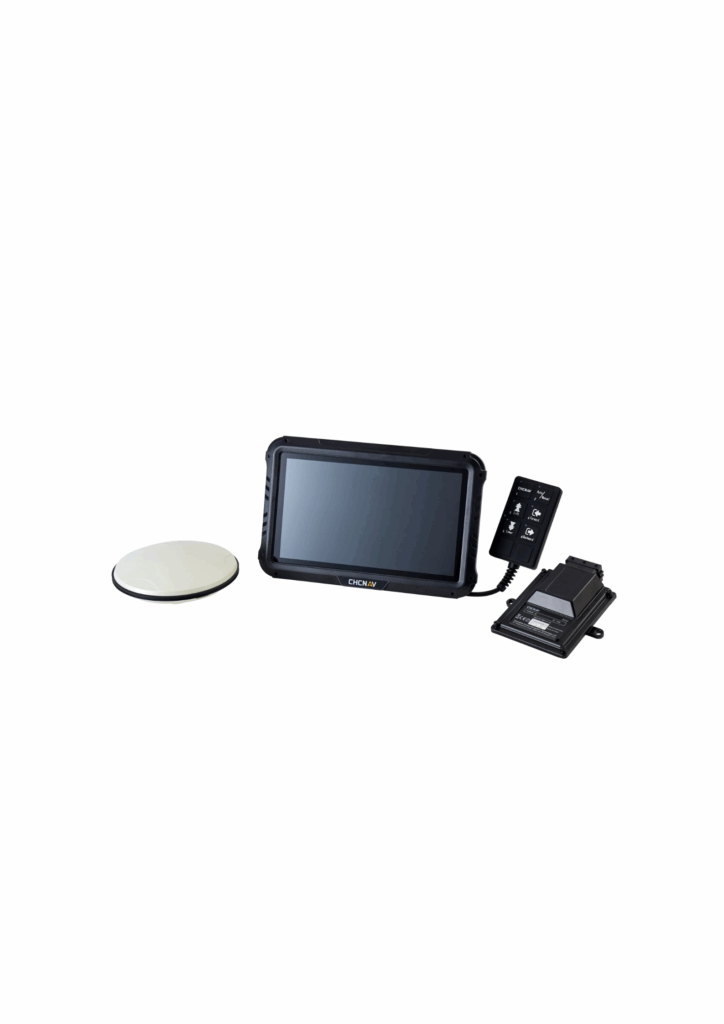

CHCNAV IC100 Automated GNSS Land Leveling System

Advanced GNSS land leveling system for precision agriculture
Dual GNSS antennas for high-accuracy slope and grade control
Real-time leveling guidance for scrapers and implements
Easy-to-use interface with automatic slope adjustment
Rugged and weatherproof design for long-term field operation
Supports multi-constellation GNSS tracking for reliable accuracy
Reduces water waste and improves crop yield through precise leveling
Compatible with a wide range of tractors and leveling equipment

Trusted dealerDirect manufacturer partnership
Pan-India deliveryInsured shipping, all states
Post-sale supportTraining + service included

Overview

What makes it work

Category	Details
System Type	GNSS land leveling system
GNSS Support	GPS, GLONASS, Galileo, BeiDou

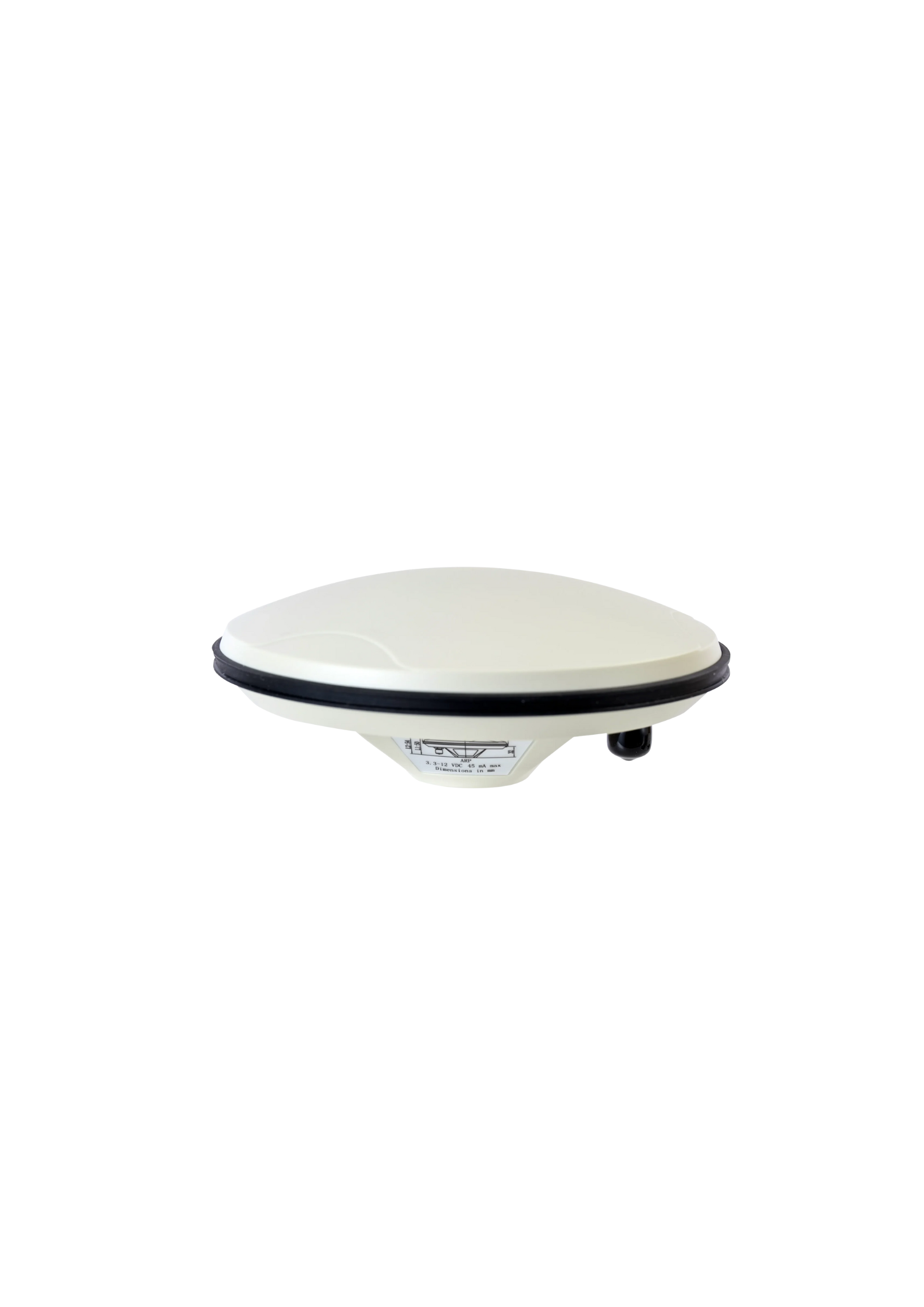

Antennas	Dual GNSS antennas for slope accuracy
Positioning Accuracy	±2.5 cm RTK accuracy
Correction Source	RTK GNSS corrections
Slope Control	Automatic dual-slope and single-slope support
Display/Interface	Easy-to-use touchscreen monitor
Connectivity	CAN bus, RS-232, Bluetooth, Wi-Fi
Power Supply	12V/24V DC from tractor or machinery
Durability	IP67-rated dustproof and waterproof
Operating Temperature	–30 °C to +70 °C
Storage Temperature	–40 °C to +85 °C
Applications	Land leveling, field grading, irrigation management, precision farming
Compatibility	Works with scrapers, tractors, and land-leveling implements

Highlights

With the help of electro-hydraulic controls and GNSS RTK technology, the IC100 is a sophisticated land leveling device that automates the procedure.

The device automatically modifies the location of blades or scrapers to ensure accurate leveling by tracking elevation changes in real time. Through farming practice optimization, this improves irrigation efficiency and offers farmers substantial value.
