Description
System overview
| Item | Details |
|---|---|
| Positioning | Full GNSS (GPS, GLONASS, Galileo, BDS, QZSS) |
| Max precision | ≤ ±2.5 cm pass-to-pass |

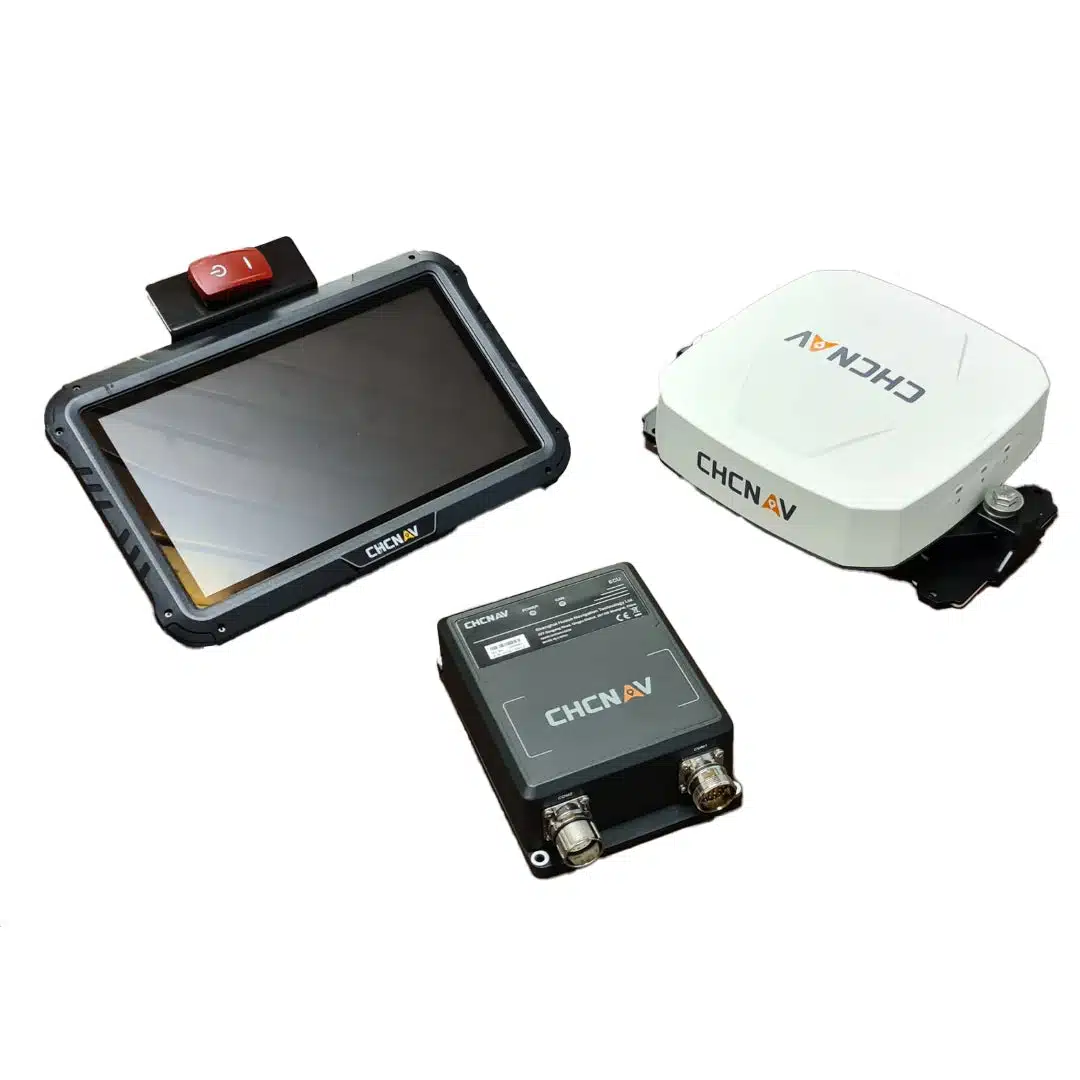

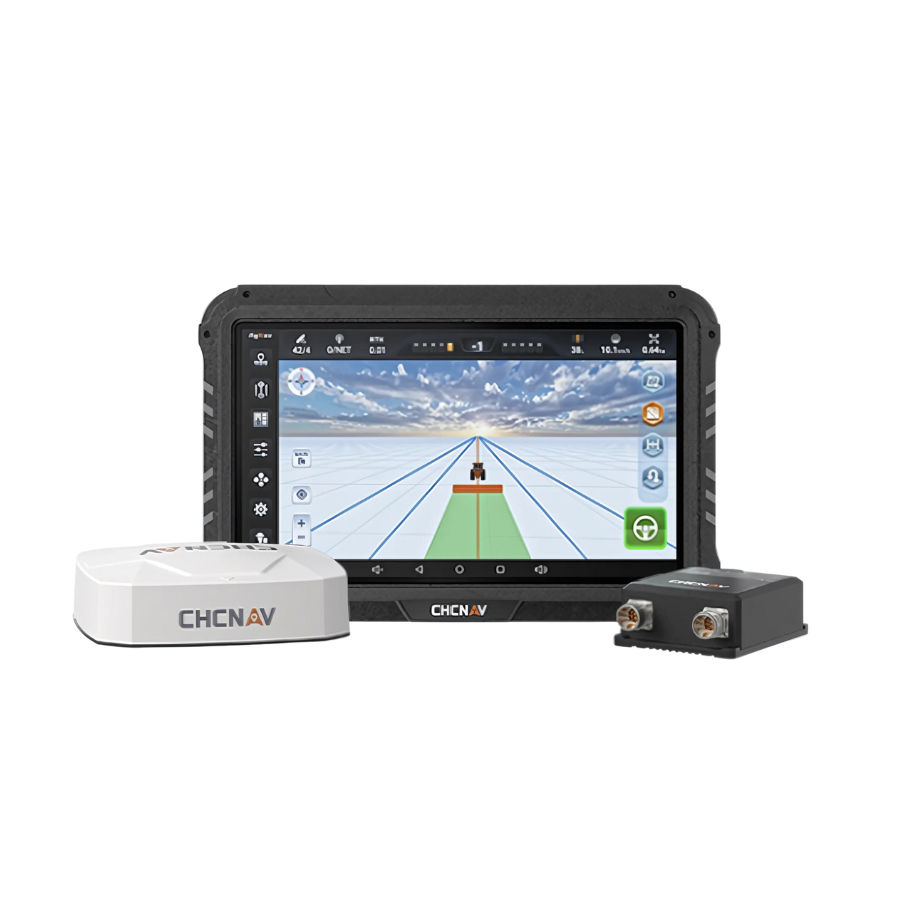

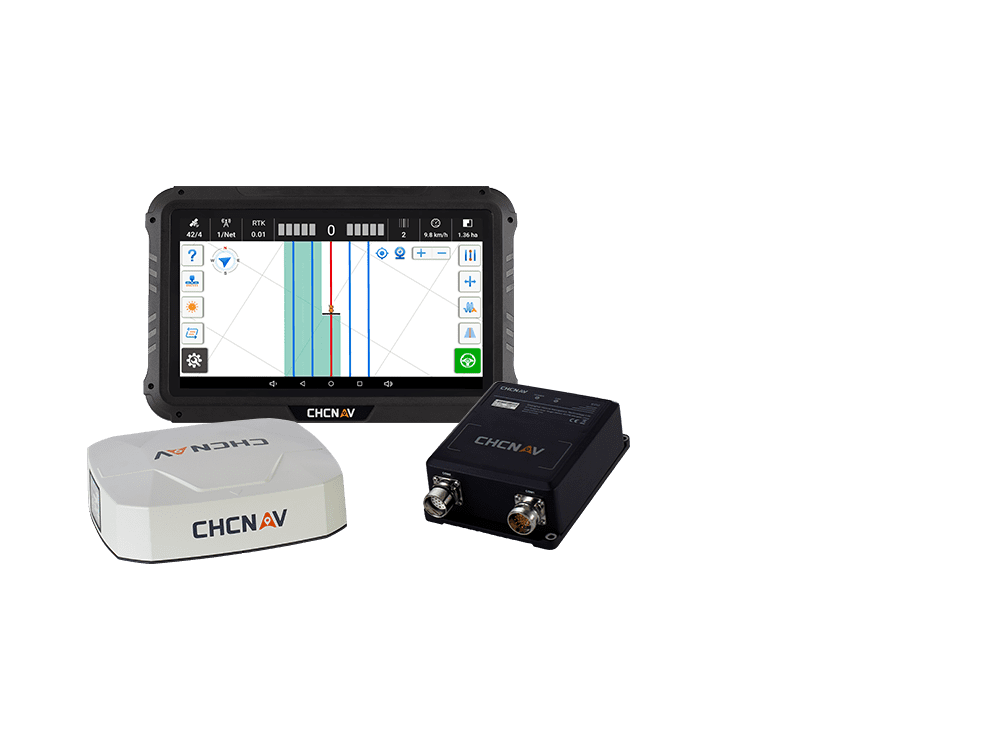

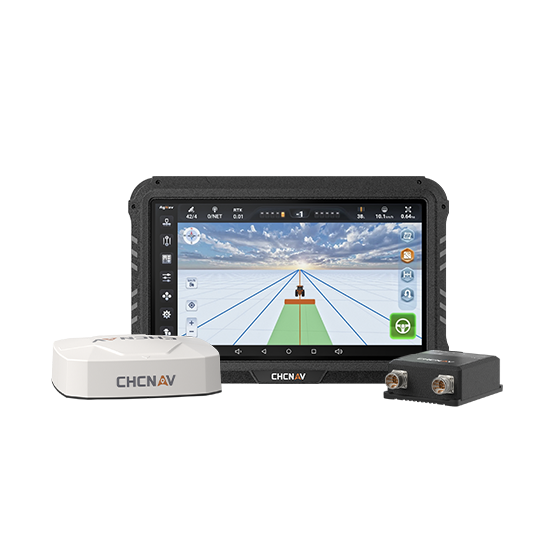

| Components | Display 10.1″ Android • Guidance control Integrated • Steering control Tractor hydraulics • Camera Yes |
| Integrations | ISOBUS VT/UT, NMEA, 5 V pulse, .SHP file input |
| Vehicle interface | PWM or CANBUS (steer-ready tractors) |
| Typical speed range | 0.3–20 km/h |
Positioning & performance
| Item | Spec |
|---|---|
| RTK accuracy (RMS) | H: 8 mm + 1 ppm • V: 15 mm + 1 ppm |
| RTK init | < 5 s, reliability > 99.9 % |
| Velocity accuracy | 0.03 m/s RMS |
| Pass-to-pass | ≤ ±2.5 cm |
Communications & I/O
| Item | Spec |
|---|---|
| Wireless | Wi-Fi, Bluetooth |
| Cellular | 4G LTE modem integrated (receiver & display) |
| Serial | RS-232 ×2 |
| CAN | 2 ports |
| NMEA output | 1/2/5/10 Hz |
| UHF module | 410–470 MHz; protocols TT450S / Transparent / CHC / CHCAG / SATEL 3AS |
| Output interface | 410–470 MHz; protocols TT450S / Transparent / CHC / CHCAG / SATEL 3AS |
Constellations & corrections
| Item | Bands |
|---|---|
| GPS | L1/L2/L5 |
| BDS | B1I/B2I/B3I/B1C/B2a/B2b |
| Galileo | E1/E5a/E5b/E6 |
| GLONASS | L1/L2 |
| QZSS | L1/L2/L5/L6 |
| SBAS | L1 |
| Correction formats | RTCM 3.0/3.1/3.2/3.3 |
Display (console)
| Item | Spec |
|---|---|
| Screen / OS | 10.1″ touch • Android 6.01 |
| Dimensions | 281 × 181 × 42 mm |
| Ingress protection | IP65 |
Receiver
| Item | Spec |
|---|---|
| Size / Weight | 220 × 205 × 60 mm • < 2 kg |
| Power | 9–36 V DC |
| Ingress protection | IP67 |
Rear camera
| Item | Spec |
|---|---|
| Resolution | 1280 × 720 px |
| Field of view | 120° |
Power & environment
| Item | Spec |
|---|---|
| External power | 9–36 V DC |
| Operating / Storage temp | −20 °C to +70 °C / −40 °C to +85 °C |
Guidance patterns
| Patterns |
|---|
| AB line, A+ line, pivot, curve, 90° line, headland line |
