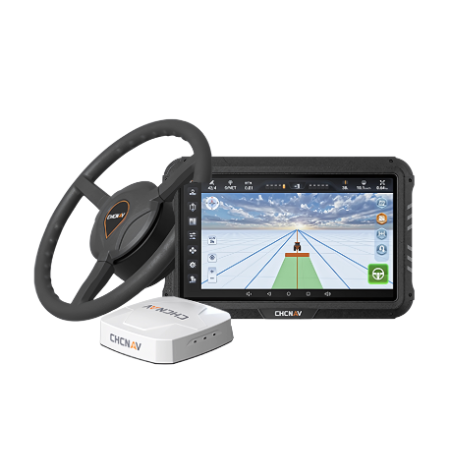

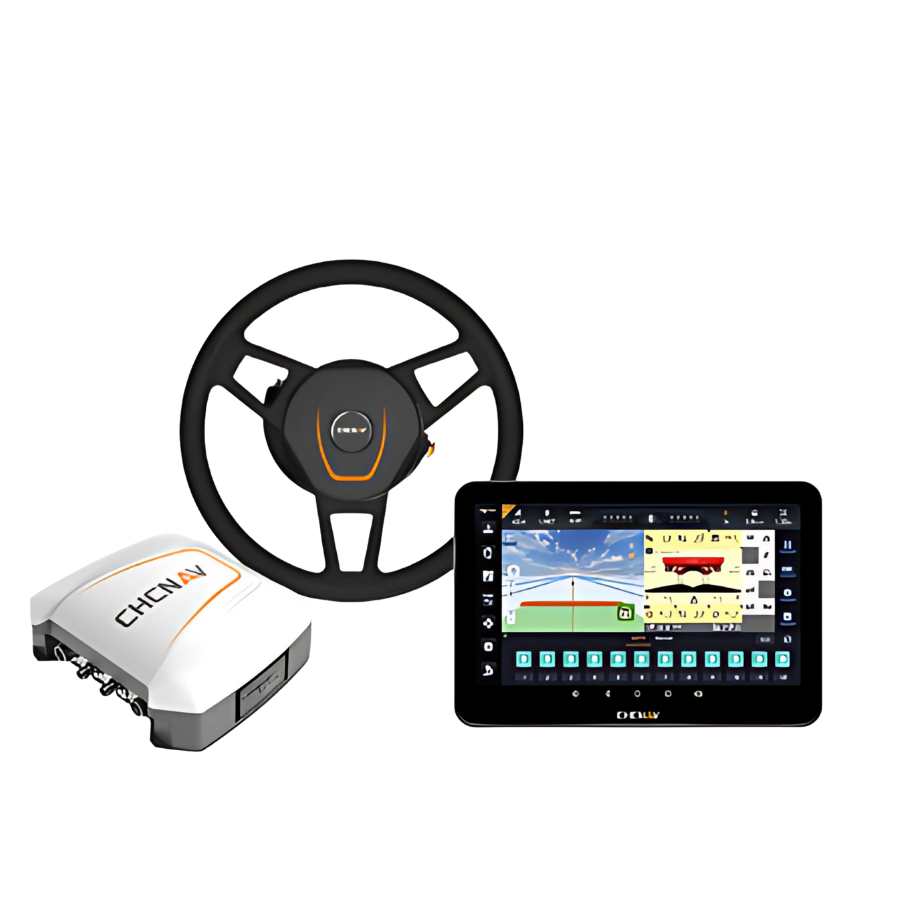

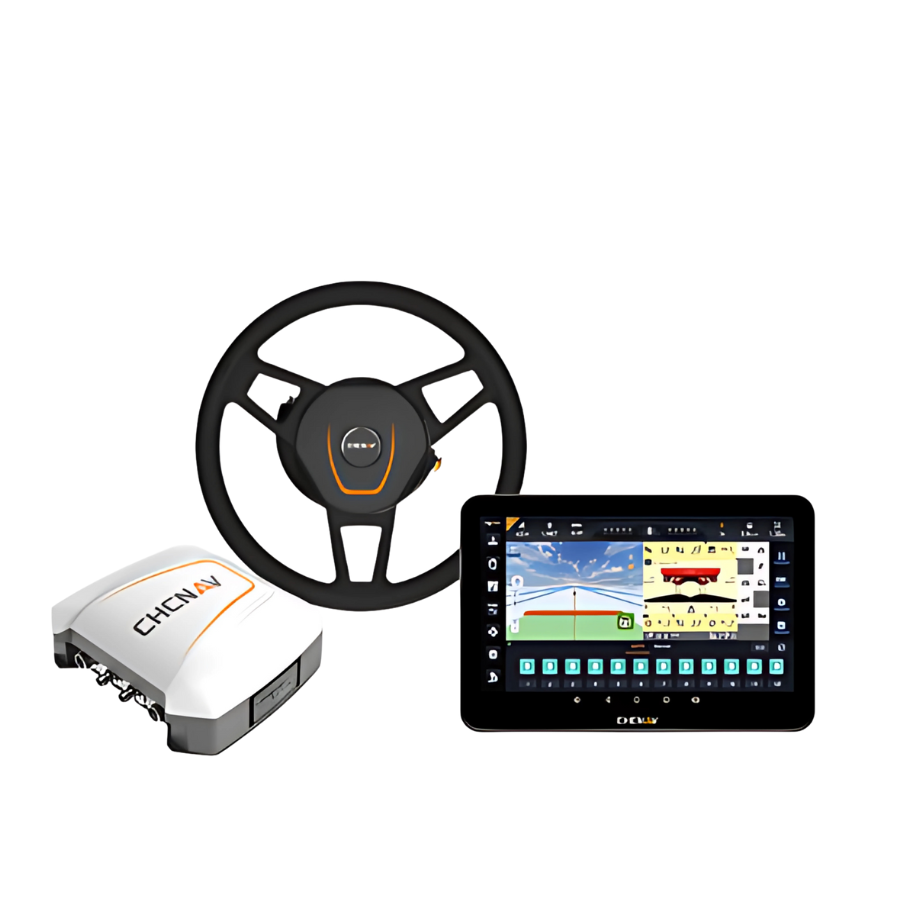

CHCNAV NX610 Automated Steering System

Automated steering system for tractors and self-propelled machines delivering ±2.5 cm precision with GNSS RTK and PointSky (PPP).
Works reliably from 0.1–30 km/h with multiple guidance patterns (AB, A+, curve, circular, irregular/boxed/all-path, 90°, path-planning).
10.1" HD Android 11 display with 3D views and a streamlined, easy-to-use UI.
ISOBUS UT / TC-BAS / TC-SC / TC-GEO, five smart U-turn modes, FarmMaster cloud tools, panoramic multi-camera view.
Compact torque-motor drive wheel saves cab space; broad compatibility across front/rear-steer, articulated & tracked vehicles, rice transplanters, and sprayers.

Trusted dealerDirect manufacturer partnership
Pan-India deliveryInsured shipping, all states
Post-sale supportTraining + service included

Overview

What makes it work

CHCNAV NX610 Product Specifications

Item	Details
Positioning	Full GNSS + PointSky (PPP)
Components	Display: 10.1″, Android • Guidance control: Integrated • Steering control: Electric • Camera: 1–4 channels input
Connectivity (wireless & I/O)	Wi-Fi, Bluetooth • Cellular: 4G LTE • UHF modem: 410–470 MHz (Rx) • Ports: CAN, RS-232
ISOBUS	UT, TC-BAS, TC-SC, TC-GEO
Operating speed	0.1–30 km/h
Guidance patterns	AB, A+, Curve, Circular Curve, Irregular Rake Line, 90° Line, Boxed Line, All-Path Line, Path-Planning Line

Tablet (display)

Item	Spec
Screen size / resolution	10.1 in, 1280×800 px
Brightness	750 nits
Communications	Wi-Fi 2.4 G: 2.400–2.4835 GHz • Wi-Fi 5 G: 5.150–5.850 GHz • Bluetooth 4.2
Cellular bands	LTE-FDD B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 • LTE-TDD B38/39/40/41 • UMTS B1/2/4/5/6/8/19 • GSM B2/3/5/8
Dimensions (W×H×D)	248.9×167.5×40.95 mm
OS / Power	Android 11 • 9–36 V DC
Environmental	Work –20 °C to +70 °C, Storage –40 °C to +85 °C, IP67

Receiver

Item	Spec
GNSS constellations	BDS: B1I, B2I, B3I, B1C, B2a, B2b • GPS: L1C/A, L2P(Y)/L2C, L5 • GLONASS: L1, L2 • Galileo: E1, E5a, E5b, E6 • QZSS: L1, L2, L5 • L-Band
GNSS modes	SPP, DGPS, RTK, E-PPP, H-PPP (Galileo E6-HAS), PointSky (CHCNAV-PPP)
RTK accuracy	Horiz.: ±8 mm + 1 ppm (RMS) • Vert.: ±15 mm + 1 ppm (RMS)
PointSky accuracy	Horiz.: ±2.5 cm (CEP95) • Vert.: ±5 cm (RMS) • Convergence < 5 min
Cellular (embedded)	LTE-FDD B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 • LTE-TDD B38/39/40/41 • UMTS B1/2/4/5/6/8/19 • GSM B2/3/5/8
Radio protocols	CHC, TT450, Transparent, SATEL, CHC-AG
Power / Enclosure	9–36 V DC, IP67, 208×191×73 mm
Environmental	Work –20 °C to +70 °C, Storage –40 °C to +85 °C

Electric steering wheel

Item	Spec
Motor type	Torque motor
Rated torque / RPM	7 N·m • 120 RPM
Rated current	15 A
I/O	1× CAN / Tractor horn
Motor dimensions / weight	Ø165×58 mm • ≤ 3.8 kg
Steering wheel diameters	400 mm / 360 mm
Power / Ingress	9–36 V DC • IP65
Environmental	Work –40 °C to +85 °C, Storage –40 °C to +85 °C

Camera

Item	Spec
Resolution	720×1080 px
Video output	AHD
White balance / exposure	Auto / Auto
Field of view	150°
Environmental	Work –20 °C to +70 °C, IP67

Highlights

Reliable performance is provided by the NX610 Automated Steering System in a variety of agricultural environments. It easily links to CHCNAV PointSky services and GNSS RTK networks, guaranteeing ±2.5 cm accuracy even in places without network coverage.

Its 10-inch HD monitor with 3D views and an intuitive interface makes operation easier than ever, and its small drive wheel motor saves cargo space.
