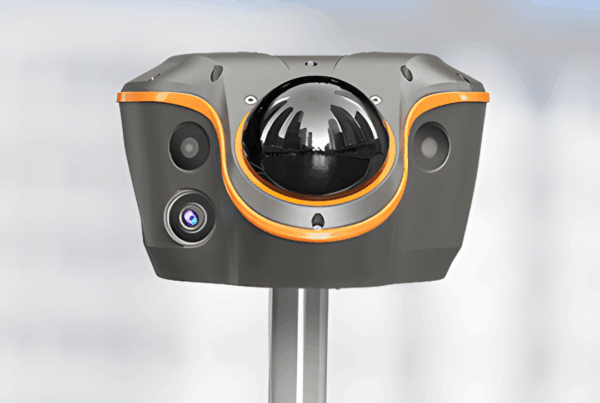

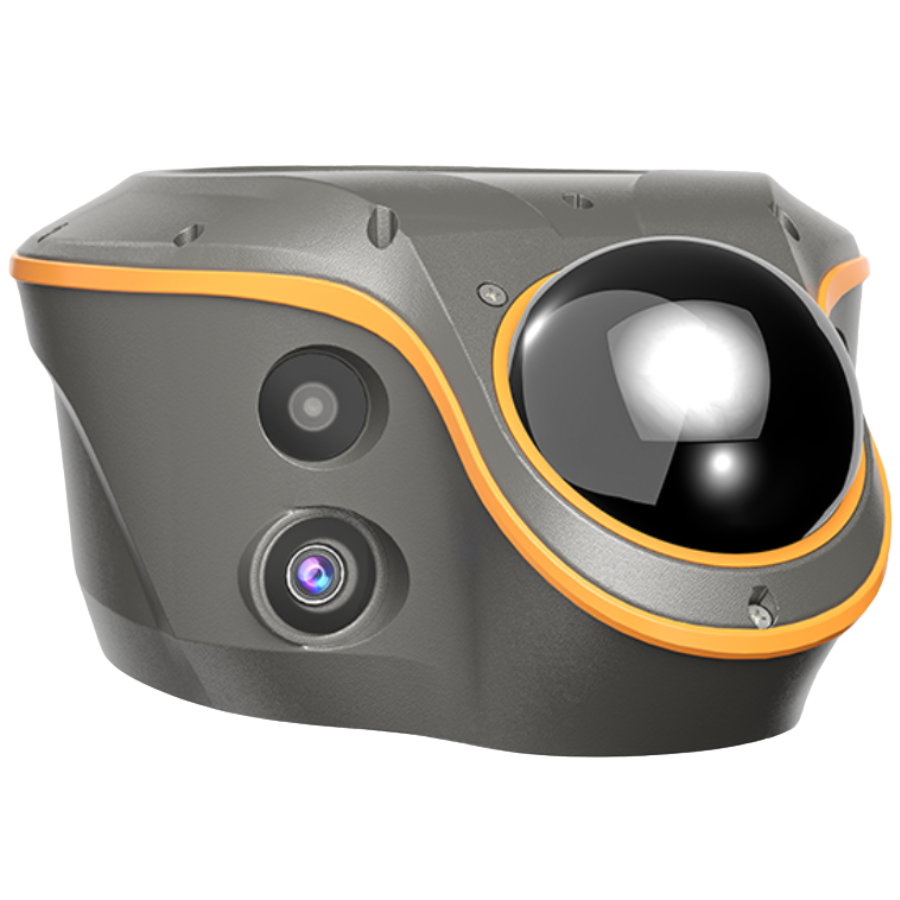

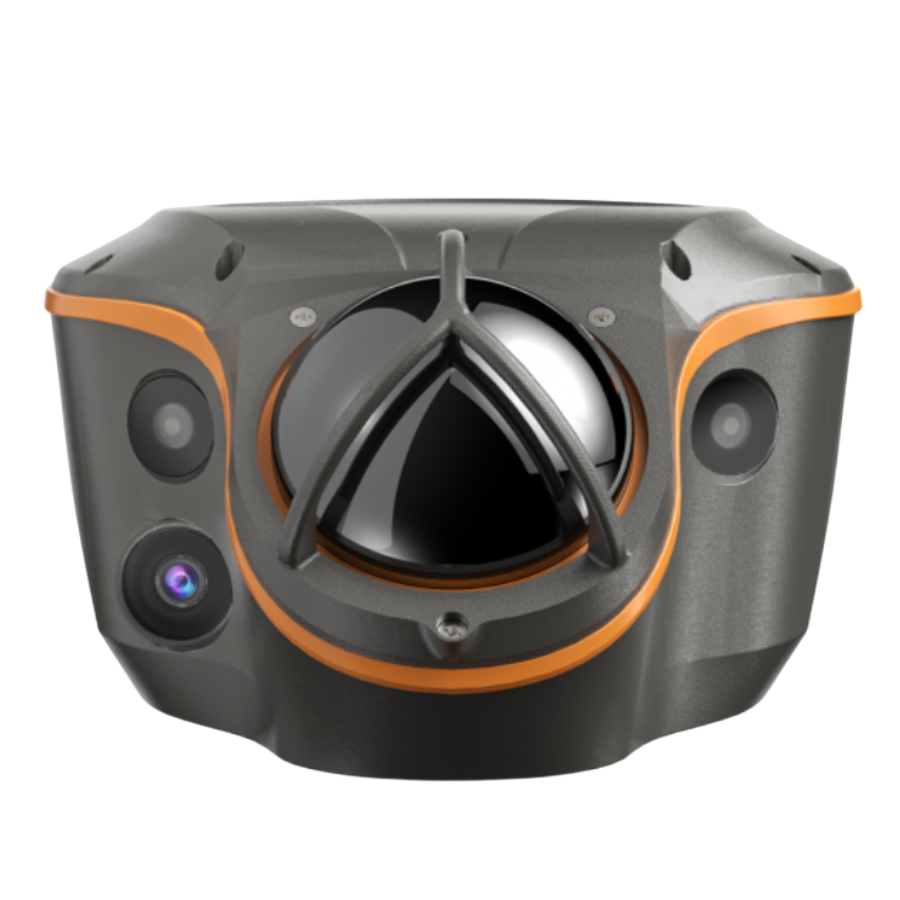

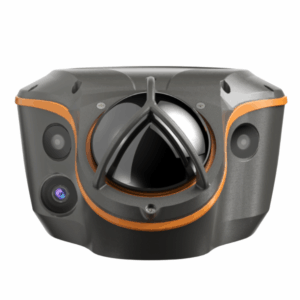

CHCNAV ViLi i100 Visual-LiDAR GNSS RTK Receiver with Consistent Accuracy in Obstruction

Flagship device that integrates GNSS RTK, LiDAR scanning and visual cameras in one compact receiver.

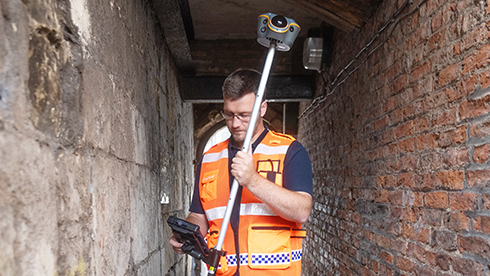

Designed to deliver centimetre-level accuracy (~5 cm) even in obstructed or GNSS-denied environments (e.g., under viaducts, near tall buildings, in forests).
Uses multi-sensor fusion: GNSS + IMU + visual cameras + LiDAR to filter multipath and reflection errors automatically.

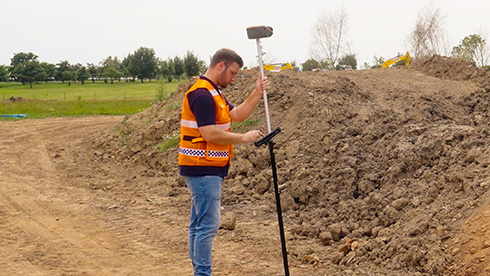

Enables contactless surveying and real-time 3D point-cloud earthwork volume calculations on-site.
Supports standard RTK modes (CORS, UHF base-rover, PPP) and provides visual/AR stake-out capabilities for efficient surveying workflows.

Description

CHCNAV ViLi i100

Visual-LiDAR GNSS RTK Receiver

Category	Specification
GNSS Channels & Signals	Full GNSS: GPS / GLONASS / Galileo / BeiDou / QZSS / NavIC (IBS) – 1408 channels (iStar2.0)
GNSS Accuracy (Open Sky)	RTK: Horizontal ~8 mm + 1 ppm, Vertical ~15 mm + 1 ppm
GNSS Accuracy (Obstructed / SFix)	With GNSS: ~5 cm typical @15 m; Without GNSS: ~5 cm within 20 m radius using SFix 2.0 & LiDAR fusion
IMU	Update rate: 200 Hz; Tilt compensation down to 30° tilt
LiDAR Sensor	Range: ~30 m @10% reflectivity, ~70 m @80% reflectivity; FOV: 360° H × 90° V; Point rate: 860,544 pts/sec (single-echo mode)
Visual Cameras	Telephoto camera: 8 MP, F/2.2, 77.5°×48.8° FOV (range 5-20 m) Dual camera (color): 2 MP + 2 MP, combined FOV 130°×46°
Weight & Dimensions	Weight: ~1.39 kg Dimensions: 208 mm × 162.0 mm × 95.5 mm
Environmental / Mechanical	Operating temp: -40 °C to +75 °C Storage: -20 °C to +55 °C Ingress protection: IP67 Shock resistance: IK08
Battery & Power	Built-in battery: 7.2 V / 9,900 mAh (~71.3 Wh) Typical consumption: ~15 W for SFix/Vi-LiDAR scan, ~4 W for UHF/4G RTK rover Scan mode: up to ~5 h; RTK mode: up to ~22 h Supports up to 30 W PD fast-charging (~5 h full)
Connectivity & Ports	Bluetooth, Wi-Fi UHF radio (410-470 MHz, Rx only) 1× USB Type-C (USB 3.0) 1× SMA UHF antenna port Data formats: RTCM 2.x/3.x, CMR input/output, NMEA 0183, LAS point cloud output, RINEX 2.11/3.02 Internal memory: 64 GB (expandable to 1 TB)
Modes & Features	RTK (Base-Rover), CORS/Network, PPP, PPK, SFix (Visual-LiDAR), Vi-LiDAR contactless survey, AR/CAD stake-out support with dual cameras

Main Features

CHCNAV ViLi i100 Visual-LiDAR GNSS RTK Receiver

Highlights

The ViLi i100 is the flagship GNSS RTK receiver from CHCNAV, designed to deliver unmatched precision and reliability. Powered by advanced satellite filtering, enhanced SFix 2.0 positioning, and innovative Vi-LiDAR technology, it ensures centimetre-level accuracy even in the most challenging GNSS environments. With the ViLi i100, professionals can push the limits of traditional GNSS surveying, achieving faster, more accurate, and more consistent results in every project.
