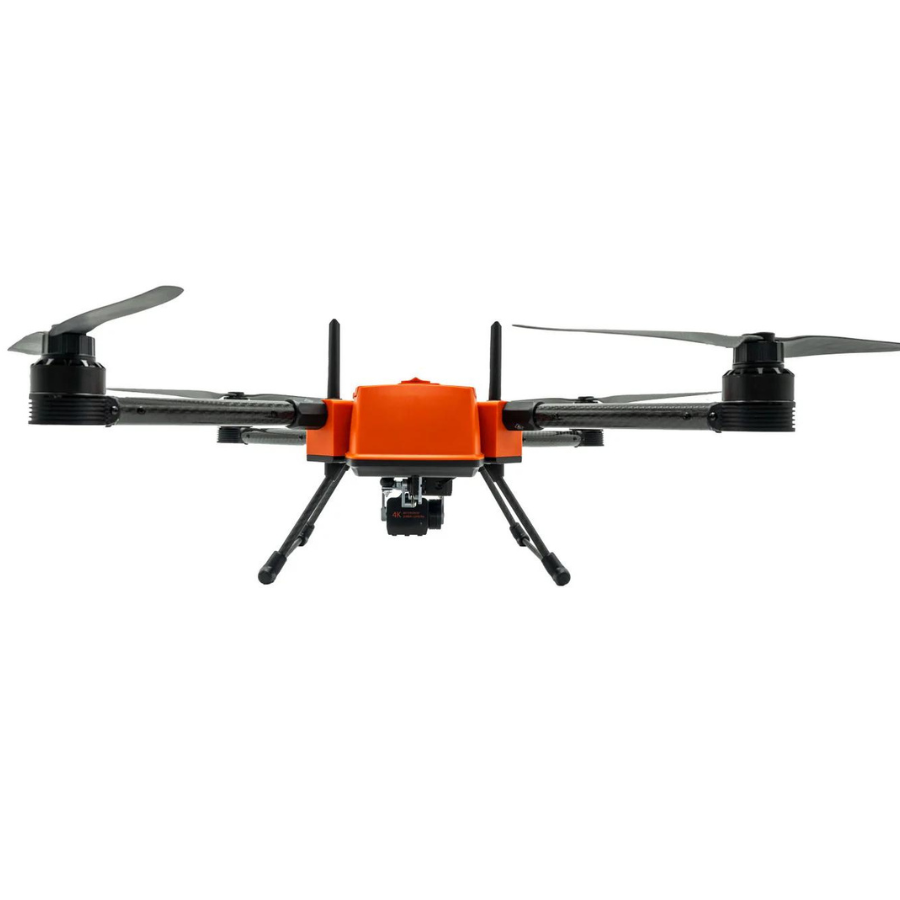

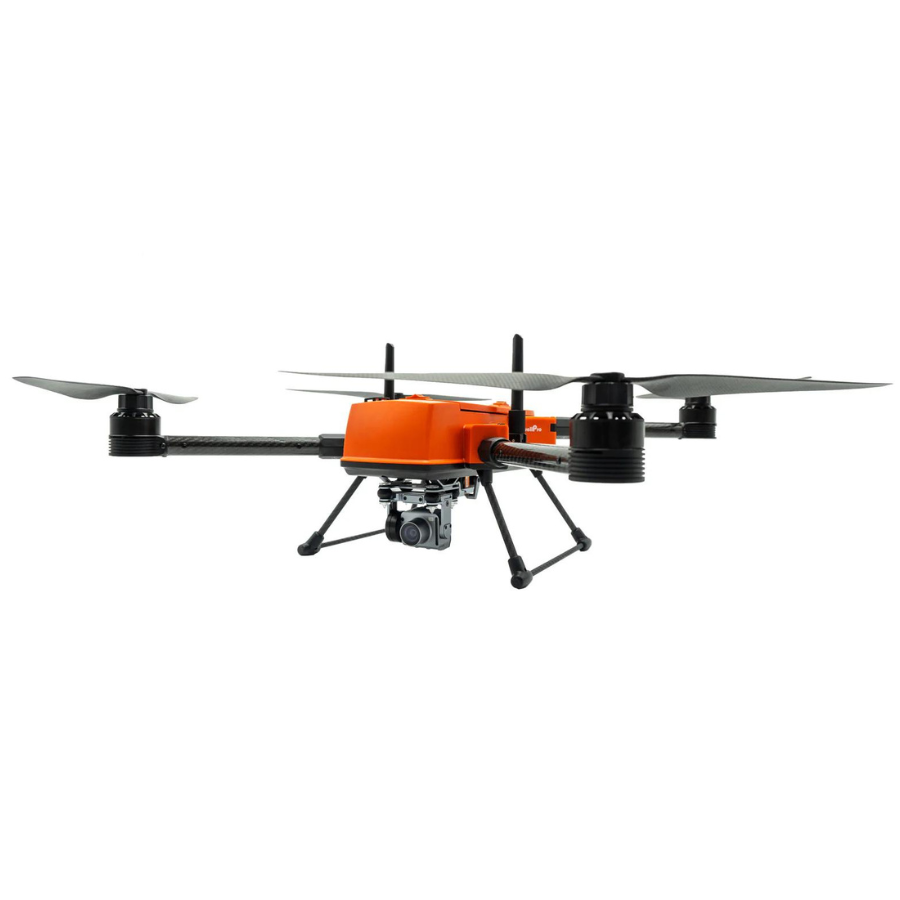

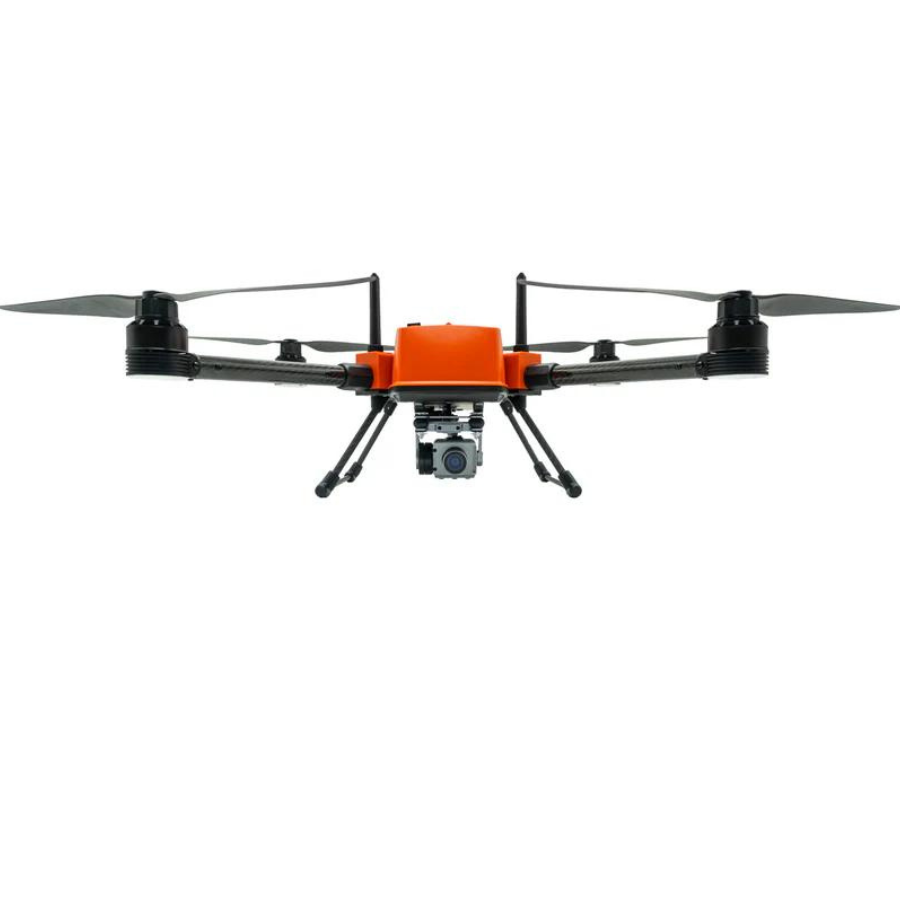

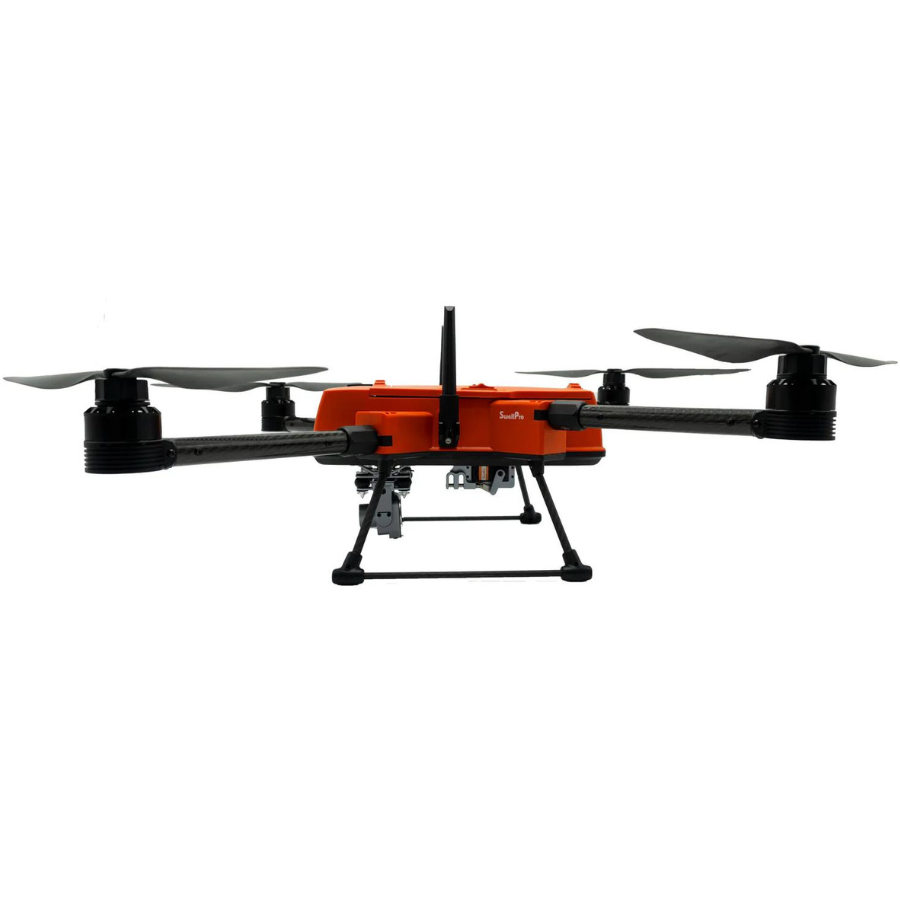

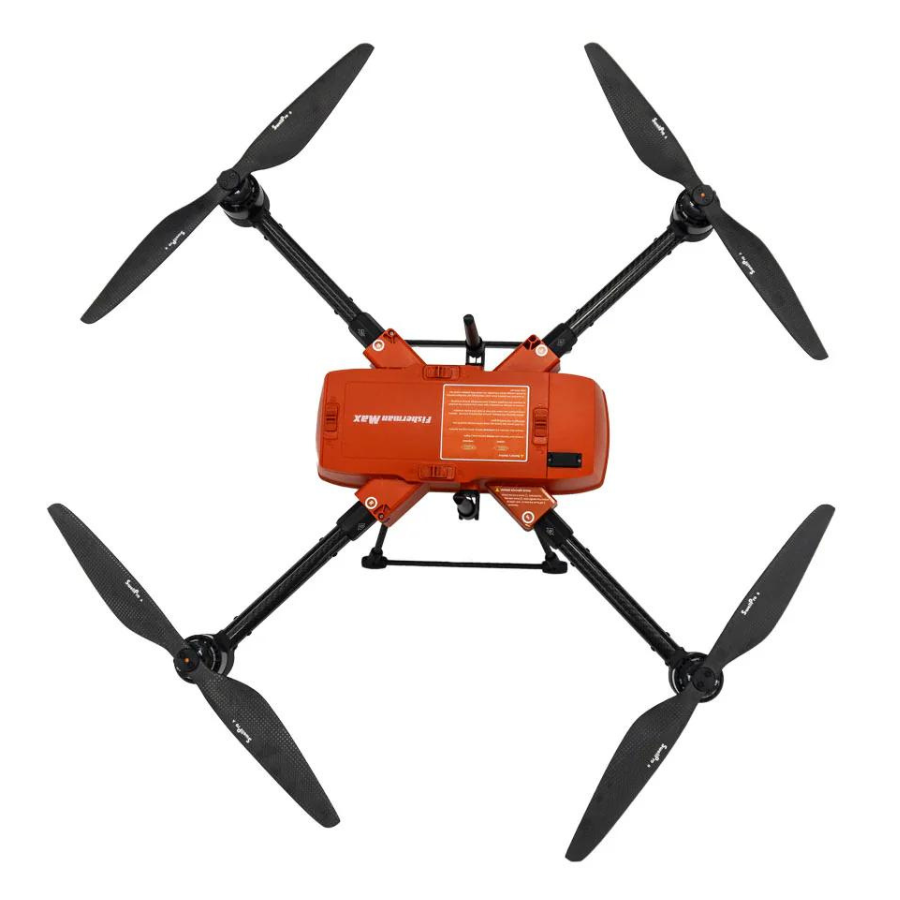

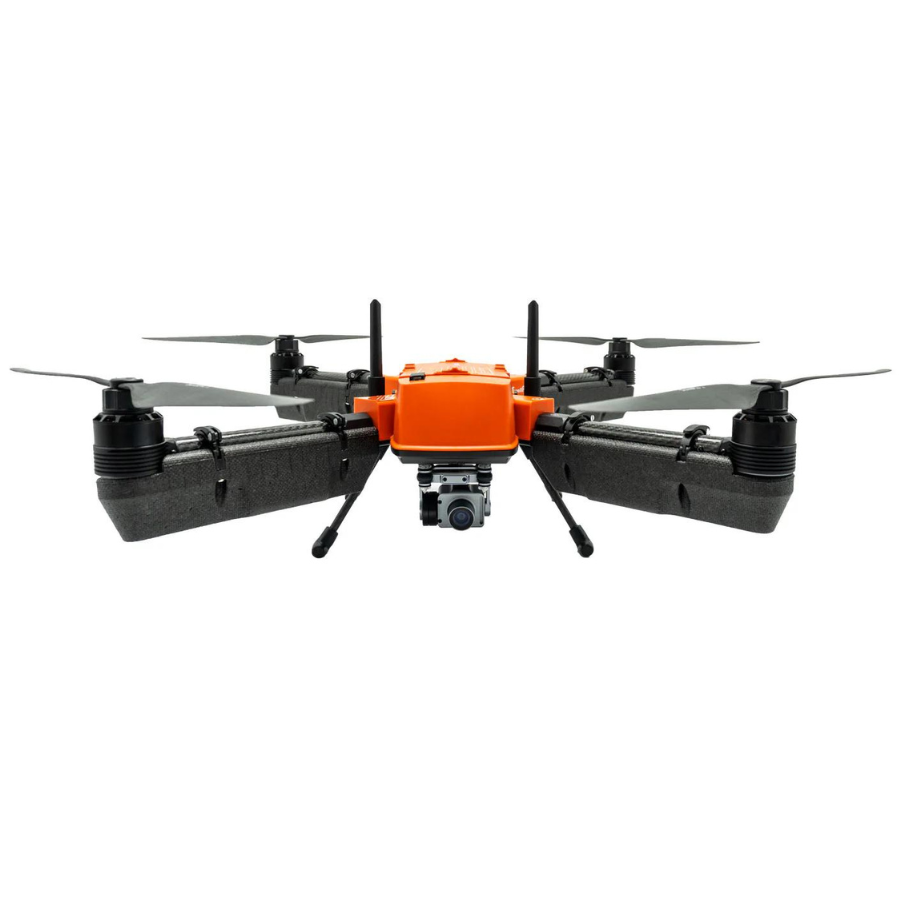

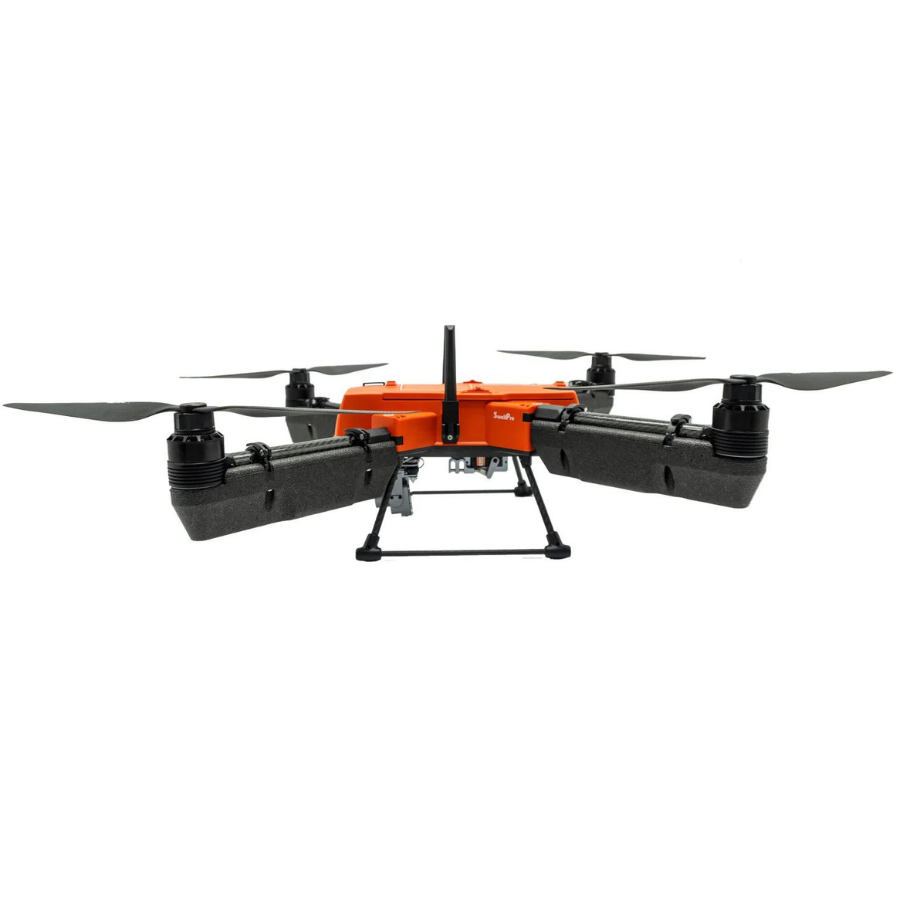

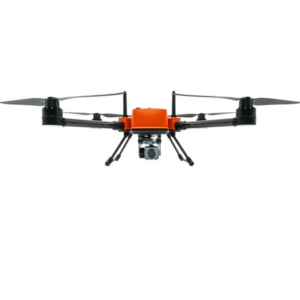

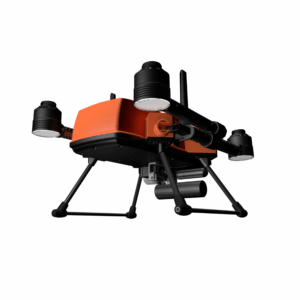

Introducing SwellPro Fisherman Max (FD2)

BOAT LESS, FISH MORE

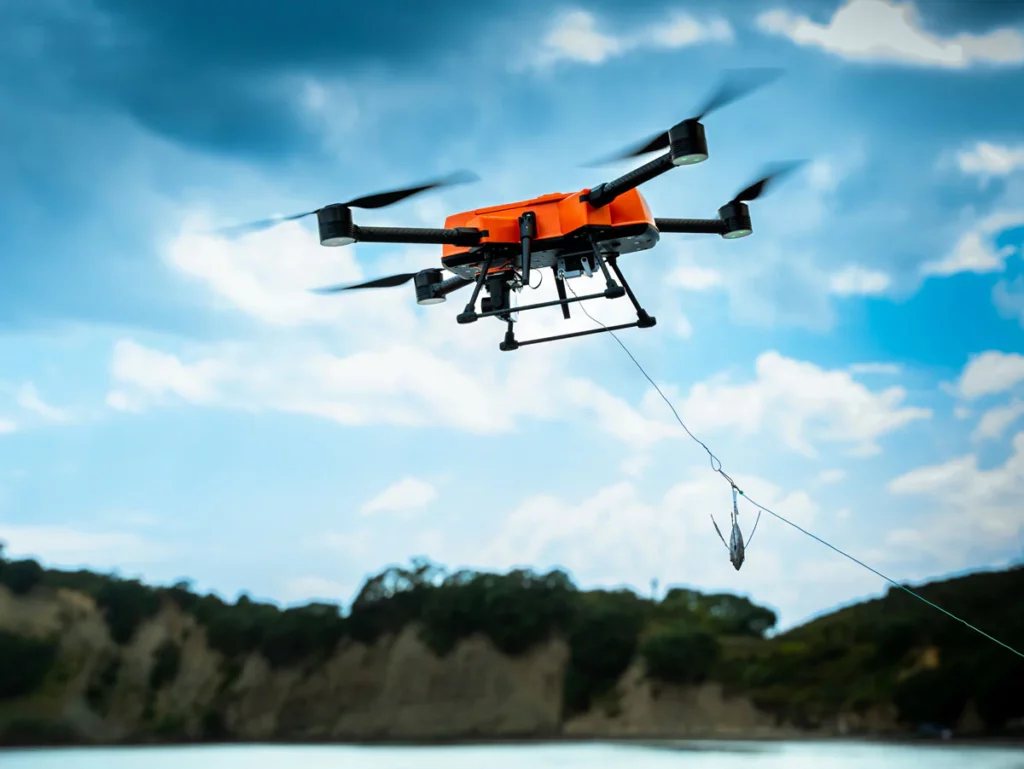

Fisherman Max FD2 is SwellPro’s flagship fishing drone, designed to
deliver 7 lbs ( 3.2 kg) baits to deeper waters or hard-to-reach areas.
Eliminating the need for a kayak or boat, FD2 helps professional anglers
focus their time and energy on battling giant fish, giving them the best

chance to break their personal best (PB) record.

Shop now on XBOOM .

SPECIFICATIONS OF SwellPro Fisherman Max (FD2)

Category	Item	Specification
Aircraft	Waterproof Rating	IP67
	Drone Weight (Including Battery)	8.3 lbs / 3.78 kg
	Size (Unfolded, w/o Propellers)	20 × 20 × 7.5 in / 522 × 522 × 192 mm
	Size (Folded, w/o Propellers)	12 × 10.5 × 7.5 in / 306 × 266 × 192 mm
	Max Ascend Speed	7 mph / 3 m/s
	Max Descent Speed	4.5 mph / 2 m/s
	Max Flight Speed (ATTI)	45 mph / 20 m/s
	Max Flight Speed (GPS)	22 mph / 10 m/s
	Max Tilt Angle	25°
	Max Flight Altitude	1 mile / 1500 m
	Max Flight Distance	1 mile / 1500 m
	Max Image Transmission Distance	0.7 mile / 1000 m
	Max Payload Capacity	7.7 lbs / 3.5 kg
	Flight Time	Up to 30 mins (no wind & no load)
	Max Wind Speed Resistance	40 mph / 18 m/s / 35 knots
	Hovering Precision	±1.6 ft / ±0.5 m
	Satellite Positioning System	GPS / Galileo
	Motor	4114 – 400Kv
	ESC	40A
	Propellers	#1655 Carbon Fiber
	Operation Frequency	2.405–2.475 GHz
	Transmitter Power (EIRP)	<33 dBm (FCC), <20 dBm (CE)
	Working Temperature	14℉ ~ 104℉ / -10℃ ~ 40℃
	Certifications	CE / FCC / ROHS / RCM

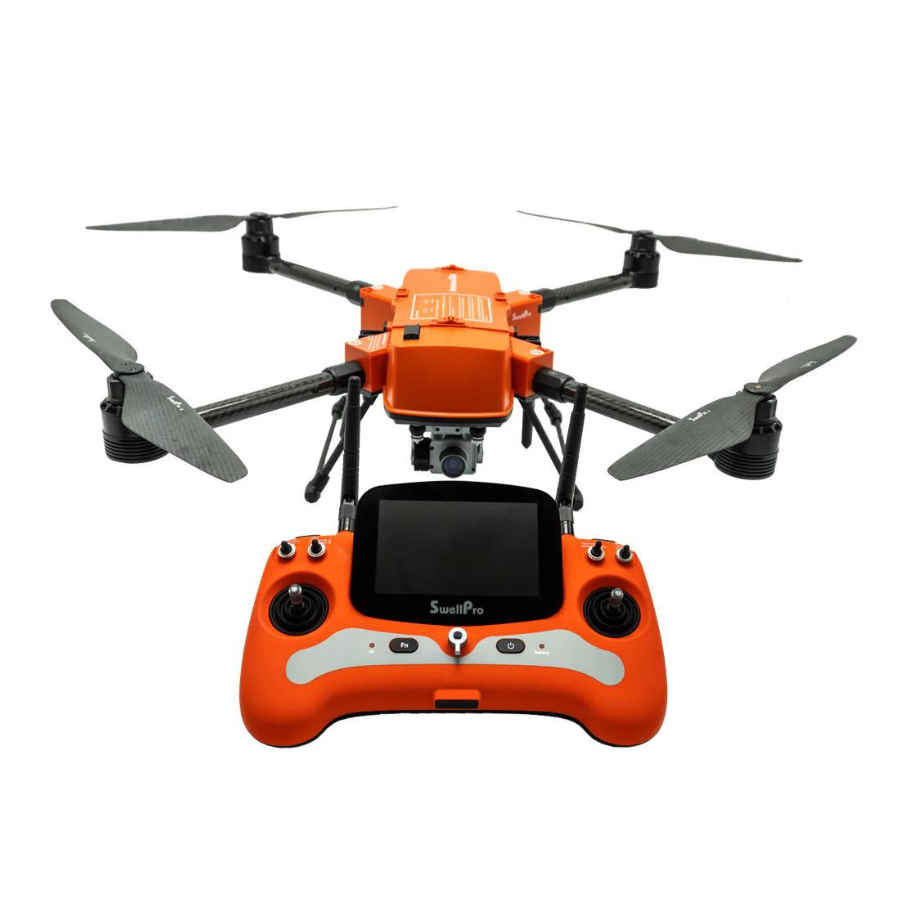

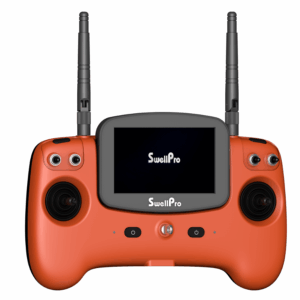

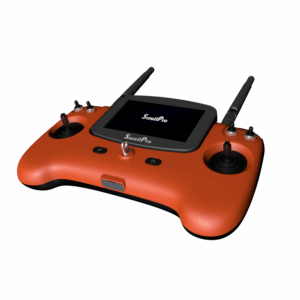

Remote Controller (Advanced)	Weight	1.56 lbs / 709 g
	Waterproof Rating	IP54
	Size	11 × 7.5 × 3 in / 276 × 190 × 74 mm
	Operating Frequency	2.405–2.475 GHz; 5.725–5.825 GHz
	Transmitter Power (EIRP)	<26 dBm (FCC), <20 dBm (CE)
	Latency	20 ms
	Battery	3000 mAh
	Working Time	5 hours
	Charging Time	3 hours
	Power Input	5V/2A USB-C
	Screen Type	Multi-color video display
	Screen Size	5 inch
	Screen Resolution	800 × 480 px
	Screen Brightness	500 cd/m²
	Screen Aspect Ratio	16:9
	Language	English
	Working Temperature	14℉ ~ 104℉ / -10℃ ~ 40℃
Remote Controller (Basic)	Weight	1.49 lbs / 680 g
	Waterproof Rating	IP54
	Size	11 × 7.5 × 3 in / 276 × 190 × 74 mm
	Operating Frequency	2.405–2.475 GHz
	Transmitter Power (EIRP)	<26 dBm (FCC), <20 dBm (CE)
	Latency	20 ms
	Battery	3000 mAh
	Working Time	9 hours
	Charging Time	3 hours
	Power Input	5V/2A USB-C
	Screen Type	Single-color text display
	Screen Size	3.6 inch
	Language	English
	Working Temperature	14℉ ~ 104℉ / -10℃ ~ 40℃
Flight Battery	Capacity	8800 mAh
	Voltage	22.2V
	Type	6S LiPo
	Size	8.6 × 4.7 × 2.5 in / 219 × 119 × 65 mm
	Weight	2.8 lbs / 1255 g
	Working Temperature	32℉ ~ 104℉ / 0℃ ~ 40℃
	Charging Time	80 mins
	Max Charging Current	8A
Charger	Input	100–240V
	Output	25.2V
	Max Charging Power	200W
	Supported Battery	6S LiPo
	Size	5.6 × 4 × 2.4 in / 143 × 100 × 60 mm
	Power Cable Length	3.9 ft / 1.2 m
	Charging Cable Length	1.6 ft / 0.5 m
	Weight	1 lb / 454.6 g
	Working Temperature	32℉ ~ 140℉ / 0℃ ~ 60℃
	Power Adapter Types	Type A (USA, Canada, Mexico, Japan); Type B (Europe, South America, Asia); Type G (UK, Ireland, Malta, Singapore); Type I (Australia, New Zealand)
Camera (Advanced)	Waterproof Rating	IP67
	Stabilization	1-axis (tilt)
	Tilt Range	-90° to 0°
	Weight	0.38 lbs / 176.5 g
	Size	3.1 × 2.7 × 2.7 in / 79 × 69 × 70 mm
	Image Sensor	SONY IMX377
	Lens	F4.53mm f/2.65, FOV 92.6°
	ISO Range	100–3200
	Shutter Speed	16–1/16000 s
	Video Resolution	4K:30fps; 2.7K:60fps; 1080P:120/60/30fps; 720P:240/120/60fps
	Photo Resolution	4000×3000 (4:3); 3840×2160 (16:9)
	Max Video Bitrate	60 Mbps
	Photo Format	JPEG / DNG (RAW)
	Video Format	MP4 / MOV
	Supported Memory Card	microSD up to 128GB; ≥60 MB/s; Class 10 or above; UHS-1
	Working Temperature	14℉ ~ 104℉ / -10℃ ~ 40℃
What’s in the Box	Aircraft	1
	Remote Controller	1
	Flight Battery	1
	Charger	1
	Propellers	2 pairs
	Camera	1
	Bait Release	1

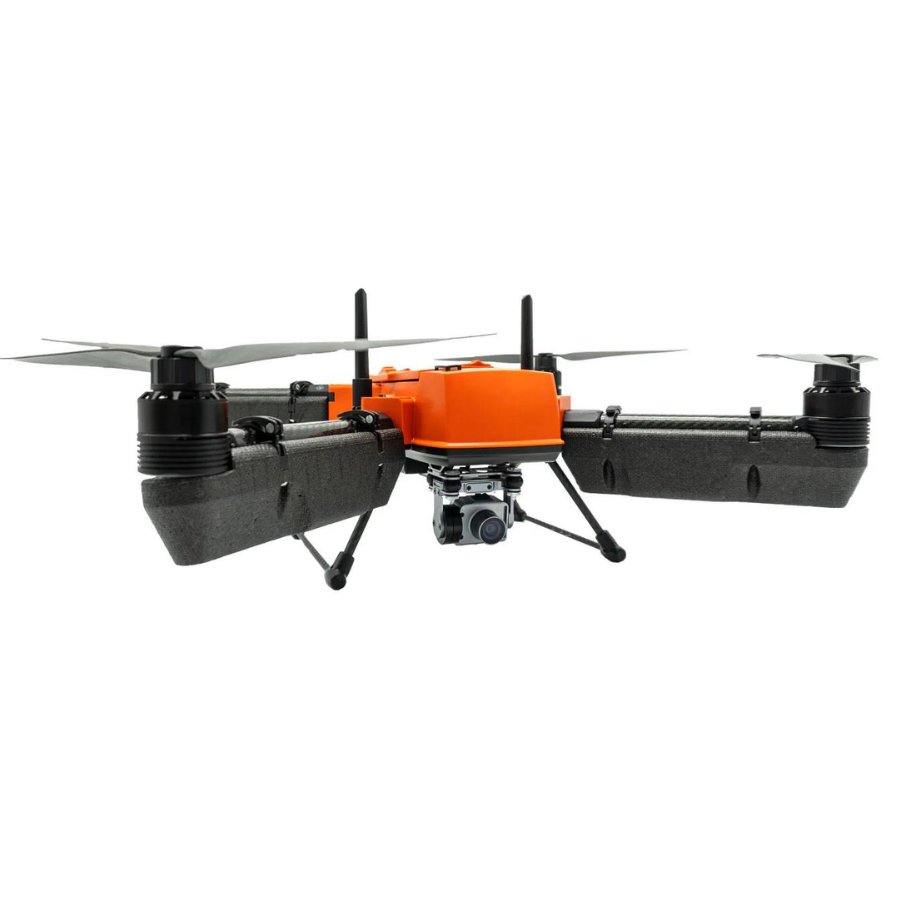

	Floating Bars	4
	USB-C Cable	1
	Charging Cable	1
	Power Adapter	1
	Phone Mount	1

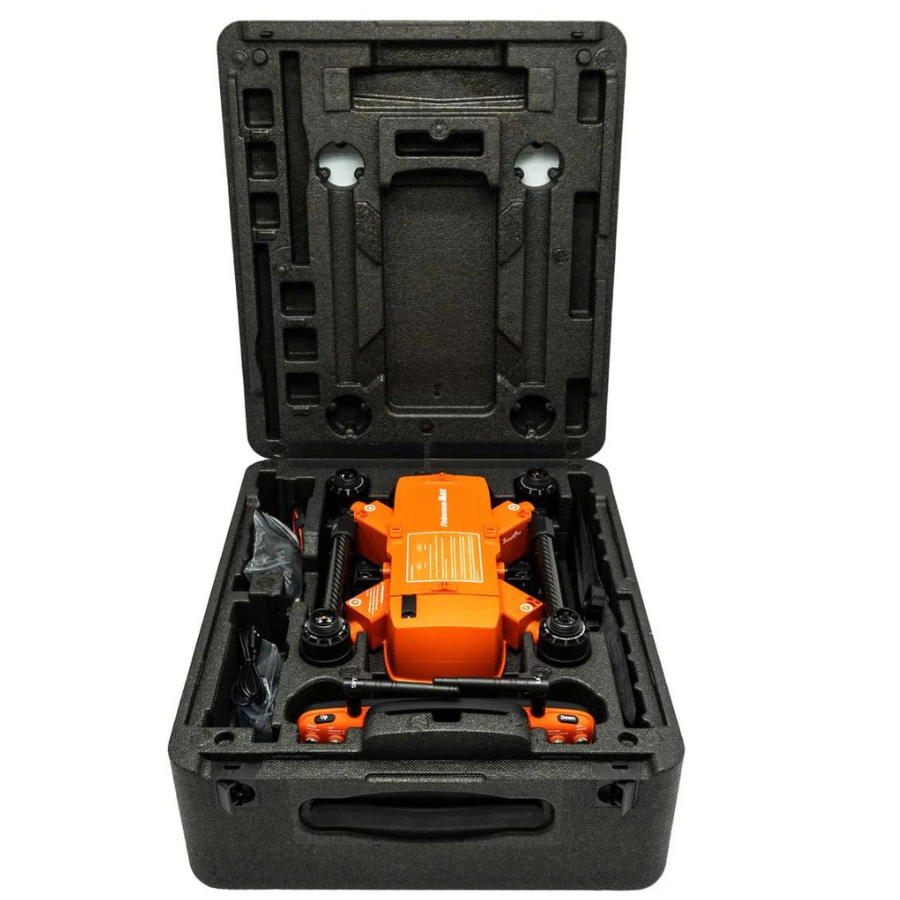

	Carry Case	1
