Hi-Target V200 GNSS RTK System
- Advanced RTK Engine
- Full-Constellation Tracking
- Web UI
- Built-in Radio
- NFC
- Compatible with Third-part software
- Authorised dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work

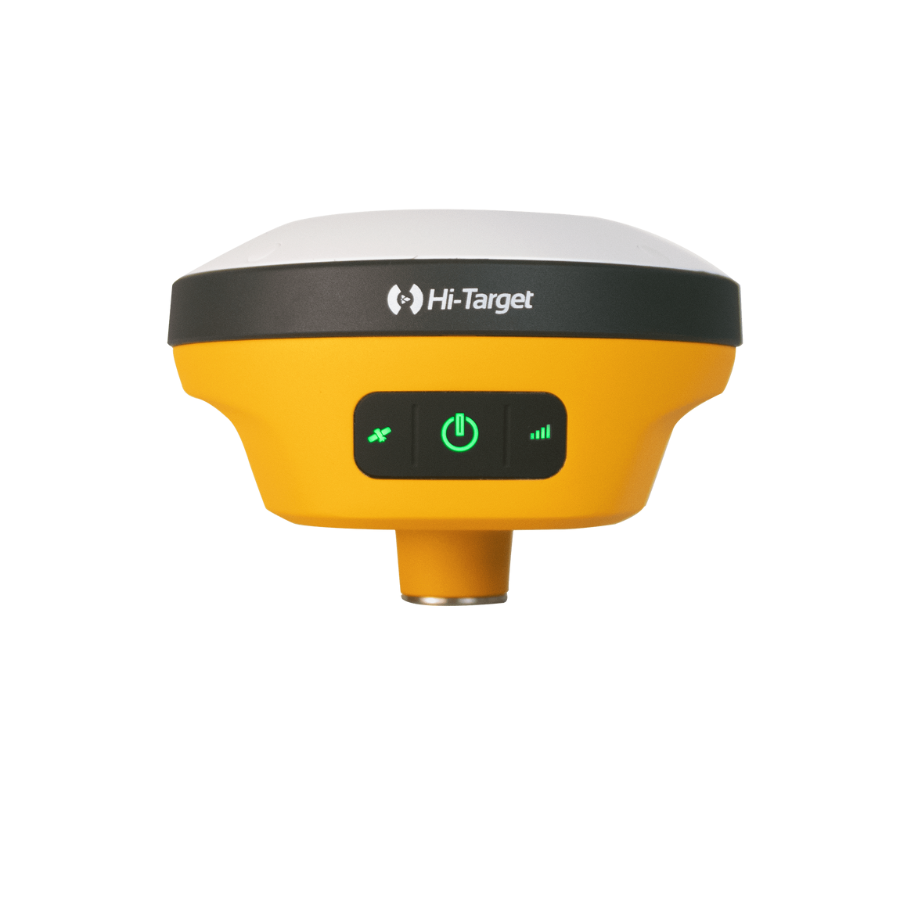

V200 GNSS RTK System

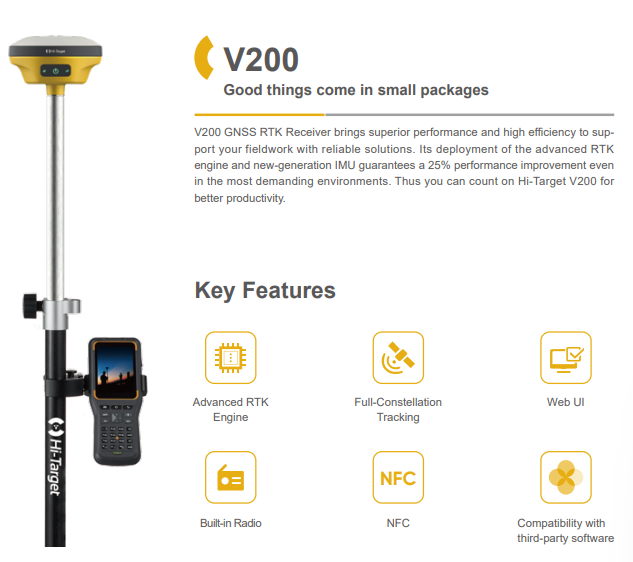

The Hi-Target V200 GNSS RTK System stands out as a highly efficient instrument designed to boost field surveying productivity. It is equipped with a cutting-edge RTK engine and a new-generation IMU, ensuring a performance enhancement of 25% in even the most challenging environments. This device’s compact and lightweight design makes it exceptionally portable, facilitating ease of use in remote and difficult-to-access locations. Ideal for professionals seeking to streamline their operations, the V200 combines robustness and advanced technology to deliver precise and reliable results quickly. Its user-friendly features and enhanced capabilities make it an indispensable tool for surveyors looking to optimize their workflows and achieve high accuracy in their measurements.
Specifications of Hi-Target V200 GNSS RTK System
General
| GNSS Feature | Specification | |
| GNSS Signal | Channels | 800+ |
| GPS | L1 / L2 / L5 / L2C | |
| BDS | B1 / B2 / B3 / B1C / B2a | |
| GLONASS | L1 / L2 / L3 | |
| Galileo | E1 / E5 AltBOC / E5a / E5b / E6 | |
| SBAS | L1 / L5 | |
| QZSS | L1 / L2 / L5 / L6 | |
| IRNSS | L5 | |
| Communication | Communication | Bluetooth:4.2 / 2.1+EDR, 2.4GHz |
| Wi-Fi:frequency 2.4GHz, Supports 802.11 b / g / n | ||
| Internal UHF Radio | Transmitting power:0.5W / 1W / 2W adjustable | |
| Supports multi-communication protocols:HI-TARGET | ||
| TRIMTALK450S, TRIMMARK III, TRANSEOT, SATEL-3AS, etc. |
| Physica | Internal battery | Internal 7.4V / 6800mAh lithium-ion rechargeable battery. |
| RTK Rover (Network) for 12 hours. Static:up to 15 hours | ||
| External powe | Power consumption:4.2W Dimensions (W×H):132mm×67mm | |
| Charging:using standard smartphone chargers or external power banks. | ||
| Weight:≤0.8kg (includes battery) Data storage:8GB ROM internal storage | ||
| Control Panel | LED Lamp | Satellite, Signal, Power |
| Physical button | 1 | |
| Environment | Water / Dustproof | IP67 |
| Shock and vibration | Designed to survive a 2m natural fall onto concrete | |
| Humidity | 100%, condensing | |
| Operation temperature | -30ºC~+70ºC | |
| Storage temperature | -40ºC~+80ºC | |
| I / O Interface | 1 × USB port, Type C | |
| 1 × SMA antenna connector | ||
| Data Formats | Output rate | 1Hz-20Hz. |
| Static data format | GNS, Rinex | |
| Network model | VRS, FKP, MAC; supports NTRIP protocol | |
| CMR& RTCM | CMR, RTCM 2.x, RTCM 3.0, RTCM 3.2 | |
| Navigation outputs ASCII | NMEA-0183 |
FAQs for Hi-Target V200 GNSS RTK System
- What is the Hi-Target V200 GNSS RTK System? The Hi-Target V200 GNSS RTK System is a high-precision surveying instrument that utilizes Real-Time Kinematic (RTK) technology and supports multiple GNSS constellations to provide accurate and reliable positioning data.
- What GNSS constellations does the V200 support? The V200 supports multiple GNSS constellations including GPS, GLONASS, BeiDou, and Galileo, ensuring comprehensive global coverage and enhanced accuracy.

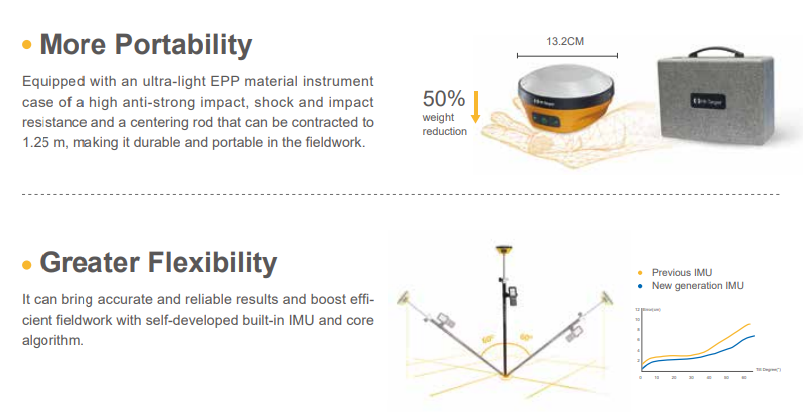

- How does the new-generation IMU improve performance? The integrated new-generation IMU (Inertial Measurement Unit) in the V200 allows for a 25% improvement in performance, providing reliable measurements even in dynamic and challenging environments.
- Is the V200 suitable for use in remote areas? Yes, the V200’s compact and lightweight design makes it ideal for use in remote and difficult-to-reach areas, enabling efficient surveying across diverse geographical locations.
- What are the power options and battery life of the V200? The V200 is equipped with a long-lasting battery that supports extended field operations, typically offering full-day usability to maximize productivity in the field.
- Can the V200 integrate with other surveying equipment and software? Yes, the V200 is designed to integrate seamlessly with a range of surveying equipment and software, enhancing its versatility and enabling users to adapt to various surveying needs and projects.
- What type of data output can I expect from the V200? The V200 delivers a variety of data outputs including position coordinates, velocity, and time, all with high accuracy. It supports standard formats that are compatible with most surveying software.
- How does the V200 handle data management and transfer? The system features multiple data transfer options, including Wi-Fi, Bluetooth, and USB, allowing for easy and flexible data management and sharing between devices and platforms.
- What kind of support and training is available for the V200? Hi-Target provides comprehensive support and training for the V200, including user manuals, online tutorials, and customer service support to ensure users can effectively utilize the system.
- Where can I purchase the V200 and what does it include? The V200 can be purchased through authorized Hi-Target distributors and dealers. It typically includes the receiver, a battery, charger, carrying case, and access to the necessary software, with additional accessories available depending on the supplier.
