JetHexa Standard Kit — Jetson Nano ROS hexapod robot

Why JetHexa

Six legs. One brain. Every algorithm you want to try.

Wheeled robots are easy. Legged robots are the frontier. JetHexa gives you 18-DOF hexapod locomotion, a Jetson-class AI brain, and open-source Python — so your lab can research gait, biomechanics, terrain adaptation and embodied AI without building the mechanics from scratch.

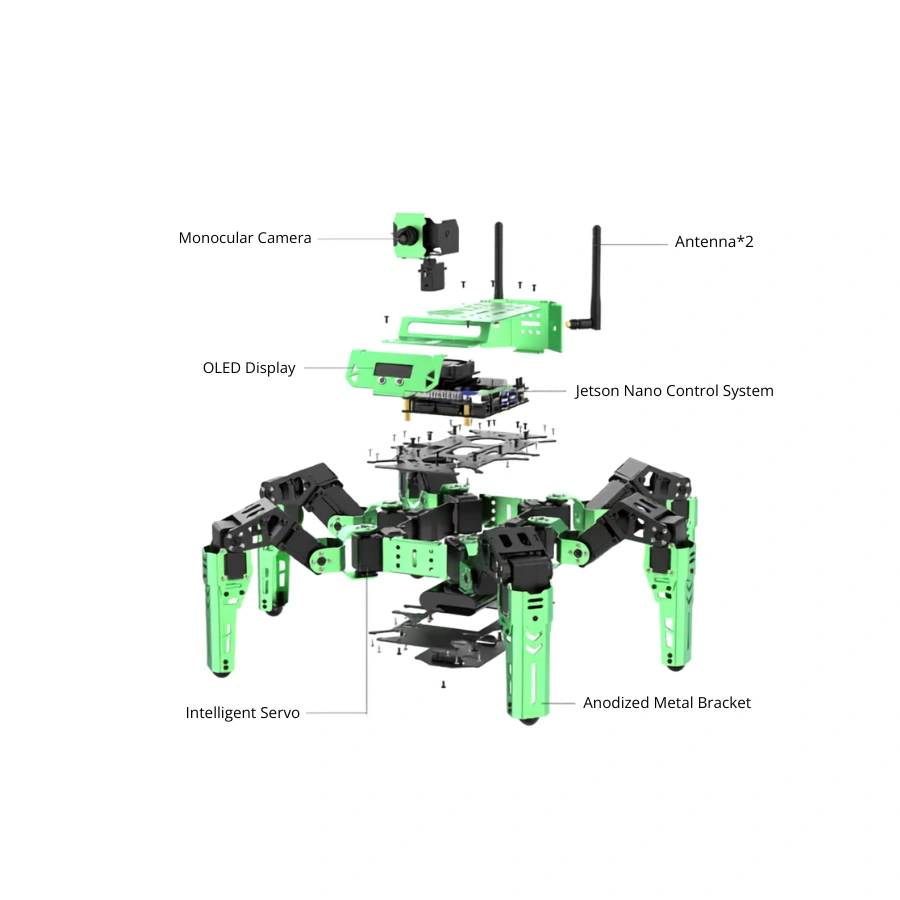

JetHexa hexapod chassis — 18 intelligent serial-bus servos on hard-anodized aluminum alloy

Mechanical

18 intelligent servos. 35 KG torque. Hard-anodized aluminum body.

Six legs, three joints per leg, all driven by Hiwonder’s intelligent serial-bus servos rated at 35 KG-cm holding torque and 240° travel. The chassis is hard-anodized aluminum alloy — light enough for a student to lift, stiff enough to survive a research-lab lifetime.

18 DOFSerial-bus servos35 KG torque240° travelAnodized aluminum

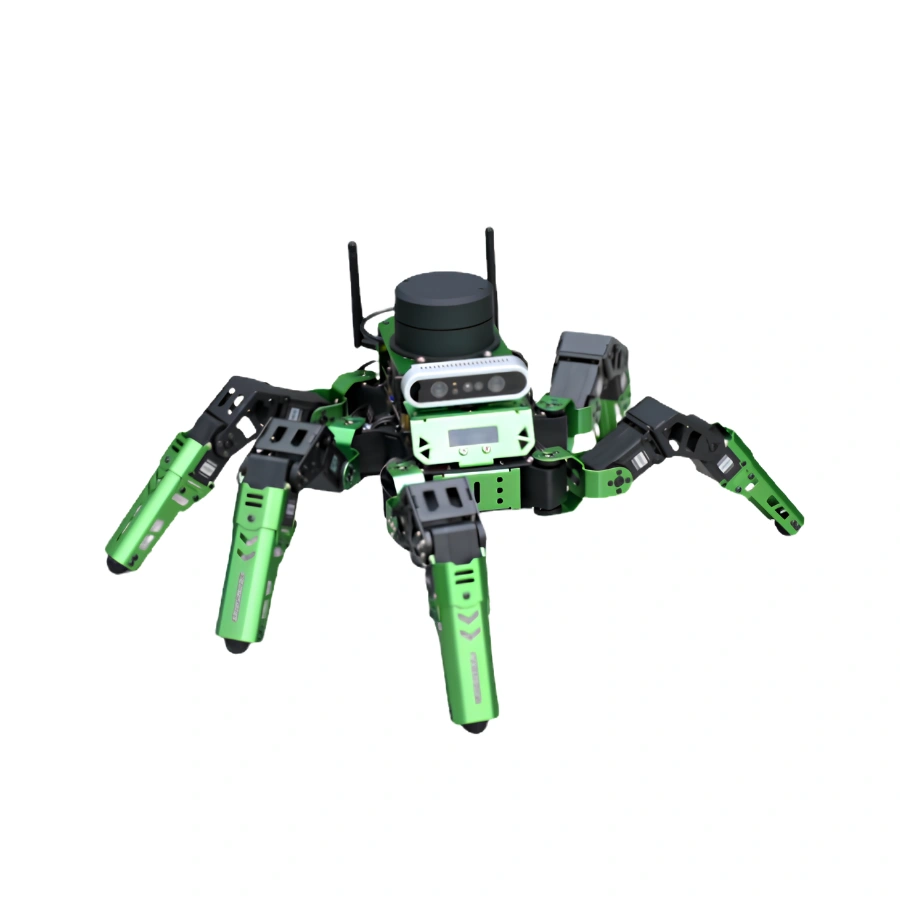

Locomotion

Tripod, ripple, moonwalk — inverse kinematics done for you.

Three gaits ship pre-tuned, with real-time control over pitch, roll, direction, height, speed and stride. The inverse-kinematics solver runs on-board so you can teleoperate or script new motions in Python without solving 18 joint angles by hand. A built-in IMU keeps posture stable on rough terrain.

Tripod gaitRipple gaitMoonwalkInverse kinematicsIMU self-balance

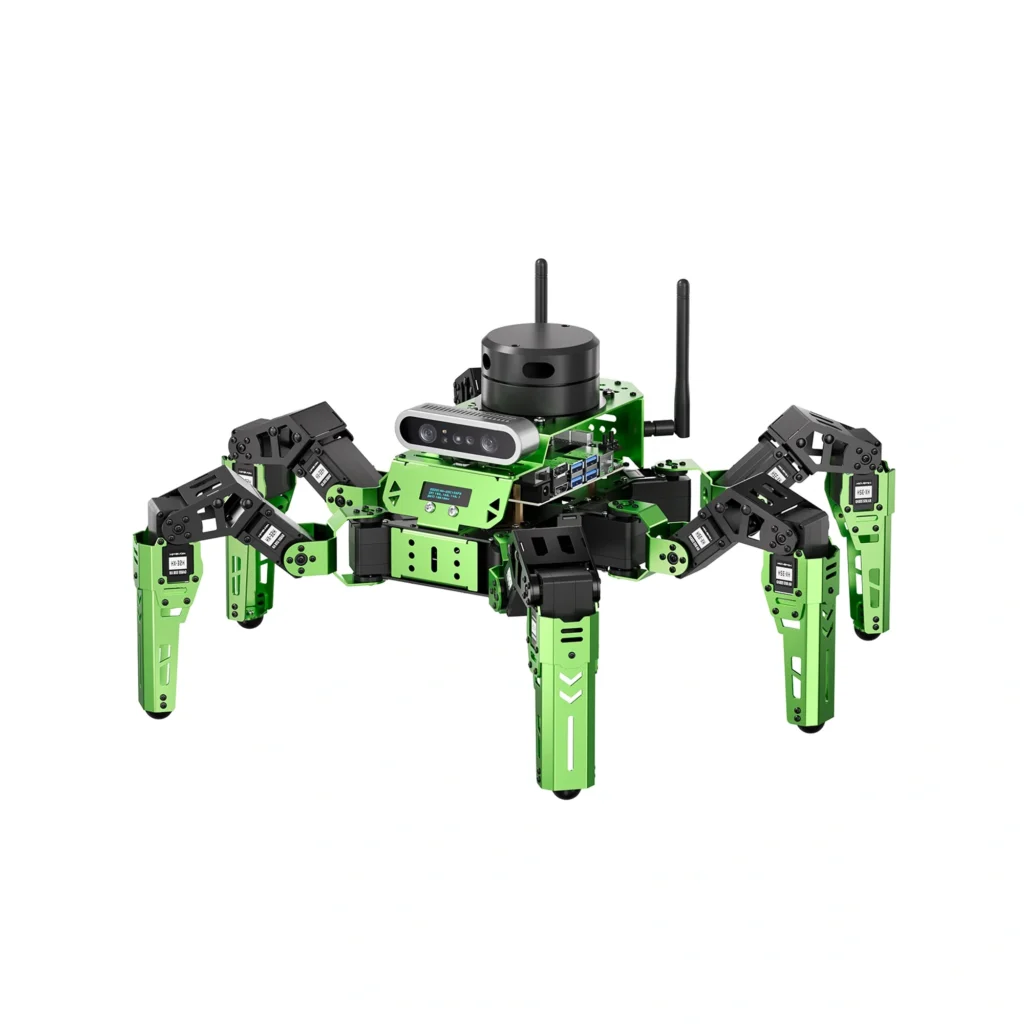

AI vision

YOLO, MediaPipe, KCF tracking — running natively on Jetson.

A 2-DoF pan/tilt monocular HD camera feeds an AI stack pre-tuned for the Jetson Nano: YOLO object detection, MediaPipe body / gesture recognition, KCF target tracking, color and line following, AprilTag pose estimation. TensorRT acceleration keeps every model at real-time framerates.

YOLOMediaPipeKCF trackerAprilTagTensorRT

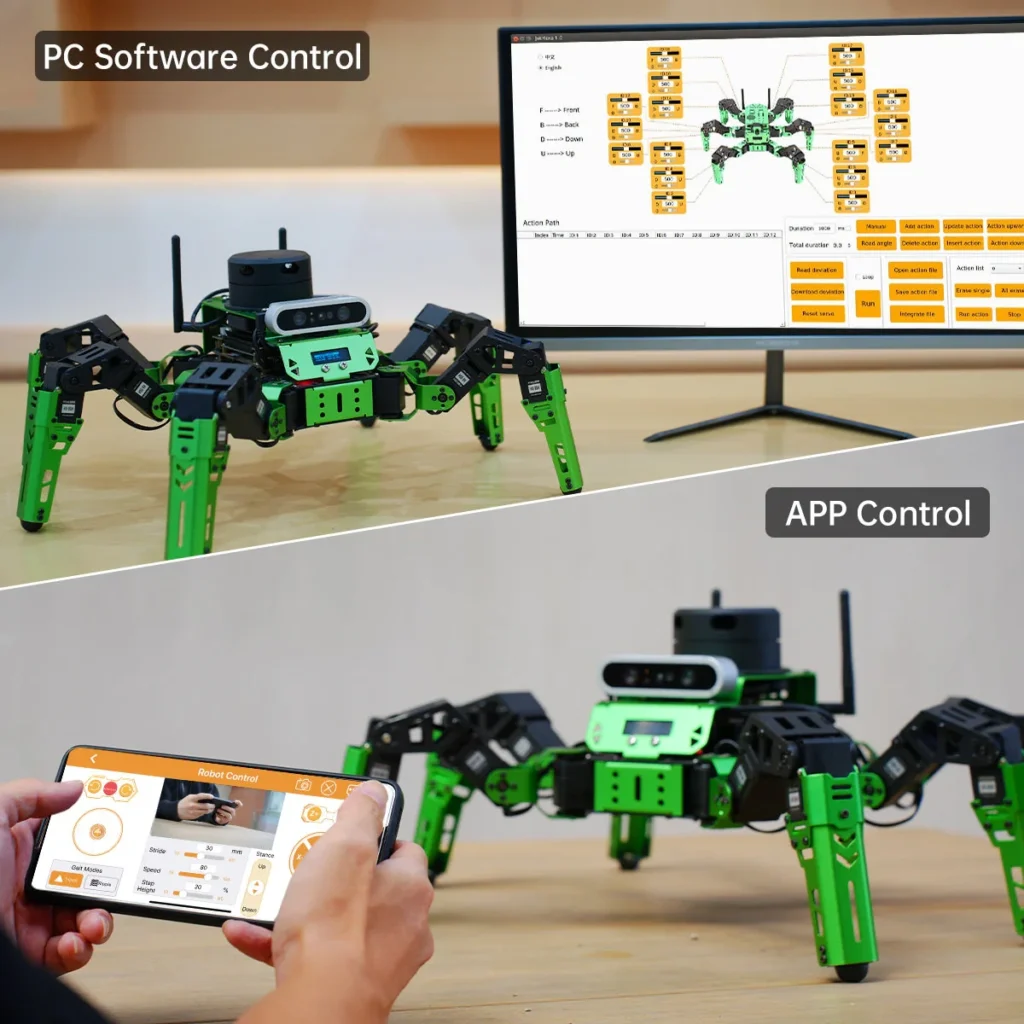

JetHexa control ecosystem — WonderAi app, gamepad, ROS terminal, keyboard

Control & ROS

ROS Melodic / Noetic, WonderAi app, gamepad — drive it any way you like.

Ubuntu 18.04 + ROS Melodic / Noetic pre-configured, with Gazebo simulation and RViz visualisation ready. Control JetHexa from the WonderAi iOS / Android app for demos, a wireless gamepad for competition runs, keyboard teleop for debugging, or your own ROS node for the actual research work.

ROS MelodicROS NoeticGazeboRVizWonderAi app

Gallery

Six legs, up close.

Every angle of the standard kit.

Complete unit

Kit

Standard config

Control

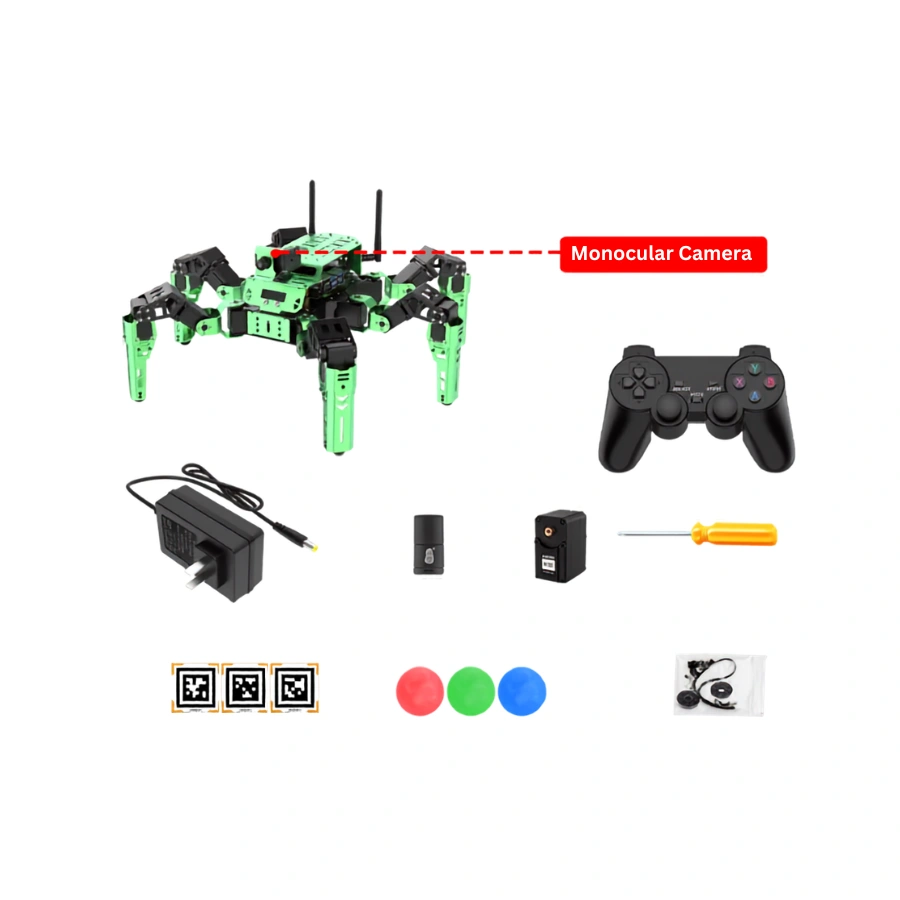

Package

Research-grade

Specifications

JetHexa Standard Kit · Jetson Nano B01.

Full mechanical, electrical, and software configuration — exactly what ships in the box.

Six modules, one hexapod syllabus.

The 150+ bilingual tutorials map onto a 6-stage robotics course — from Linux fundamentals to competition-ready autonomous behaviours.

H1 · Foundation

Linux & ROS

Ubuntu setup · ROS Melodic / Noetic · catkin · nodes · topics

H2

Motion control

Serial-bus servos · joint control · inverse kinematics

H3

Gait engineering

Tripod · ripple · moonwalk · custom gait design

H4

AI vision

OpenCV · YOLO training · MediaPipe · TensorRT inference

H5

Human interaction

Gesture control · face tracking · AprilTag pose · voice

H6 · Capstone

Autonomous behaviours

Terrain adaptation · multi-target tracking · competition run

Where JetHexa fits

Where JetHexa works.

The legged robot Indian research groups, engineering colleges and competition teams reach for when a wheeled robot won’t cut it.

01

Research labs

Hexapod locomotion, gait research, terrain adaptation and biomechanics — publish-quality experiments on an open Python stack.

Fit · PhD / MTech thesis

02

Engineering colleges

The 150+ bilingual tutorials map onto a full 6-stage robotics elective — Linux, ROS, motion, vision, autonomy.

Fit · BTech / MTech course

03

Robotics competitions

Tripod-gait speed events, AprilTag navigation, object-tracking challenges — competition-ready out of the box.

Fit · IIT / national events

04

Embodied AI at the edge

Jetson Nano + TensorRT + YOLO + MediaPipe on legged hardware — a classroom-scale platform for embodied intelligence research.

Fit · AI/ML curriculum

Good to know

JetHexa questions, answered.

Yes — 18 DOF, 35 KG-cm servo torque, Jetson Nano B01, open-source Python and full ROS Melodic / Noetic support make JetHexa the go-to educational hexapod for locomotion research, gait engineering and embodied-AI experiments. Most Indian PhD / MTech groups can adopt it as their primary platform on day one.

The Standard Kit ships with a monocular HD camera — ideal for AI-vision courses, YOLO / MediaPipe experiments and locomotion research. The Advanced Kit adds a 3D depth camera and an EAI G4 360° Lidar so you can run full SLAM, 3D mapping and autonomous navigation on legged hardware.

Three gaits ship pre-tuned — tripod, ripple, and moonwalk — each with real-time control over pitch, roll, direction, height, speed and stride. The inverse-kinematics solver is exposed via Python, so students can design and script new gaits without solving 18 joint angles by hand.

Yes — the Jetson Nano B01 ships with TensorRT, TensorFlow, PyTorch, YOLO and MediaPipe pre-installed and pre-tuned. Colour tracking, KCF target tracking, gesture recognition, AprilTag pose estimation and MediaPipe body detection are ready-to-run demos. Add your own LLM / OpenAI integration for voice conversation.

Ubuntu 18.04 with both ROS Melodic and ROS Noetic pre-installed. Gazebo simulation and RViz visualisation are ready-to-launch. All Hiwonder Python nodes are open-source and fully annotated.

Yes — we offer bulk pricing for colleges and universities, GST invoicing at ₹ 1,29,000 excl. GST (No-Cost EMI from ₹ 14,334/mo across 9 months), GeM listing where required, and government-tender documentation. Ask for the institution price sheet on enquiry.

Manufacturer warranty plus the 1-Year xBoom AMC. Every unit ships with remote onboarding, a ROS + gait walkthrough session, and access to the full 150+ bilingual tutorial library. On-site training and departmental workshops are available on request.

Request a quote

Bring JetHexa to your lab.

Tell us your programme — college, research group, batch size — and we’ll spec the right JetHexa configuration with an INR proposal, GST invoice, institution discount and AMC.

✓Authorised Hiwonder India distributor — genuine units, official channel.
✓₹ 1,29,000 excl. GST · No-Cost EMI available · quote in 1 working day.
✓Onboarding, gait walkthrough & 150+ tutorials included with every unit.
✓Pan-India delivery from Bengaluru · GCC coverage via Dubai office.

Your name *

Institution / Company *

Phone / WhatsApp *

Work email *

Role

City *

What’s it for? *

Kit variant

Quantity

Timeline

Anything else?

By submitting, you agree we’ll contact you about your enquiry. See our privacy policy. One-business-day response.
