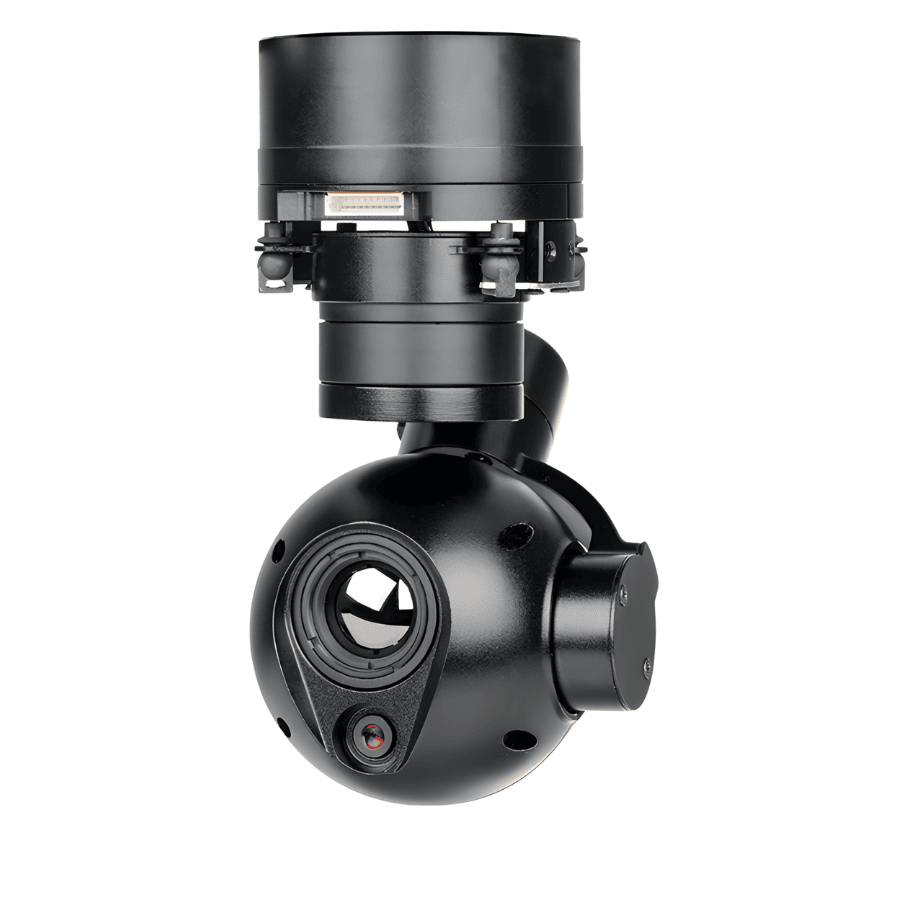

Q2R Thermal camera

Dual-sensor gimbal camera combining a 1080p visible-light (EO) camera and a 640×512 thermal (IR) imager — enabling both daylight and thermal imaging.
Compact, lightweight and designed for UAV or drone-mount applications (micro gimbal payload).
Thermal imager uses an uncooled VOx long-wave detector (8µm–14µm) for thermal imaging.
Supports IP video output (RTSP 1080p, H.264/H.265) and standard control protocols (TTL / S.BUS or TCP) for seamless integration.
Operating temperature range –20 °C to +50 °C, suitable for a variety of environmental conditions.

Description

Q2R Thermal camera Micro Prime Lens EO/IR Object Tracking Gimbal Camera

Specification Category	Parameter / Value
Overall	Working voltage: 12–25.2 V
	Dynamic current: 250–600 mA @ 16 V
	Power consumption: Avg ~4 W, Max ~9.6 W
	Video output: Ethernet — IP (RTSP 1080p, 25 fps, H.264/H.265)
	Control method: TTL or S.BUS (default TTL), or TCP
	Ingress rating: IP4X
	Operating temperature: –20 °C to +50 °C
	Weight: ~190 g
	Dimensions: 56.1 × 50 × 111.5 mm
Gimbal spec	Mechanical range: Pitch/Tilt: –65° (Up) ~ 135° (Down), Yaw/Pan: ±150°
	Controllable range: Pitch/Tilt: –45° ~ 125°, Yaw/Pan: ±145°
	Vibration angle: ±0.02° (Pitch / Yaw)
	One-key to center: Yes
Visible (EO) camera	Sensor: 1/3″ CMOS
	Pixel size: 2.9 µm
	Resolution: 1920 × 1080 @ 30 fps
	Focal length: 10.36 mm
	Angle of view (FOV): 30° × 17.1°
	Digital zoom: 1–3× (some descriptions say up to 4×)
IR (Thermal) Imager	Detector type: Uncooled VOx long-wave (8 µm–14 µm)
	Array resolution: 640 × 512 pixels
	Lens focal length: 13 mm
	Aperture: F/1.1
	Field of View (FOV): Horizontal ~ 33.9°; Vertical ~ 27.1°
	Detection distance (human, 1.8 × 0.5 m): ~ 542 meters
	Recognition distance (human): ~ 135 meters
	Verification distance (human): ~ 68 meters
	Detection distance (car, 4.2 × 1.8 m): ~ 1661 meters
	Recognition distance (car): ~ 415 meters
	Verification distance (car): ~ 208 meters
Functionality / Features	Dual EO + IR imaging; switchable video modes: EO+IR / IR+EO / EO / IR
	Object tracking supported (thermal) — supports moving targets.
	OSD overlay (shows gimbal angles, magnification, aircraft GPS/altitude, date/time) — useful for UAV integration.
	Compatible with flight control / autopilot systems via Mavlink / PX4 / ArduPilot protocols.
