Description

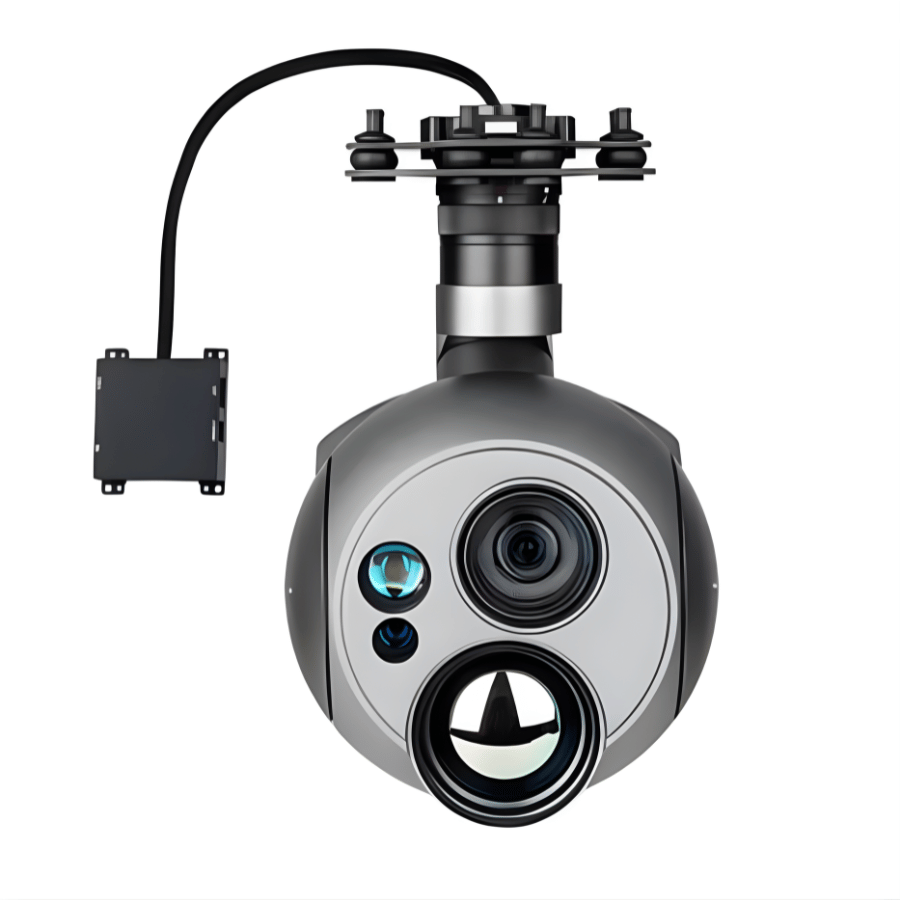

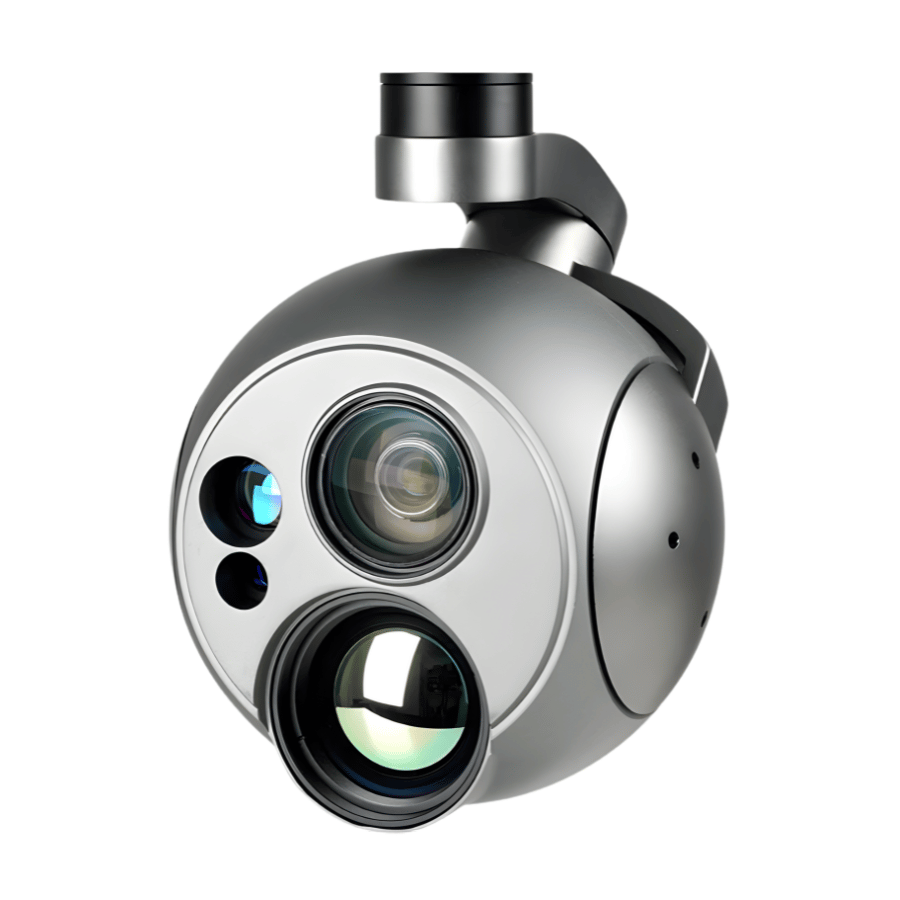

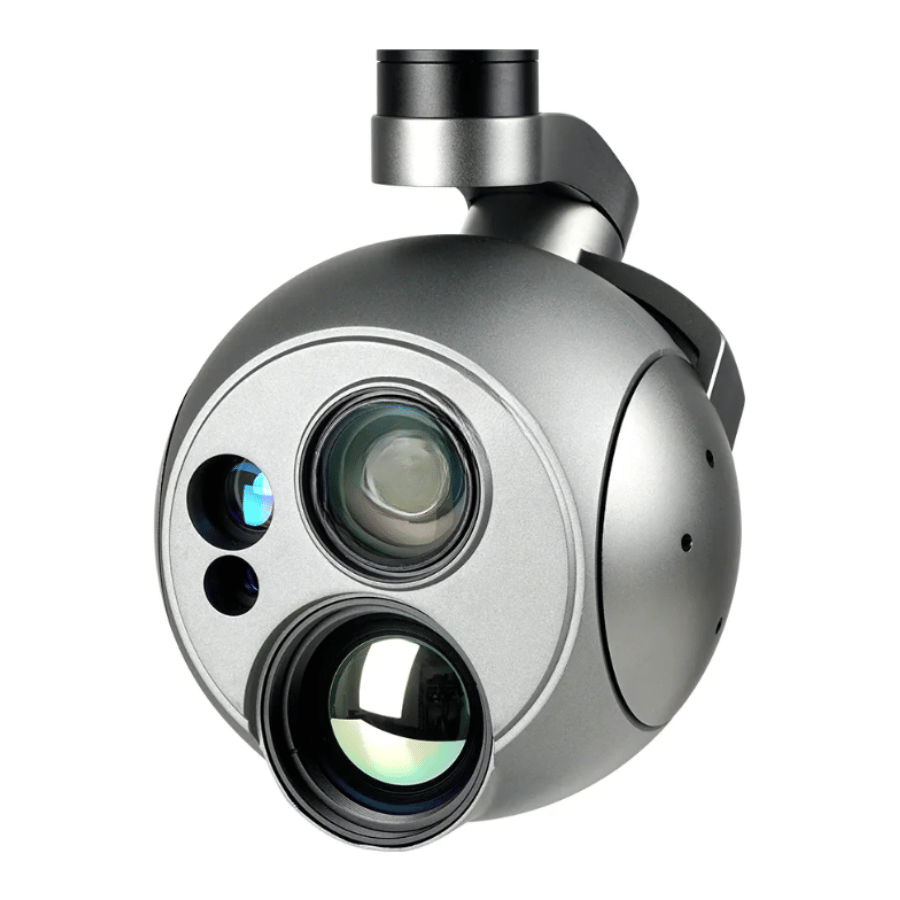

Q40TIRM-HD Thermal Camera
| Category | Specification |
|---|---|
| Power / Hardware | Working voltage: 16 V Input voltage: 4S–6S (14.8 V – 25.2 V) Output voltage: 5 V (connect with PWM) Dynamic current: 800–1500 mA @16 V Power consumption: Avg 12.8 W, Max 24 W Operating environment temperature: –20 °C to +50 °C |
| Output & Storage | Video output: IP (RTSP/UDP 720p/1080p at 25/30 fps, H.264/H.265) or SDI (1080p 30 fps) Local storage: TF card up to 512 GB (class 10, FAT32) Picture format: JPG (1920×1080) Video format: MP4 (1080p, 30 fps) |
| Control / Communication | Control methods: PWM / TTL / S.BUS / TCP / UDP |
| Gimbal | Mechanical range: Pitch/Tilt –60° (Up) to 130° (Down), Roll ±70°, Yaw/Pan ±360° × N Controllable range: Pitch/Tilt –45° to 125°, Yaw/Pan ±360° × N Vibration angle: ±0.02° (Pitch/Roll/Yaw) One-key center: Yes |
| EO (Visible-Light) Camera | Sensor: 1/2.8″ Sony CMOS Picture quality: Full HD 1080p (1920×1080) Effective pixels: 2.13 MP Lens / Optical Zoom: 40×, F = 4.25–170 mm Digital zoom: Off / max ×2 to ×32 Min object distance: 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m Angle of view (Wide): 73.80° (D) / 66.35° (H) / 39.98° (V); (Tele): 2.16° / 1.90° / 1.11° AF Mode: Auto / One-Push / Manual Iris: Close ~ F1.6 Shutter speed: 1/1 to 1/30,000 sec S/N ratio: > 50 dB Min illumination (color): 0.01 lux; (BW): 0.002 lux Exposure control: Auto / Iris-priority / Shutter-priority / Manual Gain Control (AGC): 0–10 steps White balance: Auto / One-Push / Manual / Indoor / Outdoor Back Light: Off / BLC / HLC / WDR Defog: Off / Manual / Auto |
| IR Thermal Imager | Working mode: Uncooled long-wave (8 µm – 14 µm) Detector resolution: 1280 × 1024 Pixel pitch: 12 µm Lens focus length: 50 mm Field of View (FOV): Horizontal 17.5°, Vertical 14.0° Detection distances (typical “man” 1.8×0.5 m): detect ~2083 m, recognize ~521 m, verify ~260 m For “car” (4.2×1.8 m): detect ~6389 m, recognize ~1597 m, verify ~799 m NETD (thermal sensitivity): ≤ 40 mK @ 25 °C, F#1.0 MRTD: ≤ 400 mK @ 25 °C, F#1.0 Shutter: Bistable shutter Color palettes: White-hot, Black-hot, Pseudo-color Digital zoom (thermal): 1× to 4× Thermometry (temperature measurement): Not supported |
| Extra Features | 5 km Laser Range Finder (LRF) for distance measurement and targeting support Multi-output & multi-protocol support, suitable for drone or surveillance platform integration |
