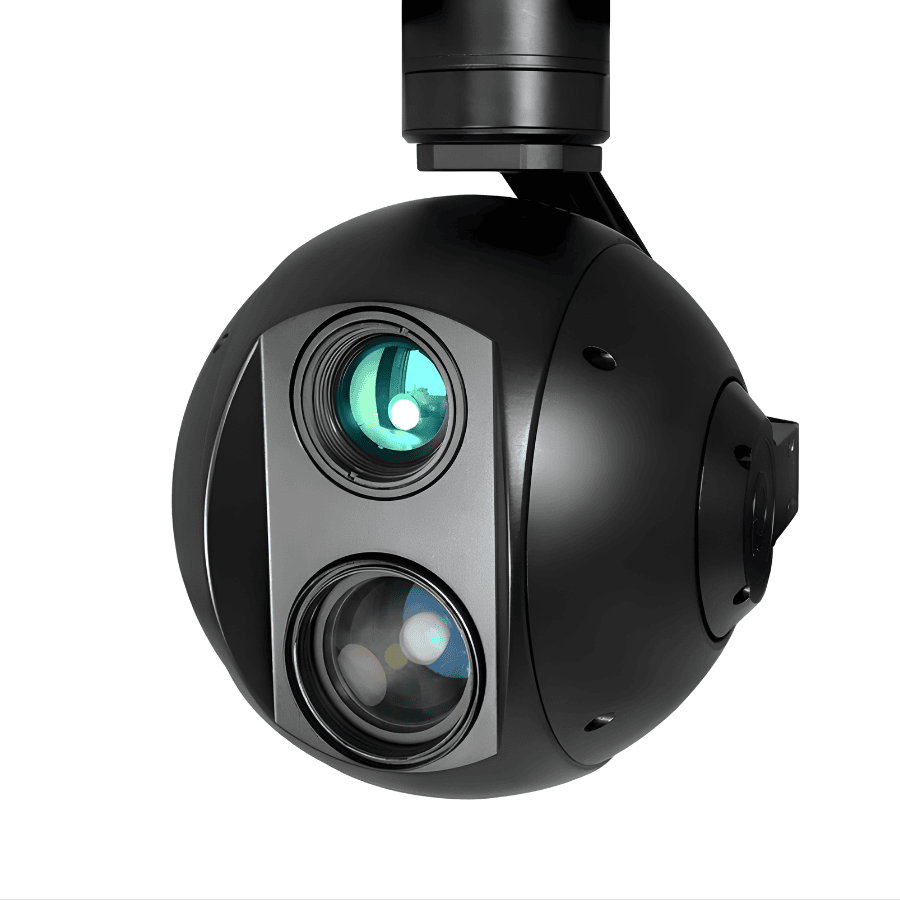

Thermal camera Q818k
-
Triple-sensor gimbal camera: dual EO (visible) + IR thermal imaging.
-
4K Ultra HD EO capability (3840×2160) for detailed visible-light video/photo.
-
Thermal imager with 640×512 resolution and 18 mm focal length (12 µm pixel pitch) for long-range heat detection.
-
Supports object tracking — useful for surveillance, inspection, UAV/drones, search & rescue.
-
Lightweight (210 g) and compact form factor — suited for size-constrained platforms (e.g. drones).
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
Thermal camera Q818k Micro Prime lens Dual 4k EO+ IR Triple Sensors Objects Tracking Gimble Camera
| Specification | Details |
|---|---|
| EO (Visible) — Wide-Angle Camera | 3.2 mm lens, 83° × 53° FOV |
| EO (Visible) — Telephoto Camera | 16 mm lens, 20° × 11° FOV |
| EO Resolution | 3840 × 2160 (4K UHD) |
| IR (Thermal) Imager | 640 × 512 resolution; 18 mm focal length; 12 µm pixel pitch |
| Object Tracking | Supported |
| Working Voltage | 12 – 16 V DC |
| Output | IP network stream |
| Control Interface / Protocols | UART / TCP |
| Net Weight | 210 g |
| Dimensions | 68.1 × 96.7 × 112.9 mm |
The full sheet
