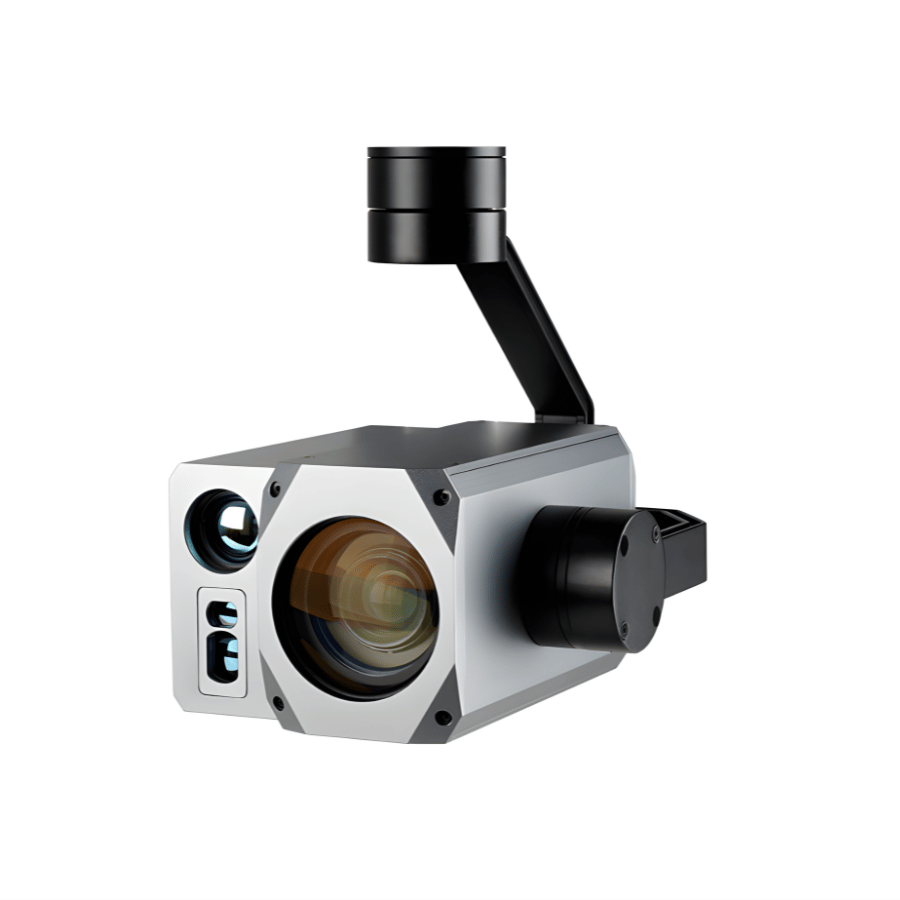

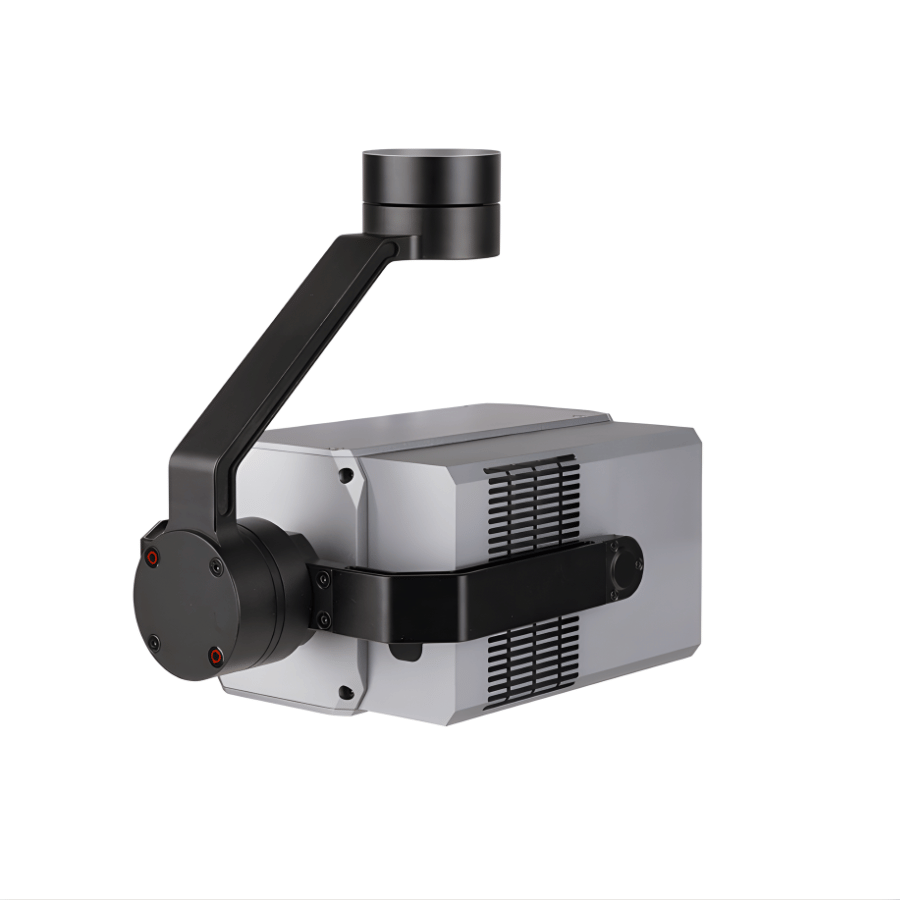

Mini H30T Thermal Camera
-
Compact gimbal-mounted thermal + optical camera system designed for drones or aerial/remote applications.
-
Combines a STARVIS low-light visible-light sensor and a thermal imaging sensor for day and night operation.
-
Provides thermal imaging capability (infrared) alongside video/photo capture — useful for surveillance, inspections, search & rescue, industrial or security applications.
-
Supports zoom (optical + digital) for distant target capture along with thermal detection — enabling detection of heat signatures from afar.
- Authorised dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
Mini H30T Thermal Camera
| Parameter | Specification |
|---|---|
| Thermal Sensor Resolution | 640 × 512 (Infrared Thermal Imaging) |
| Thermal Sensitivity (NETD) | ≤ 50 mK |
| Thermal Lens | 19 mm |
| Optical Zoom | 30× Optical Zoom |
| Digital Zoom | 12× Digital Zoom (up to ~432× combined StableZoom) |
| Visible Camera Type | STARVIS Low-Light Sensor |
| Video Output (HDMI Model) | HDMI 1080p @ 30/60 fps |
| Video Output (IP Model) | IP RTSP/UDP 720p/1080p @ 30 fps |
| Video Recording Format | MP4 (1080p @ 30 fps) |
| Photo Format | JPG (1920×1080) |
| Storage Support | TF Card up to 128 GB (Class 10, FAT32 / exFAT) |
| Control Interfaces | PWM / TTL / S.BUS / TCP (IP) / UDP (IP) |
| Input Voltage | 16 V (4S–6S battery compatible) |
| Working Current | 900–1500 mA @ 16 V |
| Operating Temperature | –20 °C to +60 °C |
| Camera Type | Multi-sensor Gimbal Camera (Visible + Thermal) |
| Applications | Drone surveillance, inspection, night operations, search & rescue, industrial monitoring |
