Unitree - B2 standard battery
- Designed for B2 Systems – Genuine standard battery engineered for reliable compatibility and consistent performance with the B2 robotic platform.
- High-Capacity 45,000mAh Battery – Delivers a powerful 45,000mAh capacity for extended operating time and improved productivity.
- 2268Wh High Energy Output – Features a 2268Wh energy rating to provide stable, long-lasting power for demanding applications.
- 50.4V Rated Voltage – Operates at a DC 50.4V rated voltage, ensuring efficient and dependable power delivery.
- 58.8V Charging Limit – Supports a maximum DC 58.8V charging voltage for safe and optimized charging performance.
- Wide Operating Temperature Range – Designed to perform reliably in harsh environments with an operating temperature range of -20°C to +50°C.
- Optimized Charging Conditions – Recommended charging temperature of 0°C to +40°C helps maximize battery efficiency and lifespan.
- Reliable Power Performance – Built to deliver stable energy output for continuous operation in industrial and professional applications.
- Durable Industrial Design – Engineered for demanding environments, offering dependable performance during long work sessions.
- Ideal for Professional Applications – Perfect for robotics, inspection, security, industrial automation, and field operations requiring dependable power.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
Unitree B2 Standard Battery
High-Capacity 45,000mAh Power Pack for the Unitree B2 and B2-W Robotic Platforms
2,268Wh Energy
50.4V Rated Voltage
Hot-Swap Design
B2 & B2-W Compatible
Full Specifications
| Specification | Details |
|---|---|
| Model | BT2-10 |
| Rated Capacity | 45,000mAh (45Ah) |
| Energy | 2,268Wh |
| Rated Voltage | DC 50.4V |
| Charging Limit Voltage | DC 58.8V |
| Discharge / Operating Temperature | -20°C to +50°C |
| Charging Temperature | 0°C to +40°C (recommended window for safe, efficient charging) |
| Status Indicator | 4-segment LED battery-level gauge with power button |
| Swap Mechanism | Tool-free slide-in bay, hot-swappable in the field |
| Specification | Details |
|---|---|
| Primary Platform | Supplied as the standard battery for the Unitree B2 |
| Also Compatible With | Unitree B2-W (shares the same BT2-10 battery bay and connector) |
| Unloaded Endurance | Over 5 hours of continuous walking, more than 20km of range, on the B2 platform |
| Loaded Endurance (20kg payload) | Over 4 hours of continuous walking, more than 15km of range, on the B2 platform |
| Note on Runtime | These are platform-level figures for the B2 running on this battery — actual runtime varies with payload, terrain, and travel speed |
Genuine Power Behind Every B2 Mission
The Battery the B2 Was Built Around
This is the genuine BT2-10 standard battery supplied with the Unitree B2 industrial quadruped, rated at 45,000mAh capacity and 2,268Wh of energy at DC 50.4V. It’s sized specifically to match the B2’s payload capacity and multi-hour mission profile, not a generic pack adapted to fit.
The same battery bay and connector are shared with the Unitree B2-W, so this is also a genuine replacement or spare for that platform — useful if your fleet runs both. A -20°C to +50°C discharge range and hot-swappable slide-in design mean field teams can carry a spare and keep a mission going without waiting on a full recharge.
45,000mAh, 2,268Wh
High-capacity power supports the B2’s rated multi-hour walking endurance without frequent recharging.
-20°C to +50°C Discharge Range
Built to keep working through real outdoor conditions, not just controlled indoor demos.
B2 & B2-W Compatible
One battery part number covers both platforms, simplifying spares and fleet maintenance.
Safe, Regulated Charging
A defined 58.8V charging limit and 0°C to +40°C charging window support safe, consistent recharge behavior.
See Every Detail

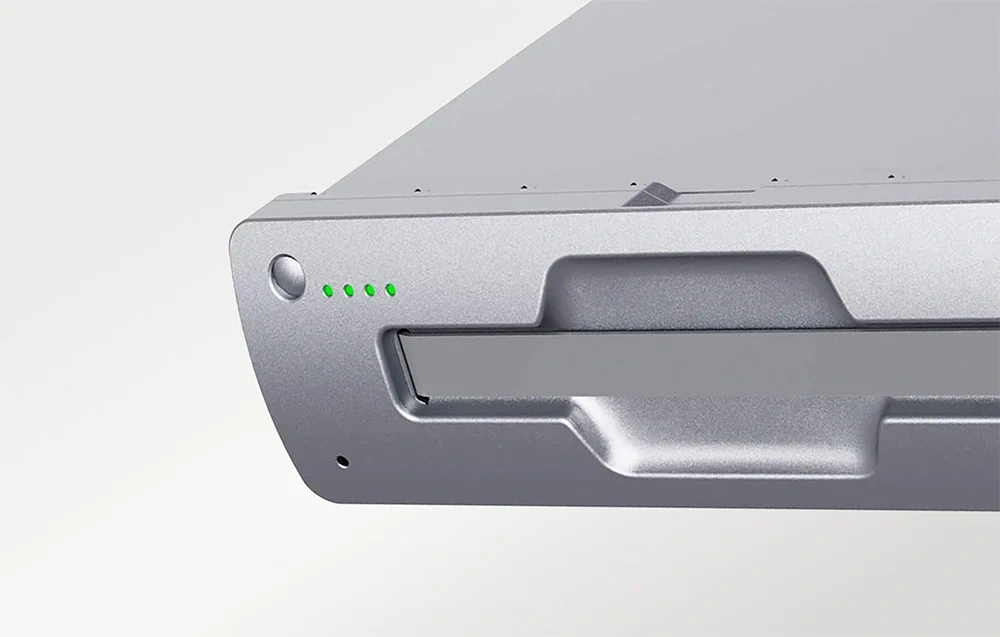

Charge Status at a Glance
A one-touch power button lights up a 4-segment LED gauge so operators can check remaining charge before heading out, while a recessed carrying handle keeps swaps quick between missions — the kind of practical detail that matters when a team is rotating batteries across a full shift on the B2 or B2-W.
Built for Reliable Industrial Power
Engineered to keep the B2 and B2-W platforms running through long, demanding field deployments.
🔋
45,000mAh, 2,268Wh
High-capacity power supports the B2’s full multi-hour endurance rating per battery.
🌡️
-20°C to +50°C Discharge Range
Rated to perform reliably across a wide temperature range for genuine field use.
✅
Works With B2 & B2-W
One battery part number covers both platforms, simplifying spares and fleet maintenance.
🔌
Defined 58.8V Charging Limit
A regulated charging voltage ceiling and 0°C to +40°C window support safe, consistent recharging.
💡
4-Segment LED Gauge
A one-touch power button and LED indicator make checking remaining charge quick and simple.
🔄
Tool-Free Hot Swap
A slide-in bay design lets operators swap batteries in seconds, without powering down for long.
Built for Teams Running B2 & B2-W Fleets
This battery suits operators who need genuine, dependable spare power for extended or multi-shift field deployments.
Industrial Inspection Fleets
A dependable spare or replacement battery keeps B2 and B2-W units running across shifts.
Security & Perimeter Patrol
Extended runtime and quick swaps support longer, uninterrupted patrol coverage.
Search & Rescue Missions
A hot-swappable spare keeps a mission moving instead of waiting on a full recharge.
Harsh-Environment Deployment
A -20°C to +50°C discharge range holds up on outdoor sites, mines, and remote terrain.
Fleet Spares & Maintenance Planning
Compatible with both B2 and B2-W, simplifying spare-parts inventory across mixed fleets.
Research & Robotics Labs
A genuine spare part ensures consistent, predictable power behavior for testing and development.
See the Battery — and the Platform It Powers
A dedicated look at this exact battery pack, plus the Unitree B2 in real-world action.
Frequently Asked Questions
Is this a genuine Unitree battery, and which robots does it fit?
What real-world runtime can I expect from one battery?
Can I hot-swap this battery in the field without tools?
Why is the charging temperature range narrower than the discharge range?
How do I check the remaining charge?
Is pricing listed online?
