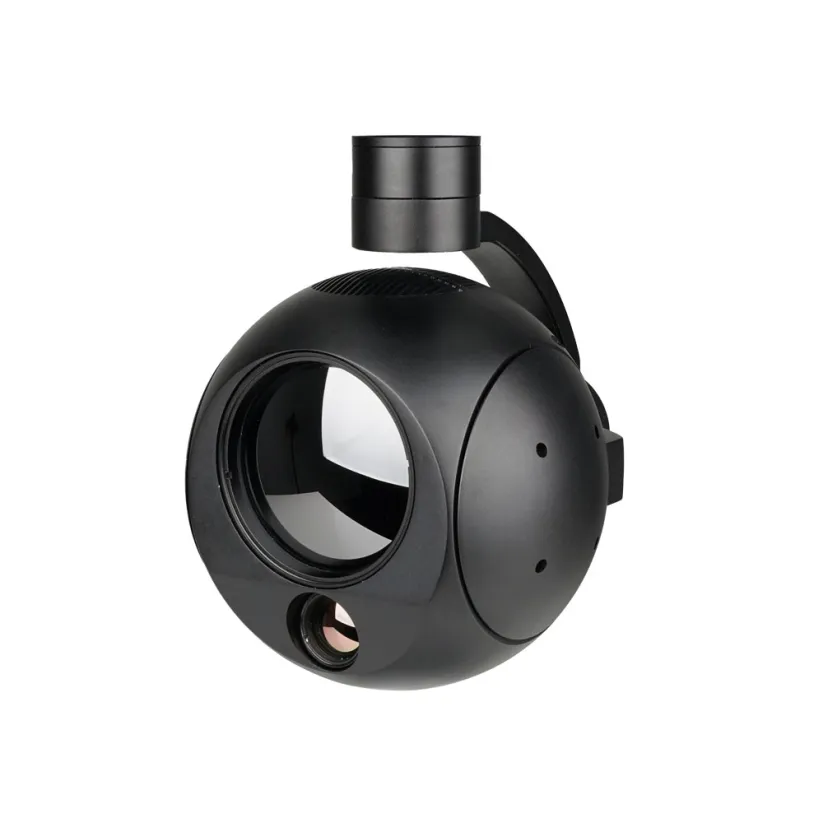

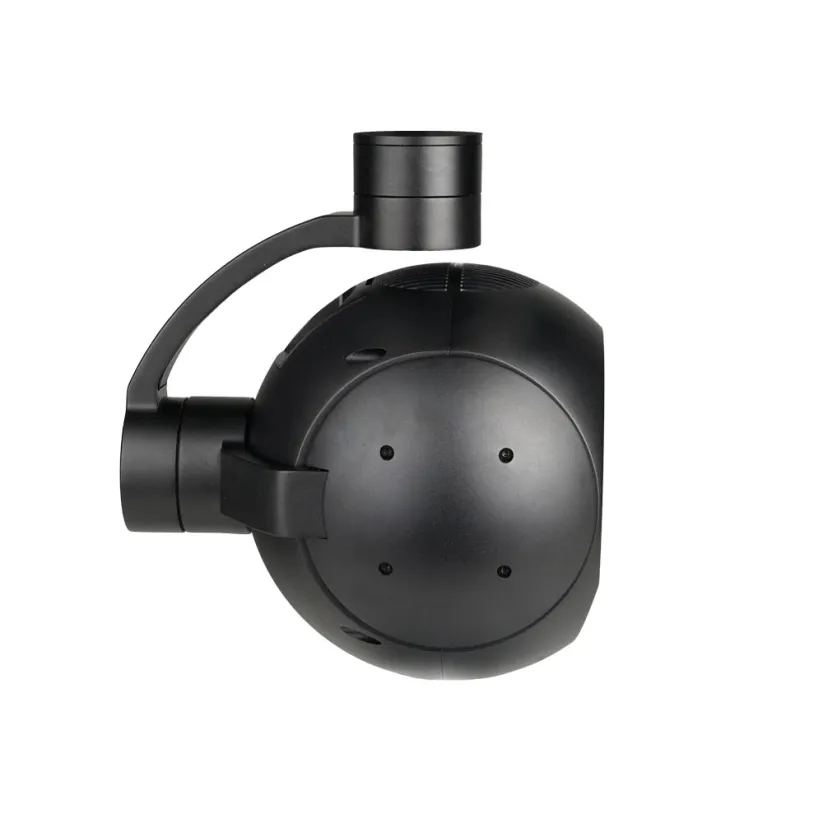

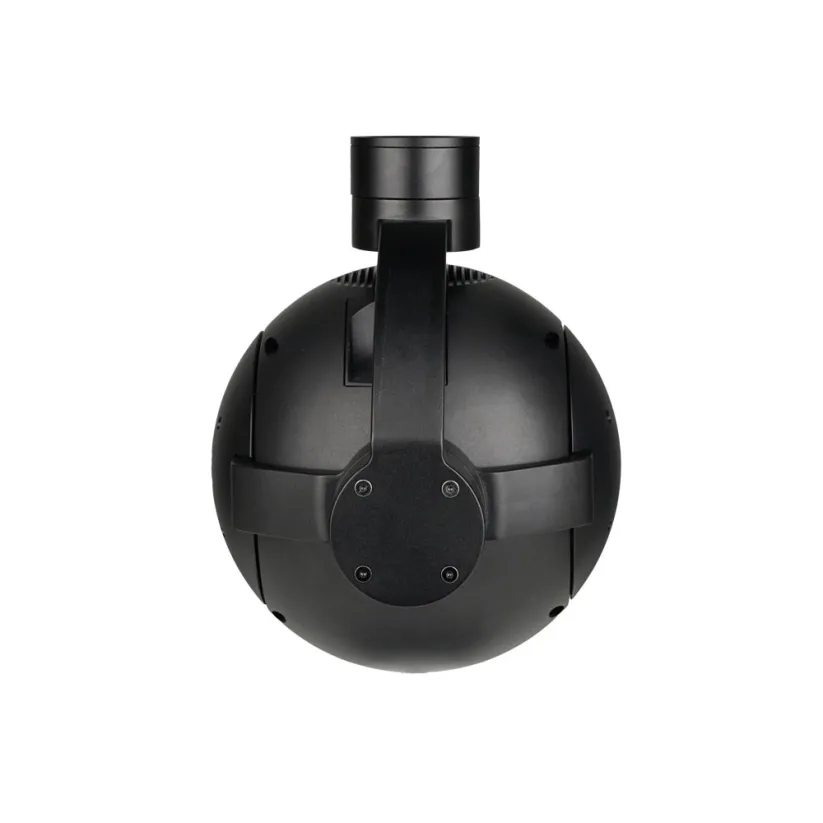

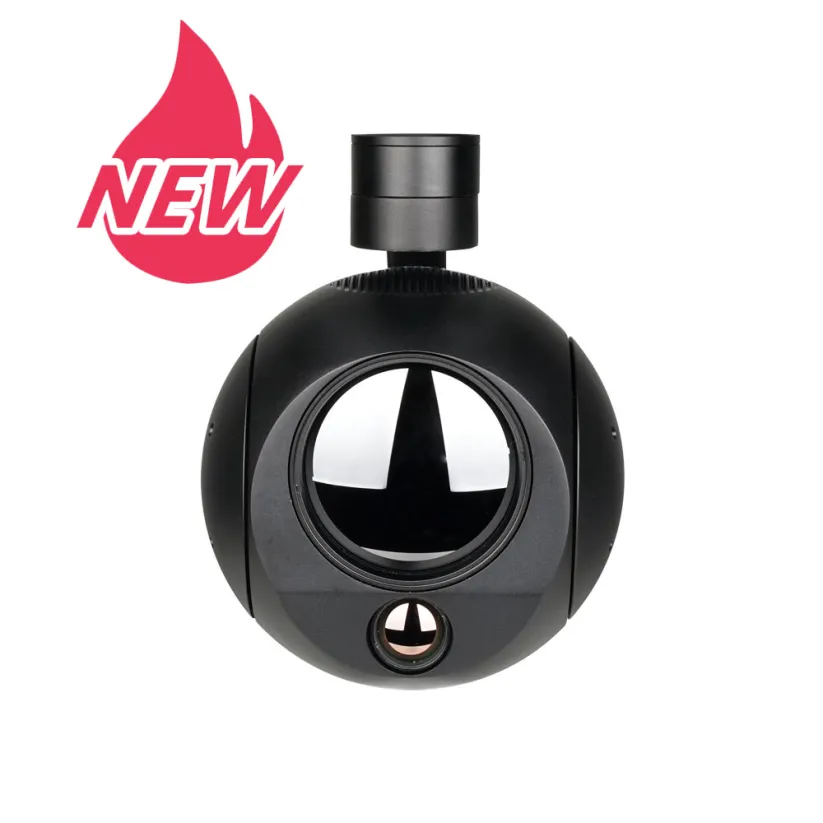

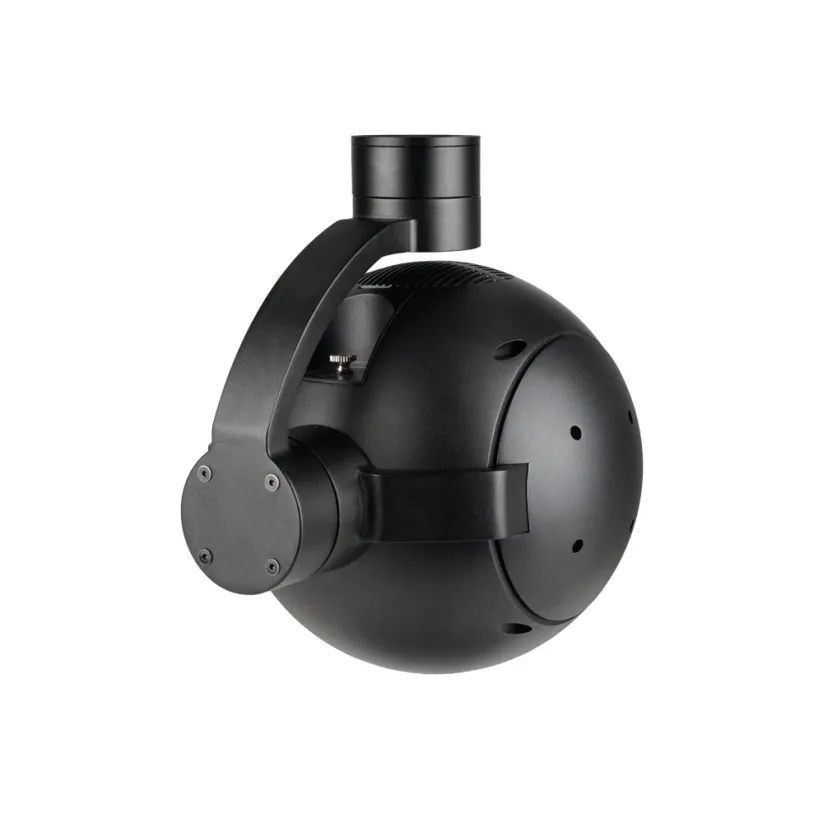

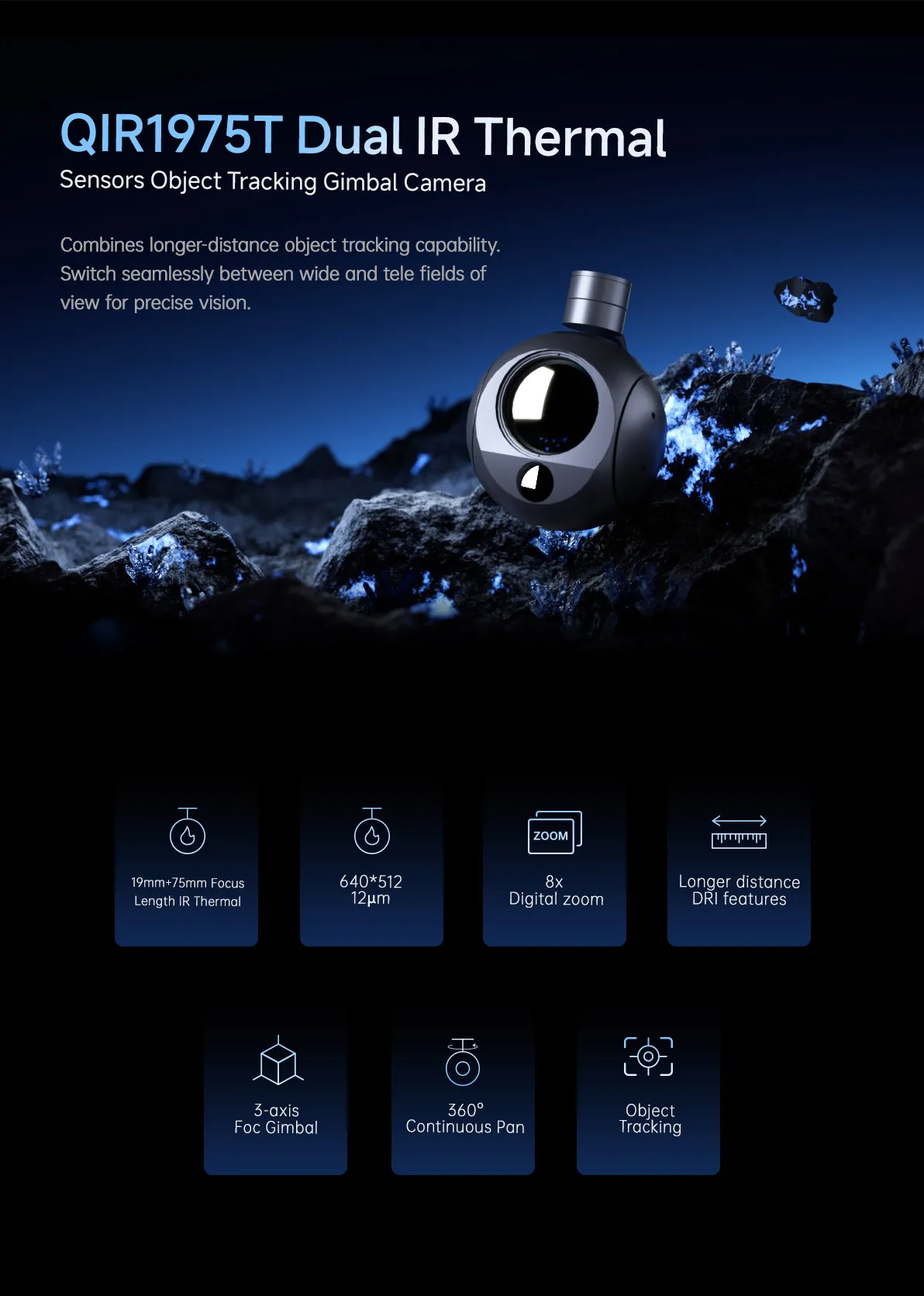

QIR1975T Dual IR Thermal Sensors Object Tracking Gimbal Camera

Dual-IR thermal sensors on a single 3-axis gimbal for object tracking applications

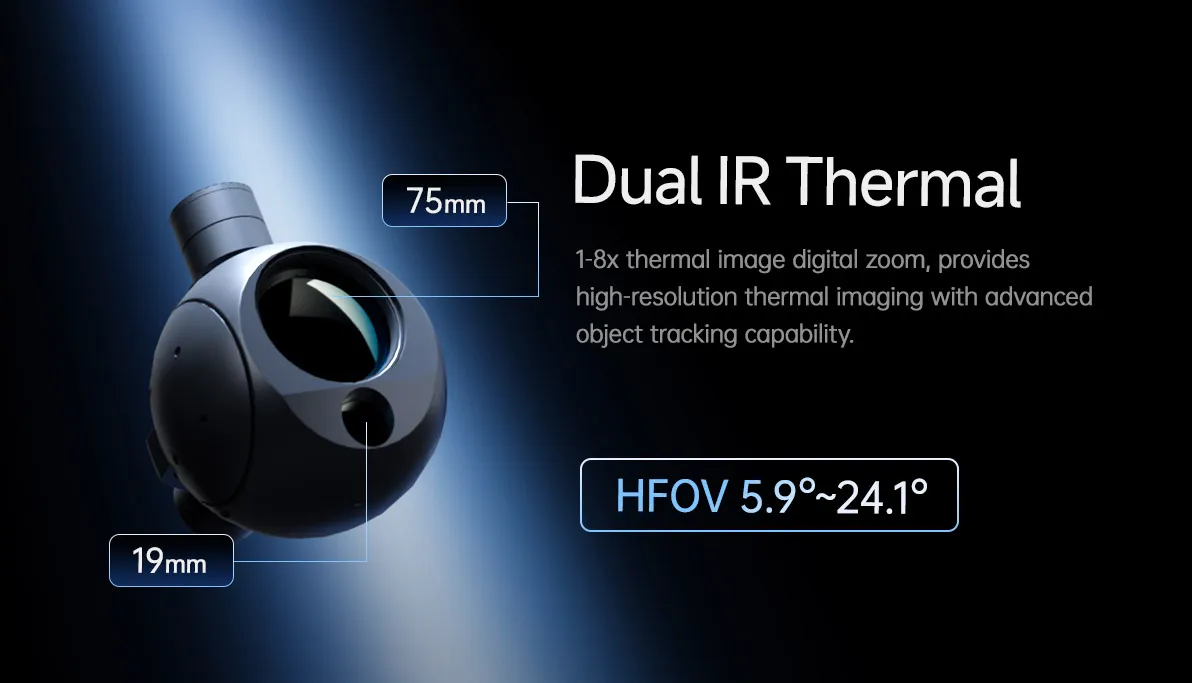

Two separate uncooled long-wave infrared imagers (8 µm–14 µm), one with a 75 mm lens and one with a 19 mm lens, enabling long-range detection plus wider-field surveillance.

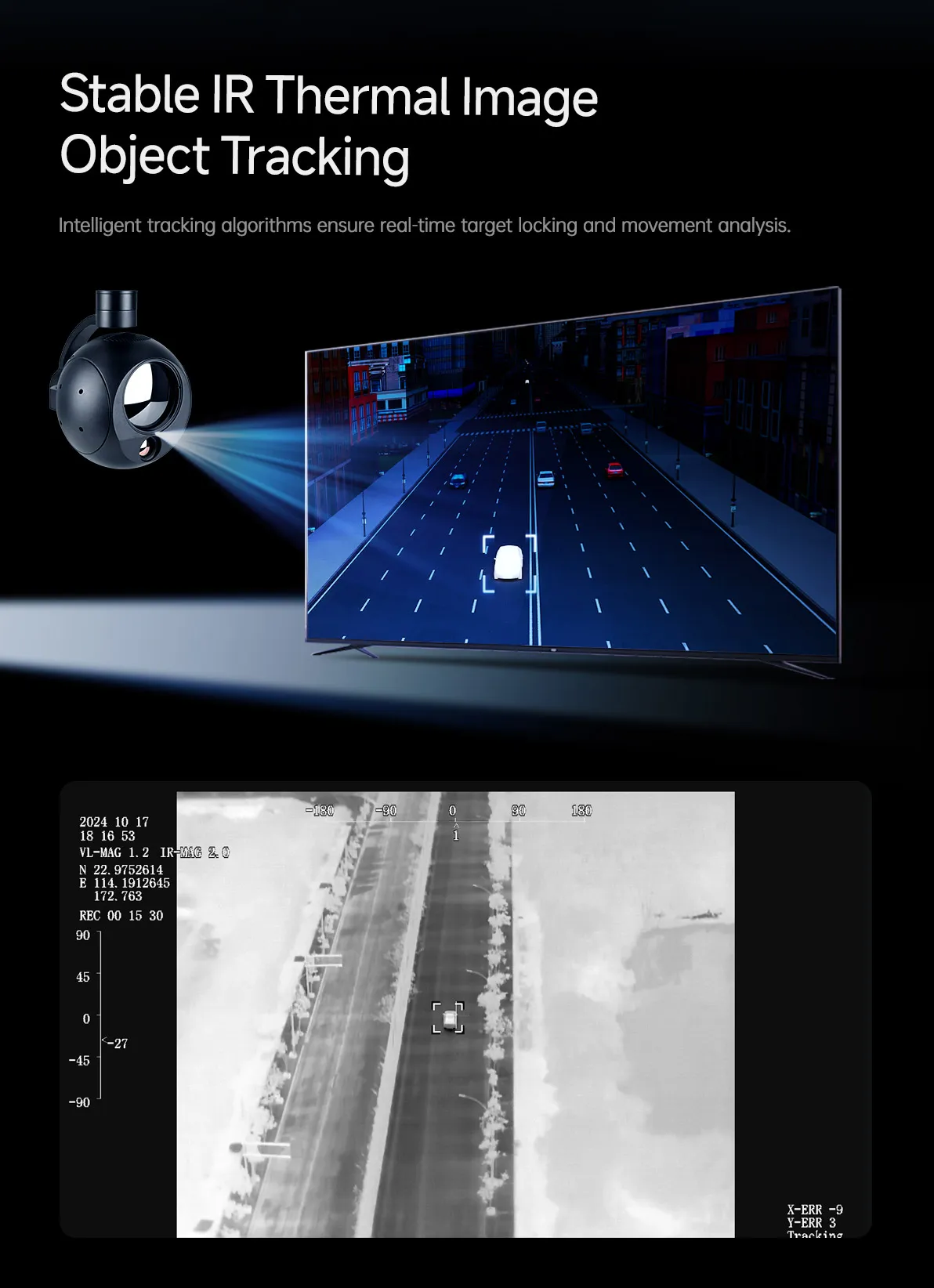

Built-in object tracking algorithm: supports deviation update at 50 Hz, tracking minimum object size, memory time for object persistence, suitable for UAV, security and defense payloads.

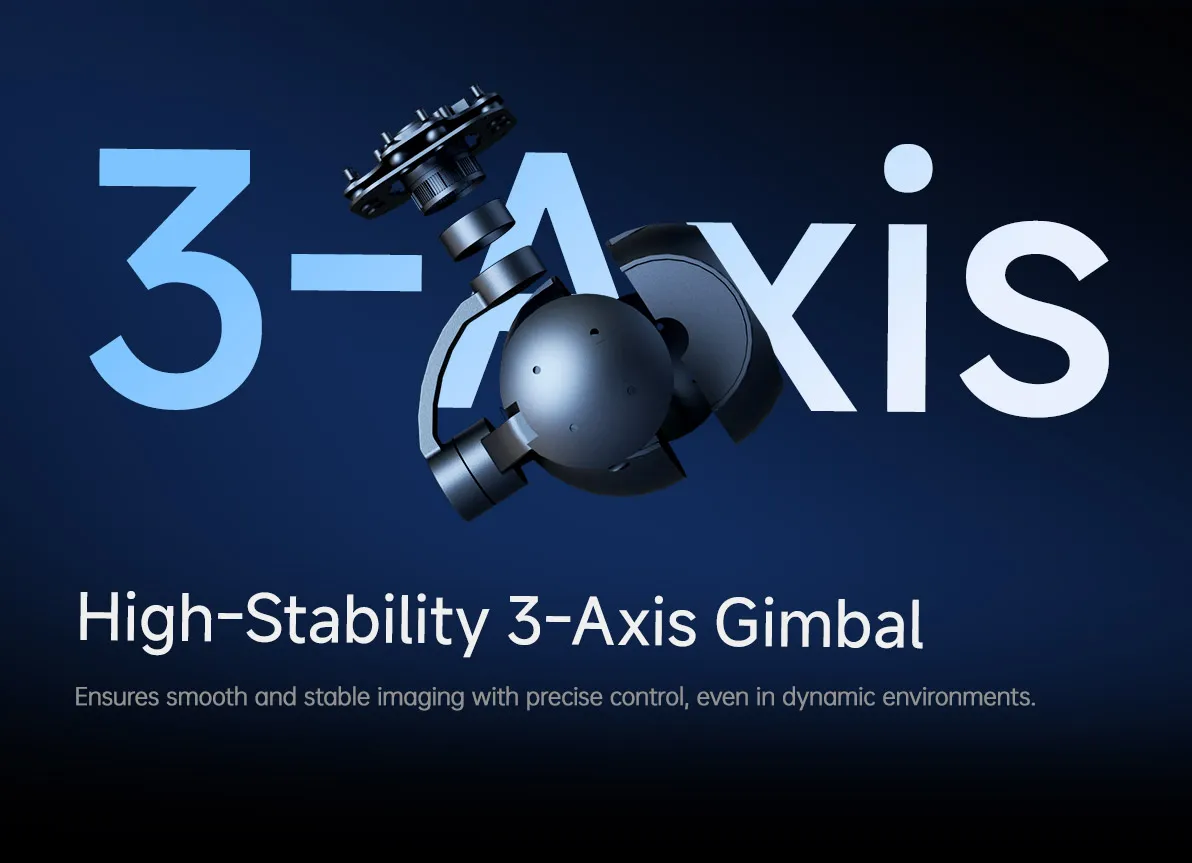

Gimbal stabilization and control features: pitch/tilt, yaw/pan motion, ±70° roll, smooth motion, one-key centering, supports many control interfaces (PWM, TTL, SBUS, TCP/UDP).
Multiple output formats including micro-HDMI (1080p50) or IP streaming (720p/1080p) and local TF-card recording up to 512 GB. Designed for integration in UAV and ground systems.

Description

Overview

Category	Specification
Working voltage / Input	16 V nominal; input 4S–6S (14.8V–25.2V)
Output voltage	5 V (connect with PWM)
Dynamic current	430 mA to 1,250 mA @ 16 V
Power consumption	Average ~6.9 W, max up to ~20 W
Operating environment	–20 °C to +50 °C
Video/Output formats	Micro HDMI (1080p@50fps) or IP (RTSP/UDP 720p or 1080p 25/30fps)
Local storage	TF card support up to 512 GB (Class 10, FAT32)
Image & video formats	JPG (1920×1080) for stills; MP4 (1080p@30fps) for video
Control methods	PWM / TTL / S.BUS / TCP / UDP
Gimbal mechanical range	Pitch/Tilt: –55° (Up) to 125° (Down); Roll: ±70°; Yaw/Pan: ±300° (or ±360° “N” version)
Gimbal controllable range	Pitch/Tilt: –45° to 120°; Yaw/Pan: ±290° (or ±360° N version)
Gimbal vibration angle	Pitch/Roll/Yaw: ±0.02°
Gimbal one-key centre	Yes

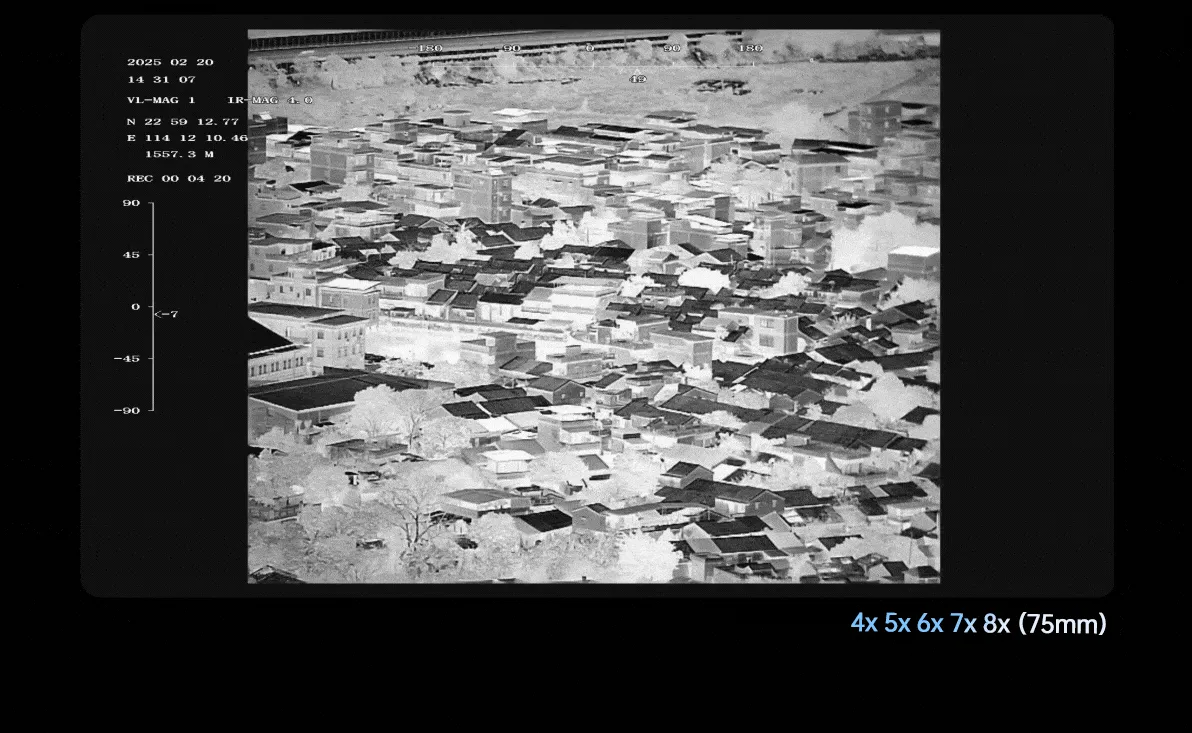

Thermal Imager A (75 mm lens)	Focal length: 75 mm; Horizontal FOV: 5.9°; Vertical FOV: 4.7°; Diagonal FOV: 7.5°
	Detector pixel: 640×512; Pixel pitch: 12 µm; Working mode: Uncooled LWIR (8–14 µm)

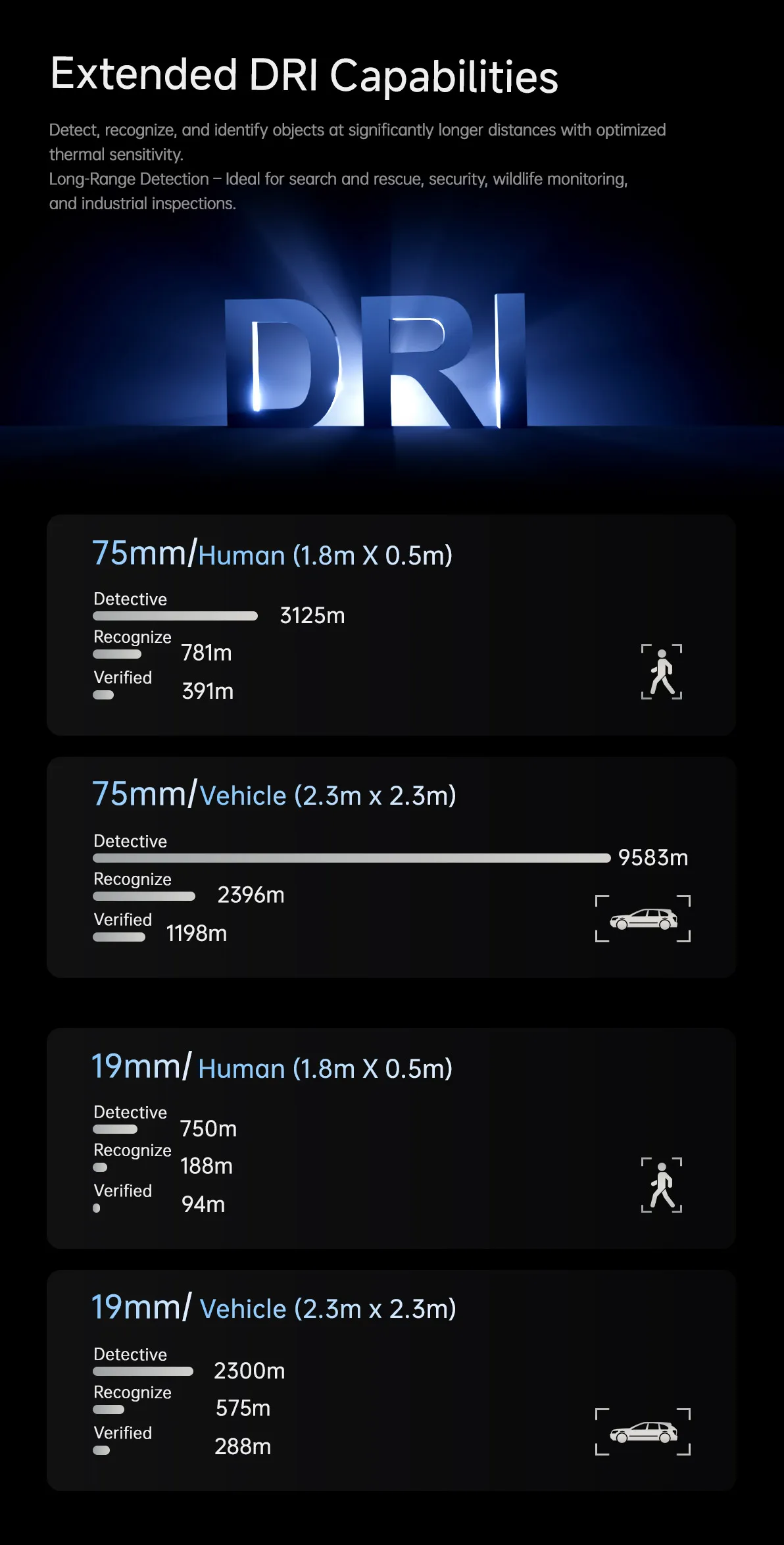

	Detective distance (Man, 1.8×0.5 m): 3,125 m; Recognize: 781 m; Verify: 391 m
	Detective distance (Car, 4.2×1.8 m): 9,583 m; Recognize: 2,396 m; Verify: 1,198 m
	NETD ≤ 50 mK (@25 °C); MRTD ≤650 mK (@characteristic frequency)

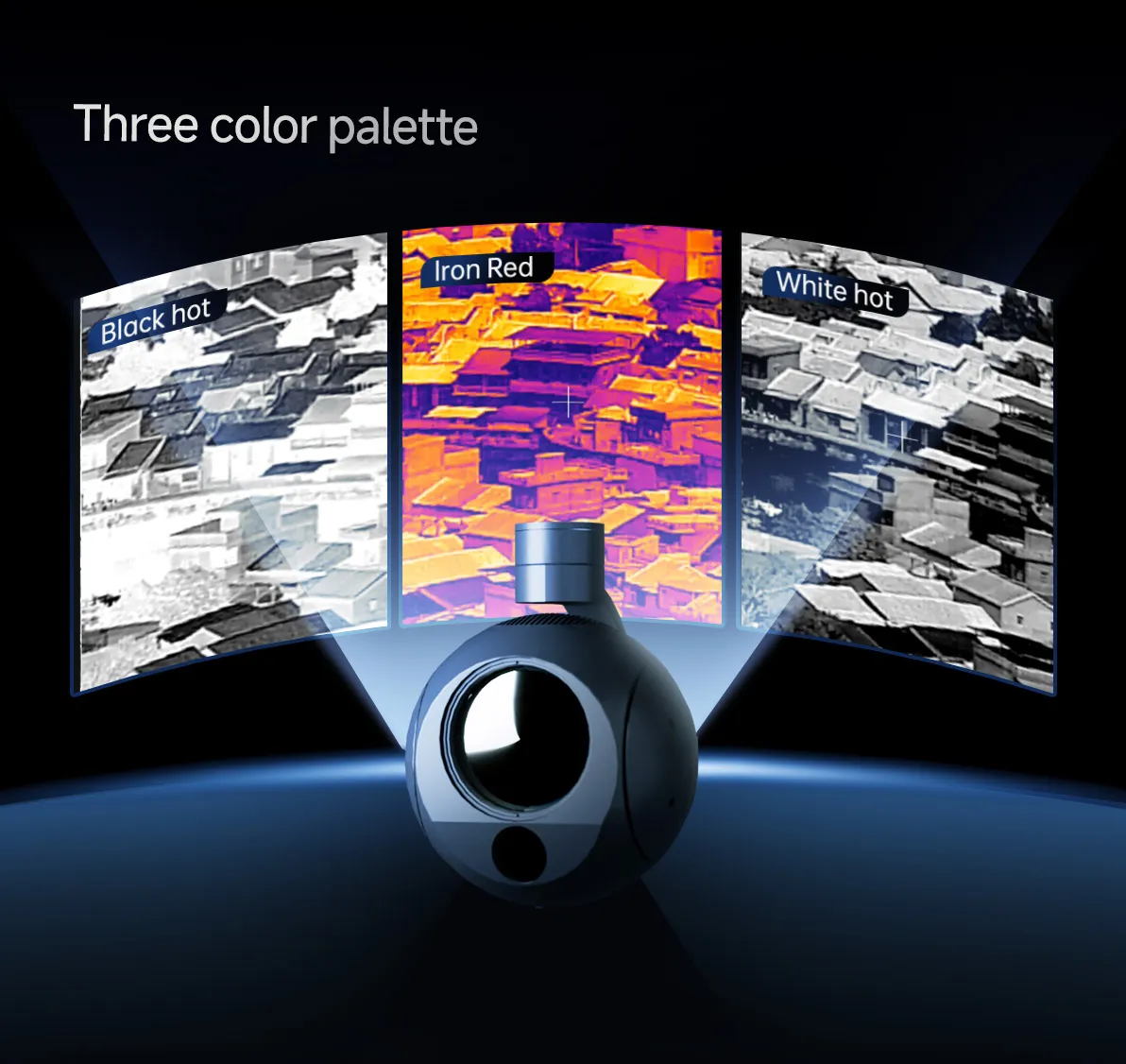

	Color palettes: White hot / Black hot / Pseudo colour; Auto non-uniform correction (no shutter)

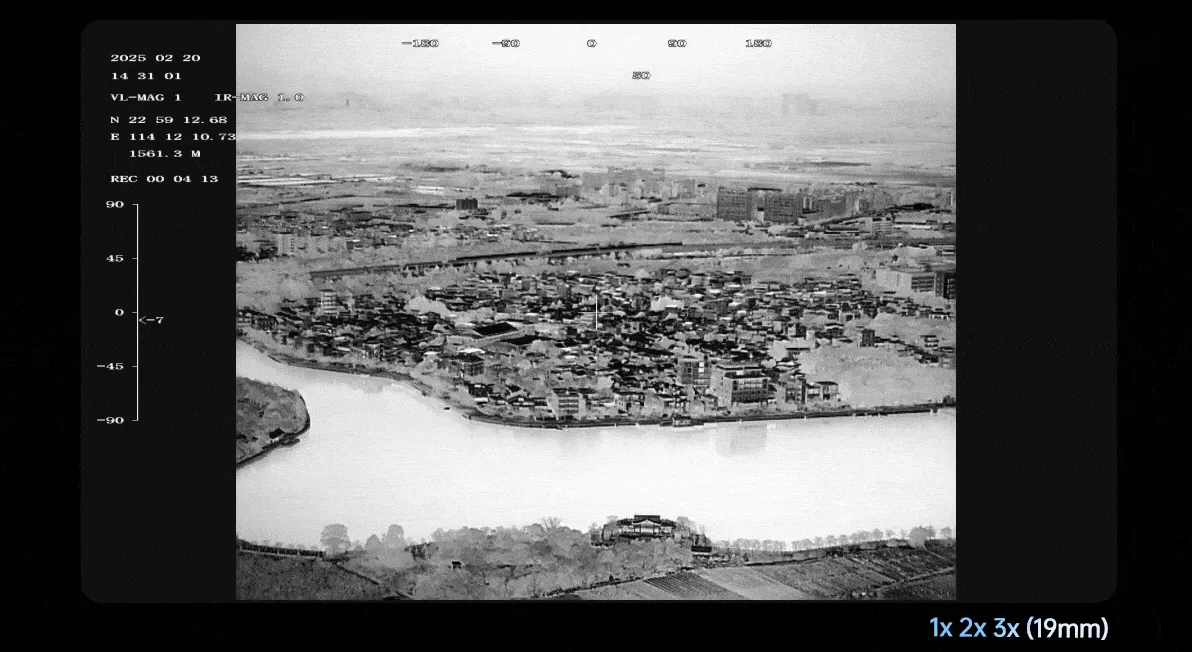

Thermal Imager B (19 mm lens)	Focal length: 19 mm; Horizontal FOV: 24.1°; Vertical FOV: 19.4°; Diagonal FOV: 30.6°
	Detector pixel: 640×512; Pixel pitch: 12 µm; Working mode: Uncooled LWIR (8–14 µm)
	Detective distance (Man): 750 m; Recognize: 188 m; Verify: 94 m
	Detective distance (Car): 2,300 m; Recognize: 575 m; Verify: 288 m
	Same imaging features: NETD ≤50 mK; same palette & correction features
Object Tracking Specifications	Update rate of deviation pixel: 50 Hz
	Output delay of deviation pixel: 5 ms
	Minimum object contrast: 5%
	SNR: 4
	Minimum object size: 32×32 pixels; Maximum object size: 128×128 pixels
	Tracking speed: ±48 pixels/frame
	Object memory time: 100 frames (~4 s)
Other Features	OSD overlay: yaw/pitch angle, magnification, card recording duration, GPS/altitude, date & time
	Geotagging: GPS coordinates embedded in photo EXIF

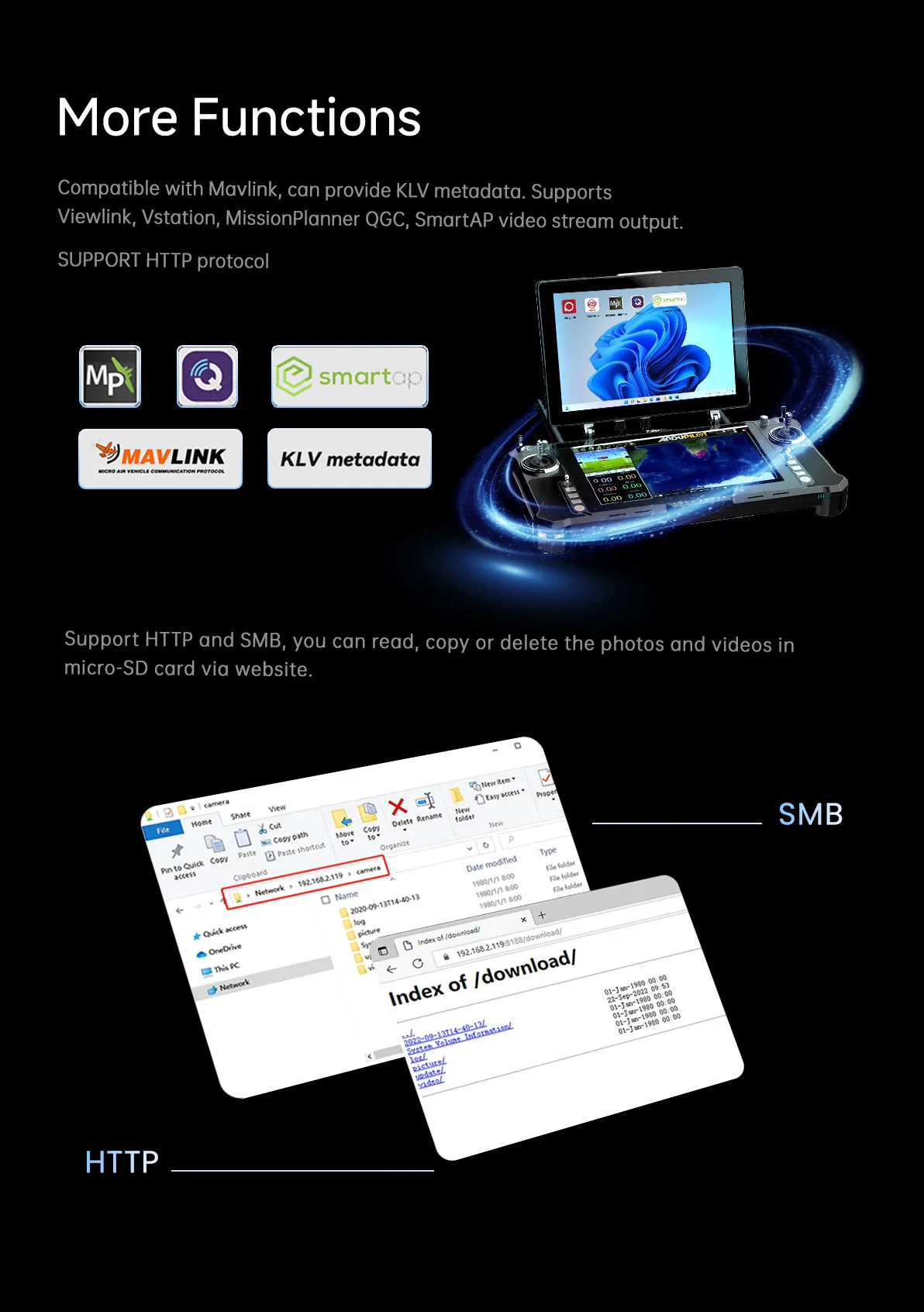

	Card reading online: SMB / HTTP; supports KLV metadata output via UDP; supports ArduPilot / PX4 (MAVLink protocol)
Physical & Packaging	Net weight: 1,250 ±10 g (viewport version with viewport)

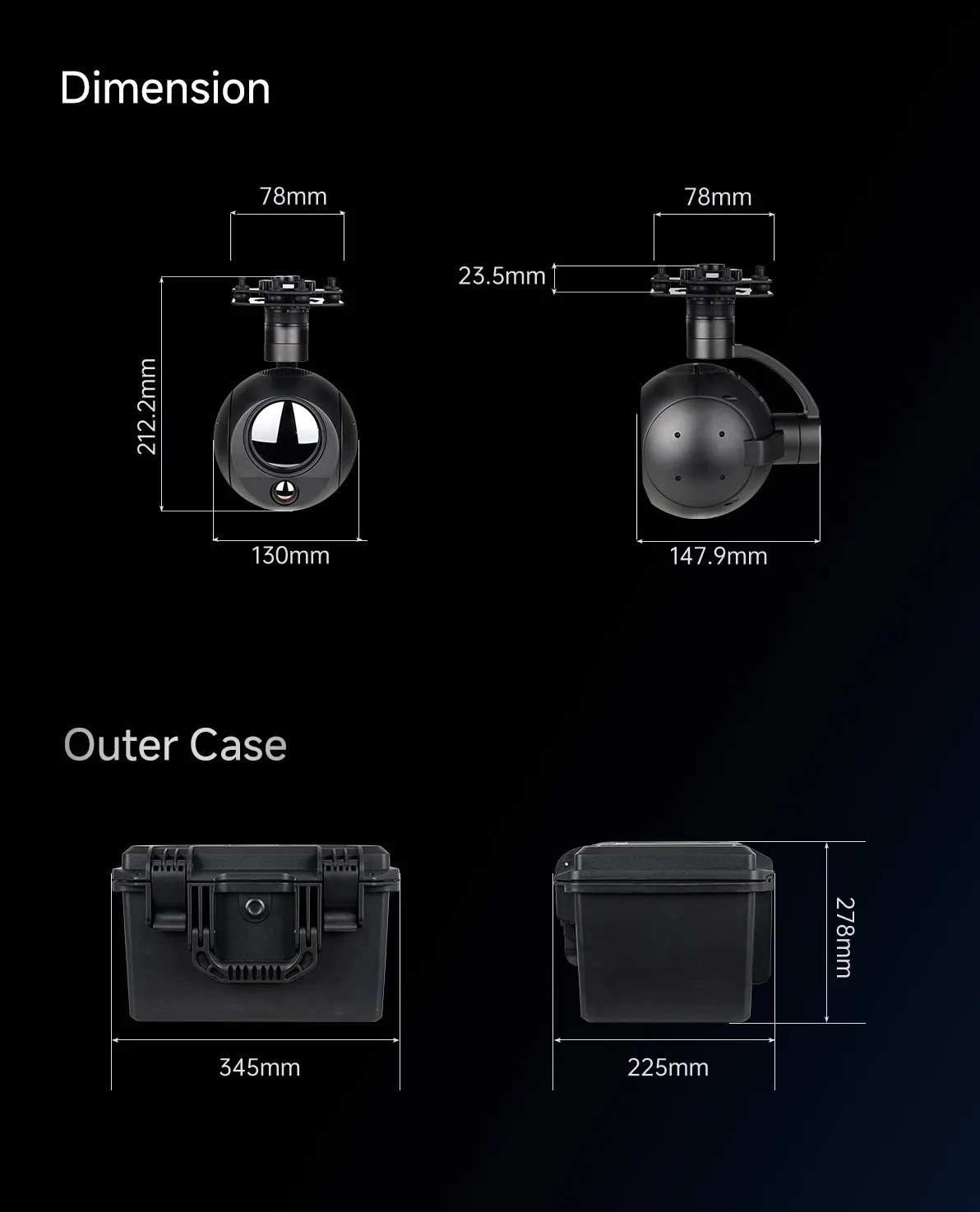

	Product dimensions: 147.9 × 130 × 203.2 mm (147.9 × 130 × 212.2 mm with viewport)
	Gross weight approx: 2,977 g; Package size: 350 × 300 × 250 mm

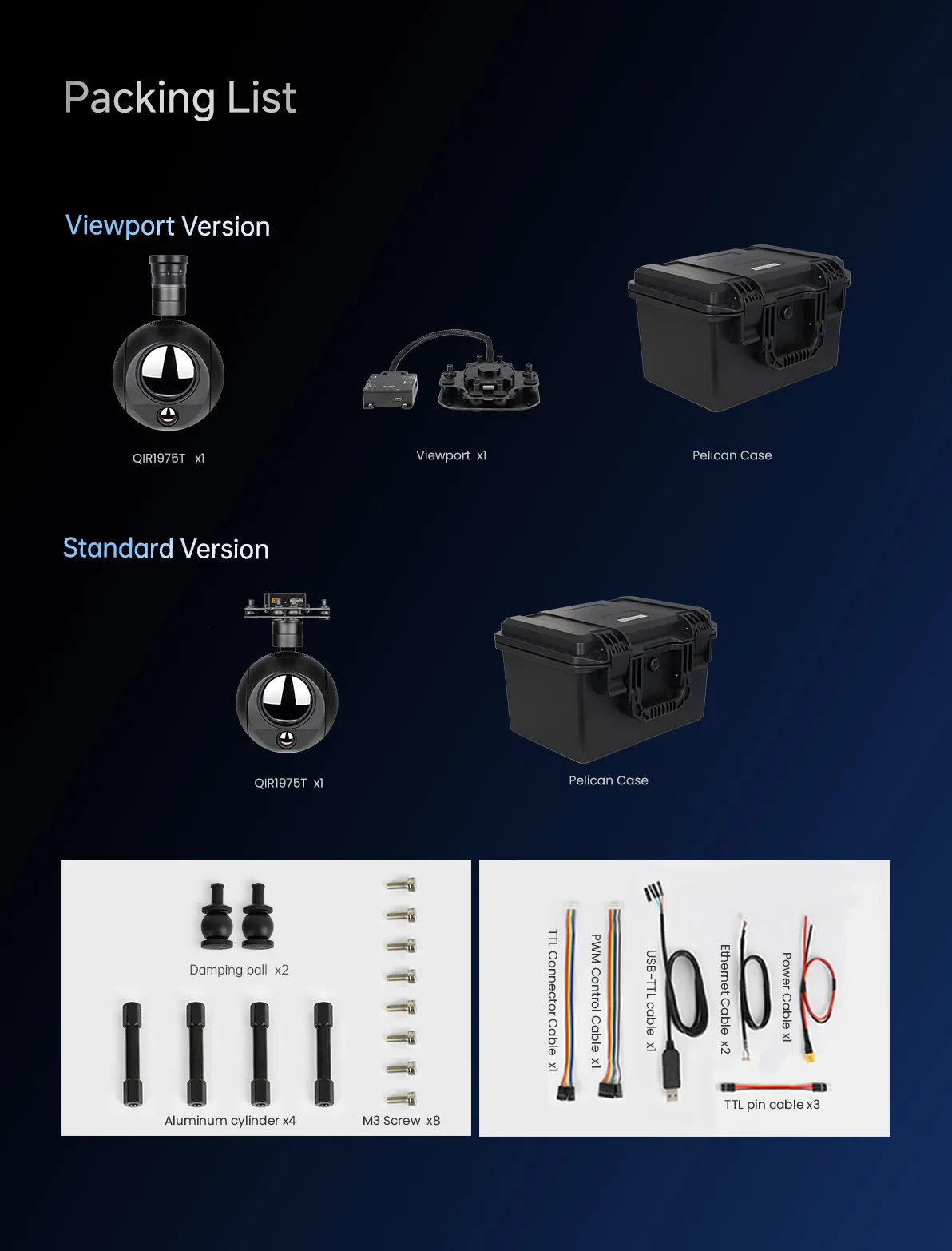

Accessories	Gimbal camera unit, screws, aluminium cylinders, damping balls, USB-to-TTL cable, high-quality plastic box with foam cushion
