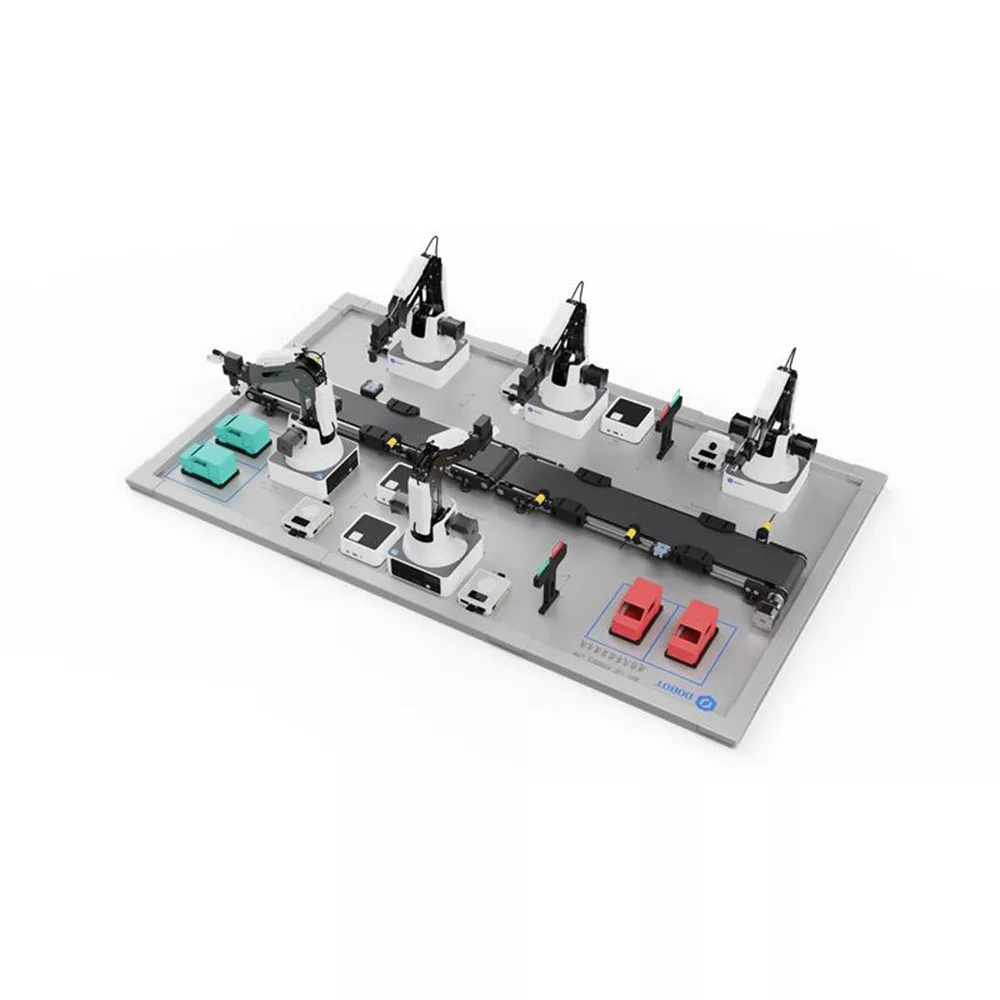

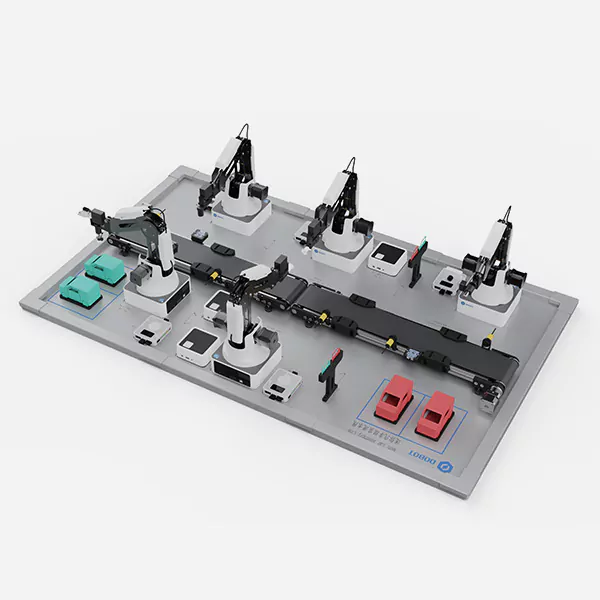

DOBOT Magician Mini Car Assembly Line
- Authentic Industrial Simulation – Replicates real automotive welding, painting, and assembly processes
- AI-Powered Vehicle Recognition – AI camera detects vehicle models and triggers different assembly commands
- Mixed-Flow Production – Supports two different vehicle models on one modular line
- 5× Magician Boxes Included – External controllers ready for your robotic arms
- Full Sensor Suite – 5 photoelectric sensors for precise position detection
- Laser Welding & Spray Painting Simulation – Realistic dot-laser welding and spray-light painting effects
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
DOBOT Magician Mini Car Assembly Line
Practical Industry 4.0 education at your fingertips. An educational platform designed to simulate the core processes of automotive manufacturing — combining robotic arm programming, AI-based visual recognition, and intelligent sensor technologies to authentically reproduce key production steps such as welding, painting and assembly.
Simulate Real Automotive Manufacturing
The DOBOT Magician Mini Car Assembly Line is an educational platform designed to simulate the core processes of automotive manufacturing. Combining robotic arm programming, AI-based visual recognition, and intelligent sensor technologies, it authentically reproduces key production steps such as welding, painting and assembly. This model vividly demonstrates the principles of Industry 4.0, providing students with an intuitive understanding of industrial production workflows and logic. It allows learners to experience firsthand the power of robotics, artificial intelligence and automation in a real-world manufacturing context.
Five Pillars of the Mini Car Assembly Line
Built for Education and Exhibition
Industry 4.0 Education and Practice
Provides students with comprehensive practical experience in automotive production processes and smart manufacturing, helping them understand the applications of robotics, AI and automation.
Tech Exhibition Centers
Display cutting-edge innovations in smart manufacturing technology, allowing visitors to witness the charm of automated production firsthand.
What Students Will Learn
Industry 4.0 Smart Manufacturing
By replicating the automotive production process, students gain in-depth understanding of core smart manufacturing and automation concepts.
Modular & Flexible Production Lines
Learn about modular systems and flexible production, exploring how to adjust production models based on varying demands.
Robot Programming and Control
Students learn robot operation, programming logic, and task scheduling by programming and controlling the desktop-level robotic arm.
AI and Robotics Integration
Combining AI visual recognition with robot programming, students develop AIoT system thinking and practical skills.

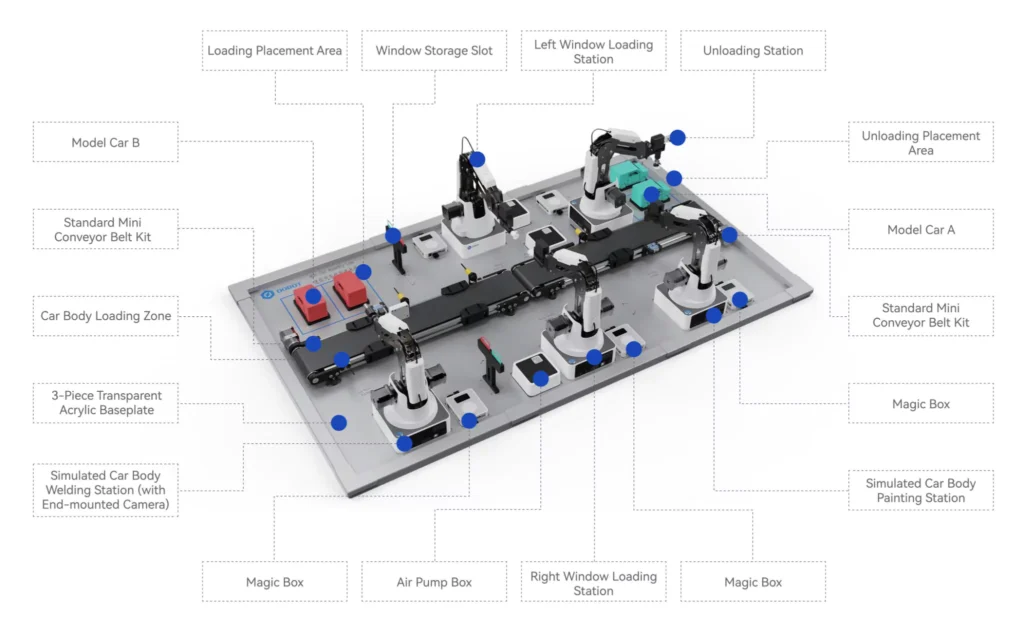

Assembly Line Specification Diagram
Mini Car Assembly Line — Configuration List
Mini Car Assembly Line — Complete Specification
| Specification | Details |
|---|---|
| Overall Dimensions | |
| Dimensions (L × W) | 1500mm × 880mm, three-section assembly design |
| Magician (Basic) — Robotic Arm | |
| Axes | 4-axis |
| Max Payload | 500g |
| Max Reach | 320mm |
| Conveyor Belt | |
| Effective Length | 600mm |
| Max Speed | 120mm/s |
| AI Camera Kit | |
| Interface | USB 2.0, integrated design with microphone |
| Adjustable Angle | 0° – 135° |
| Features | Face recognition, image recognition, OCR text recognition, voice recognition |
| Photoelectric Sensor | |
| Detection Range | 30mm – 150mm |
| Laser Kit | |
| Voltage | 12–24V |
| Type | Green laser spray |
| Spray Painting Light | |
| Voltage | 12V |
| Diameter | 18.5mm spotlight |
Mini Car Assembly Line
Does this kit include the robotic arms and conveyor belts?
No. The 5× Magician (Basic) robotic arms and 2× Conveyor Belts are not included in the price and must be purchased separately.
What does the AI Camera Kit do?
It provides AI-powered vehicle recognition, triggering 2 different door assembly commands depending on the recognized vehicle model.
How many vehicle models can it produce?
The system supports mixed-flow production for two different vehicle models, flexibly adapting to varying production needs.
What is the overall footprint of the assembly line?
1500mm × 880mm, built as a three-section modular assembly design for easier installation and transport.
What manufacturing steps does it simulate?
It simulates key automotive production steps including welding (via the laser kit), painting (via the spray painting light component), and door assembly.
Is an installation toolkit included?
Yes, the installation toolkit includes various mounting screws and hex wrenches.
