Description

RADIOMASTER-TX12 CC2500 TRANSMITTER

Name: RADIOMASTER-TX12 CC2500 TRANSMITTER
SKU: 116234
Availability: InStock

Experience the RADIOMASTER TX12 CC2500 Transmitter , the epitome of radio control innovation. Compact yet full-featured, it embodies convenience and power. With its utilization of open-sourced OpenTX and Multi-Module firmware, the TX12 ensures seamless operation and provides an unparalleled level of customization. What truly sets the TX12 apart is its commitment to evolution; through continuous updates, it remains at the forefront of technology, ensuring it stays relevant and functional for years to come. This level of future-proofing is rare in the world of radios, making the TX12 a standout choice for enthusiasts seeking longevity and versatility. But its appeal doesn’t end there. The TX12 is designed to grow alongside its user, adapting to their skills and preferences. Whether you’re just starting out or a seasoned veteran, the TX12 offers a comfortable and intuitive experience, promising to be the perfect companion throughout your journey in the hobby. With the TX12, limitations are a thing of the past, replaced by a world of endless possibilities and continuous growth in the realm of radio control.

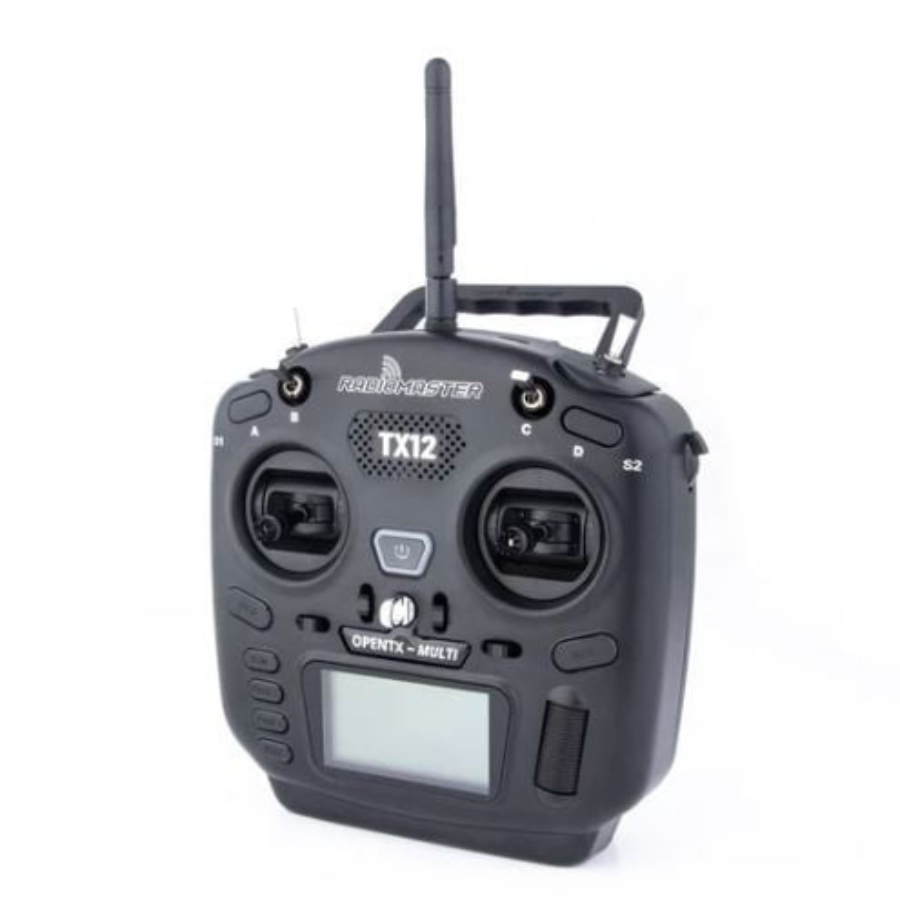

Radio layout – RADIOMASTER TX12 CC2500 Transmitter

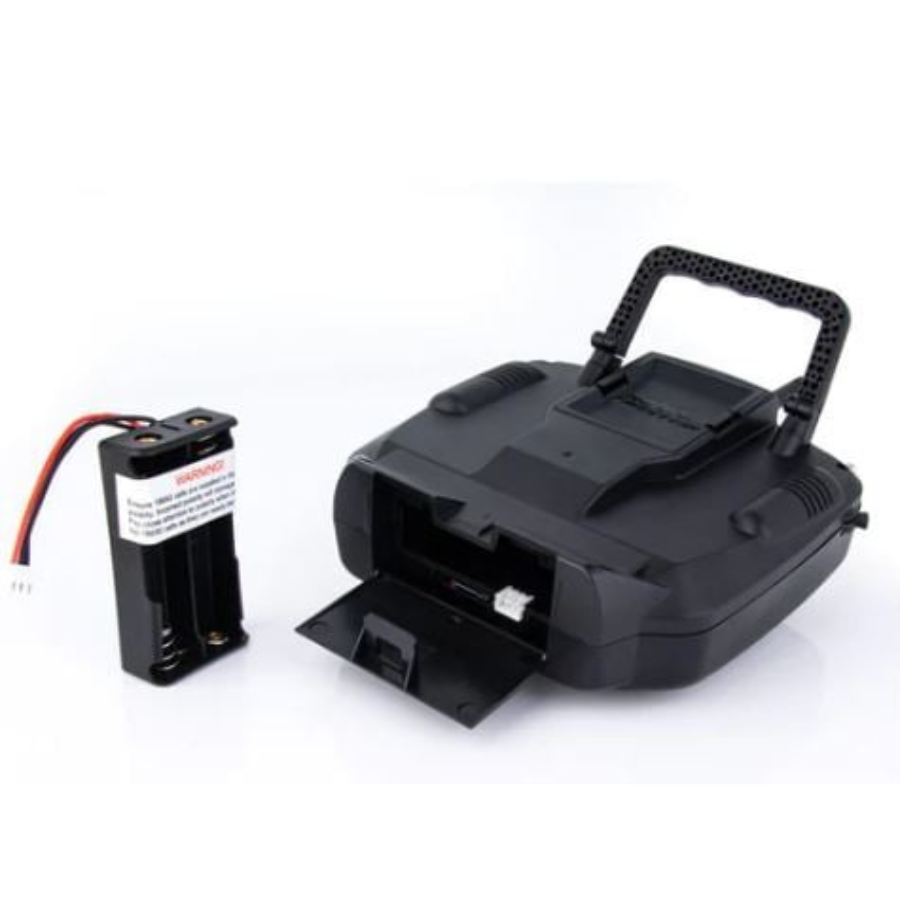

Large Battery Compartment

Large battery compartment allows for 2s Lipo batteries or use the included 2 x 18650 Li-ion battery tray (batteries not included)

Built in Voice Support

Integrated voice support elevates user experience and accessibility, providing seamless interaction and added convenience within the system’s interface.

Expand Your Options

The JR Style external module bay facilitates expansions like Crossfire, enhancing compatibility and enabling broader functionality for the TX12.

In The Box ( RADIOMASTER TX12 CC2500 Transmitter )

Package Includes

1 * TX12 Radio
1 * Antenna
1 * 18650 tray
1 * USB-C cable

Specifications of RADIOMASTER TX12 CC2500 Transmitter

General

Specification	Details
Type	TX12 Radio Controller
Size	170 x 159 x 108mm
Weight	363g
Frequency	2.400GHz – 2.480GHz
RF Chip	Single-chip Multi-protocol (CC2500)
Supported Protocols	Corona, Hitec, Futaba S-FHSS, Frsky D16/D8, RadioLink, Graupner HoTT*
Transmitting Power	20dbm
Antenna Gain	2db
Working Current	160mA @ 8.4V
Voltage Range	6.6-8.4V DC
Range	> 2km @ 20dbm (depending on receiver)
Radio Firmware	OpenTX (Transmitter) / Multi-Module (RF module)
Channels	Up to 16 (depending on receiver)
Display	128 x 64 Monochrome LCD display
Gimbal	High precision potentiometer gimbals
External module	JR/FrSKY/Crossfire compatible
Upgrade Method	USB/SD card & OpenTX Companion PC software
SD Card	Not included
