CRA Lifting Palletizing Workstation
- One-stop cobot palletizing workstation with a 900 mm lifting column reaching 2,100 mm maximum palletizing height (CRA robot sold separately).
- 20 kg max payload, 1,700 mm working radius, up to 13 pcs/min in double-suction mode — increasing efficiency by up to 62.5%.
- Set up in 30 minutes with no programming — guided configuration interface with 3D visualization, box transition/target point setup, and 8-box pattern flexibility.
- Interlayer partition support for food and beverage stack stability; occupies 1350×2220 mm; 300 kg machine weight.
- CE, FCC, ICES-003 certified; AC 100-230V, 16A, 3000W; robot body IP54, workstation IP20. ROI typically in 8–10 months.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
CRA Lifting Palletizing Workstation
A one-stop cobot palletizing workstation with a 900 mm lifting column reaching 2,100 mm palletizing height — 20 kg payload, up to 13 pcs/min, set up in 30 minutes without programming. Robot sold separately.
Lifting-Column Cobot Palletizer for High-Stack Applications

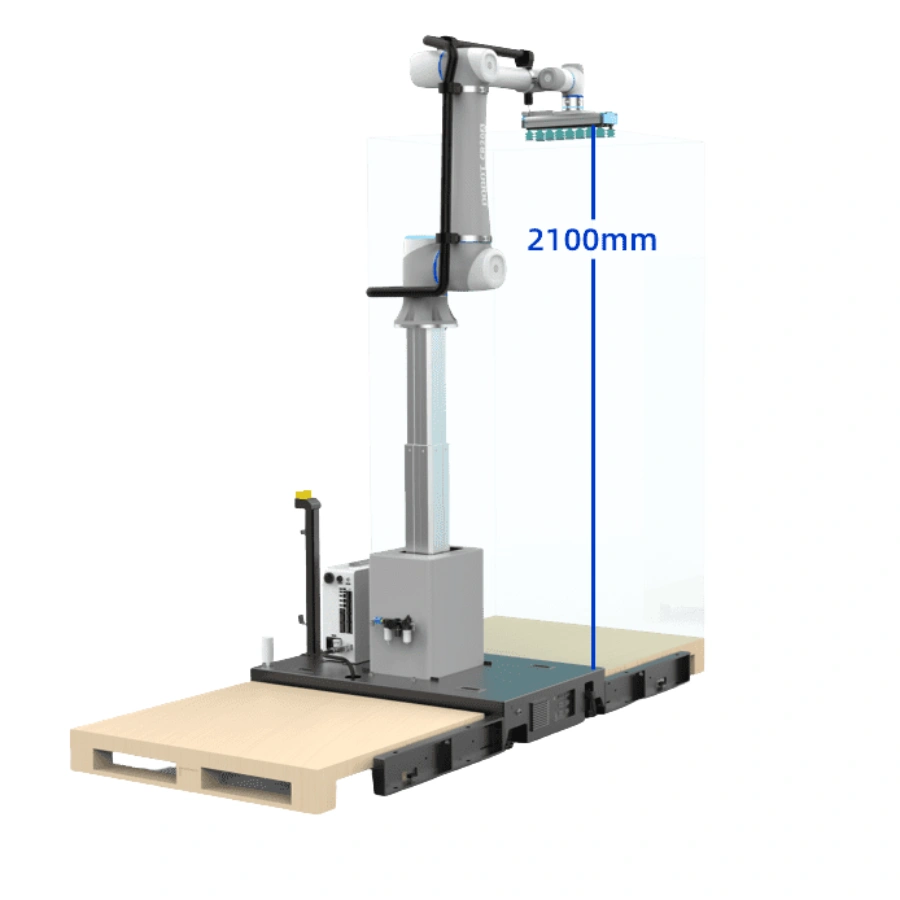

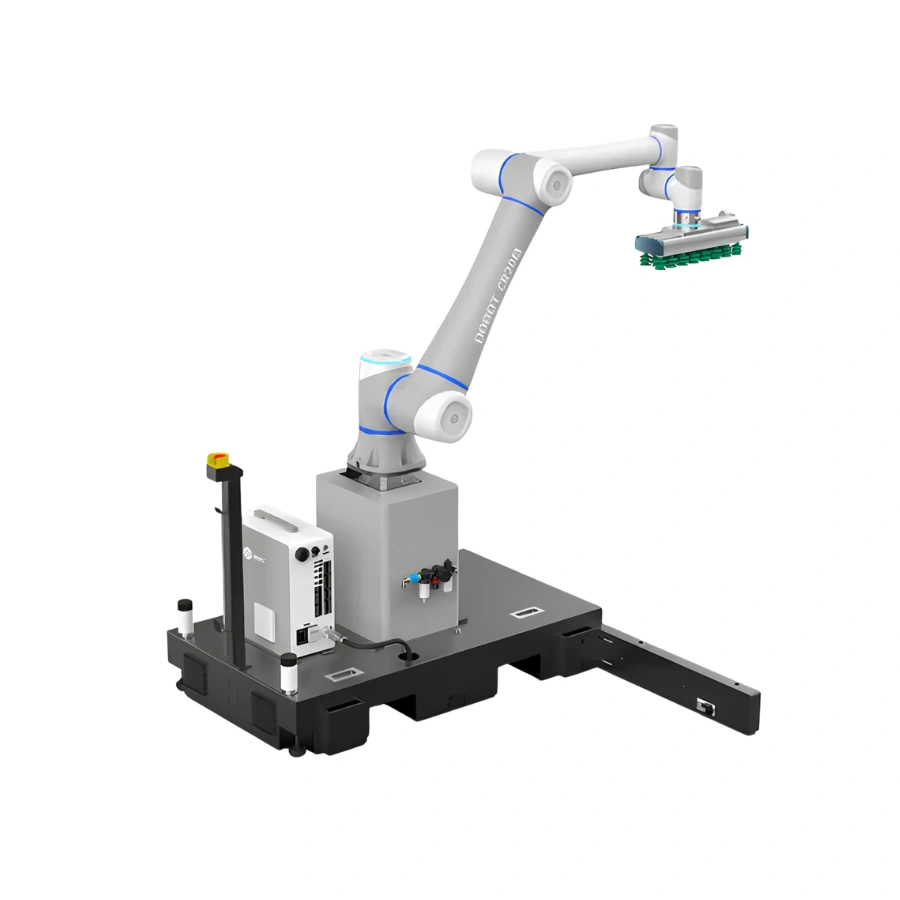

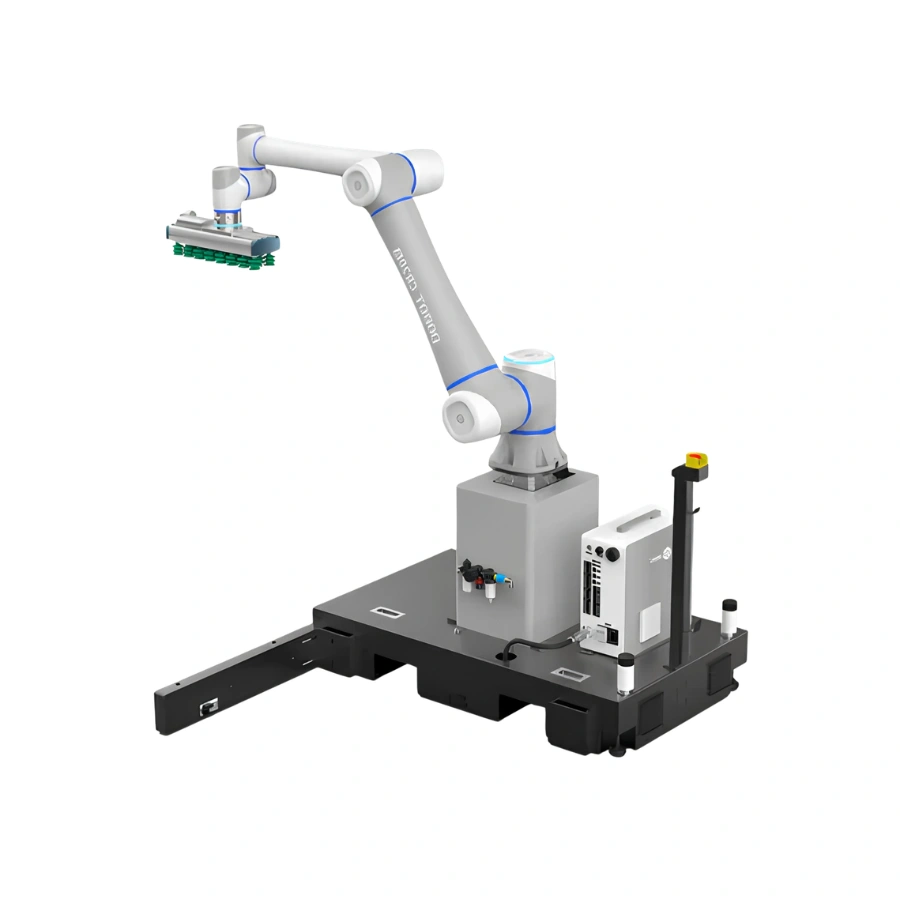

The CRA Lifting Palletizing Workstation is a one-stop cobot palletizing solution built around the DOBOT CRA cobot (sold separately), with a maximum payload of 20 kg and a lifting column that rises up to 900 mm — enabling a maximum palletizing height of up to 2,100 mm. The palletizing pace can reach up to 13 pieces per minute in double-suction mode. It effortlessly meets palletizing needs across industries such as 3C electronics, healthcare, food, and beverage, and can flexibly switch between different production lines to meet various production needs. Equipped with the Dobot palletizing process package, production can be set up easily in 30 minutes without any programming. The workstation occupies 1350 × 2220 mm, weighs 300 kg (excluding arm and end-effector), and is CE, FCC, and ICES-003 certified. The lifting column is what enables the higher 2,100 mm stacking height and the full double-vacuum-cup efficiency mode.
Advantages Over Traditional Palletizing
Workstation Structure & Components
The Lifting Palletizing Workstation integrates six core structural components. The lifting column is the defining feature — rising up to 900 mm to achieve the 2,100 mm maximum palletizing height.
Set Up in 30 Minutes — No Programming
Equipped with the Dobot palletizing process package, production can be set up easily in 30 minutes without any programming. Rich features meet diverse palletizing tasks, making deployment simpler and faster.
High Efficiency with Double Vacuum Cups
It supports the Double-Vacuum-Cups mode, which can pick two boxes at a time for palletizing, achieving a palletizing output up to 12 pcs/minute — increasing efficiency by up to 62.5%. (The lifting column is required.)
Visual Configuration Process
The process package comes with a guided configuration interface and 3D display, allowing for quick setup of boxes, pallets, and stacking patterns with real-time visualization in the 3D preview window — making the entire application configuration simple and straightforward.
Supports Configuration of Box Transition Point and Target Point
It supports setting the palletizing point and transition point for the box, which can reduce the impact of the size difference of the box and the height difference of the pallet, without the need to reserve excessive gap space — making the boxes more compact. The palletizing point and transition point can be set separately for each box, making configuration more flexible.
Flexible Pattern Configuration
It supports customizing the order of box palletizing and entry directions of 8 types of boxes, which can be suitable for complex palletizing scenarios.
Supports Interlayer
In response to the needs of the food and beverage industries, the process package adds support for picking and placing partitions during the palletizing process to enhance stack stability. The partition picking and placing feature is simple, requiring only three steps: setting the partition picking point, transition point, and placing point.
Six Features That Define This Workstation
Palletizing Solution in Action
Complete Specification
| Specification | Details |
|---|---|
| Product | |
| Max Payload *1 | 20 kg |
| Max Palletizing Pace *2 | Single suction & single release: 9 pieces/minute; Double suction & single/double release: 13 pieces/minute |
| Max Palletizing Height *3 | 2100 mm |
| Working Radius | 1700 mm |
| Occupied Area | 1350 mm × 2220 mm |
| Complete Machine Weight *4 | 300 kg |
| Rated Voltage | AC 100-230V 50/60Hz |
| Max Current | 16 A |
| Typical Power | 3000 W |
| Temperature Range | 10℃ - 50℃ |
| Protection Level | Robot body: IP54; Palletizing workstation: IP20 |
| Safety Certificate | EU: CE; US: FCC; CAN: ICES-003 |
| Column Type | Lifting column — rises up to 900 mm |
*1. Does not include the weight of the end-effector vacuum gripper. *2. The actual palletizing speed depends on the weight, size, and layout of boxes. *3. The size and layout of boxes may affect the actual palletizing height. *4. Does not include the weight of the mechanical arm and the end-effector.
What's Included
| Component | Status |
|---|---|
| CR10A Robot | Not Included |
| CRA Robot | Not Included |
| Robot Control Cabinet | Included ✓ |
| Palletizing Workstation Base | Included ✓ |
| Lifting Column | Included ✓ |
| Column (Fixed) | Not Included |
| Palletizing Process Package | Included ✓ |
| Tablet | Optional |
| Teaching Device | Optional |
| End-effector Vacuum Gripper | Optional |
Where This Workstation Is Used
Common Questions
Is the robot included with the Lifting Palletizing Workstation?
No — the CRA collaborative robot is sold separately and is not included in the workstation price. The workstation includes the palletizing base, lifting column, robot control cabinet, pallet detection device, external terminal panel, and the palletizing process package. The robot arm and end-effector vacuum gripper are purchased separately.
What palletizing height can this workstation reach?
The lifting column rises up to 900 mm, enabling a maximum palletizing height of up to 2,100 mm — higher than the columnar (fixed-column) version, which reaches 1,740 mm. This makes the lifting version better suited for high-stack pallet configurations.
How fast can it palletize?
Maximum palletizing pace is up to 13 pieces per minute using double suction with single or double release. Single suction and single release delivers 9 pieces per minute. Actual speed depends on the weight, size, and layout of the boxes.
What is the double-vacuum-cup mode?
The Double-Vacuum-Cups mode picks two boxes at a time for palletizing, achieving up to 13 pcs/min and increasing efficiency by up to 62.5%. This mode requires the lifting column, which this workstation includes.
Does it require programming to set up?
No — the Dobot palletizing process package allows production setup in 30 minutes without any programming. It provides a guided configuration interface with a 3D display for setting up boxes, pallets, and stacking patterns with real-time visualization.
