Collaborative Robot Universal Training Platform (Including PLC)
- Compatible with DOBOT MG400, Magician E6, and CR3 robot models — robot purchased separately
- Includes Siemens PLC system with 7.0" HMI screen, Signal Board (SB) ×1, Signal Modules (SM) ×2, and Communication Modules (CM) ×3
- Includes conveyor belt module, vision kit, and universal training platform for end-to-end automation training
- Covers robot programming, PLC control, HMI operation, vision system, and industrial communication in one platform
- PLC: 24V DC, 3.5 kg, 335 × 270 × 235 mm; Platform: 100–240V AC, 30 kg, 900 × 600 × 211 mm
- Modular design supports object detection, palletizing, assembly, trajectory tracking, and communication control training
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
Collaborative Robot Universal Training Platform
(Including PLC)
A comprehensive modular teaching platform for vocational schools and enterprise training — integrating conveyor belt, vision system, and Siemens PLC for complete automation and industrial control education.
Universal Platform with Siemens PLC Integration

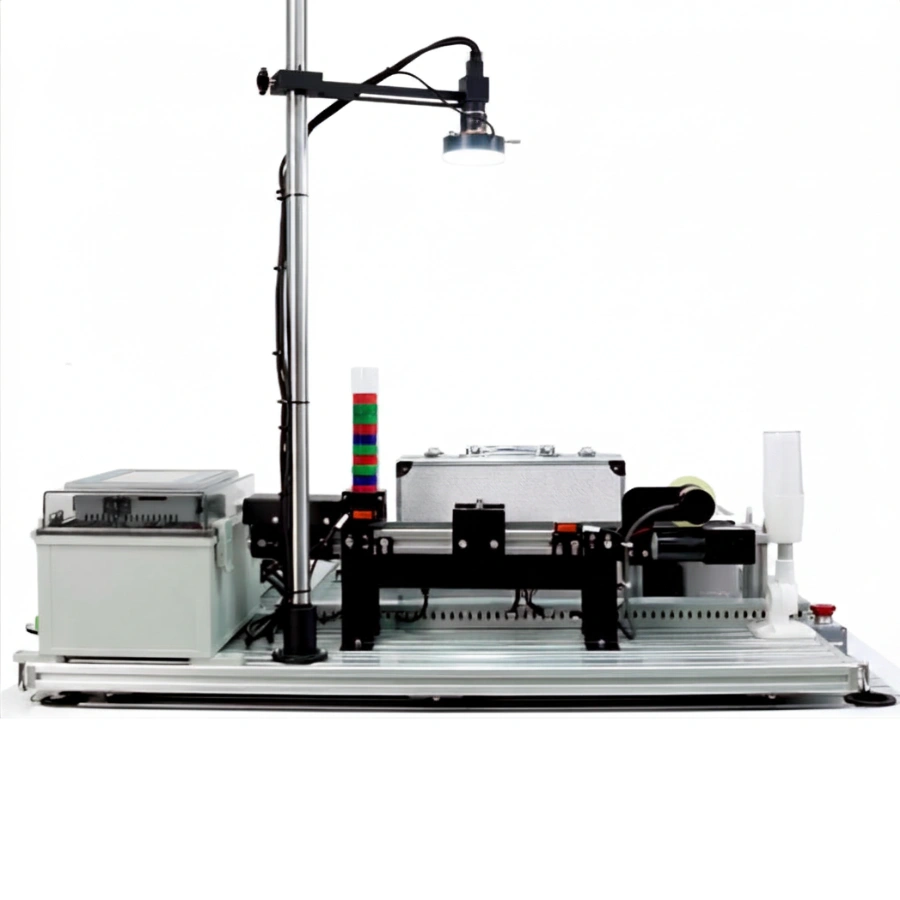

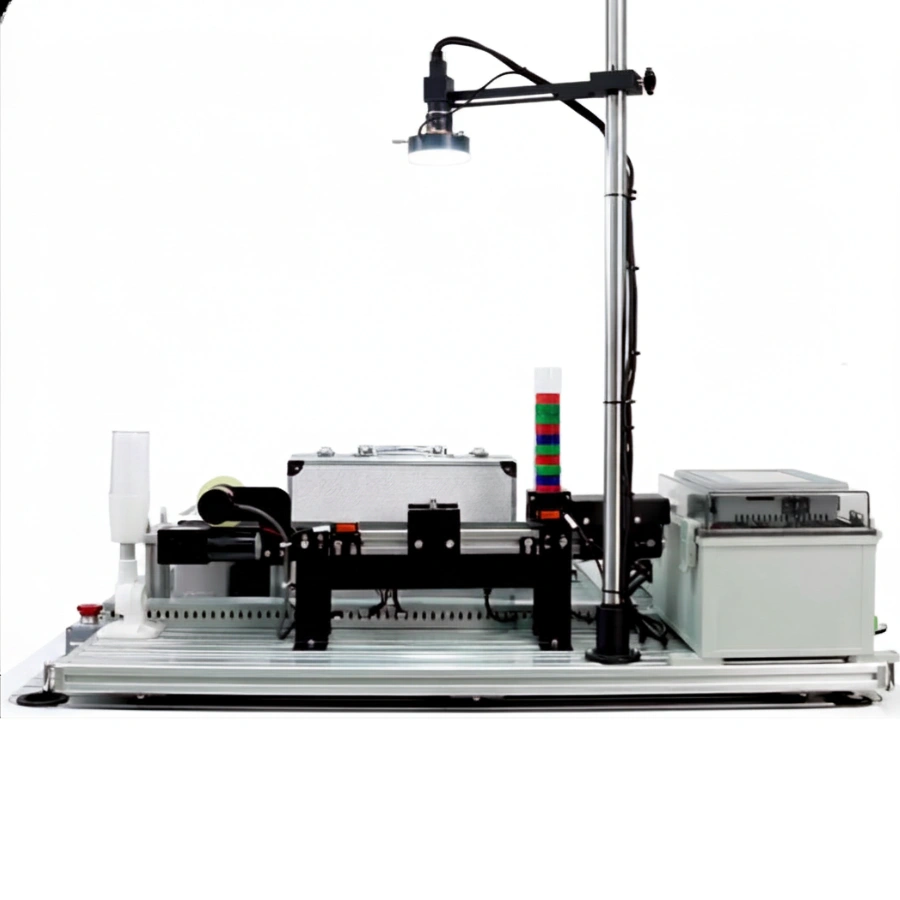

The Collaborative Robot Universal Training Platform (Including PLC) is a teaching platform for vocational schools and enterprise training which integrates a control system, vision system, conveyor belt, and Siemens PLC system. It adopts a modular design and can be combined flexibly and easily for automation simulation — such as object detection, grabbing, handling, palletizing, and assembly — as well as PLC programming, industrial communication, and HMI operation training. The addition of the Siemens PLC extends the learning scope from robot programming to full industrial control system integration, covering the topics most relevant to smart manufacturing careers. Robot is not included.
Robot Automation Meets Industrial PLC Training
Complete Industrial Automation Education System
Siemens PLC System with HMI
The included Siemens PLC system adds a full industrial control layer to the training platform. With a 7.0-inch HMI screen, Signal Board (SB) × 1, Signal Modules (SM) × 2, and Communication Modules (CM) × 3, students can programme and operate a genuine Siemens PLC in coordination with the robotic arm — simulating the control architecture used in real production lines. The 24V DC PLC system integrates directly with the conveyor belt and vision kit for end-to-end industrial automation training.

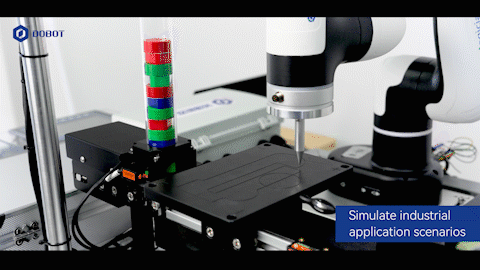

Vision Kit and Robot Integration
The platform includes a vision kit that enables students to learn vision-guided automation tasks — including object detection, colour sorting, and visual pick-and-place. These skills directly correspond to real-world industrial applications in quality inspection, sorting, and assembly. When combined with the Siemens PLC, students gain experience in coordinating vision data with PLC logic and robot motion — a skill set directly applicable in smart manufacturing environments.
Conveyor Belt and PLC-Controlled Logistics
The integrated conveyor belt, when controlled through the Siemens PLC, enables students to experience genuine PLC-driven material handling scenarios. By programming belt speed, direction, and object detection responses in the PLC — and coordinating these with robot pick-and-place motions — students develop the practical multi-system integration skills that are most in demand in modern manufacturing environments.
Six Features That Define the Training Platform (With PLC)
Training Platform (Including PLC) — Complete Specification
| Specification | Details |
|---|---|
| Platform | |
| Compatible Robots | MG400, Magician E6, CR3 |
| Included Components | Training platform, conveyor belt, vision kit, Siemens PLC |
| Robot | Not included |
| Platform Electrical & Physical | |
| Input Voltage | 100 ~ 240V AC, 50/60Hz |
| Rated Short Circuit Current | 18A |
| Platform Weight | 30 kg |
| Platform Size | 900 mm × 600 mm × 211 mm |
| Box Dimensions | 1118 mm × 718 mm × 275 mm |
| PLC System (Siemens) | |
| Weight | 3.5 kg |
| Voltage | 24V DC |
| Size | 335 mm × 270 mm × 235 mm |
| HMI Screen Size | 7.0 inches |
| Extensibility — Signal Board (SB) | × 1 |
| Signal Module (SM) | × 2 |
| Communication Module (CM) | × 3 |

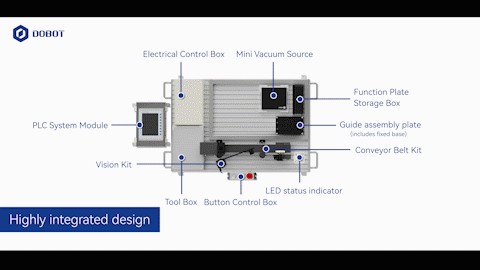

| Standard Components Included | |
| Conveyor Belt Kit | × 1 — includes Conveyor Belt Module, Feeding Module, Encoder |
| Universal Training Platform | × 1 |
| Mini Vacuum Source | × 1 |
| Function Plate Storage Box | × 1 — for track plate, inspection plate, mobile phone location plate and more |
| Guide Assembly Plate | × 1 — includes Fixed Base |
| Button Control Box | × 1 — includes start, stop, reset and emergency button |
| LED Status Indicator | × 1 — includes buzzer; colour changes between red, green and yellow |
| Electrical Control Box | × 1 — includes electrical parts (for distribution wing) |
| Tool Box | × 1 — includes spare parts, workpieces, suction cup, calibration needle and other tools |
| Aluminium Base | 600 mm × 900 mm |
| Product Identification | |
| EAN | 06970632060540 |
See the Training Platform at Work
Common Questions About the Training Platform (With PLC)
Is the robot included with this platform?
No. The robot is not included. This package includes the training platform, conveyor belt, vision kit, and Siemens PLC system. The platform is compatible with DOBOT MG400, Magician E6, and CR3 robot models, which are purchased separately.
What Siemens PLC components are included?
The Siemens PLC system included in this platform consists of the following components: a 7.0-inch HMI screen, Signal Board (SB) × 1, Signal Modules (SM) × 2, and Communication Modules (CM) × 3. The PLC operates at 24V DC and weighs 3.5 kg with dimensions of 335 × 270 × 235 mm.
What additional training does the PLC enable compared to the version without PLC?
The Siemens PLC system adds industrial control system training to the platform's existing robot automation topics. Students can programme PLC logic, operate the HMI interface, configure communication modules, and coordinate PLC signals with robot motion and conveyor belt operation — covering the full industrial automation workflow used in modern manufacturing environments.

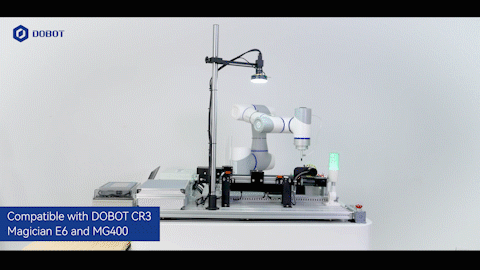

Which robot models are compatible with this platform?
The platform is compatible with three DOBOT robot models: MG400 (desktop 4-axis robot), Magician E6 (6-axis education robot), and CR3 (3 kg collaborative robot). Robots are purchased separately and are not included in this package.
What training tasks can be performed with this platform?
The platform supports robot system calibration, trajectory tracking, communication control, object detection, grabbing, handling, palletizing, assembly, PLC programming, HMI operation, and industrial communication protocol configuration. The vision kit and conveyor belt enable coordinated multi-system training scenarios that reflect real manufacturing production lines.
