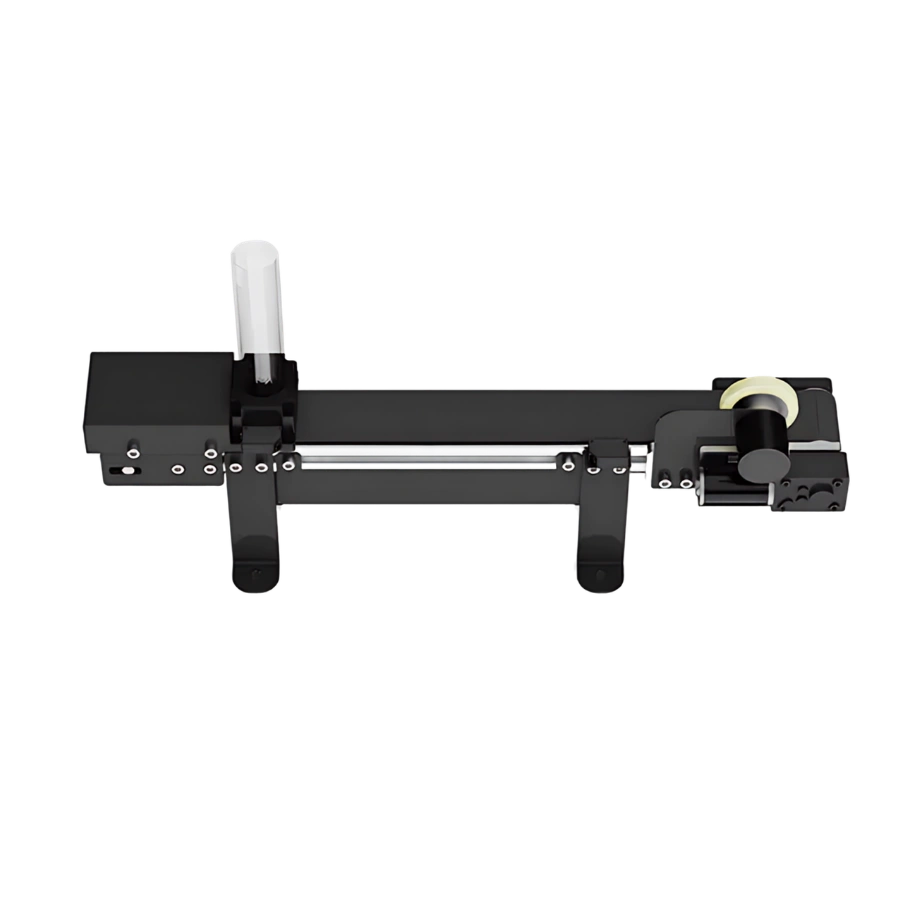

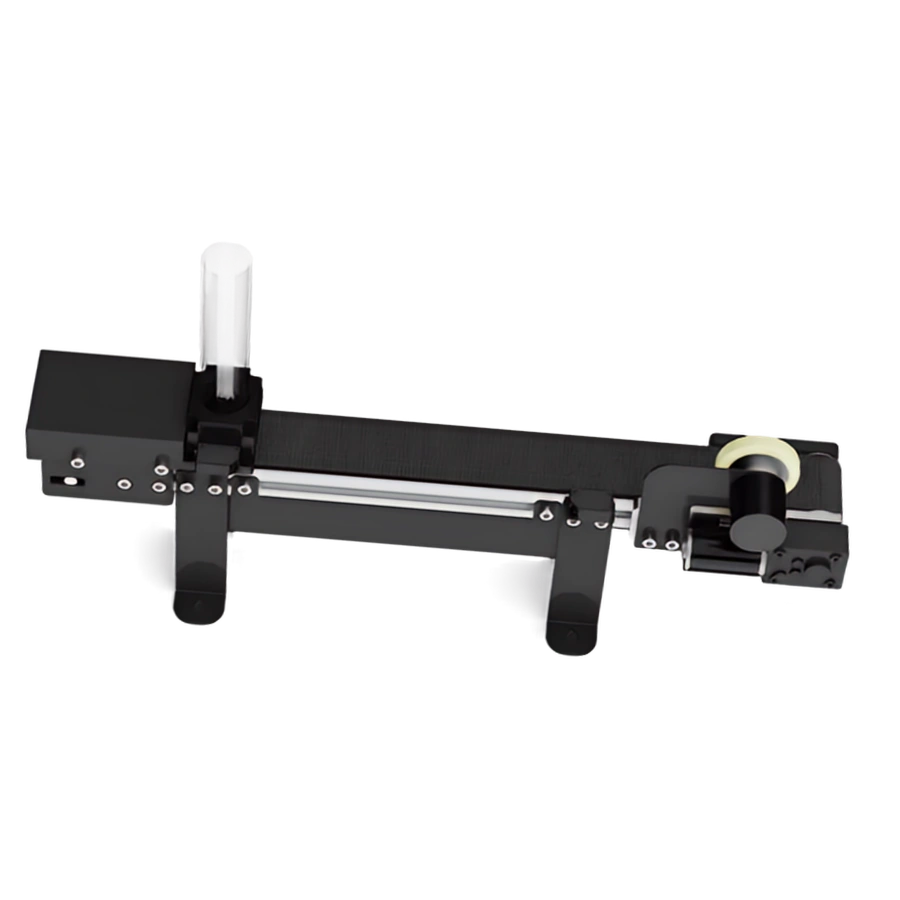

DOBOT Conveyor Belt
- Highly integrated modular conveyor compatible with MG400, CR series, and Magician E6 — combines with the Universal Training Platform and PLC modules for full automation simulation.
- Automatic material feeding via 50 mm linear actuator, photoelectric inspection (0–100 mm), and real-time position feedback via 1000 P/R incremental encoder.
- Belt speed ~40 mm/s, DC 24V ~1A power supply — compact 583 mm body mounts on tables, floors, or training rigs by simply tightening screws.
- Wide plug-and-play port selection for easy robot and PLC integration — no specialist wiring or complex setup required.
- CE and RoHS certified — suitable for schools, vocational labs, engineering universities, and professional automation training centres.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
DOBOT Conveyor Belt
A highly integrated modular conveyor component with automatic material feeding, photoelectric inspection, and incremental encoder — compatible with MG400, CR series, and Magician E6 for real automation training scenarios.
Integrated Modular Conveyor for Practical Automation Training
The DOBOT Conveyor Belt is a highly integrated modular component developed for practical automation training. It supports a wide range of functions including automatic material feeding, item conveying, photoelectric material inspection, and real-time position feedback via an incremental encoder — enabling accurate robot picking in combined automation scenarios. Its high compatibility covers MG400, CR series, and Magician E6 robots. Combined with the Collaborative Robot Universal Training Platform and PLC modular components, users can simulate a broad set of Industry 4.0 scenarios to achieve improved training outcomes. The lightweight, highly integrated design mounts easily on tables, floors, and training systems with simple screw fixings — no specialist installation required. Certified CE and RoHS.
Four Principles Behind the Conveyor Belt
A Full-Function Training Conveyor in a Compact Module
Lightweight and Highly Integrated Design
The DOBOT Conveyor Belt is built around a highly integrated, lightweight architecture that makes deployment fast and flexible. It can be placed on a table, mounted on the floor, or fixed into a training system simply by tightening screws — no specialist tools or complex installation procedures. The main body measures 583 ±8 mm × 115 mm × 180 ±5 mm, keeping the overall footprint compact enough for standard classroom benches and training setups. Despite its compact size, it integrates automatic material feeding, inspection, and encoder feedback into a single ready-to-use module.
Multiple Combinations for Better Simulations
The Conveyor Belt is designed to work within a wider automation ecosystem. Combined with the Collaborative Robot Universal Training Platform, CR series robots, Magician E6, and PLC modular components, it enables users to simulate a broad range of automation scenarios — material transportation, inspection, sorting, and pick-and-place — all within a single training setup. This combinability is the core of its value: the belt alone teaches conveyor fundamentals, but integrated with a robot arm and PLC, it simulates complete Industry 4.0 production cells that prepare students for real factory environments.
Compact, Multifunctional, and Plug-and-Play
The Conveyor Belt supports automatic material feeding via a linear actuator with 50 mm stroke, material inspection via a built-in photoelectric sensor with 0–100 mm detection range, and real-time item position feedback through a 1000 P/R incremental encoder (ABZA/B/Z signal phasing, 40 mm diameter, DC 5V). A wide range of ports supports plug-and-play connection for easy operation without specialist wiring. The belt runs at approximately 40 mm/s on a DC 24V, ~1A power supply — all core parameters verified against the official specification.
Six Features That Define the Conveyor Belt
DOBOT Conveyor Belt — Complete Specification
| Specification | Details |
|---|---|
| Conveyor Belt Kit | |
| Main Body Dimensions | 583 ±8 mm × 115 mm × 180 ±5 mm |
| Belt Dimensions | 583 ±8 mm × 55 mm × 140 ±5 mm |
| Power Input | DC 24V |
| Current | About 1A |
| Speed | About 40 mm/s |
| Automatic Loading | Operates using linear actuator for 50 mm |
| Material Inspection | Photoelectric sensor, inspection on the presence of material in 0 to 100 mm |
| Incremental Encoder | |
| Resolution | 1000 P/R |
| Output Signal | ABZA/B/Z signal phasing |
| Diameter | 40 mm |
| Voltage | DC 5V |
| Certification & Identification | |
| Product Certification | CE, RoHS |
| EAN | 06970632060557 |
Where the Conveyor Belt Is Used
DOBOT Conveyor Belt in Action
Common Questions About the Conveyor Belt
Which robots is the DOBOT Conveyor Belt compatible with?
The DOBOT Conveyor Belt is compatible with the DOBOT MG400, the full CR collaborative robot series, and the Magician E6. It is also designed to work alongside the Collaborative Robot Universal Training Platform and PLC modular components, allowing users to build progressively complex automation simulation scenarios by combining multiple compatible components.
What functions does the Conveyor Belt support?
The Conveyor Belt supports automatic material feeding via a linear actuator (50 mm stroke), material inspection via an integrated photoelectric sensor (0–100 mm detection range), and real-time item position feedback via a 1000 P/R incremental encoder with ABZA/B/Z signal phasing. These functions combine to enable a robot arm to detect, track, and pick items from the moving belt accurately.
What are the power requirements for the Conveyor Belt?
The Conveyor Belt main unit runs on DC 24V at approximately 1A. The incremental encoder runs on DC 5V. The belt speed is approximately 40 mm/s. No mains AC supply is required for the belt itself — it is powered via the training system's DC supply, consistent with standard automation training setups.
How is the Conveyor Belt installed?
The Conveyor Belt features a lightweight, highly integrated design that can be placed on a table, mounted on the floor, or fixed into a training system simply by tightening screws. No specialist tools or complex installation is required. A wide range of ports supports plug-and-play connection for easy integration with compatible robots and PLC modules.
What certifications does the Conveyor Belt carry?
The DOBOT Conveyor Belt is certified CE and RoHS — meeting European electromagnetic compatibility, safety, and environmental hazardous substance standards. This makes it suitable for educational and professional training environments across regulated markets including India, Europe, and other regions that recognise CE marking.
