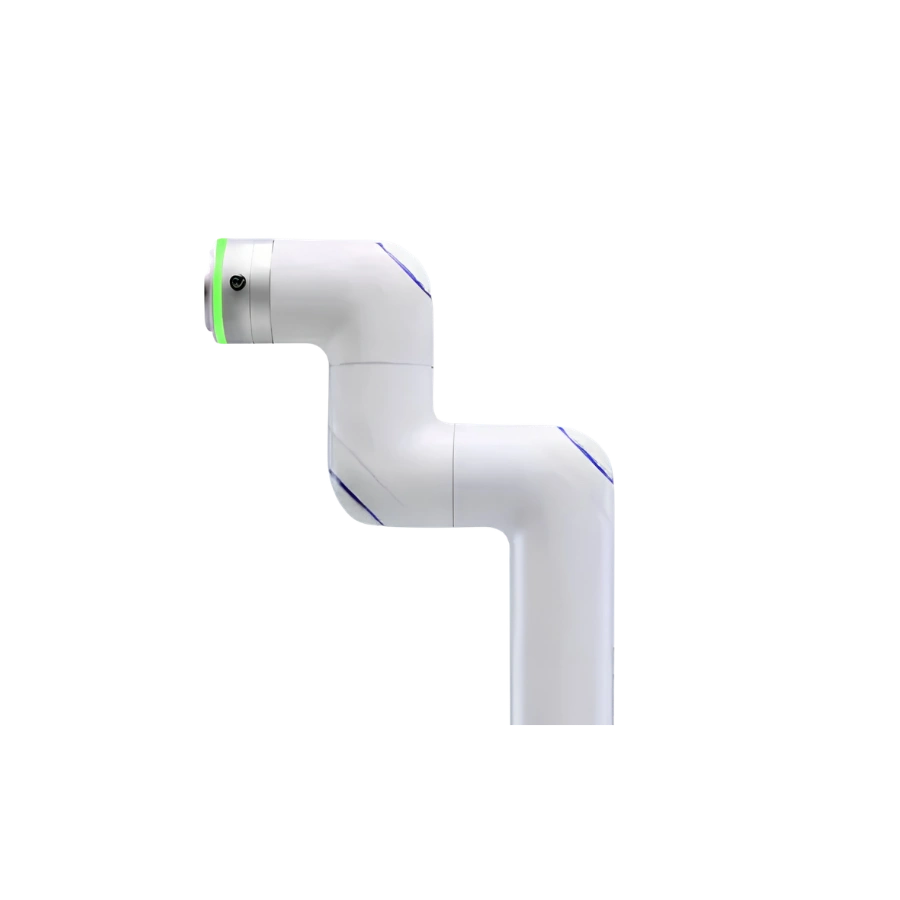

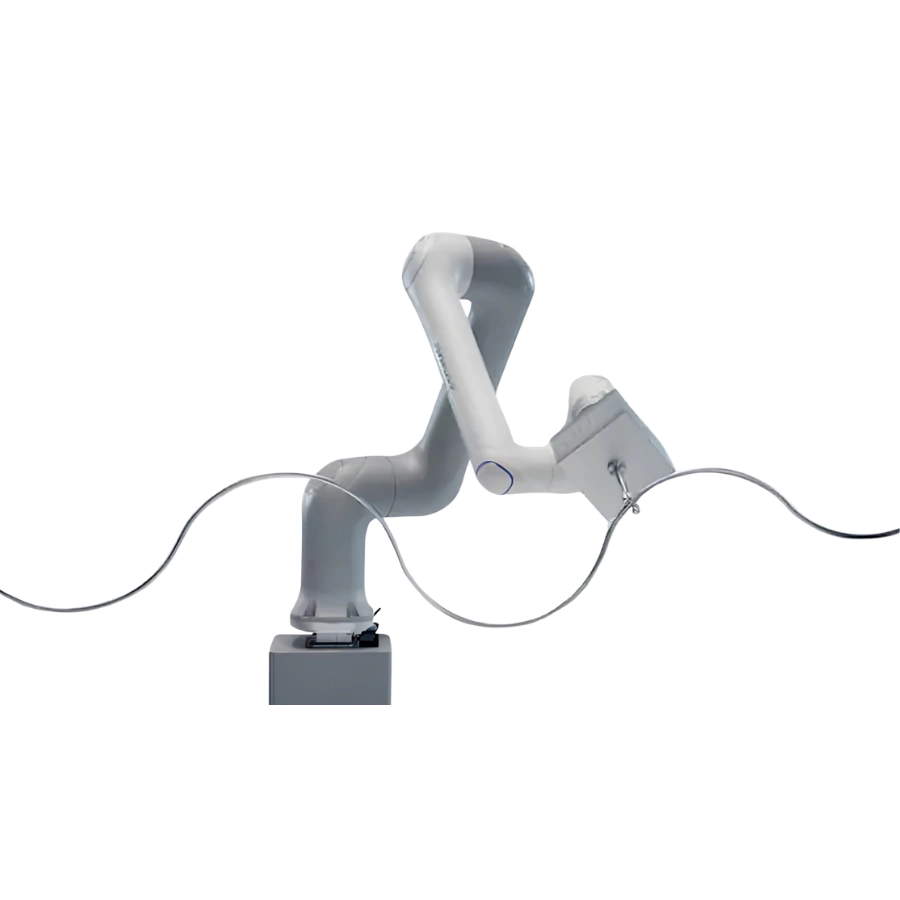

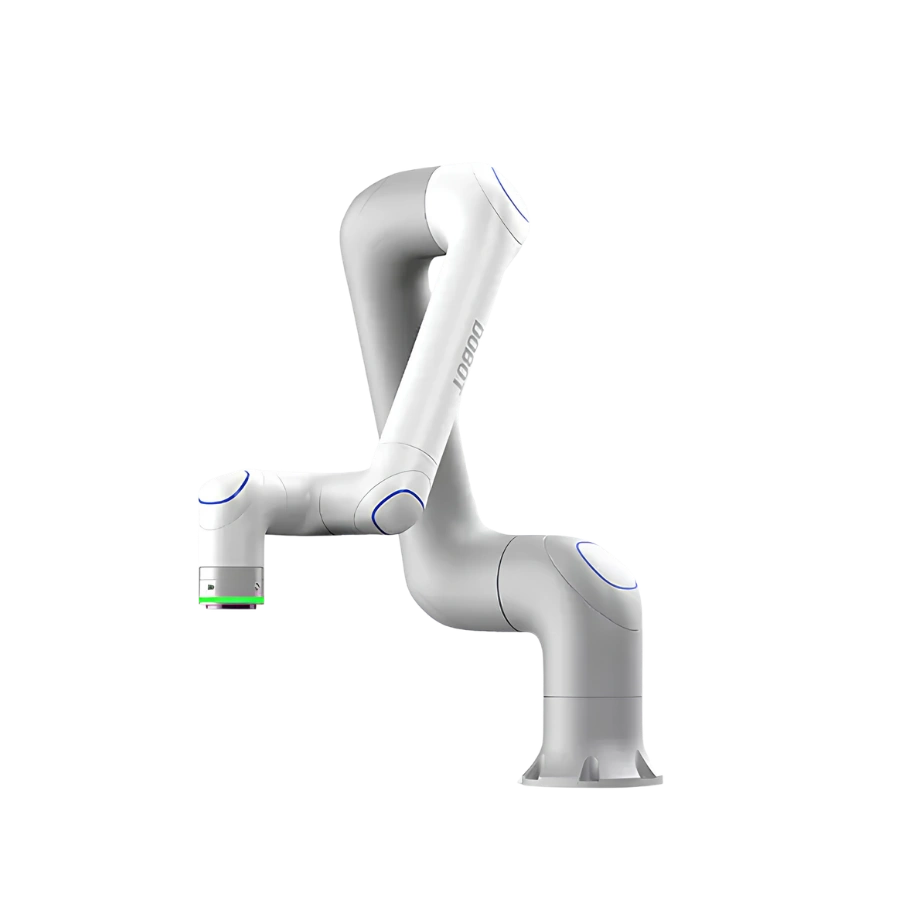

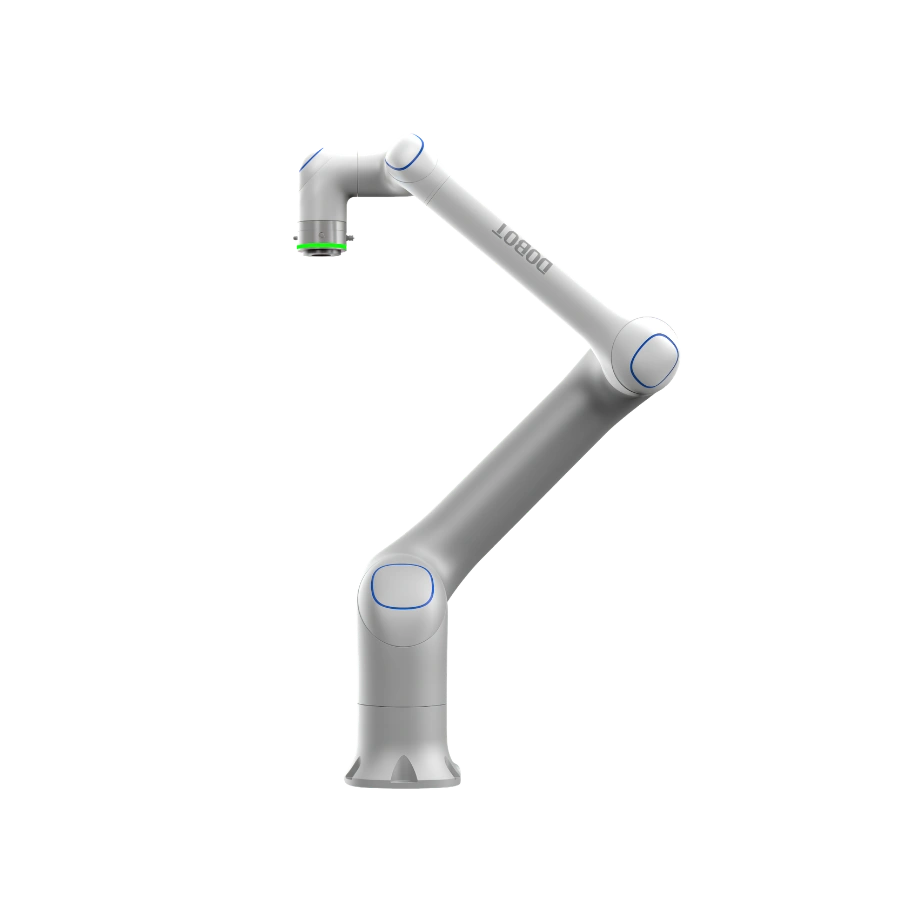

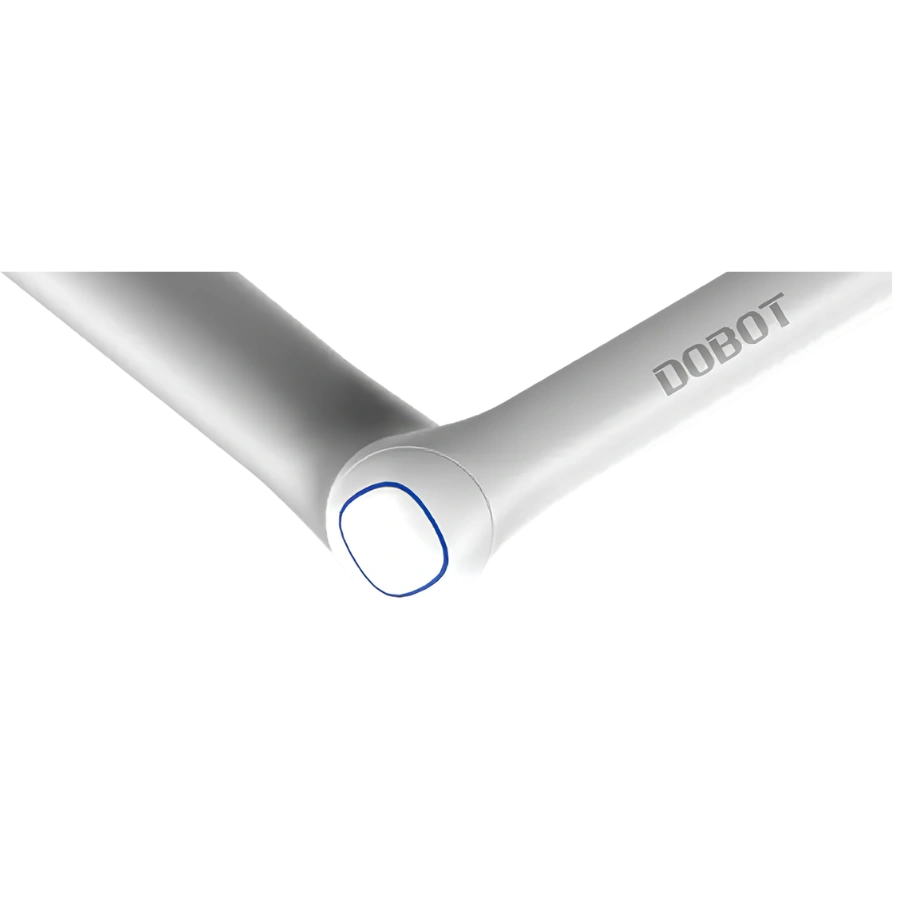

DOBOT CR 30H
• Industry-leading 300°/s joint speed — fastest recorded for 30kg-payload collaborative robots, delivering 10 pcs/min palletising
• HyperMove motion control intelligently adjusts acceleration for maximum reliable speed — 20% higher efficiency than competitors
• 30kg payload and 1800mm working radius with IP67 protection rated for dust, water jets, and oil contamination
• High-density 96V mid-voltage servo drive technology provides 50% more power with 20% less heat generation
• Optimised joint design with 30% fewer components cuts mechanical stress and reduces system downtime by 45%
• Fail-safe electromagnetic brakes limit end-effector displacement to under 1mm on power loss for maximum safety
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
DOBOT CR 30H
Standard Edition — the industry's fastest 30 kg heavy-payload collaborative robot. Record-breaking 300°/s joint speed, 1800 mm reach, HyperMove™ motion control, and robust IP65 protection for peak productivity in demanding industrial automation.
Born Strong — Industry's Fastest Heavy-Payload Cobot
Designed for high-end industrial automation that demands superior performance, stability, and efficiency, the DOBOT CR 30H Standard Edition represents a breakthrough in heavy-duty collaborative robotics. With a record-breaking 300°/s joint speed — the highest recorded for heavy-payload collaborative robots — the CR 30H shatters productivity barriers by striking the perfect balance between a 30 kg payload capacity, blazing speed, and exceptional stability. Equipped with HyperMove™ motion control that intelligently adjusts acceleration for maximum reliable speed, it delivers 20% higher single-unit efficiency and achieves a palletizing and handling pace of 10 pieces per minute. Advanced vibration suppression keeps end-effector oscillation below 0.3 mm at full speed and full load. High-Density Servo Drive Technology with 96V medium-voltage servo delivers 50% more power with 20% less heat generation. Fail-safe electromagnetic brakes automatically engage on power failure, limiting end-effector movement to under 1 mm. The CR 30H carries IP65 environmental protection and supports floor, wall, and ceiling mounting — making it a high-capability, reliable solution for palletizing, material handling, machine tending, and heavy-component automation across automotive, food and beverage, metal processing, and semiconductor industries.
Built Around Three Principles
Unmatched Speed. Uncompromising Stability.
300°/s — Palletizing Power Unleashed
The CR 30H sets an industry record with its 300°/s maximum joint speed — the highest documented for any heavy-payload collaborative robot. This is not raw speed alone: the HyperMove™ motion control system intelligently adjusts acceleration curves to maintain maximum reliable speed throughout each cycle, delivering 20% higher single-unit efficiency than conventional systems. The result is a palletizing and handling pace of 10 pieces per minute — double the throughput capacity of traditional palletizing systems — while retaining the precision and safety expected of a collaborative robot working alongside people.
Below 0.3 mm Vibration at Full Speed and Load
Speed without stability is useless in industrial automation. The CR 30H's advanced vibration suppression algorithm actively reduces vibration and end-effector oscillation across the entire operating range — speed and payload — keeping amplitude below 0.3 mm even at maximum load and maximum speed simultaneously. This is enabled by High-Density Servo Drive Technology: a powerful 96V medium-voltage servo system that delivers 50% more power than conventional servo drives while generating 20% less heat, protecting internal components and extending service intervals in continuous-production environments.
Optimised Reliability — 45% Less Downtime
The CR 30H's structural architecture has been redesigned with 30% fewer components versus conventional heavy-payload robot designs. Load is distributed more evenly across fewer, more robust parts — reducing stress on individual components and dramatically cutting maintenance frequency. The result: downtime reduced by 45% over comparable systems. Fail-safe electromagnetic brakes are integrated at every joint, engaging automatically in the event of a power failure and limiting end-effector movement to under 1 mm — protecting both tooling and personnel in any scenario.
IP65 Protection — Ready for Demanding Environments
The CR 30H Standard Edition carries an IP65 environmental protection rating, providing full dust ingress protection and resistance to water jets from any direction. This makes it suitable for deployment in metalworking cells with coolant mist, food and beverage production areas, and industrial environments with airborne particulates. The robot body is constructed from aluminium alloy, ABS plastic, and rubber — combining structural rigidity with weight-optimised design at 100 kg body weight. Floor, wall, and ceiling mounting are all supported, giving system integrators complete flexibility in workcell layout design for the 1800 mm working radius.
1 kHz Real-Time Control — Precision Without Latency
The CR 30H operates on a 1 kHz real-time control cycle — issuing and executing motion commands 1,000 times per second. This ultra-fast control frequency minimises command latency to near-zero, allowing the robot to execute rapid directional changes and path corrections without overshoot or position error accumulation. Combined with the TrueMotion path correction system, the CR 30H delivers consistent ±0.05 mm repeatability across every cycle — whether performing tight palletizing stack patterns or precisely placing components into fixtures — maintaining accuracy throughout full-shift, continuous-operation production schedules.
Six Features That Define the CR 30H
DOBOT CR 30H Standard Edition — Complete Specification
| Specification | Details |
|---|---|
| Weight | 100 kg |
| Maximum Payload | 30 kg |
| Reach | 1800 mm |
| Joint Motion Range | |
| J1 / J2 / J4 / J5 / J6 | ±360° |
| J3 | ±163° |
| Maximum Joint Speed | |
| J1 / J2 | 150°/s |
| J3 | 200°/s |
| J4 / J5 / J6 | 300°/s |
| End-Effector Power Supply | |
| Voltage | 0 / 12 / 24 V |
| Current | 2 A (continuous) / 3 A (peak) |
| Repeatability | ±0.05 mm |
| IP Rating | IP65 |
| Noise Level | 70 dB(A) |
| Operating Temperature | 0°C ~ 50°C |
| Mounting | Floor / Wall / Ceiling |
| Cable Length | 6 m (robot base to controller cabinet) |
| Materials | Aluminium Alloy / ABS Plastic / Rubber |
Where the CR 30H Performs
See the CR 30H in Action
Common Questions About the CR 30H Standard Edition
What is the maximum payload and reach of the DOBOT CR 30H?
The DOBOT CR 30H Standard Edition carries a maximum payload of 30 kg with a working radius of 1800 mm. This combination of high payload and long reach makes it one of the most capable heavy-duty collaborative robots for palletizing, material handling, and machine tending applications where both load capacity and workspace coverage matter.
What makes the CR 30H faster than other heavy-payload collaborative robots?
The CR 30H achieves a 300°/s maximum joint speed — the highest recorded for any heavy-payload collaborative robot. This speed is managed by the HyperMove™ motion control system, which intelligently adjusts acceleration to maintain maximum reliable speed throughout each motion cycle. The result is 20% higher single-unit efficiency than comparable systems and a palletizing pace of 10 pieces per minute — approximately double that of traditional palletizing systems.
What IP protection rating does the CR 30H carry?
The CR 30H Standard Edition carries an IP65 environmental protection rating. This provides complete dust ingress protection and resistance to water jets from any direction — making it suitable for deployment in metalworking environments with coolant mist, food and beverage production areas, and industrial settings with airborne particulates or periodic cleaning.
What mounting orientations does the CR 30H support?
The DOBOT CR 30H supports floor, wall, and ceiling mounting at full 30 kg payload capacity. This flexibility allows system integrators to optimise workcell layout for space efficiency and to deploy the robot in overhead gantry configurations or wall-mounted positions without any payload or reach penalty.
How does the CR 30H Standard Edition differ from the CR 30HT Touch Edition?
Both the CR 30H Standard Edition and the CR 30HT Touch Edition share identical core hardware specifications — 30 kg payload, 1800 mm reach, 300°/s joint speed, ±0.05 mm repeatability, and IP65 protection. The CR 30HT Touch Edition adds built-in joint torque sensors that enable one-hand drag-to-teach functionality and instant collision detection response, which improves teaching and deployment efficiency by up to 90%. The Standard Edition is optimised for automated, pre-programmed production cycles where high throughput is the priority.
