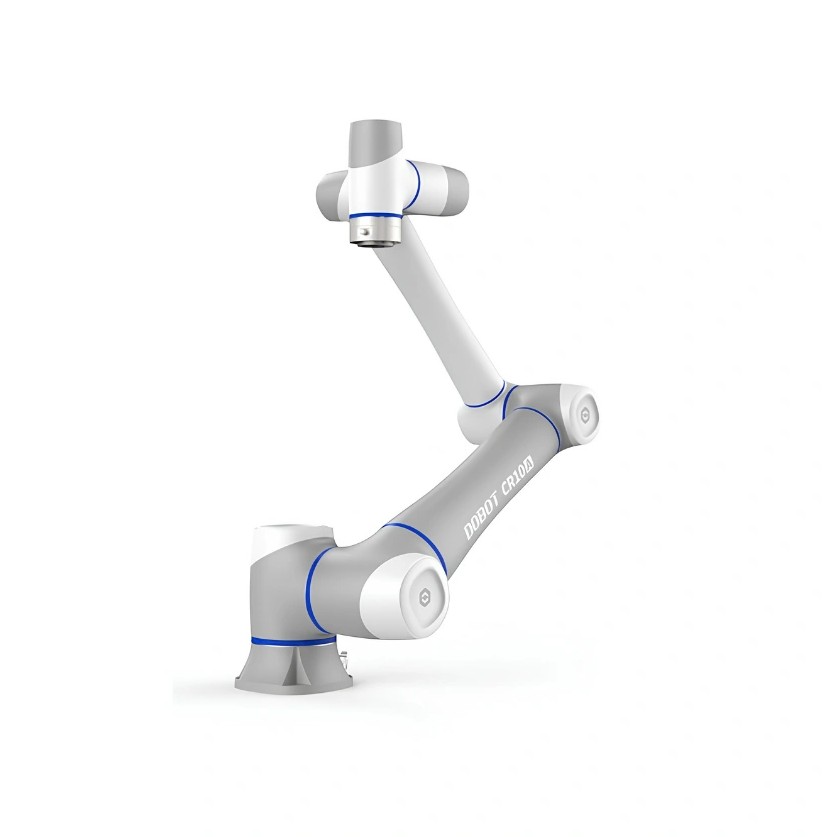

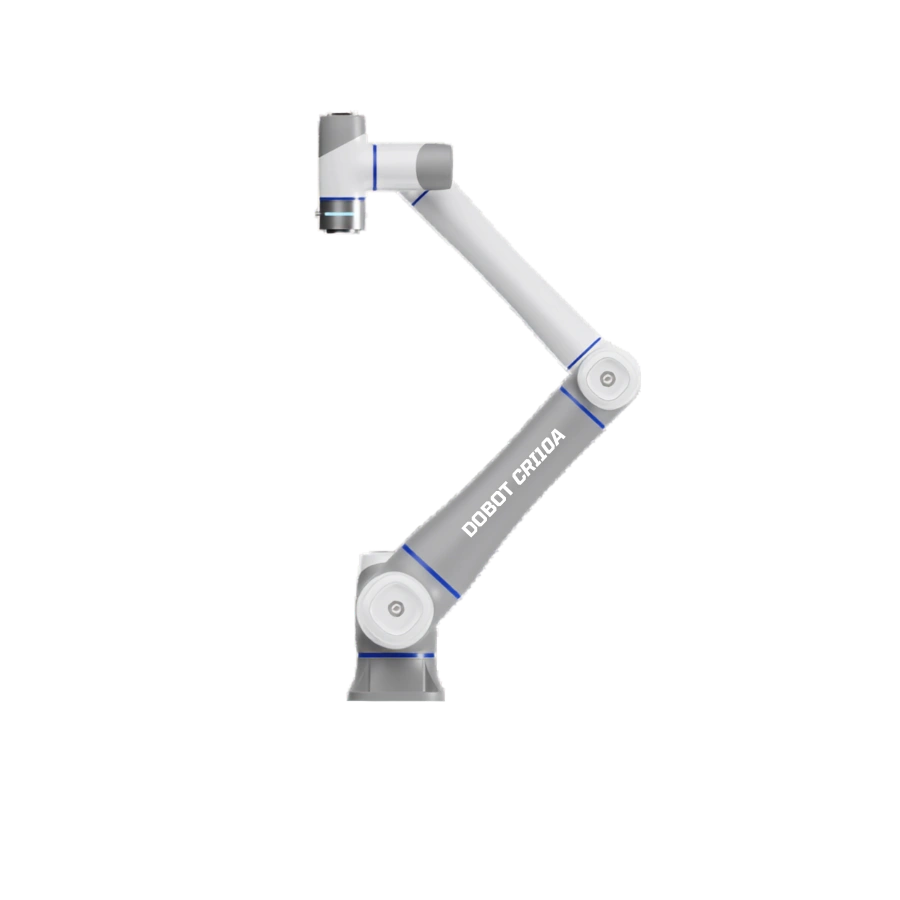

Dobot CR10A Collaborative Robot
- 6-axis collaborative robot with 10 kg payload and 1300 mm working radius, designed for heavy-duty applications in automotive, logistics, and metalworking industries.
- ±0.03 mm repeatability with advanced motion control algorithms that reduce residual vibration by 50% during high-speed emergency stops.
- Harmonic Drive integrated joints deliver up to 25% faster cycle times, improving productivity in demanding automation environments.
- Dual-channel end effector support enables simultaneous connection of multiple tools, expanding application flexibility without hardware changes.
- IP54-rated robot and control cabinet, with electromagnetic brake protection and overload alarm for safe and reliable continuous operation.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
DOBOT CR10A
A reliable cobot with wide working radius — delivering 10 kg payload, 1300 mm reach, and industrial-grade safety for the most demanding production environments.
Safe, Flexible and Self-Learning Collaborative Robot
Building upon the proven safety, efficiency, flexibility, and ease of use of the CRA series, the DOBOT CR10A breaks through the payload limit to 10 kg, opening a wider range of applications for collaborative robots in heavy-duty industrial environments. With an extended working radius of 1300 mm and a maximum linear speed of 2 m/s, the CR10A is engineered to meet the demands of heavy-duty picking, packing, palletizing, and welding across the automotive, home appliance, logistics, and metalworking industries. An industry-first dual-channel end effector design simplifies tool connections, while an advanced motion control algorithm reduces residual vibration by 50% during high-speed emergency stops. The CR10A supports Profinet and Ethernet/IP communication protocols, connects seamlessly with PLC systems, and provides 24 digital IO ports with PNP and NPN switching. With IP54 protection on both the robot body and the control box, and innovative electromagnetic brake technology, the CR10A delivers reliable, safe collaboration in the most demanding production settings.
Built Around Four Principles
Engineered for the Modern Factory Floor
User-Friendly Design for Faster Deployment
The CR10A adopts an industry-first dual-channel end effector design, allowing direct connection to multiple end tools without complex adapters or custom wiring. A visual status indicator at the base provides immediate, intuitive recognition of the robot's operating state — reducing setup time and minimising operator errors. With an extended working radius of 1300 mm and a maximum payload of 10 kg, the CR10A handles heavier parts across larger workcell footprints with equal precision.
Advanced Motion Control for Stable, High-Speed Operation
Powered by an advanced motion control algorithm, the CR10A operates with exceptional stability across its wide working envelope. Residual vibrations during high-speed emergency stops are reduced by 50%, protecting heavy workpieces and surrounding equipment. A maximum linear speed of 2 m/s combined with ±0.03 mm repeatability delivers the throughput and consistency that high-volume industrial production demands — without compromising safety or part quality.
24 IO Ports and Industrial-Grade Communication
The CR10A ships with 24 digital IO ports and industry-leading support for both PNP and NPN switching, enabling wide-ranging peripheral integration from grippers to sensors. Profinet and Ethernet/IP protocol support allows the robot to connect directly to existing PLC infrastructure without custom middleware. Two analog inputs, two digital outputs, and two digital inputs at the end effector are multiplexed with RS485 — covering any automation architecture from standalone workcells to full production line integration.
High Protection Level for Safer Collaboration
Both the robot body and the control box achieve IP54 protection, guarding against dust and liquid ingress in typical manufacturing environments. When overloaded, the robot automatically triggers an alarm to prevent mechanical damage. The innovative electromagnetic brake protection reduces end-tool drop distance in the event of a power failure — a critical safety feature when operating near personnel or handling heavier workpieces. These protections make the CR10A a dependable partner wherever human-robot collaboration is required.
Six Features That Define the CR10A
DOBOT CR10A — Complete Specification
| Specification | Details |
|---|---|
| Weight | 40 kg |
| Maximum Payload | 10 kg |
| Working Radius | 1300 mm |
| Maximum Linear Speed | 2 m/s |
| Maximum Joint Speed | |
| J1 / J2 | 150° /s |
| J3 | 180° /s |
| J4 / J5 / J6 | 223° /s |
| Range of Motion | |
| J1 / J2 / J4 / J5 / J6 | ±360° |
| J3 | ±160° |
| I/O Ports | |
| Ports | 2 × AI, 2 × DO, 2 × DI (Multiplexed with RS485) |
| Repeatability | ±0.03 mm |
| IP Rating / Noise | IP54 / ≤ 70 dB |
| Working Environment | 0° ~ 50° C |
| Power | 350 W |
| Installation Orientation | Any Angle |
| Cable Length to Controller | 5 m |
| Materials | Aluminum alloy, ABS plastic |
Application Scenarios
The CR10A's 10 kg payload, 1300 mm reach, and broad communication support make it suitable across a wide range of heavy-duty industrial applications.
See the CR10A at Work
Common Questions About the CR10A
What is the maximum payload and working radius of the DOBOT CR10A?
The DOBOT CR10A supports a maximum payload of 10 kg and has a working radius of 1300 mm. This makes it well suited for heavy-duty pick-and-place, assembly, palletizing, loading, and welding tasks across larger workcell footprints in automotive, logistics, and metalworking environments.
How does the CR10A differ from the CR7A in the CRA series?
The CR10A offers a significantly higher payload of 10 kg versus 7 kg for the CR7A, and a much wider working radius of 1300 mm versus 800 mm. The CR10A also draws 350 W compared to 150 W and weighs 40 kg versus 24.5 kg, reflecting its heavier-duty construction. Its repeatability is ±0.03 mm versus ±0.02 mm on the CR7A. Both models share the same IP54 protection rating and communication protocols.
Which communication protocols does the CR10A support?
The CR10A supports Profinet and Ethernet/IP communication protocols, enabling direct connection to most industrial PLCs and automation controllers. It also provides 24 digital IO ports with support for both PNP and NPN switching, covering virtually any peripheral integration requirement.
Can the CR10A be mounted in different orientations?
Yes. The DOBOT CR10A supports installation at any angle — including floor, ceiling, wall, and inclined positions — without requiring additional mounting hardware. This allows flexible integration into a wide variety of workcell designs, overhead gantry configurations, and multi-robot production lines.
What safety features are built into the CR10A?
The CR10A includes an automatic overload alarm that triggers when excessive load is detected, an electromagnetic brake protection system that limits end-tool drop distance at power failure, and an advanced motion control algorithm that reduces residual vibration by 50% during high-speed emergency stops — making it a safe and reliable choice for human-robot collaborative environments handling heavier payloads.
