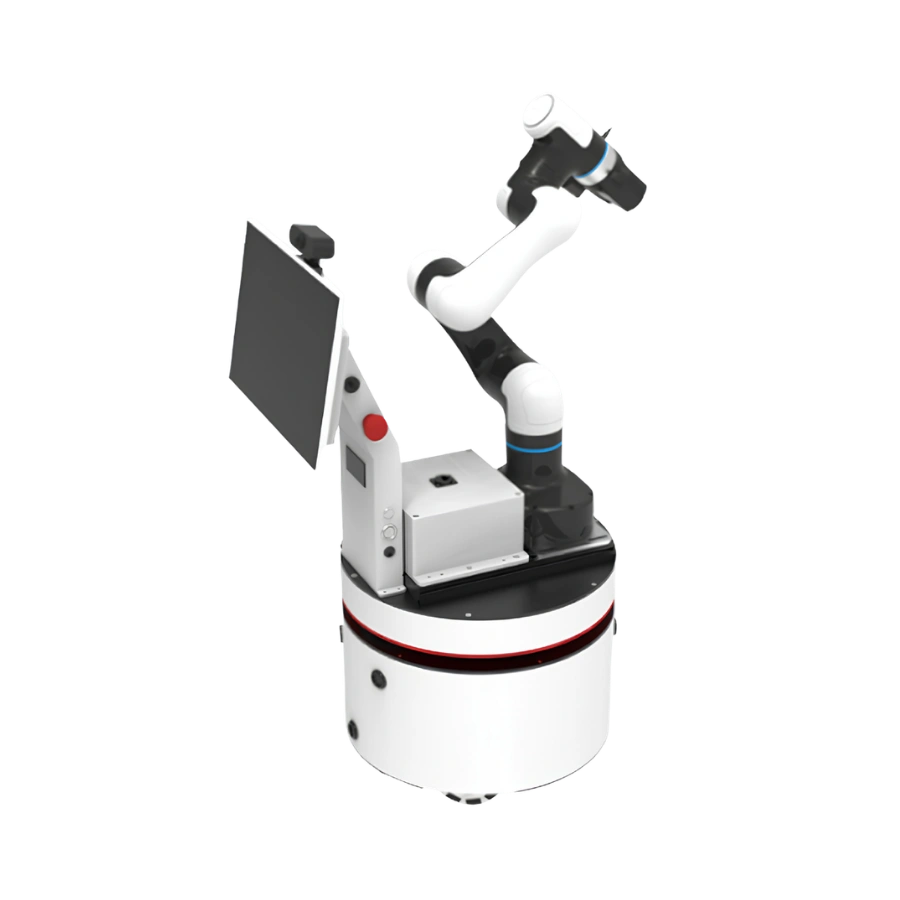

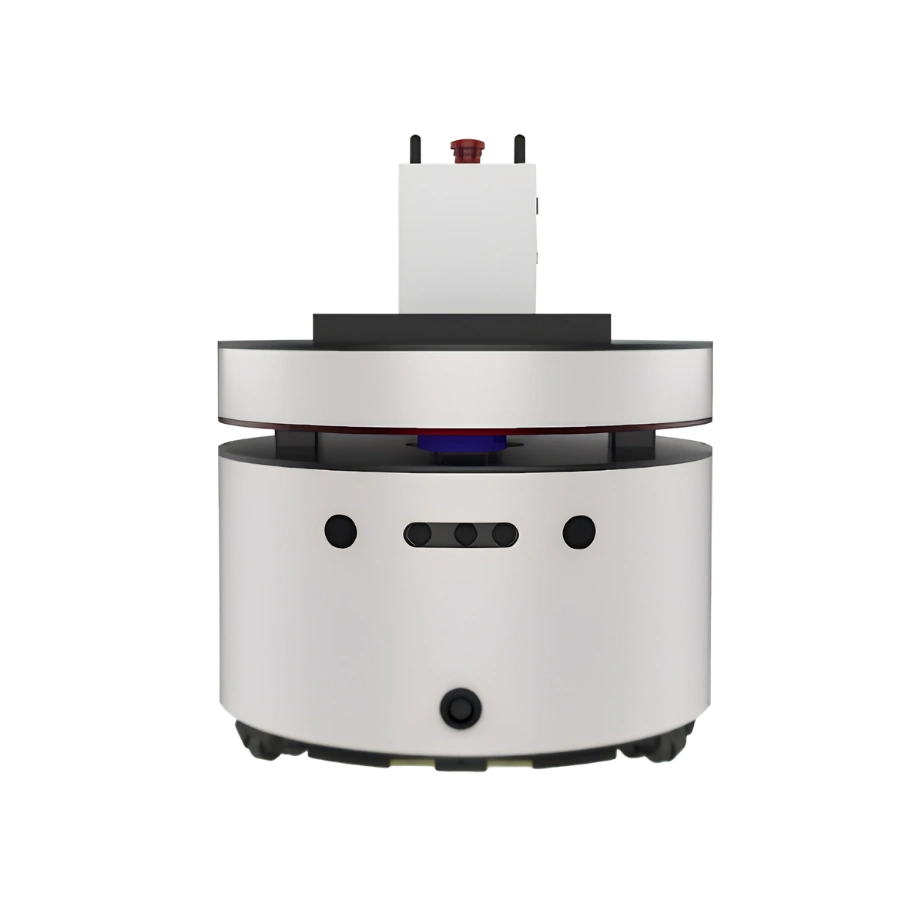

DOBOT E6 ROS Mobile Platform( Robot Exclued)
- Full Mobile Robotics Stack – SLAM mapping, autonomous navigation, path planning, and obstacle avoidance built in
- Vision-Based Mobile Grasping – Deep vision AI recognition for object detection and grasping experiments
- Industrial-Grade Navigation – Dual LiDAR (±3cm accuracy), ±5cm navigation accuracy, 20m+ range
- ROS-Ready Development – Industrial PC controller with ROS communication for custom development
- 50kg Max Payload – Independently suspended wheels with spot rotation capability
- All-Day Battery Life – 6+ hours no-load, 2+ hours under load, 24V rated system
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
DOBOT E6 ROS Mobile Platform

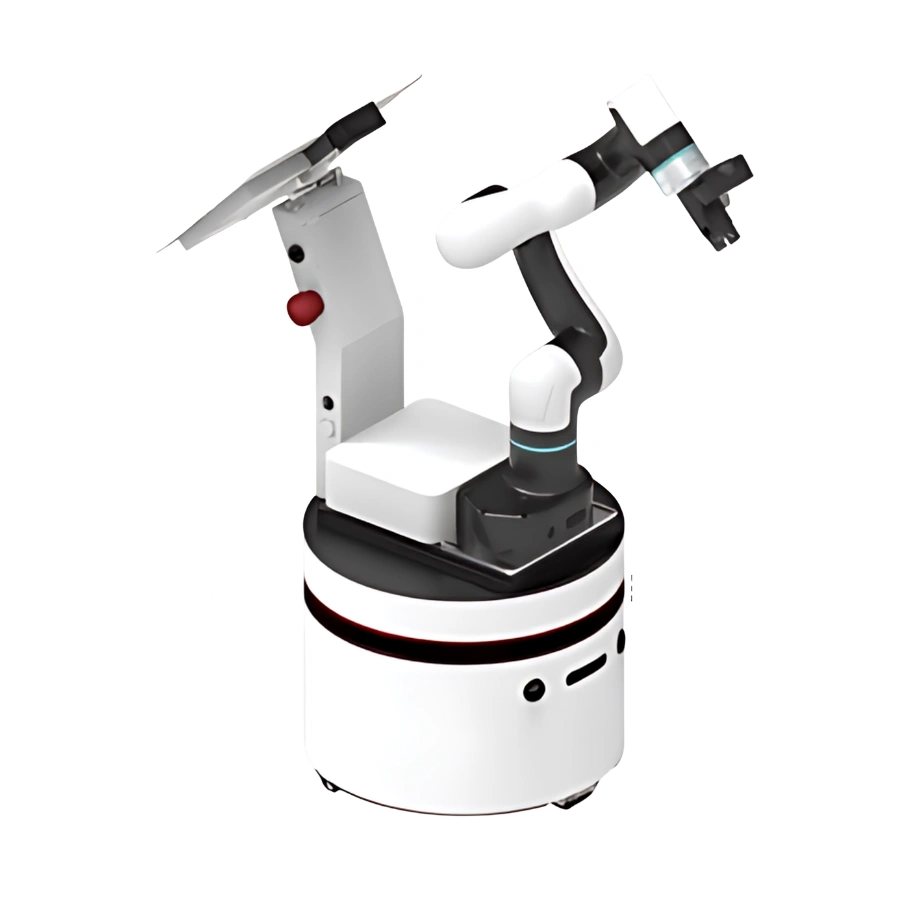

Integrates the DOBOT Magician E6 robotic arm with a mobile chassis, enabling object recognition, localization, grasping, and transportation tasks — supporting vision-based mobile grasping experiments for indoor robots.
Explore the DOBOT E6 ROS Mobile Platform
This mobile platform integrates the DOBOT Magician E6 robotic arm with a mobile chassis, enabling object recognition, localization, grasping, and transportation tasks — supporting vision-based mobile grasping experiments for indoor robots.
A Complete Mobile Robotics Learning Platform
Magician E6 + Mobile Chassis
Complete Technical Specification
| Item | Parameter |
|---|---|
| Compatible Robot Type | Magician E6 |
| Dimension | ≤520 × 520 × 350mm |
| Weight | ≤25kg |
| Maximum Payload | ≤50kg |
| Rated Voltage | 24V |
| Battery Life | ≥6h (no load); >2h (with load) |
| Navigation Accuracy | ±5cm |
| Critical Stop Precision | 5mm |
| LiDAR Accuracy | ±3cm |
| Range Measurement | ≥20m |
| Motion Performance | Max speed: ≥0.5m/s |
| Drive System | Independently suspended wheels with spot rotation capability |
| Main Controller | Industrial PC with ROS communication for custom development |
| Processor Specifications | RAM: ≥4GB · Storage: ≥64GB |
| Development Support | ROS-based custom development supported |
| Supported Camera Types | Configurable 2D/3D cameras |
| Sensor Parameters | Dual LiDAR (minimum), other sensors unrestricted |
DOBOT E6 ROS Mobile Platform
Does this include the Magician E6 robotic arm?
No. The Magician E6 robotic arm is not included in the price of the mobile platform and must be purchased separately.
What tasks can this platform perform?
It enables object recognition, localization, grasping, and transportation tasks, supporting vision-based mobile grasping experiments for indoor robots.
What is the maximum payload of the mobile chassis?
Up to 50kg, with the chassis itself weighing no more than 25kg.
How long does the battery last?
At least 6 hours with no load, or more than 2 hours when carrying a load.
Does it support custom software development?
Yes. The main controller is an industrial PC with ROS communication, supporting ROS-based custom development.
What sensors does it use for navigation?
A minimum of dual LiDAR units (±3cm accuracy, ≥20m range), with navigation accuracy of ±5cm and support for configurable 2D/3D cameras.
