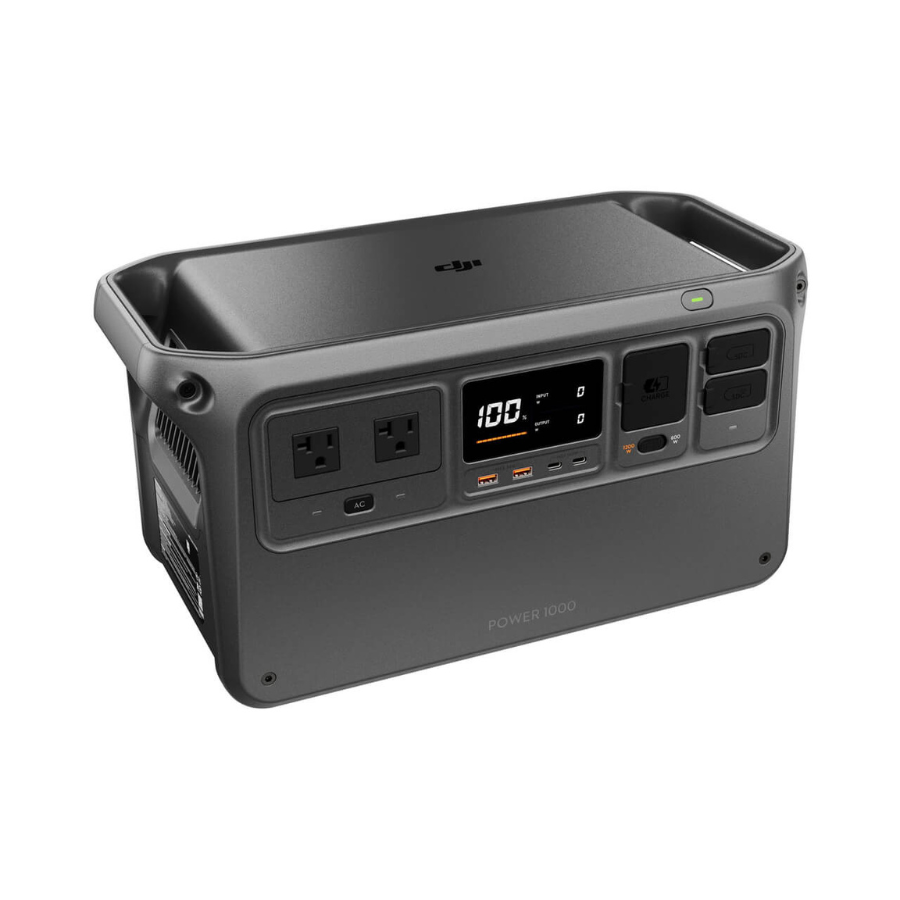

DJI Power 1000 Portable Power Station

117,999

  • Supports 1200W and 600W charging modes.
  • Achieve 100% charge in 70 minutes or 80% in just 50 minutes.
  • Passed 26 product test certifications from Swiss SGS.
  • Offers a 4,000-cycle life, approximately 10 years of use.
  • Features DJI Power SDC super-fast charge function.
  • Enables quick charging for select DJI drones for extended flight time.
  • Includes two 140W USB-C output ports.
  • Provides a total output of up to 280W for USB-C devices.

Description

DJI Power 1000 – High-Performance Power Backup

The DJI Power 1000 is a high-performance industrial drone designed to meet the demanding requirements of various industries. With its state-of-the-art sensors and imaging systems, the drone provides unparalleled precision and data quality. As a result, it excels in tasks such as aerial inspections, surveying, mapping, and monitoring.

Moreover, the Power 1000 features a powerful propulsion system that ensures stability and reliability, even in adverse weather conditions. This enables the drone to maintain consistent performance, regardless of environmental challenges. Additionally, its long flight time and extended range capabilities allow for comprehensive coverage of large areas, reducing the need for frequent battery changes. Consequently, this maximizes operational efficiency and reduces downtime.

The drone’s modular design also facilitates easy maintenance and quick component swaps. Thus, it ensures minimal downtime, allowing for continuous, reliable performance throughout the mission.

Integrated with intelligent flight modes and advanced obstacle avoidance, the DJI Power Portable Power Station offers both automated and manual control options. This versatility suits various operational needs, providing flexibility for different tasks. Additionally, the user-friendly interface and intuitive control system ensure accessibility for operators of all experience levels.

Moreover, the drone supports real-time data transmission and cloud storage, enabling seamless data management and analysis. As a result, operators can access, analyze, and share data effortlessly, enhancing efficiency and decision-making.

Experience the future of industrial operations with the DJI Power Portable Power Station. With cutting-edge technology and exceptional performance, it delivers reliable, efficient solutions for even the most demanding projects. Therefore, it empowers industries to achieve more, with precision and ease.

DJI Power 1000

Fully Charged in 70 Mins

When connected to grid power, the DJI Power 1000 offers rapid recharging capabilities, supporting both 1200W and 600W charging modes. This allows for flexible and efficient charging depending on operational needs. As a result, you can achieve a full 100% charge in just 70 minutes, minimizing downtime. Alternatively, you can get up to 80% charge in only 50 minutes, ensuring quick turnaround times. Therefore, the DJI Power 1000 keeps your operations running smoothly, maximizing efficiency and productivity.

DJI Power 1000

Safe and Secure Design

The DJI Power 1000 has earned 26 product test certifications from the Swiss SGS, ensuring its safety and reliability. As a result, it meets rigorous industry standards for safe use. Additionally, the drone boasts an impressive lifespan of 4,000 cycles, which translates to approximately 10 years of dependable performance. This durability makes the DJI Power 1000 a long-term investment, offering both reliability and longevity for your operations. Therefore, you can rely on the Power 1000 to deliver consistent, high-quality performance throughout its life cycle.

DJI Power 1000

Fast Charges DJI Drones

With the DJI Power SDC super-fast charge function, you can quickly charge select DJI drones, reducing downtime. As a result, you get more worry-free flight time, enhancing operational efficiency. Additionally, this feature opens up greater opportunities for creative exploration, allowing you to capture more footage in less time. Therefore, the DJI Power SDC ensures your drone is ready for action, providing a seamless flying experience.

DJI Power 1000

Dual 140W USB-C Ports, Super Fast Charging

The DJI Power 1000 is equipped with two 140W USB-C output ports, delivering a combined total power output of up to 280W. This feature ensures seamless compatibility with all your USB-C port-equipped devices, providing reliable power whenever you need it. As a result, you can efficiently charge multiple devices simultaneously, optimizing your workflow. Consequently, the DJI Power 1000 offers enhanced versatility and convenience, supporting a wide range of devices and applications.

DJI Power 1000

Extensive Accessories

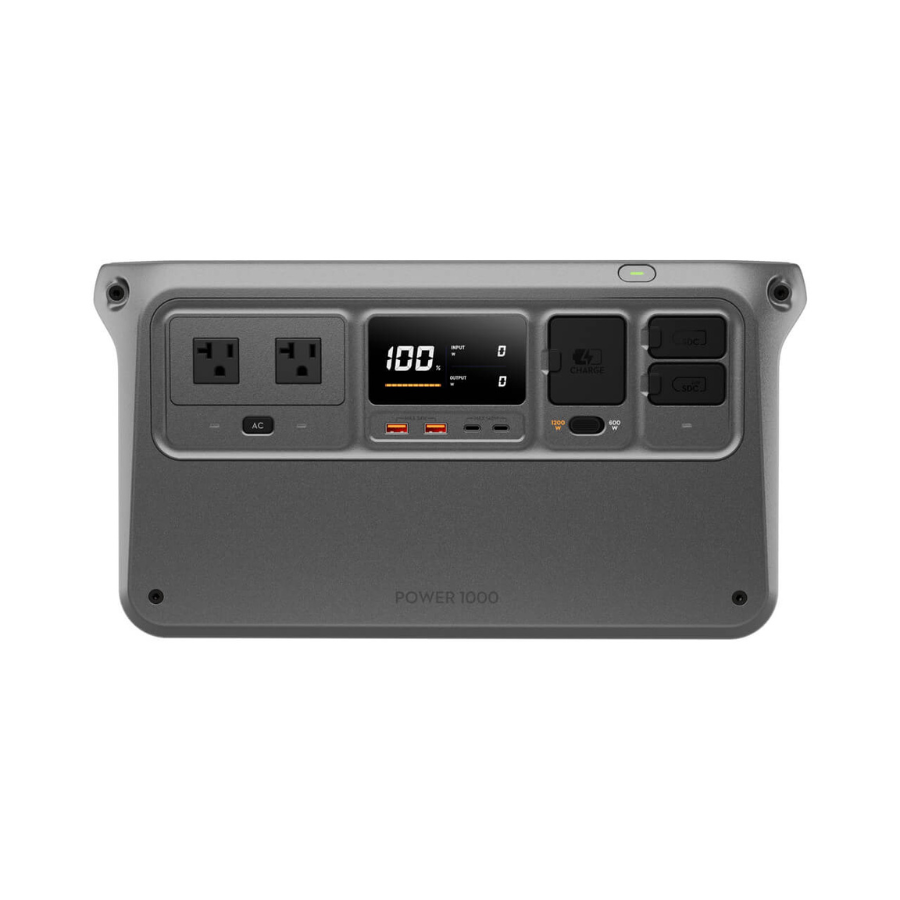

The DJI Power 1000 features a variety of connectivity options, including 2 USB-A ports, 2 AC output ports, 1 SDC port, 1 SDC Lite port, and 2 1/4″ thread holes. These diverse ports provide expanded charging and recharging capabilities, ensuring the device can support a wide range of operational needs. Consequently, you can charge multiple devices simultaneously, maximizing efficiency. Additionally, the variety of options ensures compatibility with various equipment, offering versatile solutions for your operations. Therefore, the DJI Power 1000 is designed to handle diverse requirements, making it a reliable tool for industrial use.

DJI Power 1000

Supports Solar Charging

The DJI Power 1000 supports solar recharging via an MPPT module or the DJI Power Car Power Outlet to SDC Power Cable. Alternatively, you can switch between the two methods for added flexibility. This enables sustainable power use in remote or extended operations. As a result, you reduce reliance on traditional sources. Additionally, these options keep the unit powered even in tough environments.

Dual Charging Modes: Offers both 1200W and 600W charging modes for flexible and rapid recharging options, accommodating different charging needs and preferences.

Multi-Device Compatibility: With a wide range of connectivity options including USB-A ports, USB-C ports, and AC output ports, the DJI Power 1000 seamlessly powers various devices, from smartphones and tablets to laptops and drones.

Solar Recharging Capability: Utilizes an MPPT module or the DJI Power Car Power Outlet to SDC Power Cable for solar recharging, providing sustainable and environmentally-friendly power solutions for outdoor use.

Certified Safety Standards: Boasts 26 product test certifications from Swiss SGS, ensuring adherence to rigorous safety standards and providing users with peace of mind during operation.

Long Lifespan: With a lifespan of 4,000 cycles, approximately 10 years of usage, the DJI Power 1000 offers exceptional durability and longevity, making it a reliable investment for long-term use.

Super-Fast Charging Function: Incorporates the DJI Power SDC super-fast charge function, allowing for quick charging of select DJI drones, enabling extended flight time and increased operational efficiency.

Modular Design: Designed with a modular construction for easy maintenance and component replacement, minimizing downtime and ensuring continuous operation in demanding environments.

Robust Construction: Built to withstand challenging conditions and intensive use, the DJI Power 1000 features a robust and durable design that ensures reliable performance in various operational settings.

Intelligent Data Management: Supports real-time data transmission and cloud storage, facilitating efficient data management and analysis for enhanced operational insights and decision-making.

User-Friendly Interface: Features an intuitive control system and interface, making it accessible for operators of all skill levels, while ensuring ease of operation and seamless user experience.

Specifications

General

  • Model

  • DYM1000L/DYM1000H
  • Capacity

  • 1024 Wh
  • Net Weight

  • Approx. 13 kg
  • Dimensions

  • 448Ă—225Ă—230 mm (LĂ—WĂ—H)
  • Number of Ports

  • AC Output Ă— 2
    USB-C Ă— 2
    USB-A Ă— 2
    SDC × 1
    SDC Lite × 1
    AC Input Ă— 1
  • Max Operating Altitude

  • 3000 m

Output Specifications

  • AC Output

  • DYM1000L: AC 100-120 V, 50/60 Hz, max continuous output: 2200 W,* max output: 2600 W (total),** peak output: 4400 W
    DYM1000H: AC 220-240 V, 50/60 Hz, max continuous output: 2200 W,* max output: 2600 W (total),** peak output: 4400 WAC output data varies by country and region.
    Given that the voltage in Japan is 100 V, the max continuous output power of the Japanese version is 2000 W.
    * At a room temperature of 25° C (77° F), Power 1000 can stably provide a max continuous output of 2200 W until the battery runs out. Data measured in a DJI laboratory.
    ** At an output power of 2600 W, the DYM1000L prototype can sustain for 30 seconds, and the DYM1000H prototype can sustain for 60 seconds. Durations were measured when DJI Power 1000 is at approx. 25° C (77° F) and 50% battery level. Duration may vary due to differences in battery temperature and battery level. Refer to the actual usage. It is recommended to use max power output when the battery is at a moderate temperature and a relatively higher battery level. Data measured in a DJI laboratory.
  • AC Output (Bypass Mode)

  • DYM1000L: AC 100-120 V, 12 A, 1440 W
    ‌DYM1000H: AC 220-240 V, 10 A, 2200 W
  • USB-A Output

  • 5 V, 3 A
    9 V, 2 A
    12 V, 2 A
    Max output power per channel: 24 W
  • USB–C Output

  • 5 V, 5 A
    9 V, 5 A
    12 V, 5 A
    15 V, 5 A
    20 V, 5 A
    28 V, 5 A (EPR)
    Max output power per channel: 140 W** Each USB-C port supports a max output power of 140 W. The device being charged must support the PD 3.1 protocol and use a USB cable that meets EPR specifications.
  • SDC and SDC Lite Output

  • SDC: 9-27 V, max current: 10 A, max output power: 240 W
    SDC Lite: 9-27 V, max current: 10 A, max output power: 240 WBoth of the SDC and SDC Lite ports support extensive accessories.

Input Specifications

  • AC Input

  • DYM1000L: AC 100-120 V, 1200 W (recharging), 1440 W (Bypass mode)
    DYM1000H: AC 220-240 V, 1200 W (recharging), 2200 W (Bypass mode)
  • SDC and SDC Lite Input

  • SDC: DC 32-58.4 V, max 400 W, 8 A
    SDC Lite: DC 32-58.4 V, max 400 W, 8 ABoth of the SDC and SDC Lite ports support extensive accessories

Battery

  • Cell Chemistry

  • LFP (lithium ferrophosphate)
  • Cycle Life

  • Maintains over 70% capacity after 4000 cycles.

    Measured at 25℃/77°F room temperature, being recharged in the 600W Standard Recharge Mode, and at an output power of 1000 W.

Operating Temperature

  • Power Supply Temperature

  • -10° to 45° C (14° to 113° F)
  • Recharging Temperature

  • 0° to 45° C (32° to 113° F)
  • Storage Temperature

  • -10° to 45° C (14° to 113° F)

FAQ's

What charging modes does the DJI Power 1000 support?

The DJI Power 1000 supports both 1200W and 600W charging modes, offering flexible recharging options to suit different needs. As a result, you can choose the mode that best fits your operational requirements.

How long does it take to charge the DJI Power 1000 fully?

You can achieve a full 100% charge in just 70 minutes with the DJI Power 1000, ensuring minimal downtime and maximum productivity. This fast charging capability helps maintain the flow of your operations.

What certifications does the DJI Power 1000 hold?

The DJI Power 1000 has earned 26 product test certifications from Swiss SGS, guaranteeing its safety and reliability for various applications. Therefore, you can trust its performance in demanding environments.

What is the lifespan of the DJI Power 1000?

With a lifespan of 4,000 cycles, equivalent to approximately 10 years of use, the DJI Power 1000 offers exceptional durability and longevity. This makes it a reliable long-term investment for your operations.

Can the DJI Power 1000 charge multiple devices simultaneously?

Yes, the DJI Power 1000 features multiple connectivity options, including USB-A ports, USB-C ports, and AC output ports, allowing for simultaneous charging of multiple devices. This versatility ensures efficiency in diverse settings.

Does the DJI Power 1000 support solar recharging?

Yes, the DJI Power 1000 can connect to solar panels via an MPPT module or the DJI Power Car Power Outlet to SDC Power Cable, providing sustainable power solutions for outdoor use. Consequently, this option enhances your operational flexibility.

What devices are compatible with the DJI Power 1000?

The DJI Power 1000 is compatible with a wide range of devices, including smartphones, tablets, laptops, and select DJI drones, offering versatile charging options for various applications. Thus, it ensures seamless integration with your equipment.

How fast is the super-fast charging function of the DJI Power 1000?

The DJI Power 1000 incorporates the DJI Power SDC super-fast charge function, enabling quick charging of select DJI drones for extended flight time and increased operational efficiency. This feature significantly reduces downtime.

Is the DJI Power 1000 easy to maintain?

Yes, the DJI Power 1000 features a modular design for easy maintenance and component replacement, ensuring minimal downtime and continuous operation. As a result, maintenance is streamlined and efficient.

Does the DJI Power 1000 come with a warranty?

Yes, the DJI Power 1000 is backed by a warranty, providing additional assurance of its quality and reliability for your peace of mind. Therefore, you can rely on its durability and performance.
