Description
GEPRC SPEEDX2 2806.5 1350KV/1760KV Motor
The SPEEDX2 2806.5 brushless motor is the second generation motor of GEPRC,featuring a new design elements and a lighter structure.
The SPEEDX2 2806.5 motor has good heat dissipation, light weight, enough power, good stability and is made of customized high-quality materials. With linear and delicate throttle control and excellent magnetic circuit design.SPEEDX2 2806.5 has a super smooth flying experience with superb power, high durability and crash resistance.
SPEEDX2 2806.5 motor is perfect for 6-7 inch long range and cinematic FPV.
We are pursuing lighter weight, more responsive, more efficient and more powerful brushless motors.
specification
Specification
Model:SPEEDX2 2806.5-1350KV
- KV: 1350KV
- Configuration: 12N14P
- Magnet: N52H ARC
- Stator Diameter: 28mm
- Stator Length: 6.5mm
- Shaft Diameter: Φ4.0mm

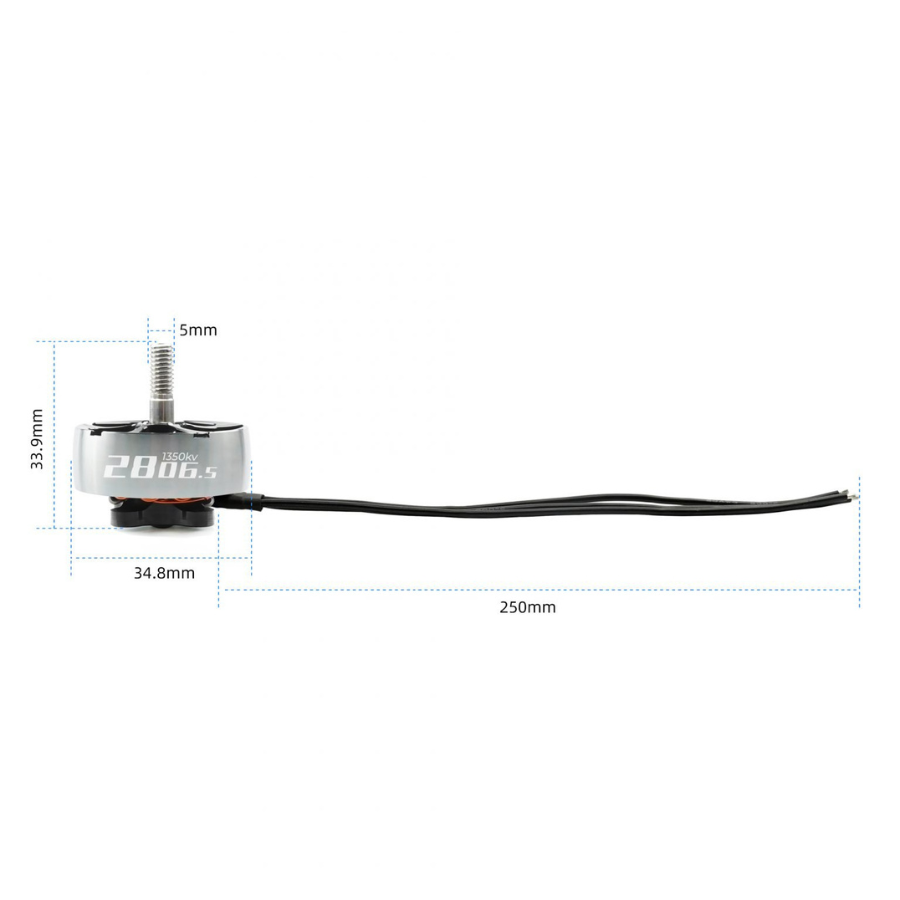

- Dimension: Φ34.8mm*33.9mm
- Lead wire size: 20#AWG 250mm
- Idle current (10V) : 1.25A
- No. of Cells (LiPo) : 4-6S
- Max Continuous Power(W) (5S): 960
- Max Current (5S) : 40A
- Internal Resistance: 58mΩ
- Mounting Holes: 19x19mm
- Weight: 48.0g
- Suitable for: 6-7″ Long Range Quadcopter
Model:SPEEDX2 2806.5-1760KV
- KV: 1760KV
- Configuration: 12N14P
- Magnet: N52H ARC
- Stator Diameter: 28mm
- Stator Lenght: 6.5mm
- Shaft Diameter: Φ4.0mm
- Dimension: Φ34.8mm*33.9mm
- Lead wire Size: 20#AWG 250mm
- Idle Current(10V): 1.7A
- No. of Cells (LiPo): 4-6S
- Max Continuous Power(W) (5S): 1200
- Max Current (5S)：50A
- Internal Resistance: 47mΩ
- Mounting Holes: 19x19mm
- Weight: 48.0g
- Suitable Quadcopter: 6-7″ Long Range Quadcopter
contains

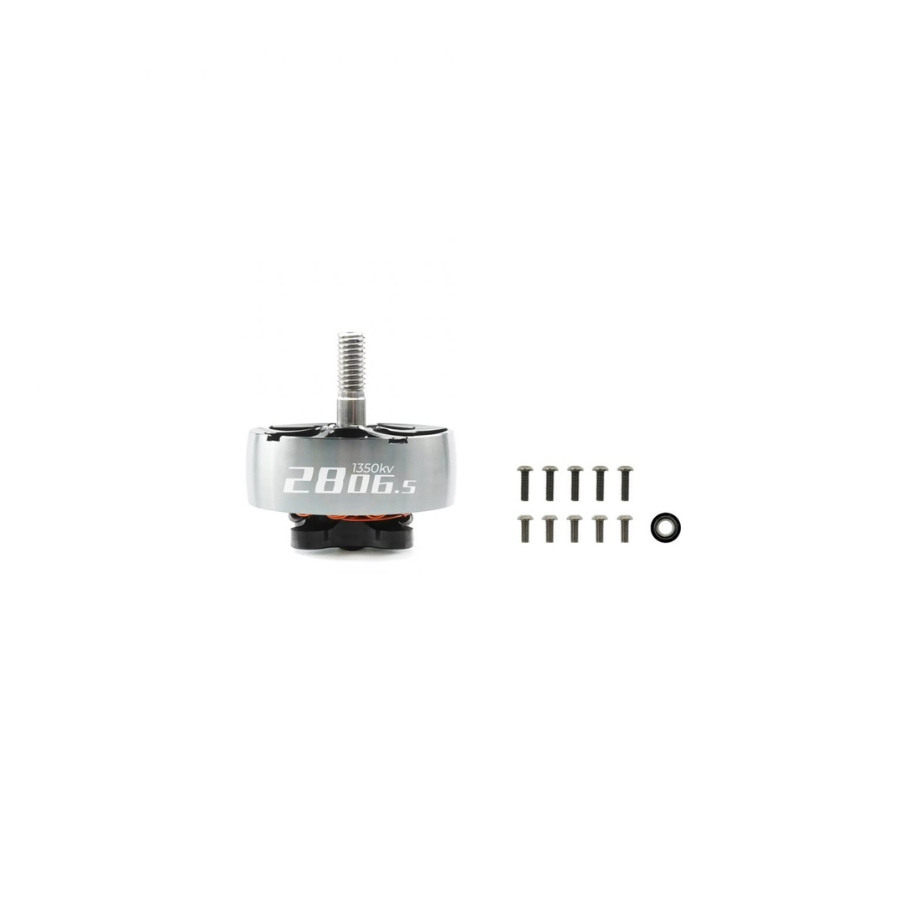

Include
1 x SPEEDX2 2806.5 Motor
5 x M3*8mm Screws
5 x M3*10mm Screws
1 x M5 Flange Nut
