Description

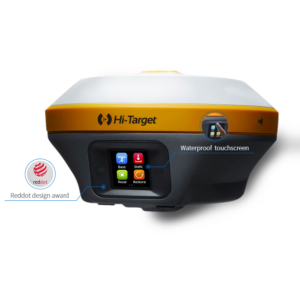

iRTK5 GNSS RTK System
iRTK5 GNSS RTK System
The iRTK5 GNSS receiver harnesses a next-generation GNSS engine, advanced communication technologies, and groundbreaking designs to offer a top-tier GNSS RTK surveying solution. As a high-quality, scalable device, it sets industry standards with its robust performance and versatility. Ideal for demanding field conditions, the iRTK5 ensures precise and reliable data collection, making it a leader in surveying technology. Its innovative features cater to the needs of professionals in remote or challenging environments, significantly enhancing surveying accuracy and efficiency.
Hi-RTP Global PPP Service
The Hi-RTP global correction service by Hi-Target has expanded its correction source, enabling users to operate in rural and remote areas worldwide without the need for a base station. This enhancement significantly broadens the usability of the service, allowing for precise positioning and data collection in locations previously challenging to access. The global reach and flexibility of this service make it an invaluable tool for professionals needing reliable survey capabilities across various geographies, improving productivity and operational efficiency in the field.
Revolutionary Tilt Survey with Built-in IMU
SHC55 Handheld Controller
- 5.5″ capacitive touch screen for fingers or stylus.
- Full energy supply for fieldwork assurance
- The alphanumeric layout of the keyboard for easier input.
- The Android 10.0 operating system for productive survey projects and data
Specifications
Product Specifications
Power
6
Operating power: max. :
28
Typical consumption :
4.4
Internal power supply:
6800mAh lithium-ion rechargeable and remove battery
Operating time with internal power supply [hr]
9
External power supply:
6-28V DC external power input(5-pin port) with over-discharge protection
Rechargeable with (auto)battery:
Yes
Performance
336
Tracked satellite signals:
BeiDou: B1, B2, B3 GPS: L1C/A, L2C, L2E, L5 GLONASS: L1C/A, L2C/A, L3 CDMA GALILEO: E1, E5A, E5B, E5AltBOC, E6
SBAS differential signals:
IRNSS: L5 QZSS: L1 C/A, L1 SAIF, L1C, L2C, L5, LEX SBAS: L1 C/A, L5 Support the PPP service
Type of measurements:
C/A; P code; CP
RTK Network Compatibility:
Yes
MRS functionality:
Yes
No. channels:
336
Communication: Protocols
RTCM2.X, RTCM3.0, RTCM3.2
CMR standards for differential data:
CMR, CMR+, sCMRx input and output
NMEA output format:
NMEA 0183
L-Band Compatible:
Y
Configuration method:
Industrial OLED color screen (240 * 240); Capacitive touch, waterproof, supports glove operation.
Recording
Circulating 16GB internal storage
Data capacity [MB]:
16384
Type of data (on board recording):
GNS and Rinex
Data input:
CMR, RTCM2.X, RTCM3.0, RTCM3.2
Environment
Operating temperature: min. [°C]:
-40
Operating temperature: max. [°C]:
75
Humidity resistance:
100%, condensing
Water sand and dust proof:
IP67
Shock and vibration proof:
Designed to survive a 2m natural fall onto concrete
