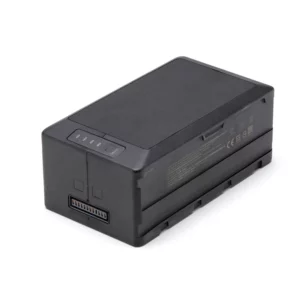

The DJI Matrice 300 TB60 Intelligent Flight Battery is a high-capacity battery at 5935 mAh which can provide up to 55 minutes of flight time on the DJI Matrice 300 RTK (with no payload). This flight battery is a hot-swappable battery which allows pilots and operators to change batteries without powering off the aircraft, which yield critical time saved during time sensitive operations. Two TB60 batteries are required for each flight, therefore TB60s are always operated in pairs. The DJI Matrice 300 TB60 Battery can only be charged using the DJI Matrice 300 BS60 Battery Station which can fully charge a pair of two TB60 batteries in about 70 minutes.
Specification
Name
TB60
Capacity
5935 mAh
Voltage
52.8 V
Battery Type
LiPo 12S
Energy
274 Wh
Net Weight
Approx. 1.35 kg (2.97 lbs)
Operating Temperature
-4°F to 122°F (-20°C to 50°C)
Ideal Storage Temperature
71.6°F to 86°F (22°C to 30°C)
Charging Temperature
-4°F to 104°F (-20°C to 40°C)
(When the temperature is lower than 5°C, the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
Charging Time
Using BS60 Intelligent Battery Station:
220V input: 60 minutes (fully charging two TB60 batteries), 30 minutes (charging two TB60 batteries from 20% to 90%)
110V input: 70 minutes (fully charging two TB60 batteries), 40 minutes (charging two TB60 batteries from 20% to 90%)
