AYK-350 Heavy Load VTOL

1,995,000

  • Max Speed: 97 kph
  • Max Wind Speed Resistance: 39-49 kph
  • Battery Capacity:  2453 mAh
  • Max Payload: 10 kg
  • Material: Carbon Fiber
  • Maximum Cruising Speed: 100 kph
  • Basic Empty Weight: 17.5 kg
  • Length: 1880 mm
  • Wingspan: 3500 mm
  • Max Take off Weight: 35 kg

1-Year Warranty     7 days return policy     PAN India Fast Shipping

Description

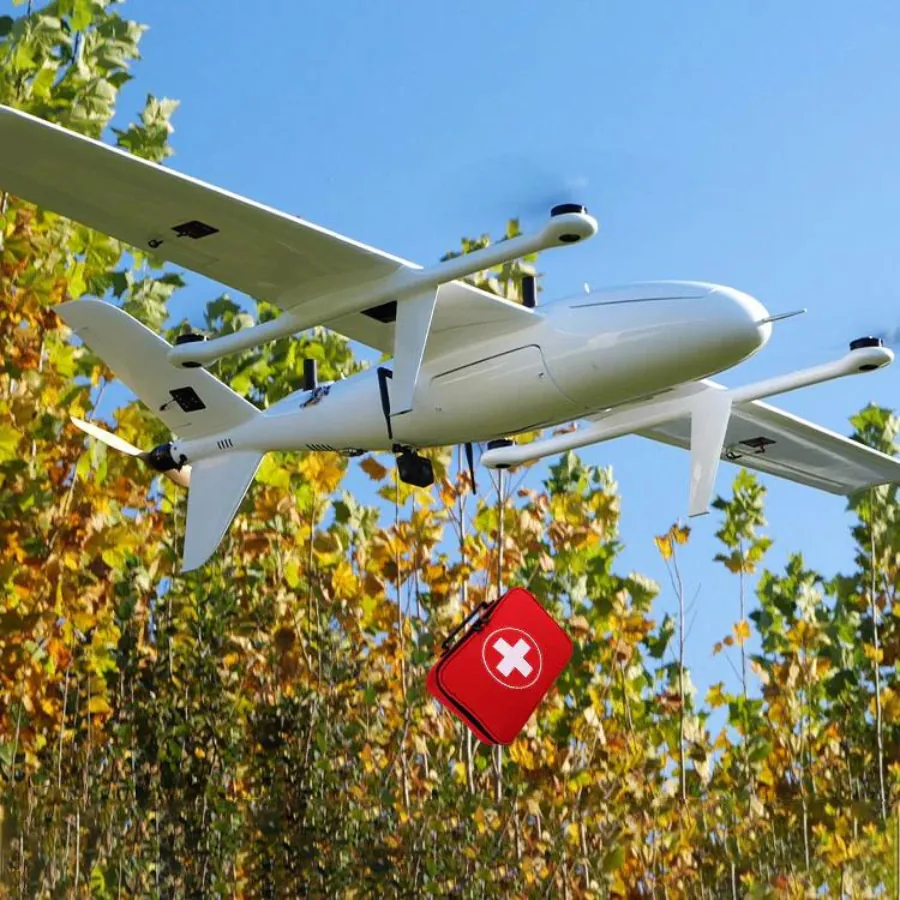

FOXTECH AYK-350 Heavy Load VTOL

An sophisticated unmanned aerial vehicle (UAV) with vertical takeoff capabilities for heavy-load missions is the FOXTECH AYK-350 Heavy Load VTOL (Vertical Takeoff and Landing). This adaptable drone is perfect for tasks like aerial mapping, cargo transportation, and surveying since it blends state-of-the-art technology with a sturdy build. The AYK-350 can carry specialized equipment and sensors for a range of industrial and professional operations because to its high payload capacity. This VTOL drone’s effective flight control technologies guarantee steady and accurate operation, making it a dependable choice for challenging aerial operations.

Heavy Payload Capacity: Engineered for exceptional lift, the AYK-350 excels in transporting heavy equipment and conducting surveys with advanced, weighty sensors, making it indispensable for logistical and research applications requiring robust carrying capabilities.

Vertical Takeoff and Landing (VTOL): With VTOL technology, this drone launches and lands vertically, offering unmatched flexibility and enabling operations in diverse environments without the need for runways, dramatically enhancing operational versatility.

Long-Range Operations: Designed to cover vast distances, the AYK-350 is ideal for extensive area coverage or accessing remote locations, essential for large-scale environmental monitoring and surveillance tasks.

Extended Flight Time: Boasting prolonged flight durations, the AYK-350 supports extended missions and continuous operation, beneficial for detailed surveys and persistent surveillance or logistical support over broad areas.

Advanced Navigation and Stability Systems: Featuring sophisticated navigation technologies, it ensures precise positioning and stability, crucial for accuracy-dependent tasks like detailed mapping and precision agriculture.

All-Weather Operation: Capable of performing reliably across various weather conditions, the AYK-350 guarantees consistent operation year-round, essential for missions that cannot be delayed by adverse weather.

Modular Payload System: Its modular payload design facilitates easy adaptation to different missions, accommodating a range of equipment and sensors for diverse applications from imaging to emergency response.

Secure Data Transmission: With encrypted communication, the AYK-350 secures sensitive data, ensuring safe handling of confidential information, vital for operations requiring high levels of data protection.

High-Speed Flight: Achieving high speeds, the AYK-350 enhances mission efficiency and provides rapid response capabilities, crucial for time-sensitive operations like emergency deliveries and surveillance.

User-Friendly Operation: Despite its sophisticated features, the AYK-350 is built for straightforward control, making it accessible to operators of varying skill levels and ensuring effective management of the drone’s advanced capabilities.

The AYK-350 Heavy Load VTOL stands as a leap forward in drone technology, delivering powerful performance and unparalleled versatility for professionals needing a reliable, high-capacity UAV for complex, demanding missions.

Design of a Dual GPS Differential: The AYK-350 Pro can be outfitted with dual GPS (DGPS) to enhance location accuracy, anti-interference capability, and flight stability; no compass calibration is required. This is because it has three reserved GPS spots.

Fast-mounting Structure: The AYK-350 VTOL’s whole body, including the wings, arms, and tail section, has a quick-detach design that guarantees swift assembly and compact packing. It is also practical to put various work equipment inside the removable payload cabin, which has a maximum payload capacity of 10 kg.

Most recent DLVR Airspeed Measurement Technology: The most recent DLVR air speedometer, with its low-temperature drift and high precision, significantly increases the aircraft’s dependability.

Manned/Unmanned Cargo Pickup: Manned/Unmanned Cargo Pickup Mode (Unmanned): A. AYK-350 will take the cargo to its destination using a pre-programmed system; B. it will drop the box after descending to a desired height; C. it will return.

Mode Ⅱ (Unmanned): A. transport the package to its intended location; B. disembark and land; C. release the cargo; D. launch automatically in ten seconds (you can adjust the time).

FOXTECH AYK-350 Heavy Load VTOL
FOXTECH AYK-350 Heavy Load VTOL
FOXTECH AYK-350 Heavy Load VTOL
FOXTECH AYK-350 Heavy Load VTOL
FOXTECH AYK-350 Heavy Load VTOL
FOXTECH AYK-350 Heavy Load VTOL

Specification

Technical

Version: AYK-350
Type: VTOL
Color: White
Wingspan: 3500 mm
Length: 1880 mm
Material: Carbon Fiber
Basic Empty Weight: 17.5 kg (no battery)
Max Takeoff Weight: 35 kg
Suggested Max Payload: 10 kg
Endurance: 2.5 h@7kg Payload
Suggested Cruising Speed: 22 m/s
Max Cruising Speed: 28 m/s
Stall Speed: 17 m/s
Max Flight Altitude: 3000 m
Max Takeoff Altitude: 2000 m
Battery: 4x6S 25000 mAh
Wind Resistance: 10.8 m/s-13.8 m/s (fixedwing); 5.5 m/s-7.9 m/s (vtol)
Working Voltage: 48 V
Working Temperature:  -20℃~45℃
Carrying Case: 1670*590*540 mm

Your Purchase Includes: RTF Combo (Pixhawk / CUAV X7 Pro)

1x AYK-350 VTOL
1x High Efficiency Tail Motor
1x Tail ESC
1x 24 inch Propeller for Tail Motor
1x 24 inch Spare Propeller for Tail Motor(for free)
4x Servo
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) 26 inch Propellers for VTOL Mode
1x (pair) 26 inch Spare Propellers for VTOL Mode(for free)
2x UBEC
2x Power Monitor Module
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS

(or CUAV X7 Pro Flight Controller with NEO 3 Pro GNSS)

1x DA16S+ Radio Controller
1x Carrying Case
1x Assembling, tuned and Flying Test Service

Your Purchase Includes: Dual GPS Combo:

1x AYK-350 VTOL
1x High Efficiency Tail Motor
1x Tail ESC
1x 24 inch Propeller for Tail Motor
1x 24 inch Spare Propeller for Tail Motor(for free)
4x Servo
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) 26 inch Propellers for VTOL Mode
1x (pair) 26 inch Spare Propellers for VTOL Mode(for free)|
2x UBEC
2x Power Monitor Module
1x Pixhawk Cube Orange Standard Set (or CUAV X7 Pro Flight Controller)
2x C-RTK 9Ps High Precision Positioning Module Pixhawk Sky End
1x DA16S+ Radio Controller
1x Carrying Case
1x Assembling, tuned and Flying Test Service

FAQ's

  1.  What types of payloads can the AYK-350 carry?
    The AYK-350 is designed to carry a wide range of heavy payloads, including advanced sensors for aerial surveys, equipment for logistical support, and other specialized tools for research and industrial applications, thanks to its robust carrying capacity.
  2.  How does VTOL technology benefit the AYK-350?
    VTOL technology allows the AYK-350 to take off and land vertically, providing flexibility to operate in environments without runways, such as urban areas, remote terrains, and rugged landscapes, enhancing its usability across various mission types.
  3.  Can the AYK-350 be used for long-distance missions?
    Yes, the AYK-350 is equipped for long-range operations, making it suitable for missions that cover extensive areas or require travel to remote locations, including environmental monitoring and border surveillance.
  4.  What is the flight time of the AYK-350?
    The AYK-350 offers extended flight times, allowing for longer missions and continuous operation, which is particularly beneficial for comprehensive surveys and ongoing surveillance tasks.
  5.  How accurate is the navigation system of the AYK-350?
    The AYK-350 features an advanced navigation and stability system that ensures precise positioning and stability even under challenging conditions, crucial for tasks requiring high levels of accuracy.
  6.  Can the AYK-350 operate in adverse weather?
    Yes, the AYK-350’s all-weather operation capability allows it to perform reliably in various environmental conditions, including rain, wind, and temperature extremes, ensuring consistent performance year-round.
  7.  Is it possible to customize the AYK-350 for different applications?
    Absolutely, the AYK-350’s modular payload system allows for quick customization and changes to payloads, making it adaptable for a wide variety of applications, from aerial imaging to emergency response.
  8.  How does the AYK-350 ensure data security during transmission?
    The AYK-350 incorporates encrypted data transmission technology to protect sensitive information, ensuring secure communication and data handling during operations.
  9.  What are the speed capabilities of the AYK-350?
    The AYK-350 is capable of reaching high speeds, reducing mission time and offering rapid response capabilities, which is essential for emergency situations and quick-reaction tasks.
  10.  Is the AYK-350 user-friendly for operators with different levels of experience?
    Yes, despite its advanced capabilities, the AYK-350 is designed with user-friendly controls, making it accessible and straightforward to operate for users with varying levels of drone piloting experience.
